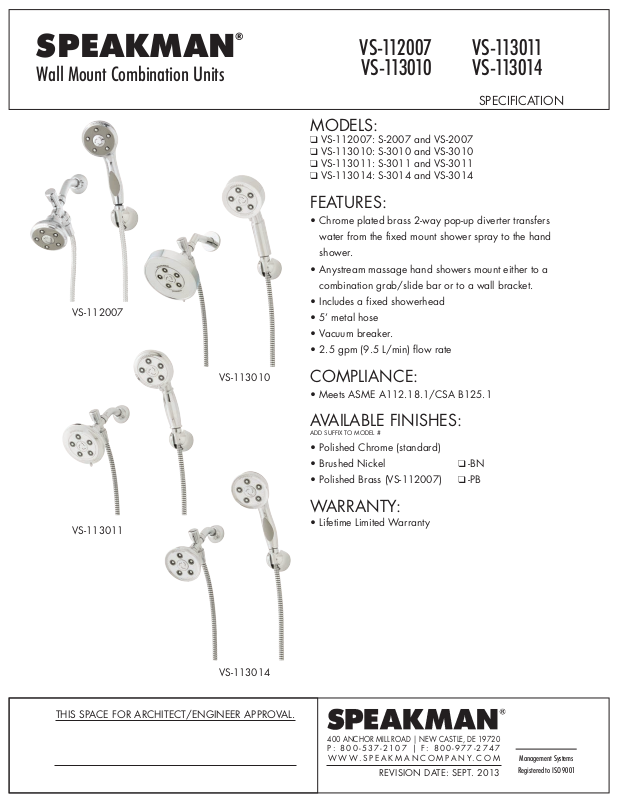

SPEAKMAN
®
VS-112007
VS-113011
Wall Mount Combination Units
VS-112007
VS-113010
VS-113014
SPECIFICATION
MODELS:
❑ VS-112007: S-2007 and VS-2007
❑ VS-113010: S-3010 and VS-3010
❑ VS-113011: S-3011 and VS-3011
❑ VS-113014: S-3014 and VS-3014
FEATURES:
• Chrome plated brass 2-way pop-up diverter transfers
water from the fixed mount shower spray to the hand
shower.
• Anystream massage hand showers mount either to a
combination grab/slide bar or to a wall bracket.
• Includes a fixed showerhead
• 5’ metal hose
• Vacuum breaker.
• 2.5 gpm (9.5 L/min) ow rate
VS-113011
VS-113010
COMPLIANCE:
• Meets ASME A112.18.1/CSA B125.1
AVAILABLE FINISHES:
ADD SUFFIX TO MODEL #
• Polished Chrome (standard)
• Brushed Nickel ❑ -BN
• Polished Brass (VS-112007) ❑ -PB
WARRANTY:
• Lifetime Limited Warranty
VS-113014
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: SEPT. 2013
Management Systems
Registered to ISO 9001
