SPEAKMAN SE-4360

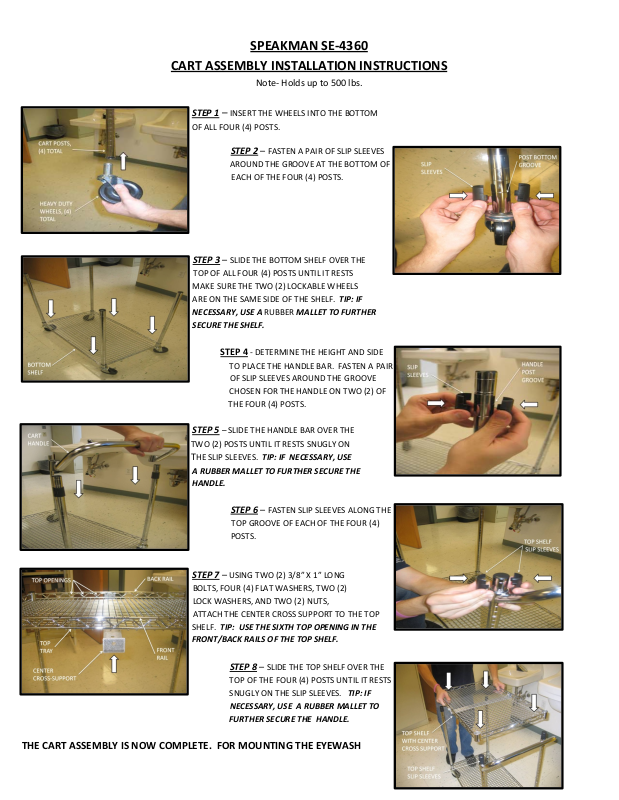

CART ASSEMBLY INSTALLATION INSTRUCTIONS

Note- Holds up to 500 lbs.

OF ALL FOUR (4) POSTS.

STEP 1 – INSERT THE WHEELS INTO THE BOTTOM

STEP 2 – FASTEN A PAIR OF SLIP SLEEVES

AROUND THE GROOVE AT THE BOTTOM OF

EACH OF THE FOUR (4) POSTS.

TOP OF ALL FOUR (4) POSTS UNTIL IT RESTS

MAKE SURE THE TWO (2) LOCKABLE WHEELS
ARE ON THE SAME SIDE OF THE SHELF. TIP: IF
NECESSARY, USE A RUBBER MALLET TO FURTHER

SECURE THE SHELF.

STEP 3 – SLIDE THE BOTTOM SHELF OVER THE

- DETERMINE THE HEIGHT AND SIDE

STEP 4

TO PLACE THE HANDLE BAR. FASTEN A PAIR

CHOSEN FOR THE HANDLE ON TWO (2) OF
THE FOUR (4) POSTS.

STEP 5 – SLIDE THE HANDLE BAR OVER THE

OF SLIP SLEEVES AROUND THE GROOVE

TWO (2) POSTS UNTIL IT RESTS SNUGLY ON
T

HE SLIP SLEEVES. TIP: IF NECESSARY, USE

A RUBBER MALLET TO FURTHER SECURE THE

HANDLE.

TOP GROOVE OF EACH OF THE FOUR (4)

POSTS.

BOLTS, FOUR (4) FLAT WASHERS, TWO (2)
LOCK WASHERS, AND TWO (2) NUTS,
ATTACH THE CENTER CROSS SUPPORT TO THE TOP

STEP 7 – USING TWO (2) 3/8” X 1” LONG

STEP 6 – FASTEN SLIP SLEEVES ALONG THE

SHELF. TIP: USE THE SIXTH TOP OPENING IN THE

FRONT/BACK RAILS OF THE TOP SHELF.

STEP 8 –

TOP OF THE FOUR (4) POSTS UNTIL IT RESTS

SNUGLY ON THE SLIP SLEEVES. TIP: IF
NECESSARY, USE A RUBBER MALLET TO
FURTHER SECURE THE HANDLE.

SLIDE THE TOP SHELF OVER THE

THE CART ASSEMBLY IS NOW COMPLETE. FOR MOUNTING THE EYEWASH

UNIT, SEE BACK SIDE OF THIS SHEET.

SPEAKMAN SE-4360

EYEWASH MOUNTING INSTALLATION INSTRUCTIONS

STEP 9 – PLACE A LOCK WASHER AND WASHER AROUND

THE 3/8” X 4” LONG BOLT AND SLIDE IT THROUGH THE
HOLE AT THE BOTTOM OF THE EYEWASH WALL MOUNTING
BRACKET.

STEP 10 –

TO THE EYEWASH UNIT BY FIRST LATCHING
THE UPPER HANDLE PORTION OF THE TANK TO
THE UPPER HOOK OF THE WALL BRACKET.
POSITION THE BOTTOM PORTION OF THE TANK
ONTO THE WALL BRACKET SO THE DRAIN
FITTING CAN BE INSERTED THROUGH THE DRAIN
HOLE OF THE TANK AND THE HOLE IN THE WALL
BRACKET SIMULTANEOUSLY.

ATTACH THE WALL MOUNT BRACKET

STEP 11 – LOCK THE DRAIN FITTING INTO PLACE

BY ASSEMBLING WASHER AND NUT TO
UNDERSIDE OF DRAIN FITTING.

STEP 12 – S

OVER BOLT. SLIP BOLT THROUGH HOLE IN
CENTER CROSS SUPPORT.

LIDE BOLT SPACER AND WASHER

STEP 13 –

LOCK WASHER, AND NUT, SECURE THE SE-4300
EYEWASH UNIT TO THE CENTER CROSS SUPPORT
AND TOP SHELF OF THE SAFETY CART.

ON THE BOTTOM SHELF OF THE CART TO COLLECT
WATER DISPENSED FROM THE DRAIN FITTING
ONCE THE UNIT HAS BEEN ACTIVATED. TIP: FOR

TANK FILLING, OPERATION, VISUAL INSPECTION,
AND MAINTENANCE INSTRUCTIONS, SEE SE-4300
INSTALLATION INSTRUCTION SHEET.

OF THE COLLECTION STATION TO DRAIN
WATER AFTER EACH USE.

STEP 15 - USE THE PETCOCK DRAIN ON THE SIDE

USING A FLAT WASHER,

STEP 14 – PLACE THE FLUID COLLECTION STATION

PART NO. 92-3173-R2

3/2014
