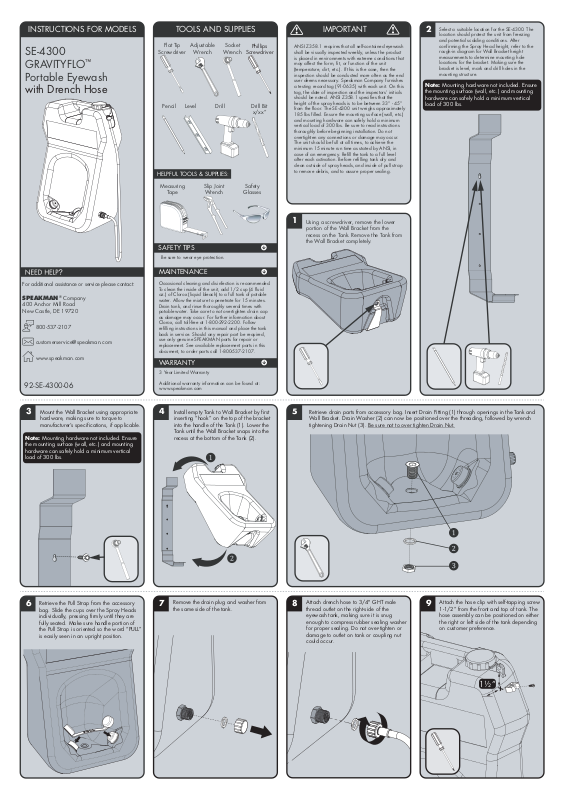

INSTRUCTIONS FOR MODELS
92-SE-4300-06
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
SE-4300
GRAVITYFLO
™
Portable Eyewash
with Drench Hose
HELPFUL TOOLS & SUPPLIES:
TOOLS AND SUPPLIES
Flat Tip
Screwdriver
Adjustable
Wrench
Socket
Wrench
Phillips
Screwdriver
Pencil Level Drill Drill Bit
x/xx”
Measuring
Tape
Safety
Glasses
Slip Joint
Wrench
3 Year Limited Warranty
Additional warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Be sure to wear eye protection.
SAFETY TIPS
Occasional cleaning and disinfection is recommended.
To clean the inside of the unit, add 1/2 cup (4 fluid
oz.) of Clorox (liquid bleach) to a full tank of potable
water. Allow the mixture to penetrate for 15 minutes.
Drain tank, and rinse thoroughly several times with
potable water. Take care to not overtighten drain cap
as damage may occur. For further information about
Clorox, call toll-free at 1-800-292-2200. Follow
refilling instructions in this manual and place the tank
back in service. Should any repair part be required,
use only genuine SPEAKMAN parts for repair or
replacement. See available replacement parts in this
document, to order parts call 1-800-537-2107.
IMPORTANT
ANSI Z358.1 requires that all self-contained eyewash
shall be visually inspected weekly, unless the product
is placed in environments with extreme conditions that
may affect the form, fit, or function of the unit
(temperature, dirt, etc.). If this is the case, then the
inspection should be conducted more often as the end
user deems necessary. Speakman Company furnishes
a testing record tag (91-0635) with each unit. On this
tag, the date of inspection and the inspectors’ initials
should be noted. ANSI Z358.1 specifies that the
height of the spray heads is to be between 33” - 45”
from the floor. The SE-4300 unit weighs approximately
185 lbs filled. Ensure the mounting surface (wall, etc.)
and mounting hardware can safely hold a minimum
vertical load of 300 lbs. Be sure to read instructions
thoroughly before beginning installation. Do not
overtighten any connections or damage may occur.
The unit should be full at all times, to achieve the
minimum 15 minute run time as stated by ANSI, in
case of an emergency. Refill the tank to a full level
after each activation. Before refilling tank dry and
clean outside of spray heads, and inside of pull strap
to remove debris, and to assure proper sealing.

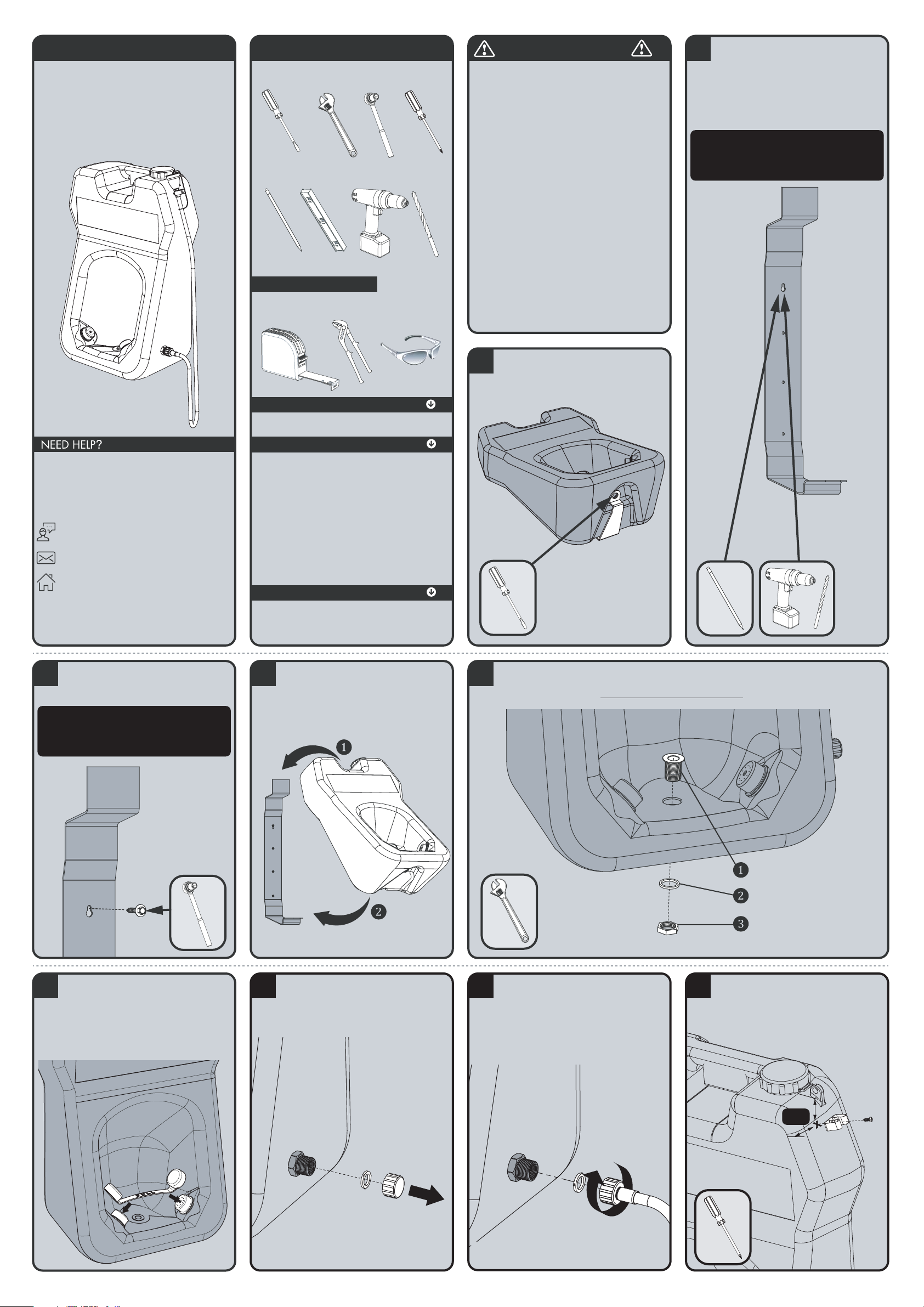

1
Using a screwdriver, remove the lower
portion of the Wall Bracket from the
recess on the Tank. Remove the Tank from
the Wall Bracket completely.
2
Select a suitable location for the SE-4300. The
location should protect the unit from freezing
and potential scalding conditions. After
confirming the Spray Head height, refer to the
rough-in diagram for Wall Bracket height
measurements to determine mounting hole
locations for the bracket. Making sure the
bracket is level, mark and drill holes in the
mounting structure.
Note: Mounting hardware not included. Ensure
the mounting surface (wall, etc.) and mounting
hardware can safely hold a minimum vertical
load of 300 lbs.
3
Mount the Wall Bracket using appropriate
hardware, making sure to torque to
manufacturer’s specifications, if applicable.
Note: Mounting hardware not included. Ensure
the mounting surface (wall, etc.) and mounting
hardware can safely hold a minimum vertical
load of 300 lbs.
4
Install empty Tank to Wall Bracket by first
inserting “hook” on the top of the bracket
into the handle of the Tank (1). Lower the
Tank until the Wall Bracket snaps into the
recess at the bottom of the Tank (2).
5
Retrieve drain parts from accessory bag. Insert Drain Fitting (1) through openings in the Tank and
Wall Bracket. Drain Washer (2) can now be positioned over the threading, followed by wrench
tightening Drain Nut (3). Be sure not to over tighten Drain Nut.
6
Retrieve the Pull Strap from the accessory
bag. Slide the cups over the Spray Heads
individually, pressing firmly until they are
fully seated. Make sure handle portion of
the Pull Strap is oriented so the word “PULL”
is easily seen in an upright position.
7
Remove the drain plug and washer from
the same side of the tank.
8
Attach drench hose to 3/4" GHT male
thread outlet on the right-side of the
eyewash tank, making sure it is snug
enough to compress rubber sealing washer
for proper sealing. Do not over-tighten or
damage to outlet on tank or coupling nut
could occur.
9
Attach the hose clip with self-tapping screw
1-1/2” from the front and top of tank. The
hose assembly can be positioned on either
the right or left side of the tank depending
on customer preference.
1½”
Page 2

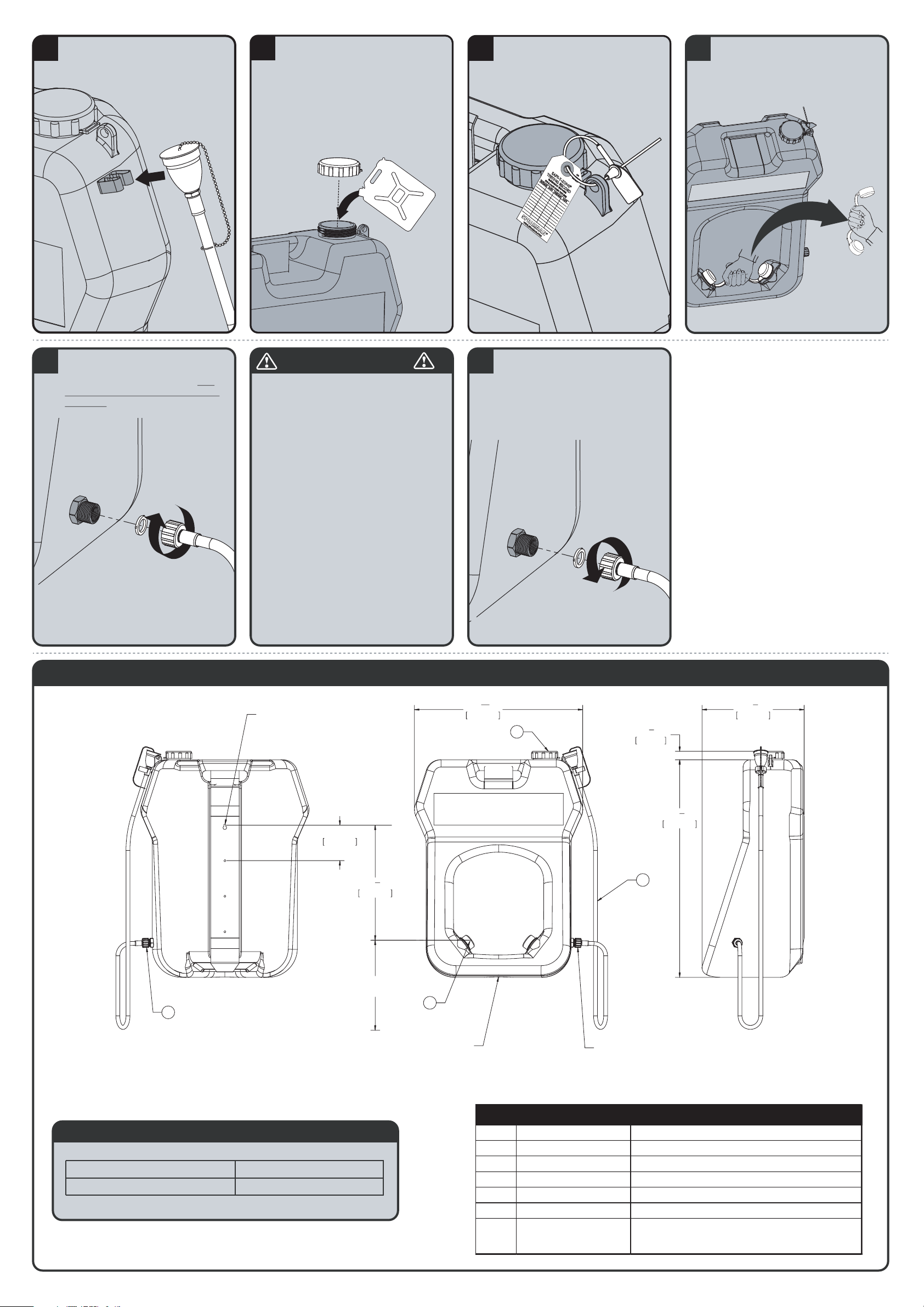

10
Hook the hose into the hose clip.
11
H20
Remove Fill Cap and fill the Tank with
potable water (approximately 20 gallons).
Failure to use potable water can result in
emergency units producing impure or
contaminated water, possibly causing
further injury. Inspect for leaks. If leak
occurs, gradually tighten coupling nut to
add further compression to rubber washer
as outlined in Step 8.
12
Reinstall Fill Cap and secure it with the
tamper-evident Seal Tie. Update and secure
the Maintenance Tag to the Tank in a
location where it can be easily checked.
13
To activate the flow of water, pull upwards
on the Pull Strap, fully removing both
covers from the Spray Heads.
14
If the drench hose connection port area
should develop a leak, simply snug the
retaining nut to compress the seal. Take
extra care to not over tighten or damage
may occur.
IMPORTANT
Self-contained eyewash equipment shall be visually
15
To periodically drain the unit, remove the
lower drench hose connection. Once all
water is removed, reinstall connection and
hand tighten into position. Take care to not
over tighten or damage may occur.
SE-4300 ROUGH-IN DIAGRAM / REPAIR PARTS
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
FLOW DATA:
RUN TIME (FULL TANK)
15 MINUTES (minimum)
FLOW RATE IN gpm (L/min)
.4 (1.5) MINIMUM
REPAIR PARTS
ITEM PART NUMBER DESCRIPTION
1 RPG07-0021 FILL CAP
2 RPG38-0433 (2) SPRAY HEAD ASSEMBLIES
3 RPG07-0022 SIDE OUTLET CAP
N/S RPG56-0039 PULL STRAP ACTIVATOR
N/S RPG05-0935 (3) 12" TAMPER EVIDENT SEAL TIES
N/S RPG05-0901
PULL STRAP ACTIVATOR & DRAIN
BULKHEAD FITTING
4 SE-4920 DRENCH HOSE
checked frequently to determine if flushing fluid
needs to be changed or supplemented. Frequency
of these inspections is dependent on environment
conditions, but at a minimum weekly. Failure to
conduct visual checks could lead to further injury.
Customer shall take precautions to help prevent
the growth of potentially harmful bacteria in
eyewash tanks. Either of the following procedures
is recommended.
Procedure 1: Use suitable Bacteriostatic
preservative to help prevent growth of bacteria in
eyewash tank. Eyewash tank should be drained,
flushed and refilled with clean potable water and
Bacteriostatic preservative added as directed by
the preservative’s manufacturer.
Procedure 2: Drain, flush and refill units with
clean potable water at least once every week
unless site conditions require more frequent
changing. Thoroughly cleanse tank at least once
every month. See “Maintenance” Section for
further information of cleaning unit.
3
WALL BRACKET MOUNTING
HOLES Ø1/4" THRU HOLE
(TYP. 4 PLACES)
5"
126.95mm
(TYP. 3 PLACES)
(833mm-1143mm
1
"
16
4
411.17mm
33" - 45"
TO FLOOR
3/4" GHT MALE DRAIN OUTLET
(UNDERSIDE OF TANK)
11
"
23
16
601.50mm
1
"
1
2
3/4" GHT MALE SIDE OUTLET
(WHEN CAP IS REMOVED) FOR
ATTACHING DRENCH HOSE
1
4
30.31mm
4
5
"
30
8
777.24mm
1
"
14
2
364.81mm
