Page 1

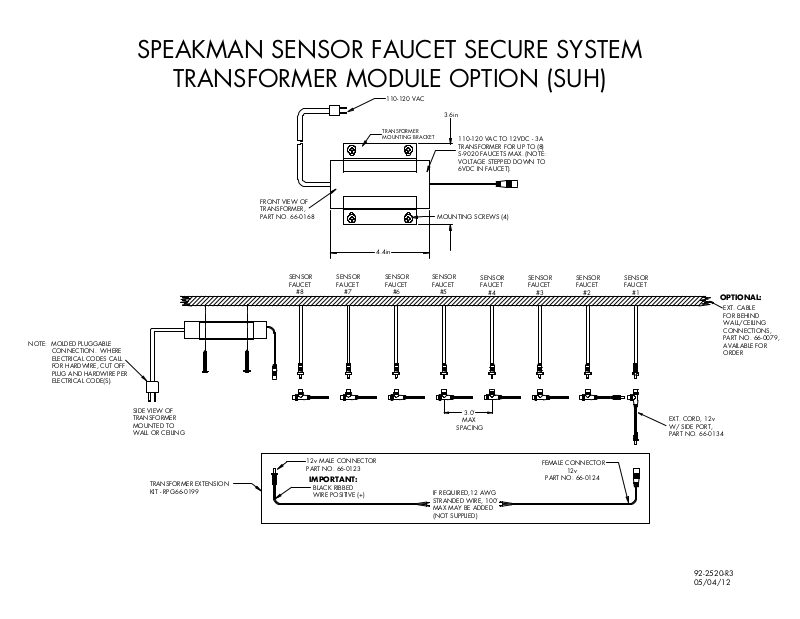

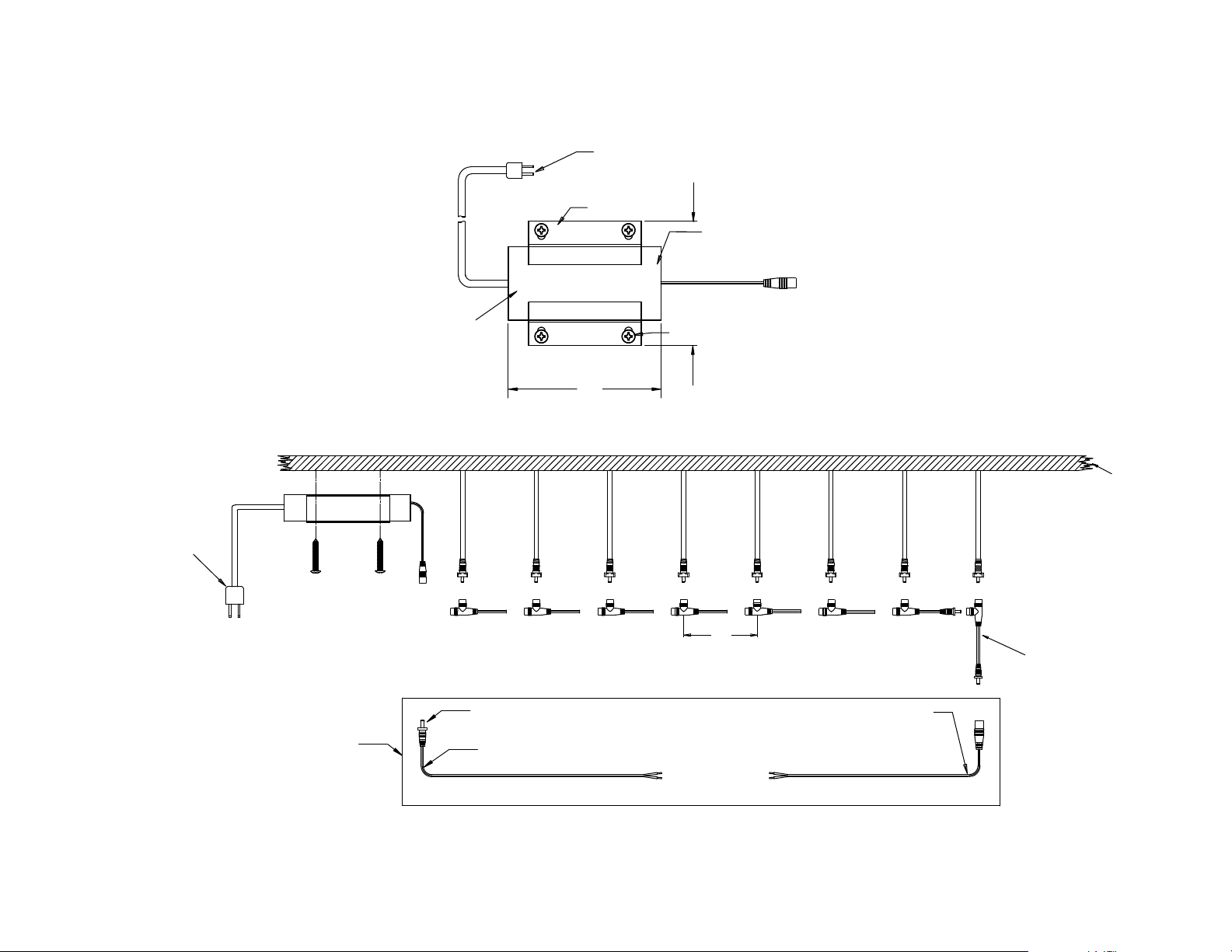

SPEAKMAN SENSOR FAUCET SECURE SYSTEM
TRANSFORMER MODULE OPTION (SUH)
110-120 VAC
3.6in
TRANSFORMER
FRONT VIEW OF
TRANSFORMER,
PART NO. 66-0168
MOUNTING BRACKET
110-120 VAC TO 12VDC - 3A
TRANSFORMER FOR UP TO (8)
S-9020 FAUCETS MAX. (NOTE:
VOLTAGE STEPPED DOWN TO
6VDC IN FAUCET).
MOUNTING SCREWS (4)
NOTE: MOLDED PLUGGABLE
CONNECTION. WHERE
ELECTRICAL CODES CALL
FOR HARDWIRE, CUT OFF
PLUG AND HARDWIRE PER
ELECTRICAL CODE(S).
SIDE VIEW OF
TRANSFORMER
MOUNTED TO
WALL OR CEILING
TRANSFORMER EXTENSION
KIT - RPG66-0199
4.4in
SENSOR
FAUCET
#8
SENSOR
FAUCET
#7
12v MALE CONNECTOR
PART NO. 66-0123
IMPORTANT:
BLACK RIBBED
WIRE POSITIVE (+)
SENSOR
FAUCET
#6
SENSOR
FAUCET
#5
IF REQUIRED,12 AWG
STRANDED WIRE, 100’
MAX MAY BE ADDED
(NOT SUPPLIED)
3.0’
MAX
SPACING
SENSOR
FAUCET
#4
SENSOR
FAUCET
#3
FEMALE CONNECTOR
12v
PART NO. 66-0124
SENSOR
FAUCET
#2
SENSOR
FAUCET
#1
EXT. CORD, 12v
W/ SIDE PORT,
PART NO. 66-0134
OPTIONAL:
EXT. CABLE
FOR BEHIND
WALL/CEILING
CONNECTIONS,
PART NO. 66-0079,
AVAILABLE FOR
ORDER
92-2520-R3
05/04/12
Page 2

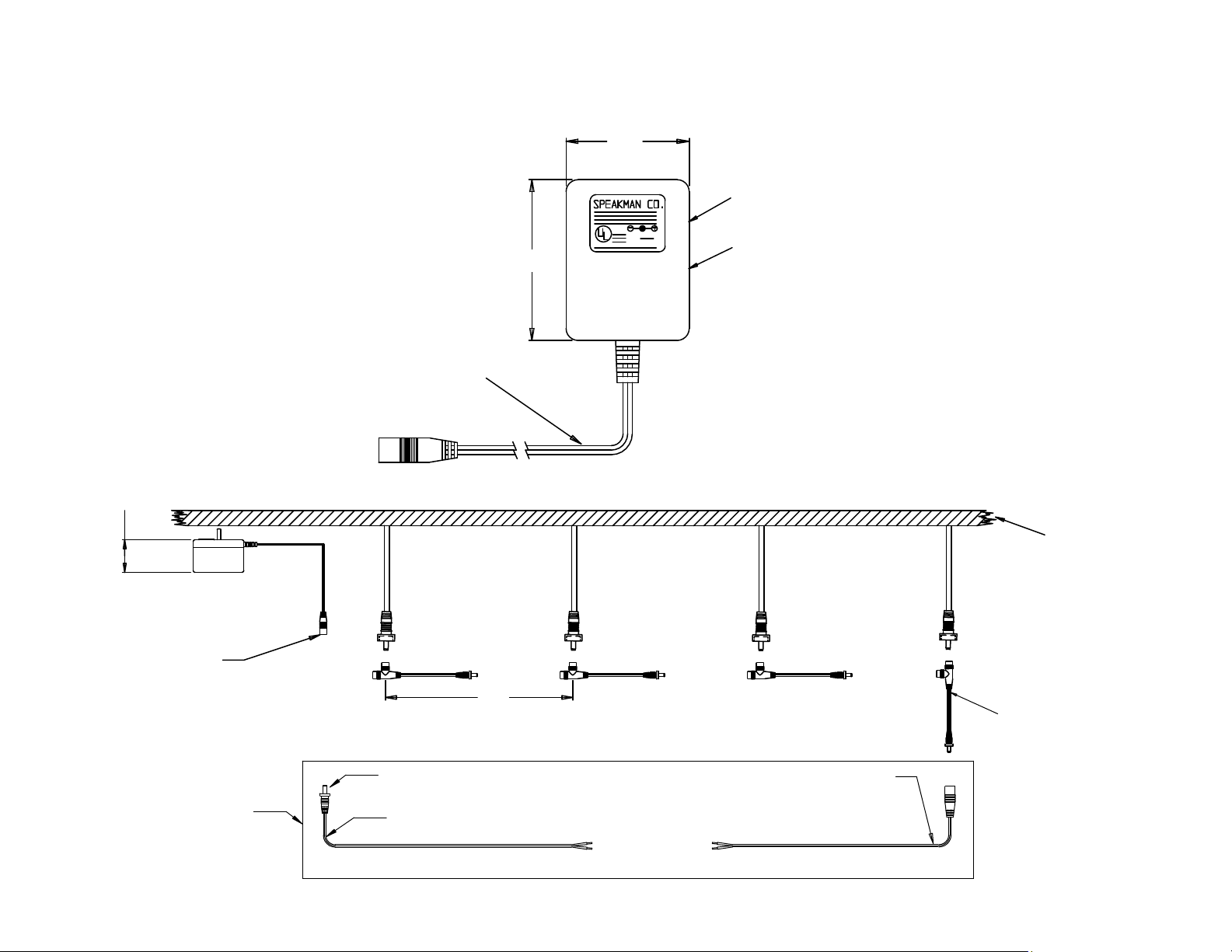

SPEAKMAN SENSOR FAUCET SECURE SYSTEM
TRANSFORMER MODULE OPTION (SU)
2.6in
TRANSFORMER 1.5A - 12 VDC
PART NO. 66-0011
110-120 VAC TO 12 VDC -1.5A
TRANSFORMER FOR UP TO (4)
SENSOR FAUCETS MAXIMUM.
(NOTE: STEP DOWN OF VOLTAGE
FROM 12 TO 6 VOLTS OCCURS
THROUGH USE OF ADAPTER
PROVIDED IN FAUCET)
POWER CORD TO BE
6 FT. + 6 IN. LONG
3.3in
FRONT VIEW OF
TRANSFORMER
2.2in
SIDE VIEW OF
TRANSFORMER
PLUGGED INTO WALL
OR CEILING OUTLET
IMPORTANT:
CENTER PIN
POSITIVE (+)
TRANSFORMER EXTENSION
KIT - RPG66-0199
SENSOR
FAUCET
#4
3.0’
MAX
SPACING
SENSOR
FAUCET
#3
SENSOR
FAUCET
#2
SENSOR
FAUCET
#1
OPTIONAL:
EXT. CABLE
FOR BEHIND
WALL/CEILING
CONNECTIONS
PART NO. 66-0079,
AVAILABLE FOR
ORDER
EXT. CORD, 12v
W/ SIDE PORT,
PART NO. 66-0134
12v MALE CONNECTOR
PART NO. 66-0123
IMPORTANT:
BLACK RIBBED
WIRE POSITIVE (+)
IF REQUIRED,12 AWG
STRANDED WIRE, 100’
FEMALE CONNECTOR
12v
PART NO. 66-0124
MAX MAY BE ADDED
(NOT SUPPLIED)
92-2520-R3
05/04/12
