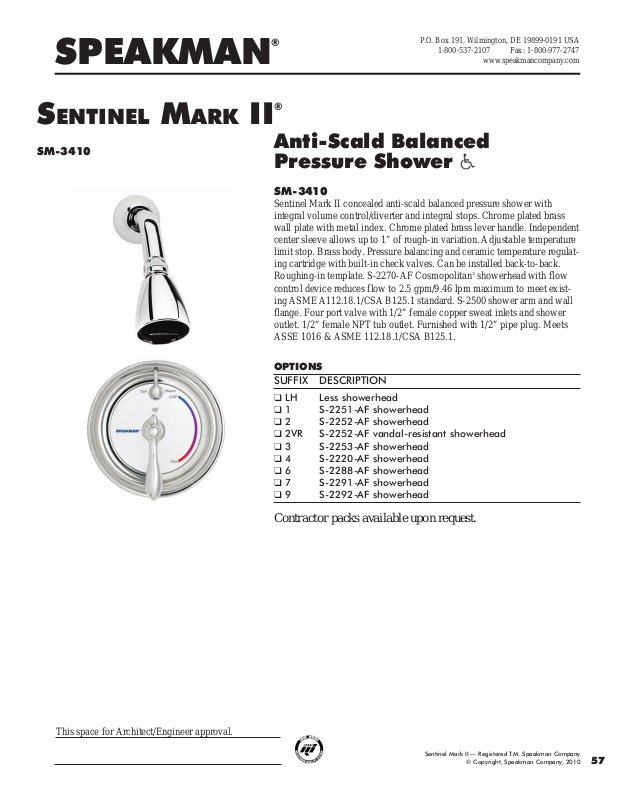

SPEAKMAN
Se n t i n e l Ma r k ii
®
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107 Fax: 1-800-977-2747
www.speakmancompany.com
®
SM-3410
Anti-Scald Balanced
Pressure Shower
SM-3410
Sentinel Mark II concealed anti-scald balanced pressure shower with
integral volume control/diverter and integral stops. Chrome plated brass
wall plate with metal index. Chrome plated brass lever handle. Independent
center sleeve allows up to 1” of rough-in variation. Adjustable temperature
limit stop. Brass body. Pressure balancing and ceramic temperature regulating cartridge with built-in check valves. Can be installed back-to-back.
Roughing-in template. S-2270-AF Cosmopolitan® showerhead with flow
control device reduces flow to 2.5 gpm/9.46 lpm maximum to meet existing ASME A112.18.1/CSA B125.1 standard. S-2500 shower arm and wall
flange. Four port valve with 1/2” female copper sweat inlets and shower
outlet. 1/2” female NPT tub outlet. Furnished with 1/2” pipe plug. Meets
ASSE 1016 & ASME 112.18.1/CSA B125.1.
OPTIONS
SUFFIX DESCRIPTION
❑ LH Less showerhead
❑ 1 S-2251-AF showerhead
❑ 2 S-2252-AF showerhead
❑ 2VR S-2252-AF vandal-resistant showerhead
❑ 3 S-2253-AF showerhead
❑ 4 S-2220-AF showerhead
❑ 6 S-2288-AF showerhead
❑ 7 S-2291-AF showerhead
❑ 9 S-2292-AF showerhead
This space for Architect/Engineer approval.
Contractor packs available upon request.
Sentinel Mark II — Registered T.M. Speakman Company
© Copyright, Speakman Company, 2010
57
Page 2
SPEAKMAN

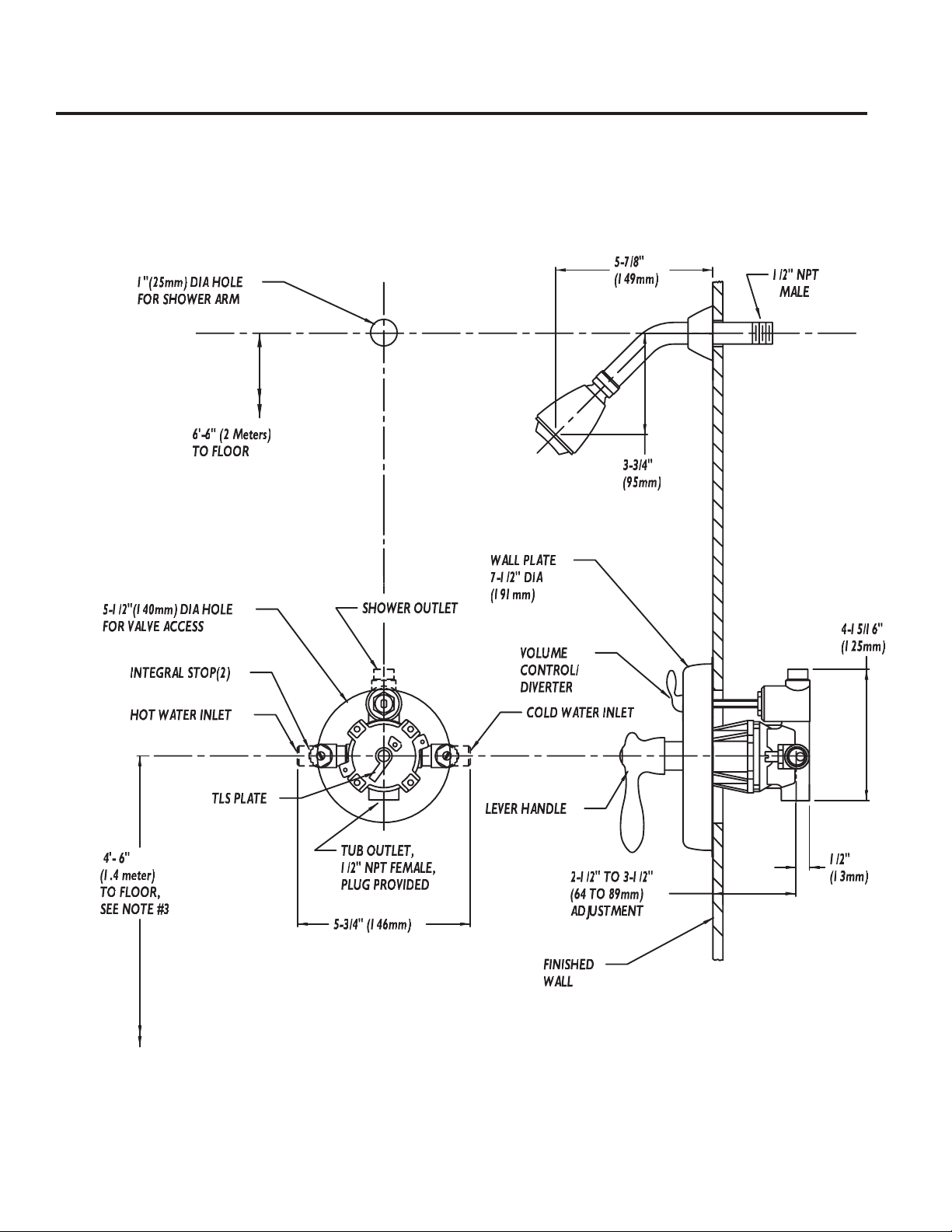

ro u g h -in S
SM-3410
®
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107 Fax: 1-800-977-2747
www.speakmancompany.com
NOTE: All dimensions are in inches(millimeters) unless otherwise specified and are subject to change without notice. Unless otherwise specified all
58
inlets and outlets are ½” female copper sweat. For ADA mounting locations consult ADAAG, ANSI A117.1, or state regulations.
