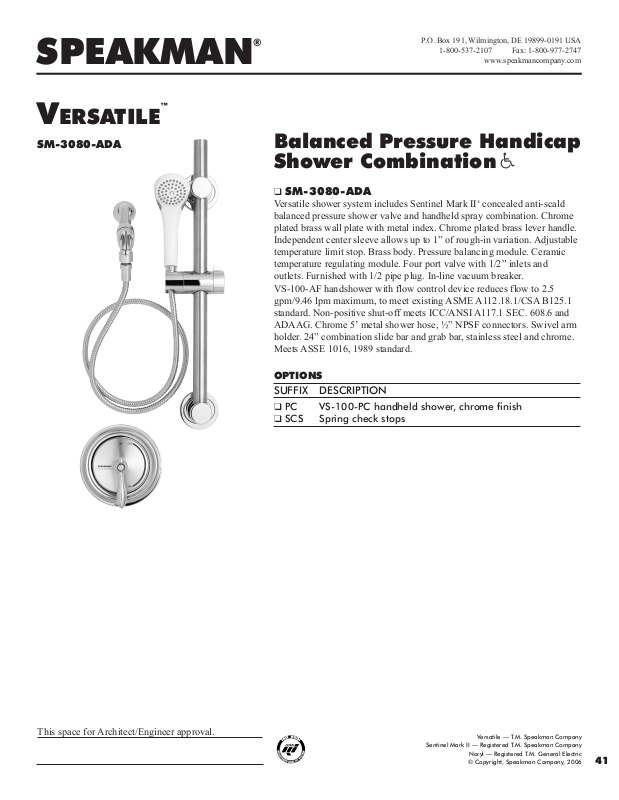

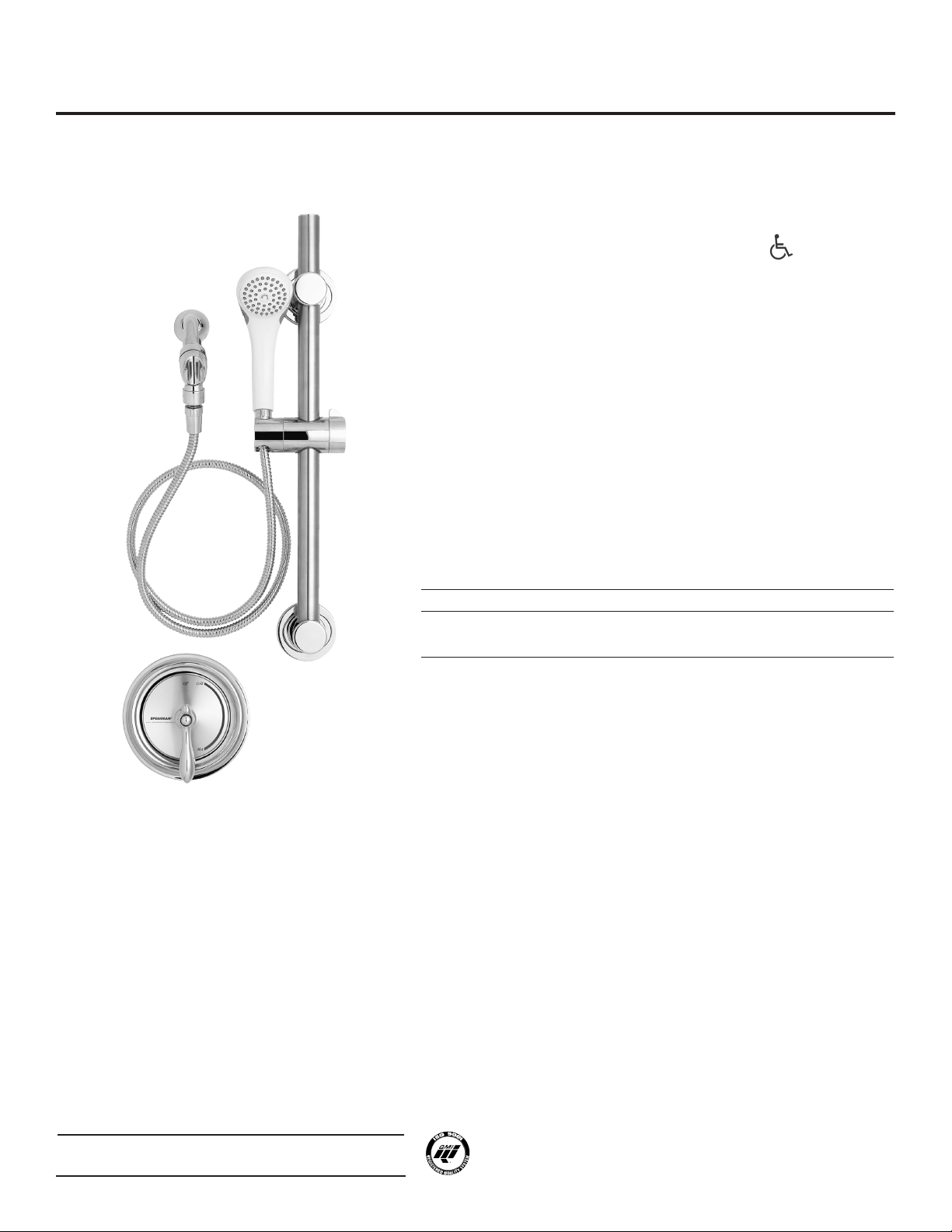

SM-3080-ADA
Balanced Pressure Handicap
Shower Combination
❑ SM-3080-ADA
Versatile shower system includes Sentinel Mark II® concealed anti-scald
balanced pressure shower valve and handheld spray combination. Chrome
plated brass wall plate with metal index. Chrome plated brass lever handle.
Independent center sleeve allows up to 1” of rough-in variation. Adjustable
temperature limit stop. Brass body. Pressure balancing module. Ceramic
temperature regulating module. Four port valve with 1/2” inlets and
outlets. Furnished with 1/2 pipe plug. In-line vacuum breaker.
VS-100-AF handshower with flow control device reduces flow to 2.5
gpm/9.46 lpm maximum, to meet existing ASME A112.18.1/CSA B125.1
standard. Non-positive shut-off meets ICC/ANSI A117.1 SEC. 608.6 and
ADAAG. Chrome 5’ metal shower hose, ½” NPSF connectors. Swivel arm
holder. 24” combination slide bar and grab bar, stainless steel and chrome.
Meets ASSE 1016, 1989 standard.
OPTIONS
SUFFIX DESCRIPTION
❑ PC VS-100-PC handheld shower, chrome finish
❑ SCS Spring check stops
This space for Architect/Engineer approval.
Sentinel Mark II — Registered T.M. Speakman Company
Versatile — T.M. Speakman Company
Noryl — Registered T.M. General Electric
© Copyright, Speakman Company, 2006
41
Page 2

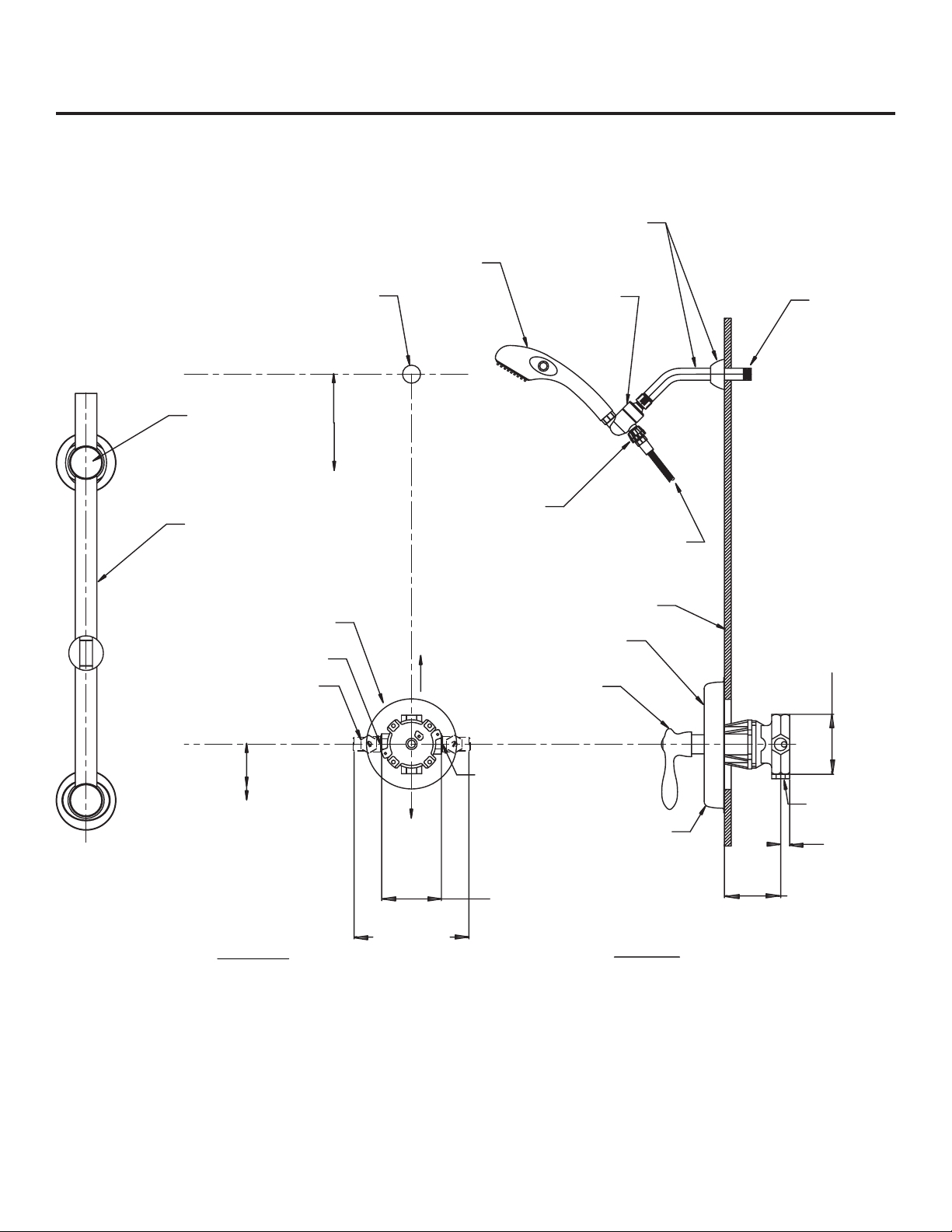

3 5/16"
(84 mm)
6 3/8"
(161.92 mm)
2 1/2" TO 3 1/2"
(64 mm to 89 mm)
1/2" (13 mm)
3 5/16" (84 mm)
STANDARD
INDEX
1/2" PLUG
(13 mm)
6' 6"
(1981.20 mm)
TO FLOOR
RECOMMENDED
FINISHED WALL
SLIDE BAR
(VS-153-ADA)
LOCATION OPTIONAL
(SEE NOTE 3)
WALL
MOUNT
1/2"
(12.7 mm)
NPT MALE
THREADS
METAL HOSE
ASSEMBLY
(VS-152)
VACUUM BREAKER
(VS-151-PC)
SHOWER ARM
BRACKET
(VS-150)
SHOWER ARM
& FLANGE
(S-2500)
HAND HELD
SHOWER
(VS-100)
1" DIA. (25 mm)
HOLE
BRASS LEVER
HANDLE
WALL PLATE
7-1/2" DIA
(191mm)
3' 6" - 3' 8"
(1066.8 mm - 1117.6 mm)
FOR ADA APPLICATIONS
(SEE NOTE #4)
4' 6" (1371.6 mm)
FOR NON ADA APPLICATIONS
OPTIONAL STOPS(SCS)
W/ FEMALE INLETS FOR
1/2" COPPER WATER TUBE
COLD
WATER
INLET
TO SHOWER
5-1/2"(140mm) DIA HOLE
FOR VALVE ACCESS
HOT WATER INLET
TO TUB
(FOR VALVE W/STOPS)
FRONT VIEW
SIDE VIEW
SPEAKMAN
SPEAKMAN
ro u g h -in s
SM-3080-ADA
®
®
P.O. Box 191, Wilmington, DE 19899-0191 USA
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107 Fax: 1-800-977-2747
1-800-537-2107 Fax: 1-800-977-2747
www.speakmancompany.com
www.speakmancompany.com
NOTE: All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice. Unless otherwise specified,
all inlets and outlets are 1/2” NPTF. The location of the slide bar is optional, but restricted by the 69” hose length running from shower arm bracket
connection to hand held shower. See ICC/ANSI A117.1 standard and/or ADA accessibility guidelines for building and facilities (ADAAG) for
42
installation locations and required dimensions based on your specific shower configuration.
