Page 1

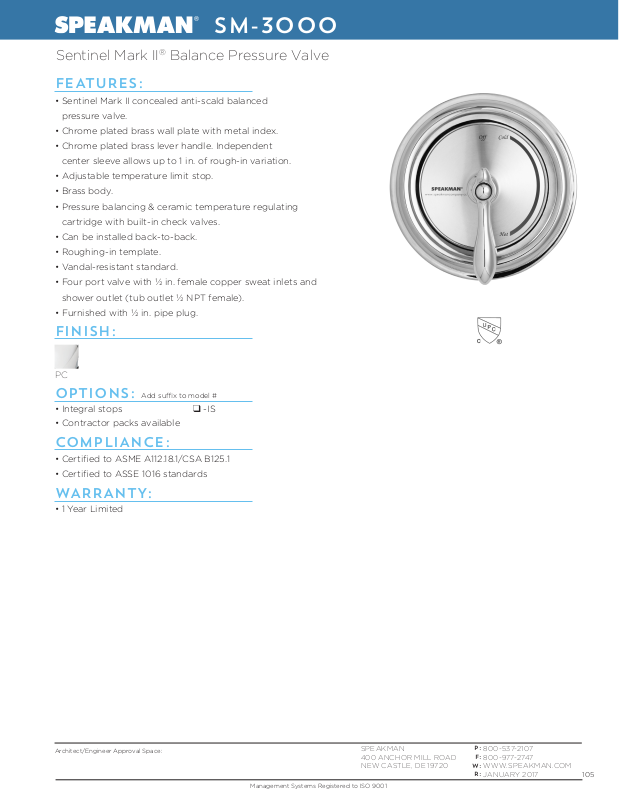

SM-3000

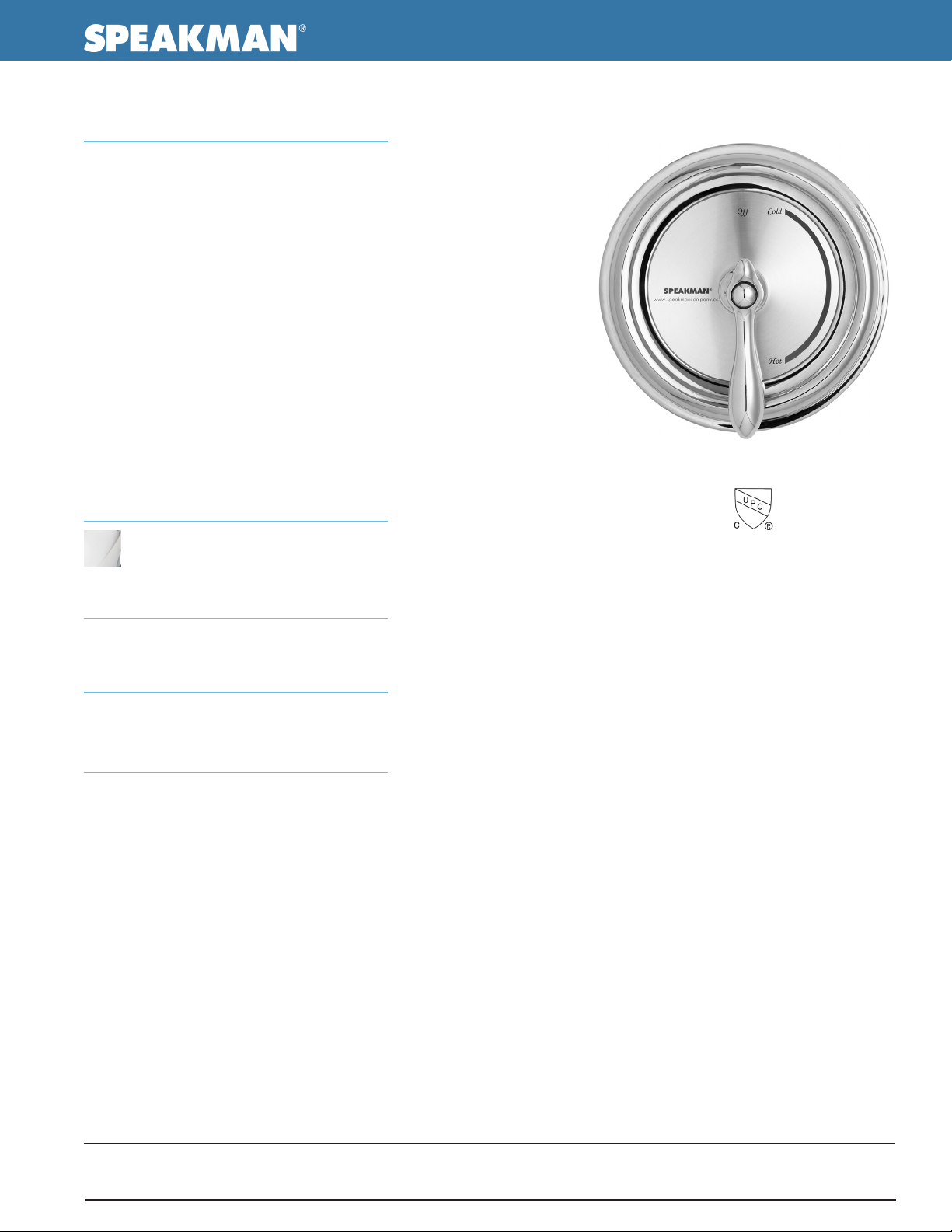

Sentinel Mark II® Balance Pressure Valve

FEATURES:

• Sentinel Mark II concealed anti-scald balanced

pressure valve.

• Chrome plated brass wall plate with metal index.

• Chrome plated brass lever handle. Independent

center sleeve allows up to 1 in. of rough-in variation.

• Adjustable temperature limit stop.

• Brass body.

• Pressure balancing & ceramic temperature regulating

cartridge with built-in check valves.

• Can be installed back-to-back.

• Roughing-in template.

• Vandal-resistant standard.

• Four port valve with ½ in. female copper sweat inlets and

shower outlet (tub outlet ½ NPT female).

• Furnished with ½ in. pipe plug.

FINISH:

OPTIONS: Add sux to model #

• Integral stops ❑ -IS

• Contractor packs available

COMPLIANCE:

• Certiﬁed to ASME A112.18.1/CSA B125.1

• Certiﬁed to ASSE 1016 standards

WARRANTY:

• 1 Year Limited

Architect/Engineer Approval Space:

SPEAKMAN 400 ANCHOR MILL ROAD NEW C ASTLE, DE 19720

Management Systems Registered to ISO 9001

800-537-2107

80 0 -977-2747

WWW.SPEAKMAN.COM

JANUARY 2017

105

Page 2

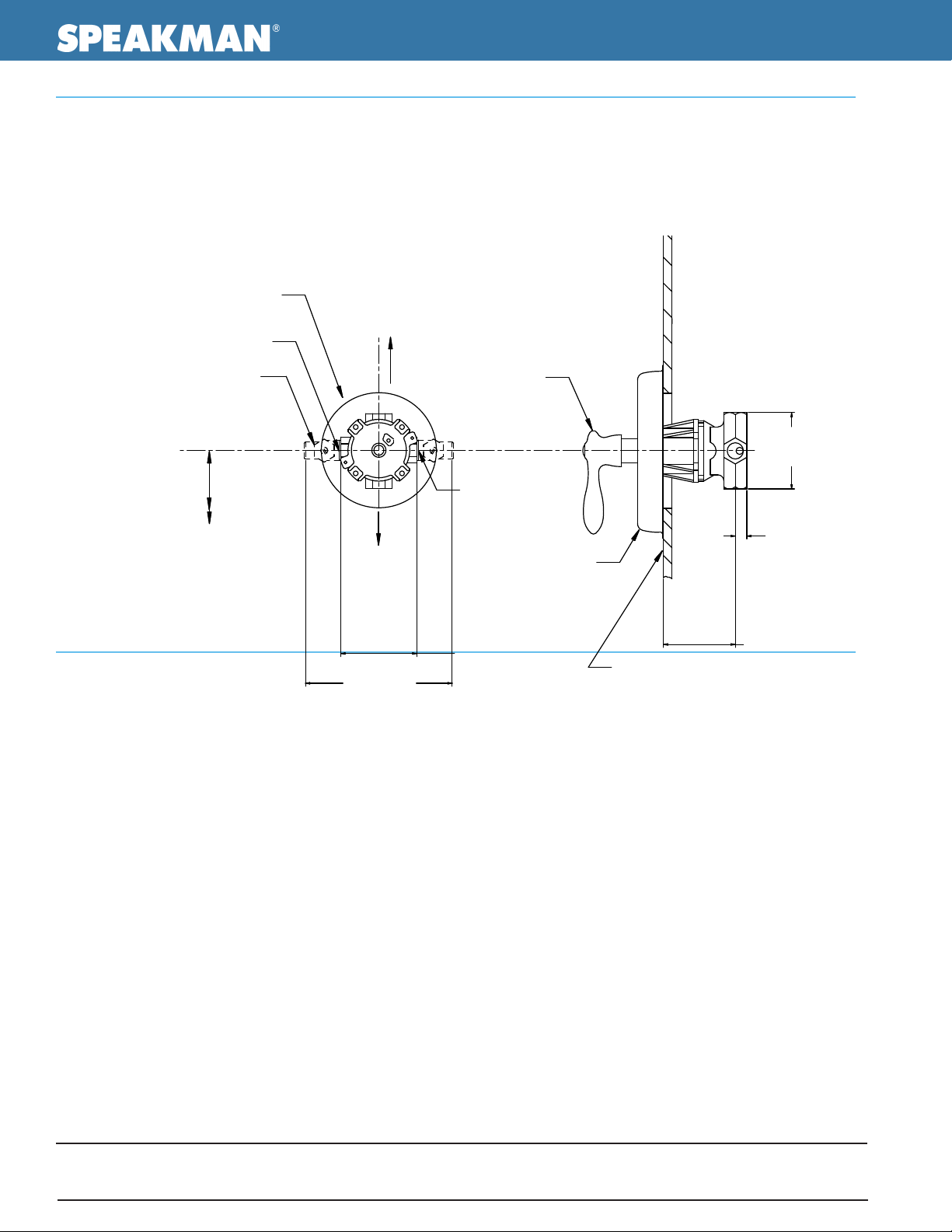

DIMENSIONS:

5-1/2"(140mm) DIA HOLE FOR VALVE ACCESS

HOT WATER INLET

NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice. 2. Unless otherwise specied all inlets and outlets are 1/2” female copper sweat. 3. For ADA mounting locations consult ADAAG, ANSI AI 17.1, or state regulations.

TO SHOWER

OPTIONAL STOPS(SCS) W/ FEMALE INLETS FOR 1/2" COPPER WATER TUBE

4'-6" (1.4 METERS) TO FLOOR (RECOMMENDED) (FOR SHOWER ONLY) OR 1"-9" (533mm) TO CENTER OF TUB SPOUT (FOR BATH) SEE NOTE #3

BRASS LEVER HANDLE

TO TUB

6 1/2"

(165mm)

(FOR VALVE W/STOPS)

COLD WATER INLET

WALL PLATE 7-1/2" DIA (191mm)

3-5/16" (84mm)

3-5/16"

(84mm)

1/2" (13mm)

2-1/2"TO 3-1/2" (63mm to 89mm)

FINISHED WALL
