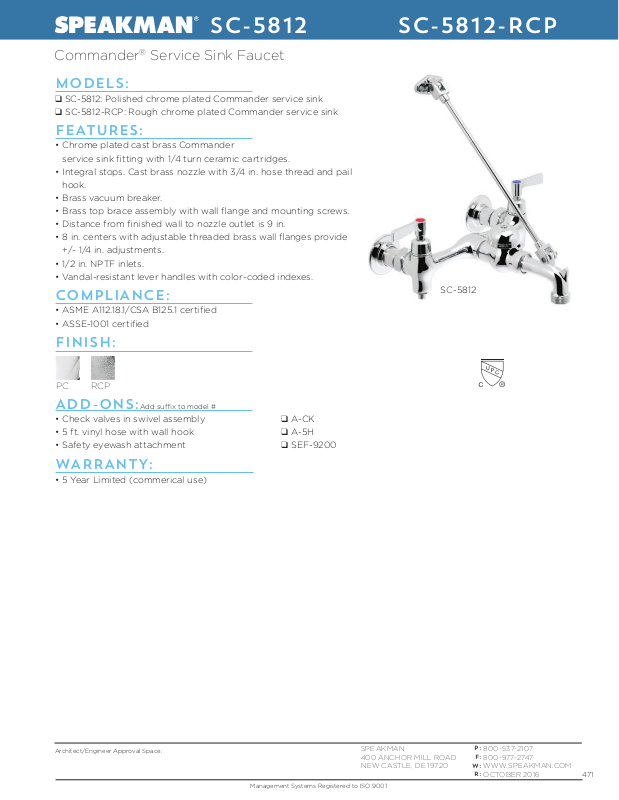

Page 1

NSF 372

SC-5812 SC-5812-RCP

Commander® Service Sink Faucet

MODELS:

❑ SC-5812: Polished chrome plated Commander service sink ❑ SC-5812-RCP: Rough chrome plated Commander service sink

FEATURES:

• Chrome plated cast brass Commander service sink ﬁtting with 1/4 turn ceramic cartridges.

• Integral stops. Cast brass nozzle with 3/4 in. hose thread and pail hook.

• Brass vacuum breaker.

• Brass top brace assembly with wall ﬂange and mounting screws.

• Distance from ﬁnished wall to nozzle outlet is 9 in.

• 8 in. centers with adjustable threaded brass wall ﬂanges provide +/- 1/4 in. adjustments.

• 1/2 in. NPTF inlets.

• Vandal-resistant lever handles with color-coded indexes.

COMPLIANCE:

• ASME A112.18.1/CSA B125.1 certiﬁed

• ASSE-1001 certiﬁed

SC-5812

FINISH:

PC RCP

ADD-ONS:

• Check valves in swivel assembly ❑ A-CK

• 5 ft. vinyl hose with wall hook ❑ A-5H

• Safety eyewash attachment ❑ SEF-9200

Add sux to model #

WARRANTY:

• 5 Year Limited (commerical use)

Architect/Engineer Approval Space:

SPEAKMAN 400 ANCHOR MILL ROAD NEW C ASTLE, DE 19720

Management Systems Registered to ISO 9001

800-537-2107

80 0 -977-2747

WWW.SPEAKMAN.COM

OCTOBER 2016

471

Page 2

DIMENSIONS:

NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.

2. All inlets are 1/2” NPT female.

(101mm)

(203mm)

2-1/8"

(54mm)

8-1/2"

APPROX

(215mm)

1-1/2"

(38mm)

1" DIA INLET HOLE (25mm)

2-3/4"

(69mm)

(228mm)
