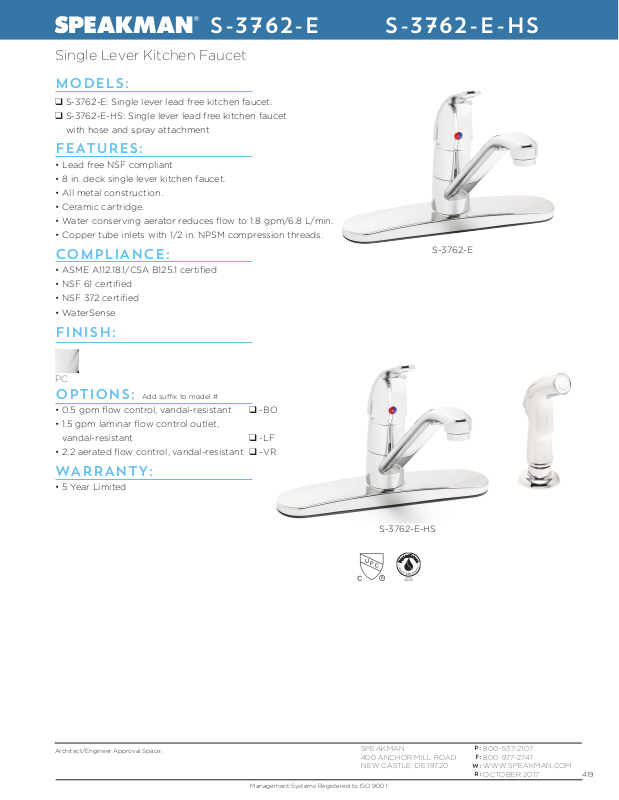

Page 1
S-3762-E S-3762-E-HS
NSF 372
Single Lever Kitchen Faucet
MODELS:
❑ S-3762-E: Single lever lead free kitchen faucet.
❑ S-3762-E-HS: Single lever lead free kitchen faucet
with hose and spray attachment
FEATURES:
• L ead free NSF compliant
• 8 in. deck single lever kitchen faucet.
• All metal construction.
• Ceramic cartridge.
• Water conserving aerator reduces flow to 1.8 gpm/6.8 L/min.
• Copper tube inlets with 1/2 in. NPSM compression threads.
COMPLIANCE:
• ASME A112.18.1/CSA B125.1 certified
• NSF 61 certified
• NSF 372 certified
• WaterSense
S-3762-E
FINISH:
PC
OPTIONS: Add sux to model #
• 0.5 gpm flow control, vandal-resistant ❑ -BO
• 1.5 gpm laminar flow control outlet,
vandal-resistant ❑ -LF
• 2.2 aerated flow control, vandal-resistant ❑ -VR
WARRANTY:
• 5 Year Limited
S-3762-E-HS
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
419
Page 2
DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
2. Inlet is 3/8” compression with male threads. Position faucet as close to the edge of the sink as possible.
S-3762-E
6-7/8"
(175mm)
2-1/2"
(64mm)
1-7/8"
(48mm)
MOUNTING NUT
1/4" (6mm) NPSM
CAP(SUPPLIED)
1/2" NPSM
(12mm)
9"
(228mm)
SWIVEL SPOUT
DECK
1-1/2" (38mm)
MAXIMUM
DECK THICKNESS
6-1/2"
(165mm)
S-3762-E-HS
2-1/2"
(64mm)
(203mm)
8"
8"(203mm)
DECK PLATE
Architect/Engineer Approval Space:
420
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
