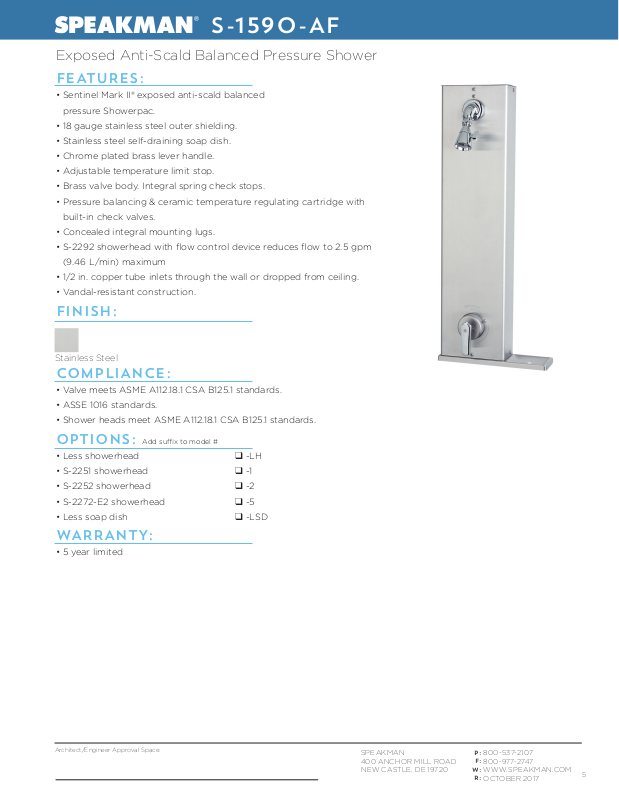

Page 1
S-1590 -AF

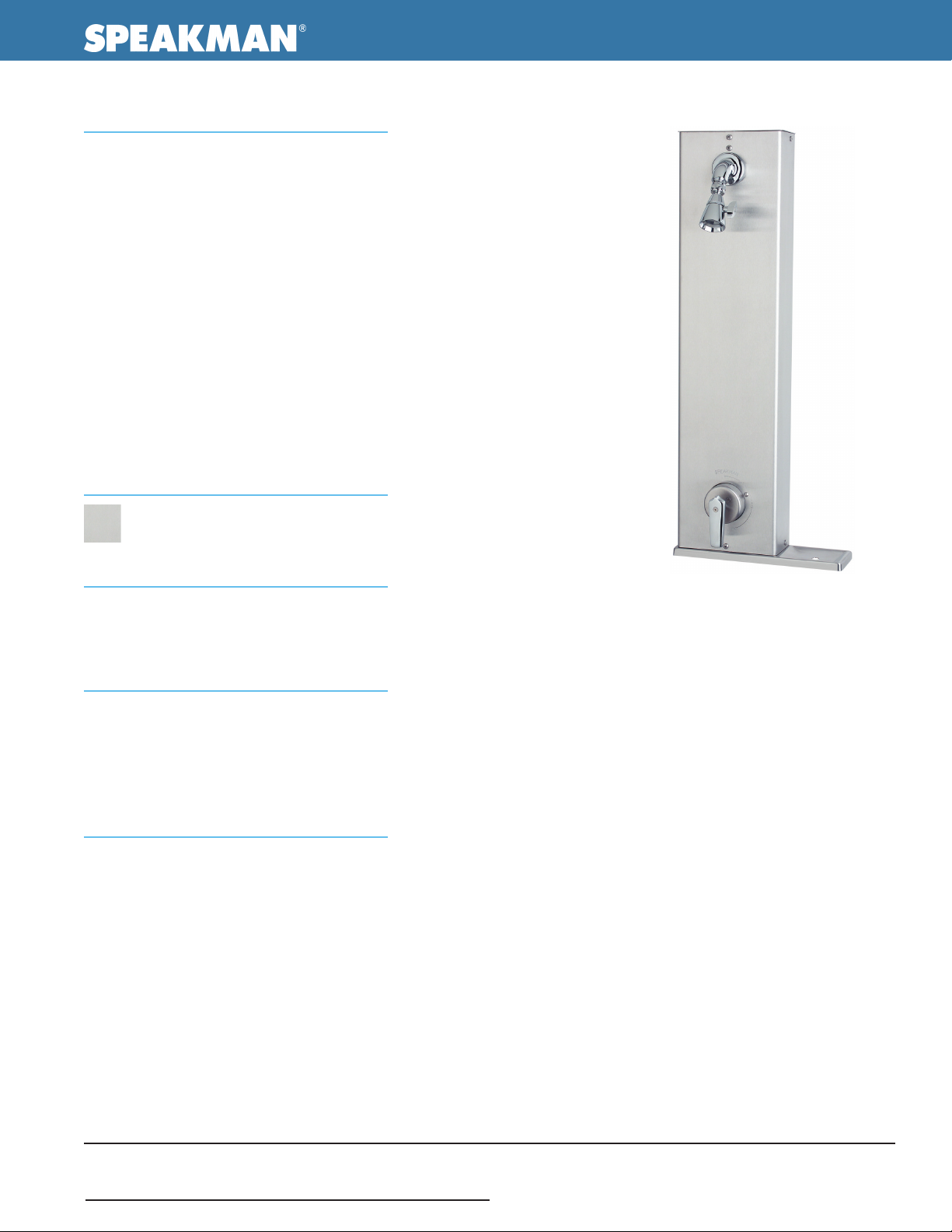

Exposed Anti-Scald Balanced Pressure Shower
FEATURES:
• Sentinel Mark II® exposed anti-scald balanced
pressure Showerpac.
• 18 gauge stainless steel outer shielding.
• Stainless steel self-draining soap dish.
• Chrome plated brass lever handle.
• Adjustable temperature limit stop.
• Brass valve body. Integral spring check stops.
• Pressure balancing & ceramic temperature regulating cartridge with
built-in check valves.
• Concealed integral mounting lugs.
• S-2292 showerhead with flow control device reduces flow to 2.5 gpm
(9.46 L/min) maximum
• 1/2 in. copper tube inlets through the wall or dropped from ceiling.
• Vandal-resistant construction.
FINISH:
Stainless Steel
COMPLIANCE:
• Valve meets ASME A112.18.1 CSA B125.1 standards.
• ASSE 1016 standards.
• Shower heads meet ASME A112.18.1 CSA B125.1 standards.
OPTIONS: Add sux to model #
• Less showerhead ❑ -LH
• S-2251 showerhead ❑ -1
• S-2252 showerhead ❑ -2
• S-2272-E2 showerhead ❑ -5
• Less soap dish ❑ -LSD
WARRANTY:
• 5 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
5
Page 2

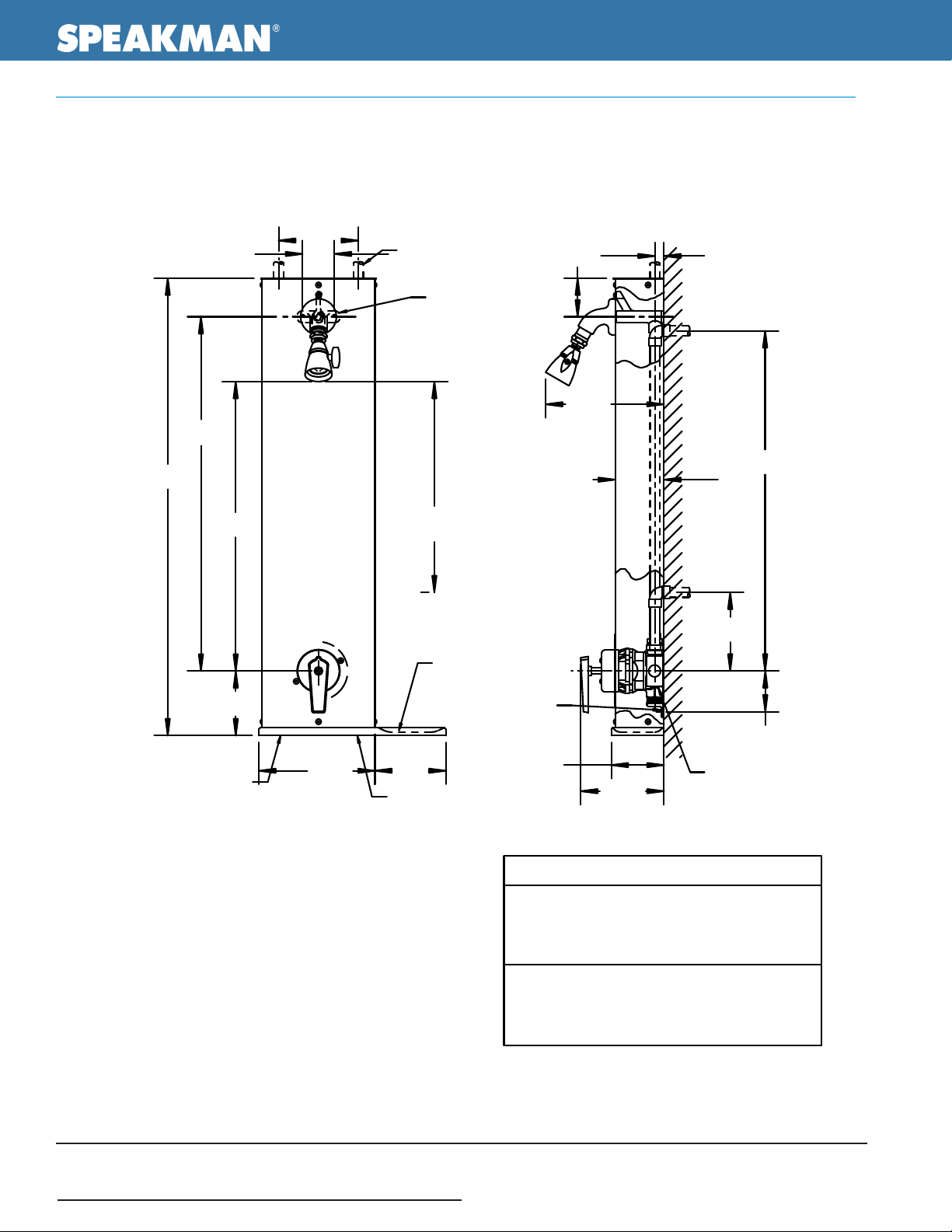

DIMENSIONS:
2" MOUNTING
HOLE CENTERS
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice. 2. Unless otherwise
specied, all inlets and outlets are 1/2” male copper sweat.
4-13/16
(105mm)
TOP SUPPLIES
2-7/16"
(62mm)
17/32"
(13mm)
22-1/4"
(565mm)
28-5/8"
(727mm)
18-3/16"
(476mm)
3-13/16"
(81mm)
HOT STOP ACCESS HOLE
IN BOTTOM OF PLATE
A
E
P
S
7-5/16"
(186mm)
TOP MOUNTING
BRACKET
RECOMMENDED
SHOWER HEAD HEIGHT
SEE CHART BELOW
7-7/16"
(189mm)
3-1/16"
(78mm)
*FOR THRU THE WALL
SUPPLIES ONLY
21" MAX.*
(533mm)
TO FLOOR
K
M
A
N
OFF
COLD
W
A
R
M
HOT
SOAP DISH
BOTTOM MOUNTING
BRACKET
4-7/16"
(113mm)
COLD STOP ACCESS HOLE
IN BOTTOM OF PLATE
3-5/16"
(84mm)
5-1/4"
(133mm)
4" MIN.*
(102mm)
2-5/8"
(67mm)
SPRING CHECK
STOP (2)
Architect/Engineer Approval Space:
6
RECOMMENDED HEAD HEIGHTS
MEN 6'0" (1.83 Meters)
BOYS, SENIOR HIGH 5'10" (1.78 M eters)
BOYS, JUNIOR HIGH 5'6" (1.68 Meters)
BOYS, ELEMENTARY 5'4" (1.63 Meters)
WOMEN 5'8" (1.73 Me
GIRLS, SENOIR HIGH 5'6" (1.68 Me
GIRLS, JUNIOR HIGH 5'4" (1.63 Me
ters)
ters)
ters)
GIRLS, ELEMENTARY 5'2" (1.58 Meters)
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
