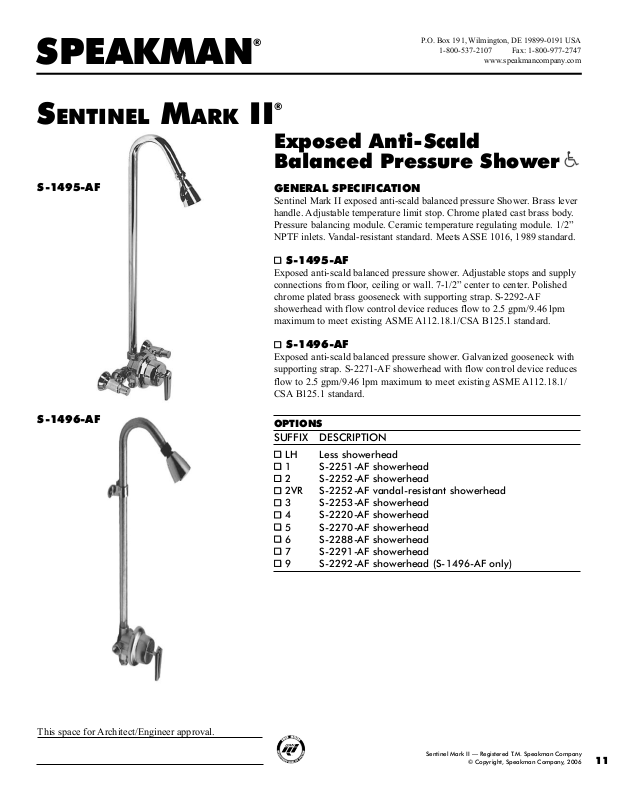

Page 1
®
SPEAKMAN
se n t i n e l ma r k ii
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107 Fax: 1-800-977-2747
www.speakmancompany.com
®
Exposed Anti-Scald
Balanced Pressure Shower
S-1495-AF
S-1496-AF
GENERAL SPECIFICATION
Sentinel Mark II exposed anti-scald balanced pressure Shower. Brass lever
handle. Adjustable temperature limit stop. Chrome plated cast brass body.
Pressure balancing module. Ceramic temperature regulating module. 1/2”
NPTF inlets. Vandal-resistant standard. Meets ASSE 1016, 1989 standard.
❑ S-1495-AF
Exposed anti-scald balanced pressure shower. Adjustable stops and supply
connections from floor, ceiling or wall. 7-1/2” center to center. Polished
chrome plated brass gooseneck with supporting strap. S-2292-AF
showerhead with flow control device reduces flow to 2.5 gpm/9.46 lpm
maximum to meet existing ASME A112.18.1/CSA B125.1 standard.
❑ S-1496-AF
Exposed anti-scald balanced pressure shower. Galvanized gooseneck with
supporting strap. S-2271-AF showerhead with flow control device reduces
flow to 2.5 gpm/9.46 lpm maximum to meet existing ASME A112.18.1/
CSA B125.1 standard.
OPTIONS
SUFFIX DESCRIPTION
❑ LH Less showerhead
❑ 1 S-2251-AF showerhead
❑ 2 S-2252-AF showerhead
❑ 2VR S-2252-AF vandal-resistant showerhead
❑ 3 S-2253-AF showerhead
❑ 4 S-2220-AF showerhead
❑ 5 S-2270-AF showerhead
❑ 6 S-2288-AF showerhead
❑ 7 S-2291-AF showerhead
❑ 9 S-2292-AF showerhead (S-1496-AF only)
This space for Architect/Engineer approval.
Sentinel Mark II — Registered T.M. Speakman Company
© Copyright, Speakman Company, 2006
11
Page 2
SPEAKMAN

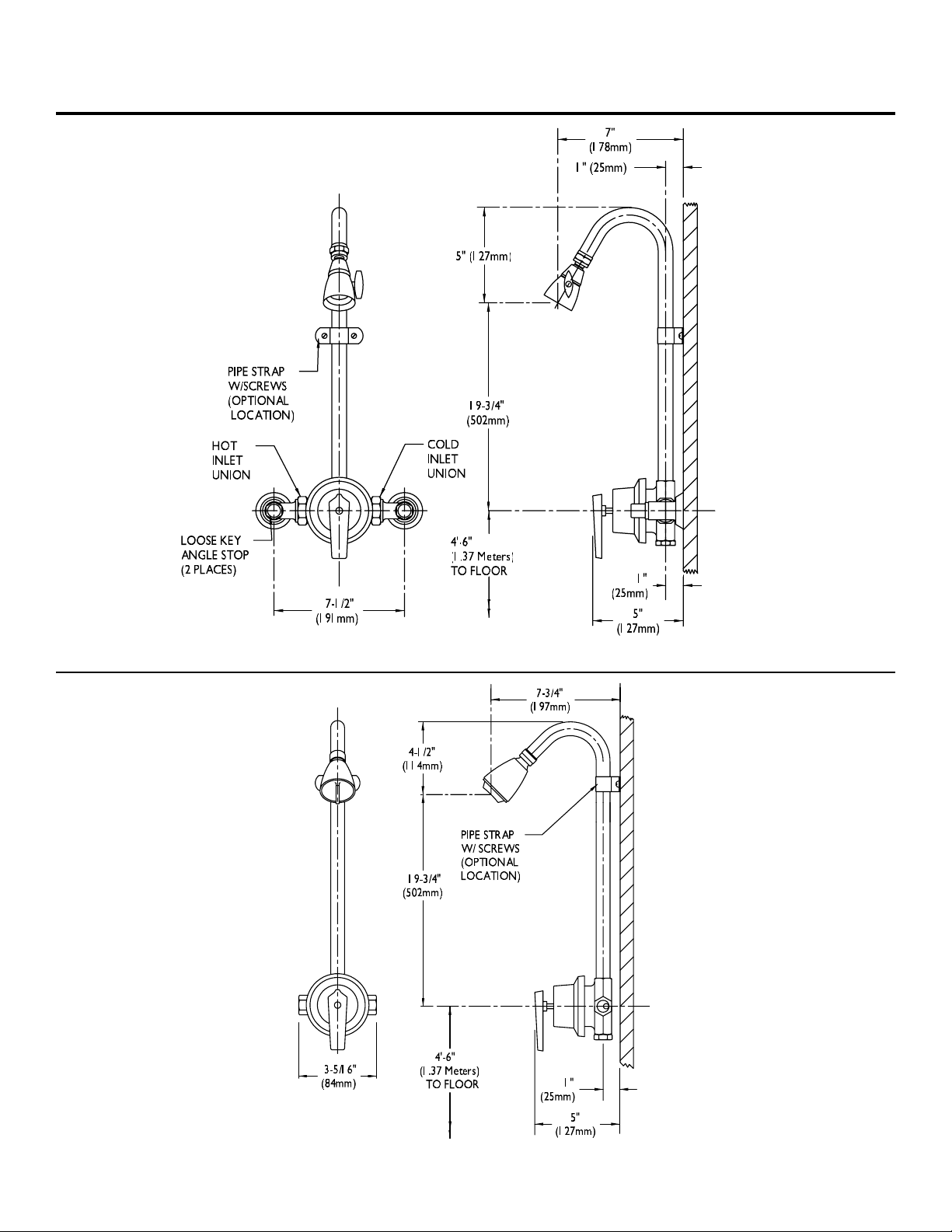

ro u g h -in s
S-1495-AF
®
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107 Fax: 1-800-977-2747
www.speakmancompany.com
S-1496-AF
NOTE: Unless otherwise specified, all inlets are 1/2” NPTF. Unless otherwise specified, all dimensions are in inches and are subject to change
12
without notice.
