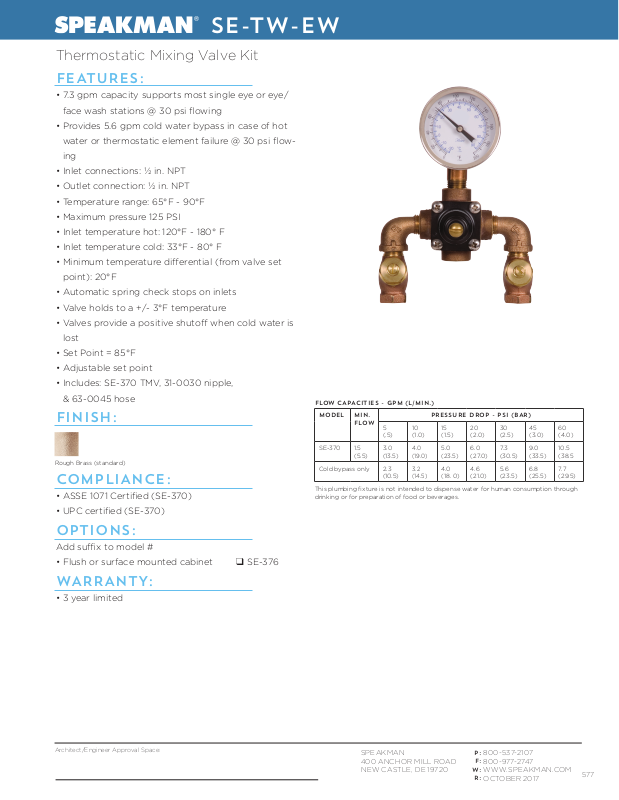

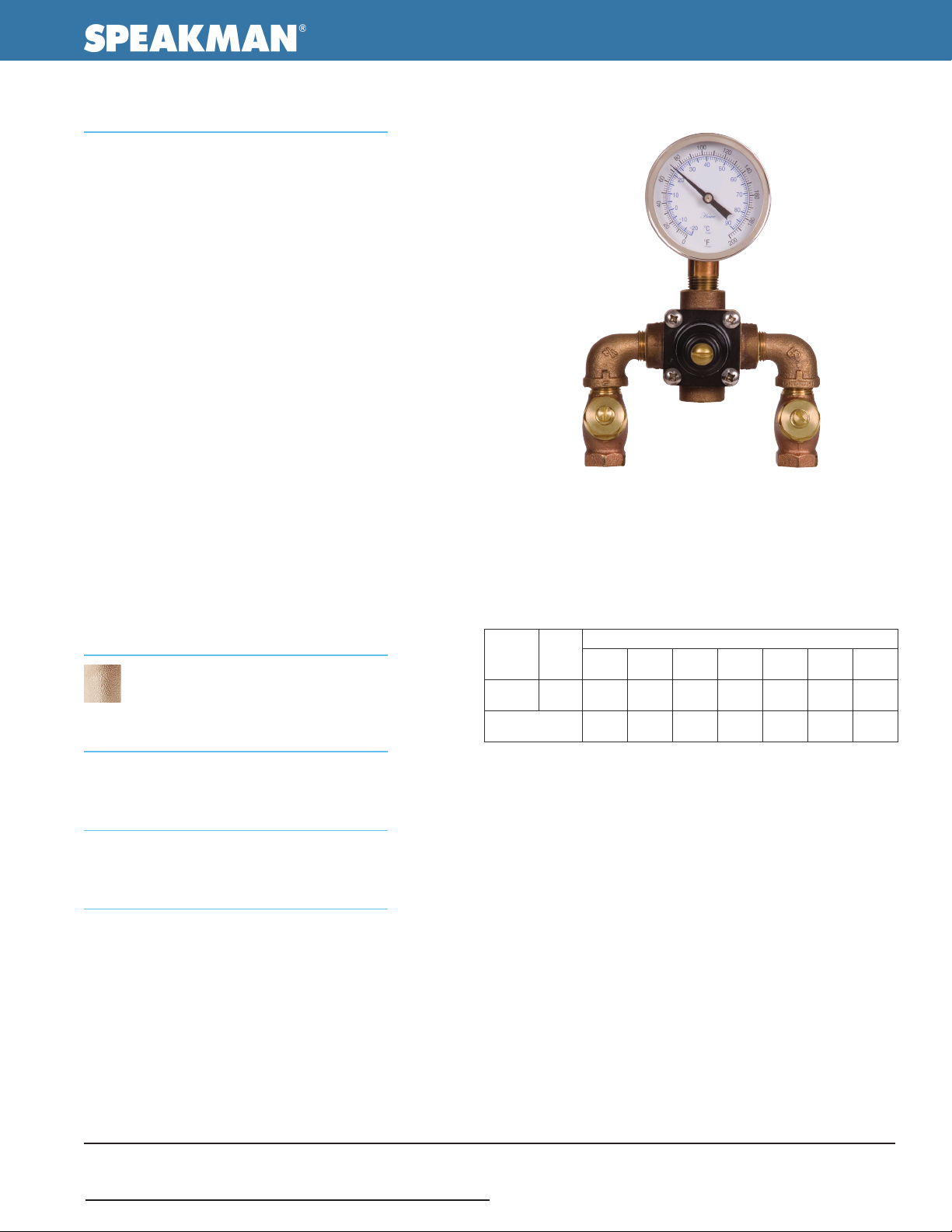

Page 1
SE-T W-EW
Thermostatic Mixing Valve Kit
FEATURES:
• 7.3 gpm capacity supports most single eye or eye/
face wash stations @ 30 psi flowing
• Provides 5.6 gpm cold water bypass in case of hot
water or thermostatic element failure @ 30 psi flow-
ing
• Inlet connections: ½ in. NPT
• Outlet connection: ½ in. NPT
• Temperature range: 65°F - 90°F
• Maximum pressure 125 PSI
• Inlet temperature hot: 120°F - 180° F
• Inlet temperature cold: 33°F - 80° F
• Minimum temperature dierential (from valve set
point): 20°F
• Automatic spring check stops on inlets
• Valve holds to a +/- 3°F temperature
• Valves provide a positive shuto when cold water is
lost
• Set Point = 85°F
• Adjustable set point
• Includes: SE-370 TMV, 31-0030 nipple,
& 63-0045 hose
FINISH:
Rough Brass (standard)
COMPLIANCE:
• ASSE 1071 Certified (SE-370)
• UPC certified (SE-370)
FLOW CAPACITIES - GPM (L/MIN.)
MODEL MIN.
SE-370 1.5
Cold bypass only 2.3
This plumbing fixture is not intended to dispense water for human consumption through
drinking or for preparation of food or beverages.
FLOW
5
(.5)10(1.0)15(1.5)20(2.0)30(2.5)45(3.0)60(4.0)
3.0
(5.5)
(13.5)
(10.5)
PRESSURE DROP - PSI (BAR)
4.0
5.0
(23.5)
4.0
(18. 0)
6.0
(27.0)
4.6
(21.0)
(19.0)
3.2
(14.5)
7.3
(30.5)
5.6
(23.5)
9.0
(33.5)
6.8
(25.5)
10.5
(38.5
7.7
(29.5)
OPTIONS:
Add sux to model #
• Flush or surface mounted cabinet ❑ SE-376
WARRANTY:
• 3 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
577
Page 2
Flow Capacities – GPM (L/Min)
Model
Min.
Flow
Pressure Drop – PSI (Bar)
5
(.5)
10
(1.0)
15
(1.5)
20
(2.0)
30
(2.5)
45
(3.0)
60
(4.0)
SE-370
1.5
(5.5)
3.0
(13.5)
4.0
(19.0)
5.0
(23.5)
6.0
(27.0)
7.3
(30.5)
9.0
(33.5)
10.5
(38.5)
Cold Bypass Only
2.3
(10.5)
3.2
(14.5)
4.0
(18.0)
4.6
(21.0)
5.6
(23.5)
6.8
(25.5)
7.7
(29.5)
This plumbing fixture is not intended to dispense water for human
consumption through drinking or for preparation of food or beverages.

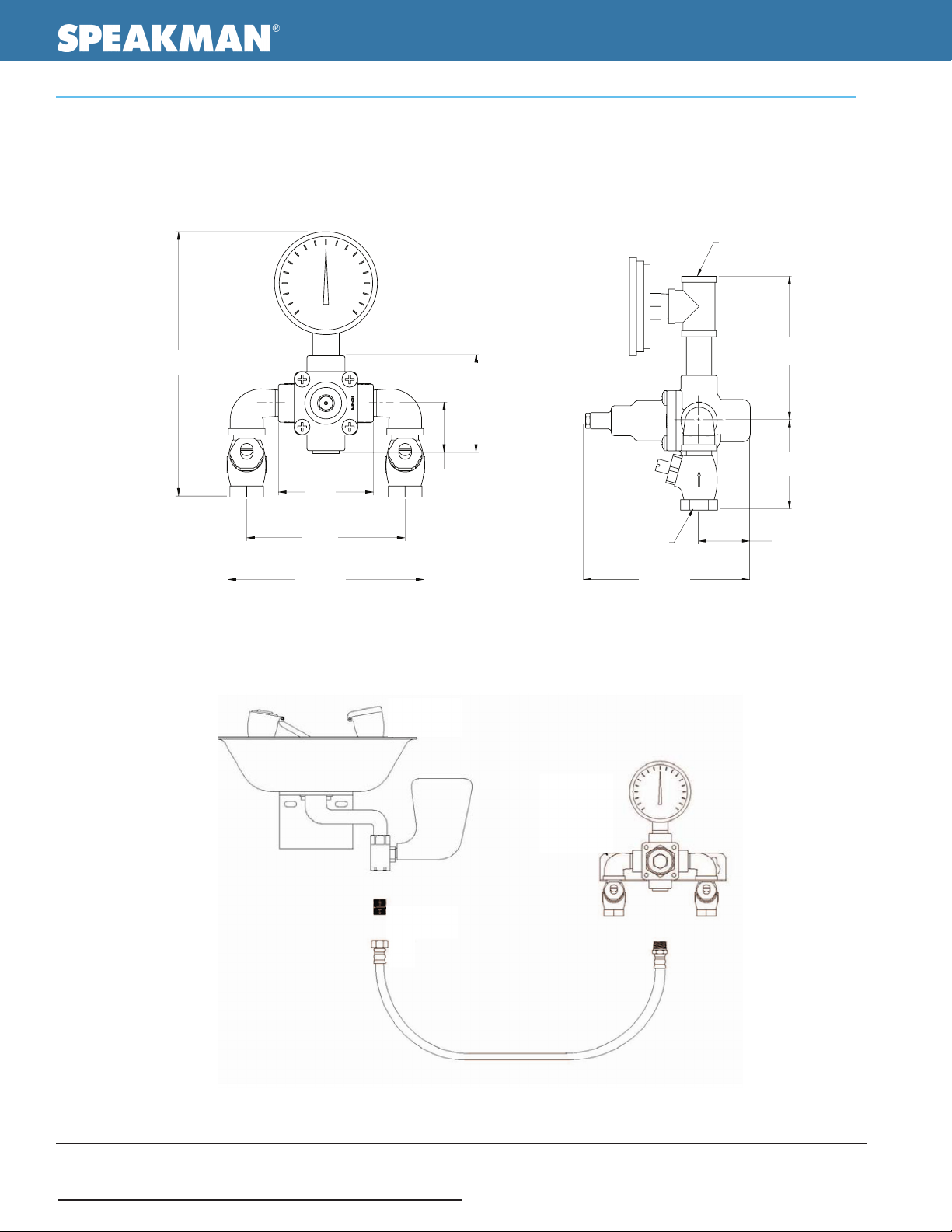

DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
Includes: SE-370 TMV, 31-0030 nipple, & 63-0045 hose
Dimensions
Front
View
TMV Shown on SE-490
8-3/8"
(213)
3" (76)
5" (127)
6-1/4" (159)
1-5/8"
(41)
3-1/8"
(79)
Side
View
1/2" NPT
5-1/2" (140)
1/2" NPT
4-3/4"
(121)
3"
(76)
1-3/4"
(44)
Architect/Engineer Approval Space:
578
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2017
