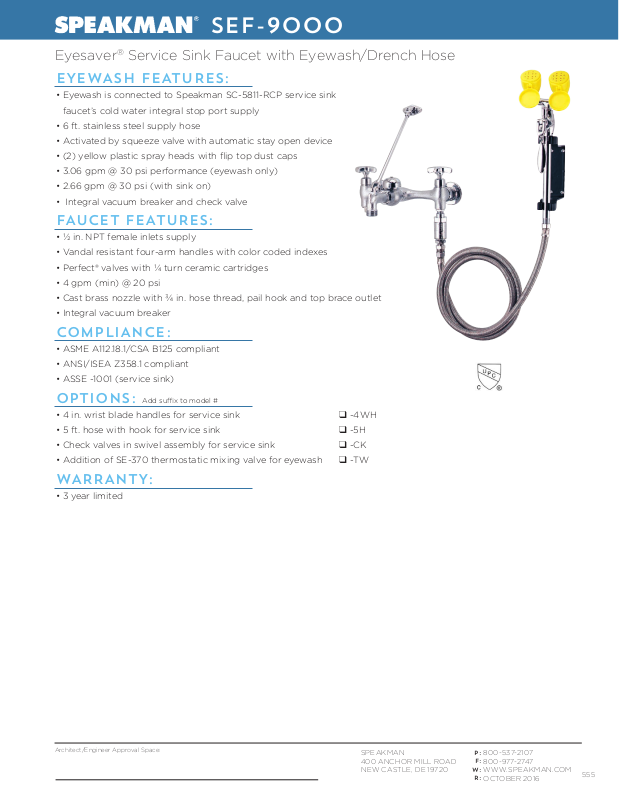

SEF-9000

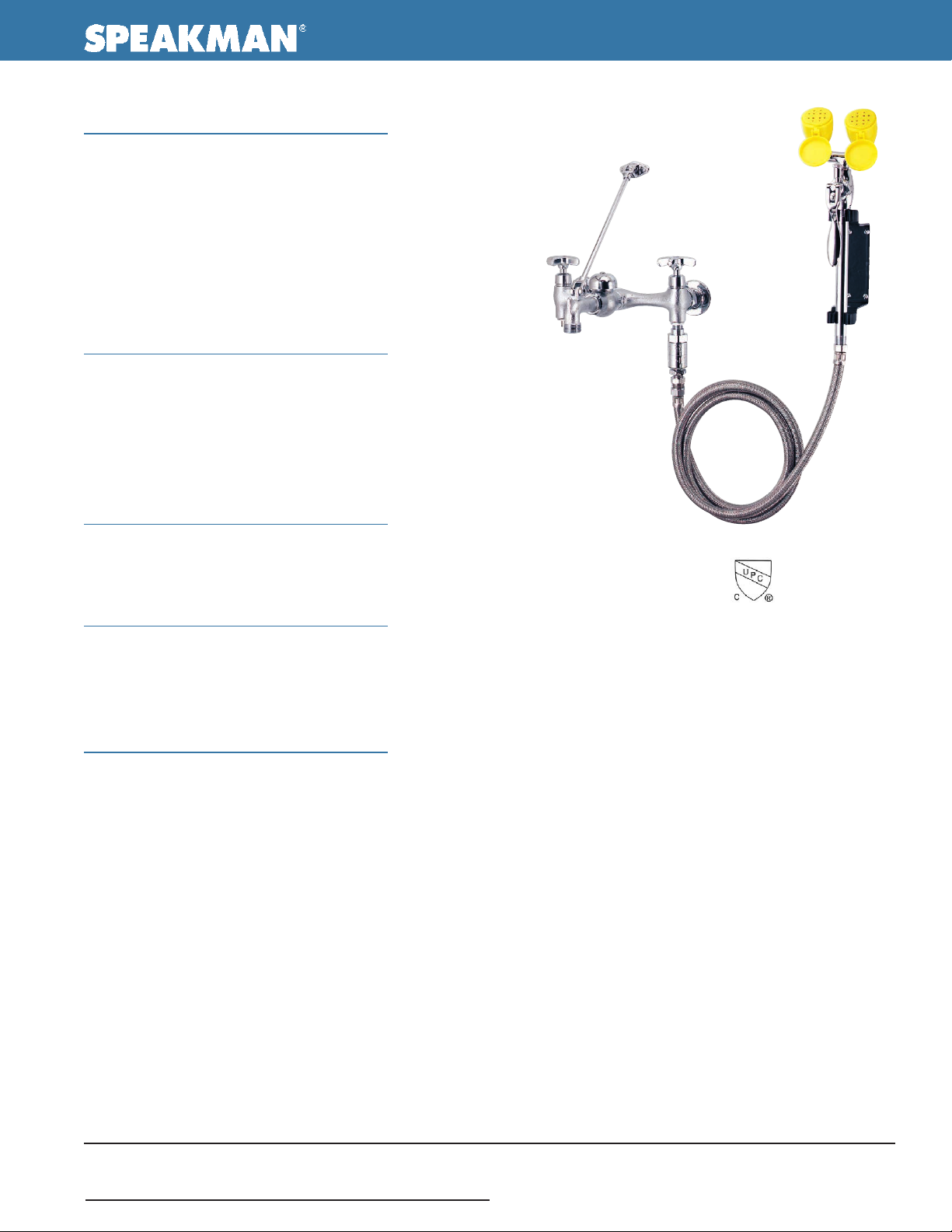

Eyesaver® Service Sink Faucet with Eyewash/Drench Hose
EYEWASH FEATURES:
• Eyewash is connected to Speakman SC-5811-RCP service sink
faucet’s cold water integral stop port supply
• 6 ft. stainless steel supply hose
• Activated by squeeze valve with automatic stay open device
• (2) yellow plastic spray heads with flip top dust caps
• 3.06 gpm @ 30 psi performance (eyewash only)
• 2.66 gpm @ 30 psi (with sink on)
• Integral vacuum breaker and check valve
FAUCET FEATURES:
• ½ in. NPT female inlets supply
• Vandal resistant four-arm handles with color coded indexes
• Perfect® valves with ¼ turn ceramic cartridges
• 4 gpm (min) @ 20 psi
• Cast brass nozzle with ¾ in. hose thread, pail hook and top brace outlet
• Integral vacuum breaker
COMPLIANCE:
• ASME A112.18.1/CSA B125 compliant
• ANSI/ISEA Z358.1 compliant
• ASSE -1001 (service sink)
OPTIONS: Add sux to model #
• 4 in. wrist blade handles for service sink ❑ -4WH
• 5 ft. hose with hook for service sink
• Check valves in swivel assembly for service sink
• Addition of SE-370 thermostatic mixing valve for eyewash
❑ -5H
❑ -CK
❑ -TW
WARRANTY:
• 3 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2016
555
Page 2
DIMENSIONS:
NOTE: 1. Inlets are 1/2˝ NPT female. 2. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without
notice. 3. The SEF-9200 EyesaverTM service sink unit and the SC-5811-RCP service sink tting can be purchased together as a SEF-9000
EyesaverTM service sink tting.
Architect/Engineer Approval Space:
556
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2016
Page 3
SEF-9000-FM

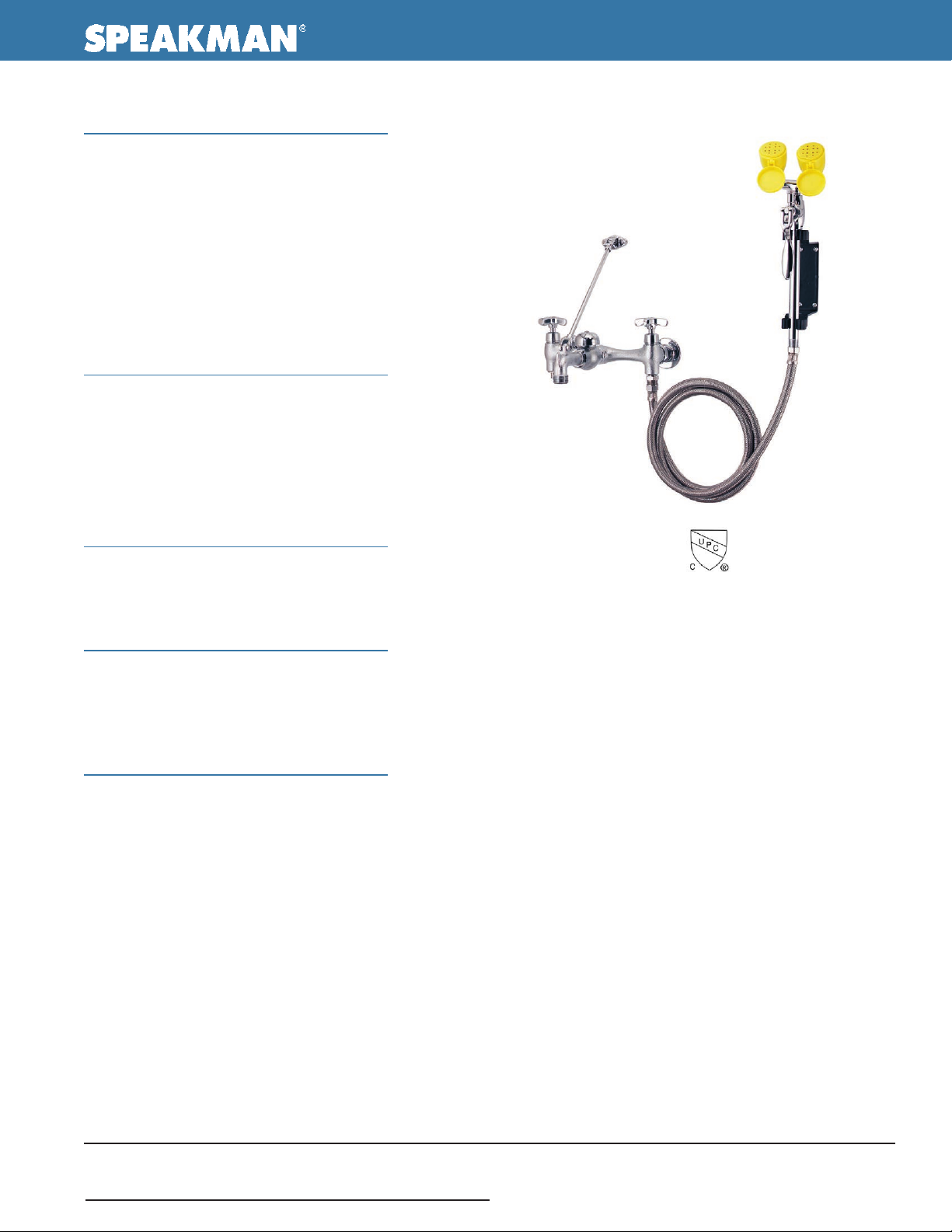

Eyesaver® Service Sink Faucet with Fixed Mount Eyewash
EYEWASH FEATURES:
• Eyewash is connected to Speakman SC-5811-RCP service sink
faucet’s cold water integral stop port with stainless steel supply hose
• 6 ft. stainless steel supply hose
• Activated by squeeze valve with automatic stay open device
• (2) yellow plastic spray heads with flip top dust caps
• 3.06 gpm @ 30 psi performance (eyewash only)
• 2.66 gpm @ 30 psi (with sink on)
• Integral check valve
• Eyewash is permanently attached to wall mounting bracket
FAUCET FEATURES:
• ½ in. NPT female inlets supply
• Vandal resistant four-arm handles with color coded indexes
• Perfect® valves with ¼ turn ceramic cartridges
• 4 gpm (min) @ 20 psi
• Cast brass nozzle with ¾ in. hose thread, pail hook and top brace outlet
• Integral vacuum breaker
COMPLIANCE:
• ASME A112.18.1/CSA B125 compliant
• ANSI/ISEA Z358.1 compliant
• ASSE -1001 (service sink)
OPTIONS: Add sux to model #
• 4 in. wrist blade handles for service sink ❑ -4WH
• 5 ft. hose with hook for service sink
• Check valves in swivel assembly for service sink
• Addition of SE-370 thermostatic mixing valve for eyewash
❑ -5H
❑ -CK
❑ -TW
WARRANTY:
• 3 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2016
557
Page 4

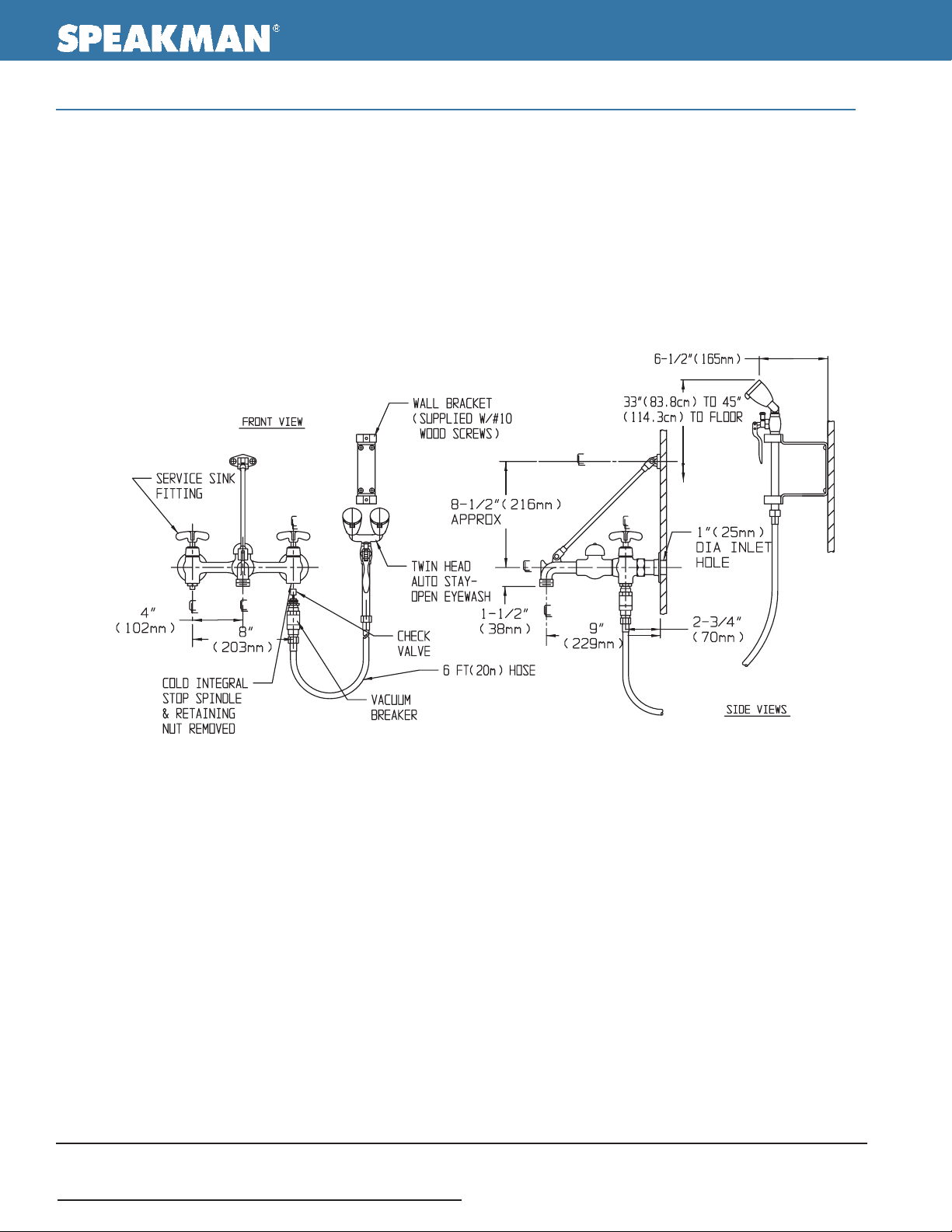

DIMENSIONS:
NOTE: 1. Inlets are 1/2˝ NPT female. 2. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without
notice. 3. The SEF-9200 EyesaverTM service sink unit and the SC-5811-RCP service sink tting can be purchased together as a SEF-9000
EyesaverTM service sink tting.
Architect/Engineer Approval Space:
558
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2016
Page 5
SEF-9200

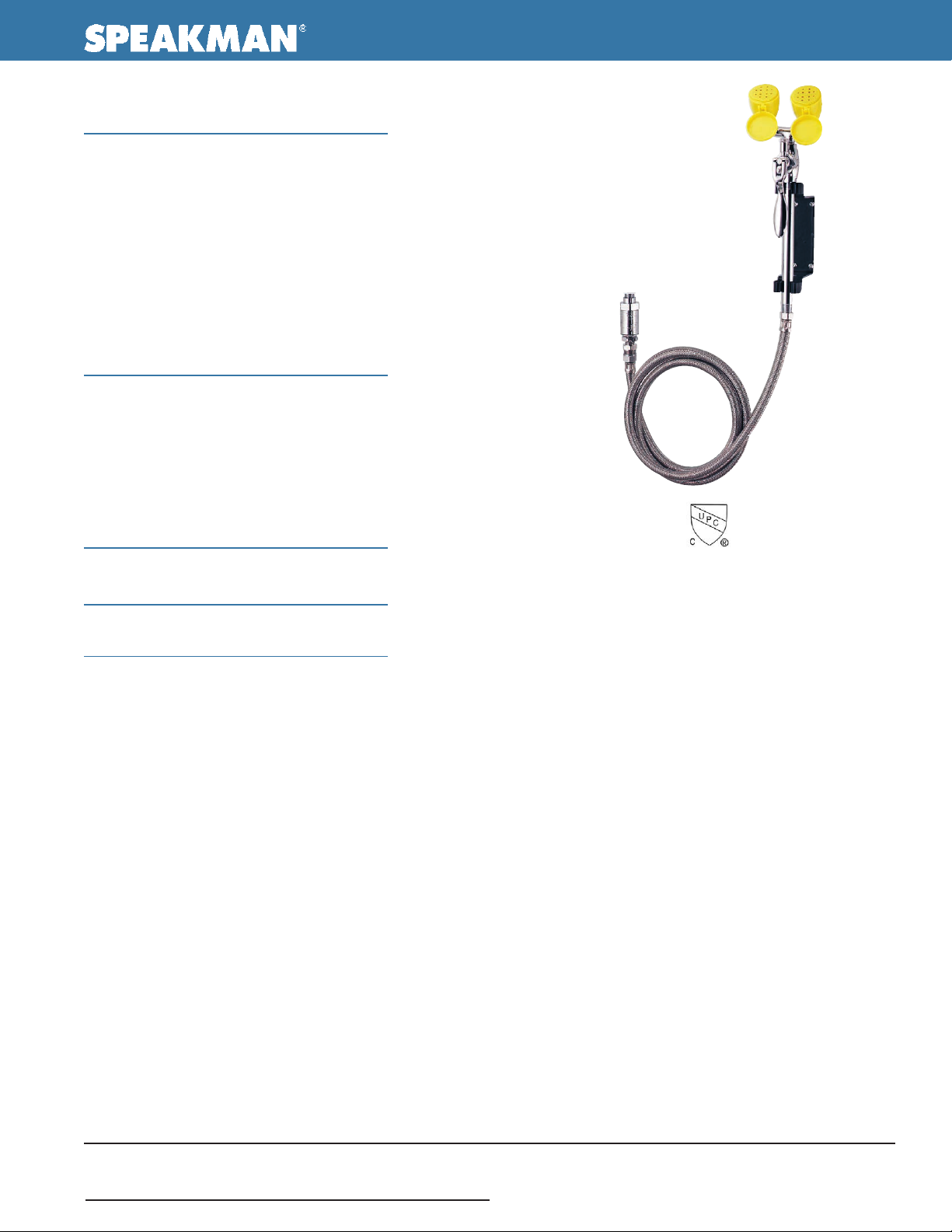

Eyesaver® Eyewash/Drench Hose Attachment
EYEWASH FEATURES:
• Connects to Speakman SC-5811-RCP service sink faucet’s cold water
integral stop port supply
• 6 ft. stainless steel supply hose
• Activated by squeeze valve with automatic stay open device
• (2) yellow plastic spray heads
• 3.06 gpm @ 30 psi performance (eyewash only)
• 2.66 gpm @ 30 psi (with sink on)
• Integral vacuum breaker and check valve
• Can also be used on Ferguson ProFlo PF1119
SERVICE SINK FAUCET (Sold Separately)
• ½ in. NPT female inlets supply
• Vandal resistant four-arm handles with color coded indexes
• Perfect® valves with ¼ turn ceramic cartridges
• Cast brass nozzle with ¾ in. hose thread, pail hook and top brace
• 4 gpm (min)
• Integral vacuum breaker
COMPLIANCE:
• ANSI/ISEA Z358.1 compliant
OPTIONS: Add sux to model #
• Addition of SE-370 thermostatic mixing valve ❑ -TW
WARRANTY:
• 3 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2016
559
Page 6

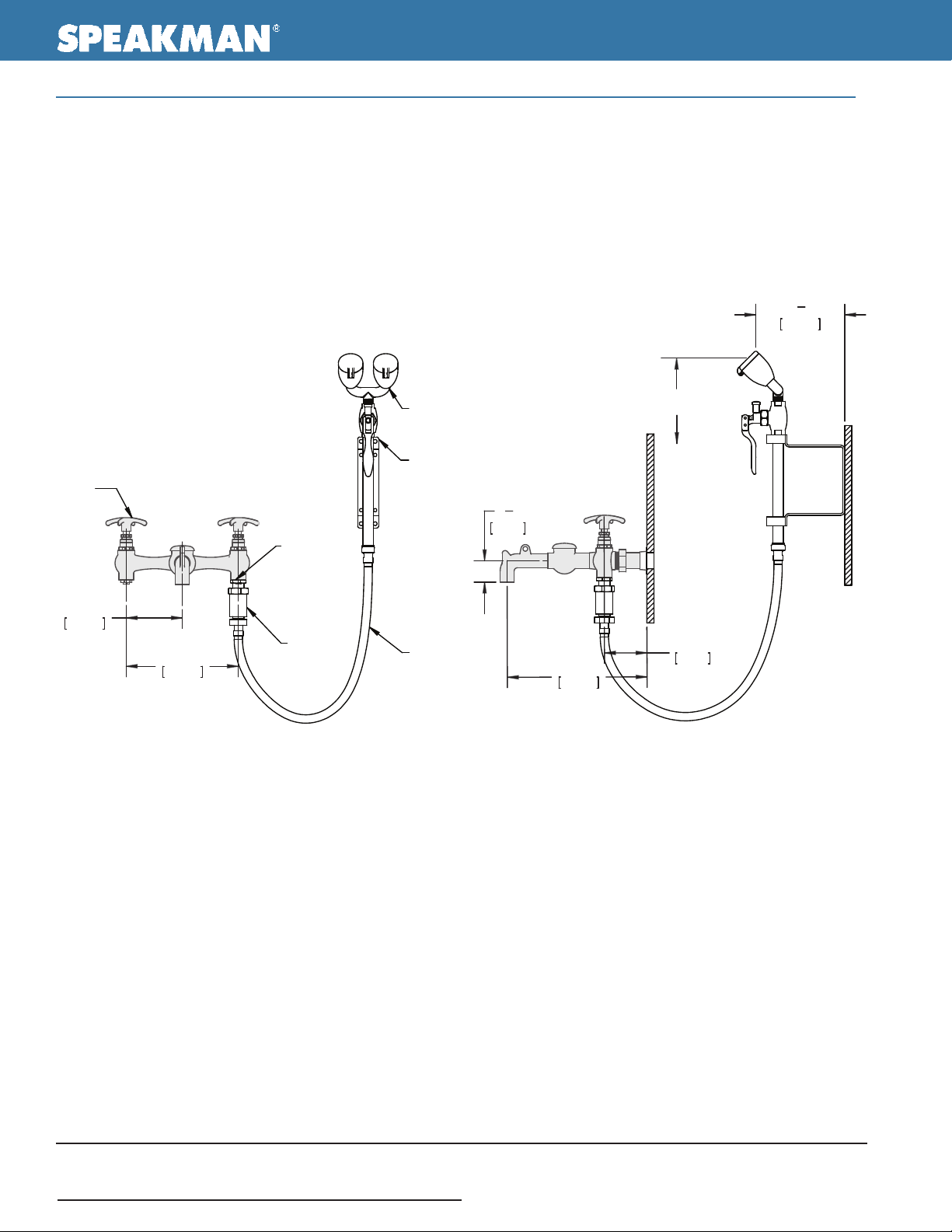

DIMENSIONS:
SERVICE SINK
FITTING
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
33" (83.8CM) TO 45"
(114.3CM) TO FLOOR
COLD INTEGRAL
STOP SPINDLE
& RETAINING
NUT REMOVED
TWIN HEAD
AUTO STAYOPEN EYEWASH
WALL BRACKET
(SUPPLIED W/#10
WOOD SCREWS)
1
1
2
39mm
"
1
6
4
161mm
"
4"
102mm
8"
203mm
VACUUM
BREAKER
6 FT (20m) HOSE
10"
253mm
3"
77mm
