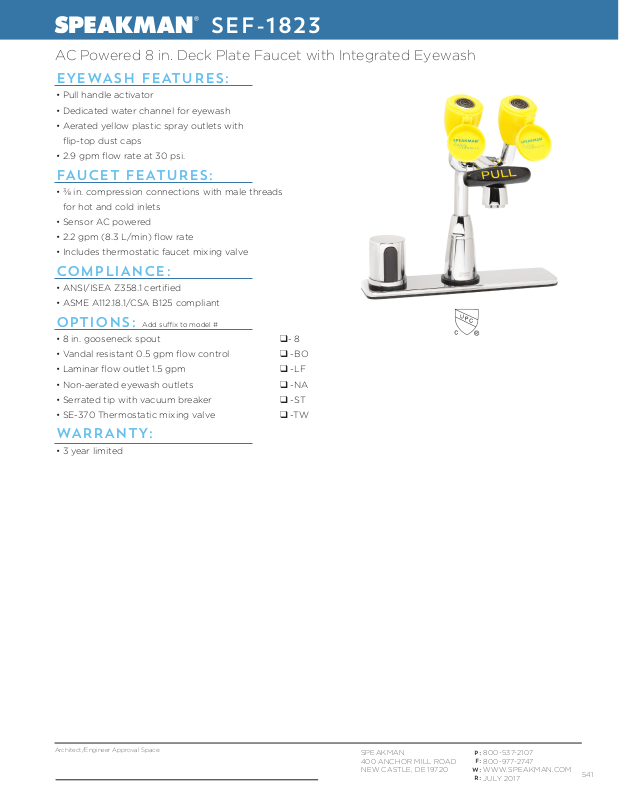

Page 1

SEF-1823

AC Powered 8 in. Deck Plate Faucet with Integrated Eyewash

EYEWASH FEATURES:

• Pull handle activator

• Dedicated water channel for eyewash

• Aerated yellow plastic spray outlets with

ﬂip-top dust caps

• 2.9 gpm ﬂow rate at 30 psi.

FAUCET FEATURES:

• ⅜ in. compression connections with male threads

for hot and cold inlets

• Sensor AC powered

• 2.2 gpm (8.3 L/min) ﬂow rate

• Includes thermostatic faucet mixing valve

COMPLIANCE:

• ANSI/ISEA Z358.1 certiﬁed

• ASME A112.18.1/CSA B125 compliant

OPTIONS: Add sux to model #

• 8 in. gooseneck spout ❑- 8

• Vandal resistant 0.5 gpm ﬂow control ❑ -BO

• Laminar ﬂow outlet 1.5 gpm ❑ -LF

• Non-aerated eyewash outlets ❑ -NA

• Serrated tip with vacuum breaker ❑ -ST

• SE-370 Thermostatic mixing valve ❑ -TW

WARRANTY:

• 3 year limited

Architect/Engineer Approval Space:

SPEAKMAN 400 ANCHOR MILL ROAD NEW C ASTLE, DE 19720

800-537-2107

80 0 -977-2747

WWW.SPEAKMAN.COM

JULY 2017

541

Page 2

DIMENSIONS:

NOTE: 1. All dimensions are in inches (millimeters) unless otherwise speciﬁ ed and are subject to change without notice.

Architect/Engineer Approval Space:

542

Flowing Pressure

Flow Rate

Eyewash Distance

Plume ”A”

Flowing Pressure

Flow Rate

Eyewash Distance

Plume “A”

SEF-1823 Spray Plume Length and Flow

30 psi 40 psi 50 psi 60 psi 70 psi 80 psi

2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar

2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm

11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min

13.5” 14.25” 14.25” 13.75” 13.75” 13.75”

34.29 cm 36.2 cm 36.2 cm 34.93 cm 34.93 cm 34.93 cm

SEF-1823-8 Spray Plume Length and Flow
