Speakman SPK1495 Specifications

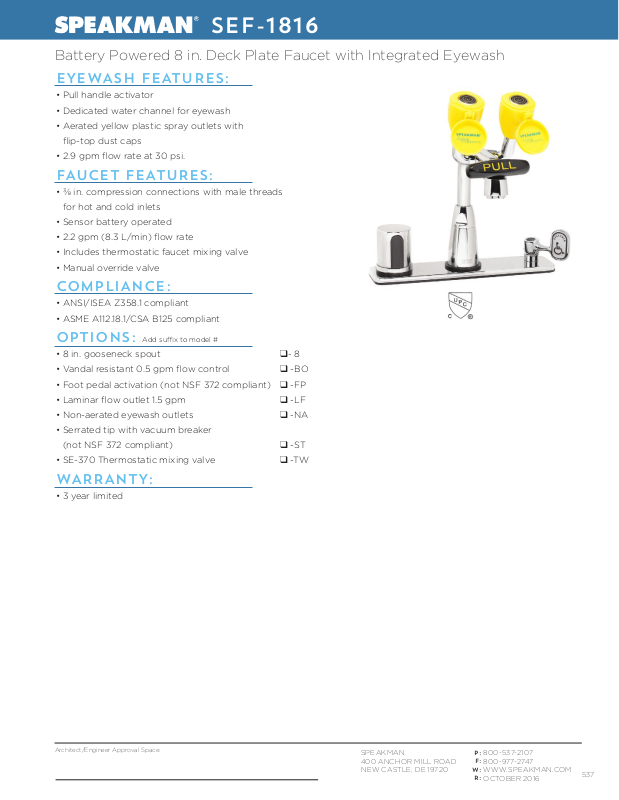

SEF-1816

Battery Powered 8 in. Deck Plate Faucet with Integrated Eyewash

EYEWASH FEATURES:

• Pull handle activator

• Dedicated water channel for eyewash

• Aerated yellow plastic spray outlets with

flip-top dust caps

• 2.9 gpm flow rate at 30 psi.

FAUCET FEATURES:

• ⅜ in. compression connections with male threads

for hot and cold inlets

• Sensor battery operated

• 2.2 gpm (8.3 L/min) flow rate

• Includes thermostatic faucet mixing valve

• Manual override valve

COMPLIANCE:

• ANSI/ISEA Z358.1 compliant

• ASME A112.18.1/CSA B125 compliant

OPTIONS: Add sux to model #

• 8 in. gooseneck spout ❑- 8

• Vandal resistant 0.5 gpm flow control

• Foot pedal activation (not NSF 372 compliant)

• Laminar flow outlet 1.5 gpm

• Non-aerated eyewash outlets

• Serrated tip with vacuum breaker

(not NSF 372 compliant)

• SE-370 Thermostatic mixing valve

❑ -BO

❑ -FP

❑ -LF

❑ -NA

❑ -ST

❑ -TW

WARRANTY:

• 3 year limited

Architect/Engineer Approval Space:

SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720

P:

800-537-2107

F:

80 0 -977-2747

W:

WWW.SPEAKMAN.COM

R:

OCTOBER 2016

537

DIMENSIONS:

NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.

H O T
I N L E T

CO L D
I N L E T

Flowing Pressure

Flow Rate

Eyewash Distance

Plume ”A”

F L O O R

SEF-1816 Spray Plume Length and Flow

30 psi 40 psi 50 psi 60 psi 70 psi 80 psi

2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar

2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm

11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min

13.5” 14.25” 14.25” 13.75” 13.75” 13.75”

34.29 cm 36.2 cm 36.2 cm 34.93 cm 34.93 cm 34.93 cm

Architect/Engineer Approval Space:

538

Flowing Pressure

Flow Rate

Eyewash Distance

Plume “A”

SEF-1816-8 Spray Plume Length and Flow

30 psi 40 psi 50 psi 60 psi 70 psi 80 psi

2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar

2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm

11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min

17.0” 18” 17.5” 17.0” 17.0” 17.0”

43.18 cm 45.72 cm 44.45 cm 43.18 cm 43.18 cm 43.18 cm

SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720

P:

800-537-2107

F:

80 0 -977-2747

W:

WWW.SPEAKMAN.COM

R:

OCTOBER 2016

SEF-1826

AC Powered 8 in. Deck Plate Faucet with Integrated Eyewash

EYEWASH FEATURES:

• Pull handle activator

• Dedicated water channel for eyewash

• Aerated yellow plastic spray outlets with

flip-top dust caps

• 2.9 gpm flow rate at 30 psi.

FAUCET FEATURES:

• ⅜ in. compression connections with male threads

for hot and cold inlets

• Sensor AC powered

• 2.2 gpm (8.3 L/min) flow rate

• Includes thermostatic faucet mixing valve

• Manual override valve

COMPLIANCE:

• ANSI/ISEA Z358.1 compliant

• ASME A112.18.1/CSA B125 compliant

OPTIONS: Add sux to model #

• 8 in. gooseneck spout ❑- 8

• Vandal resistant 0.5 gpm flow control

• Foot pedal activation (not NSF 372 compliant)

• Laminar flow outlet 1.5 gpm

• Non-aerated eyewash outlets

• Serrated tip with vacuum breaker

(not NSF 372 compliant)

• SE-370 Thermostatic mixing valve

❑ -BO

❑ -FP

❑ -LF

❑ -NA

❑ -ST

❑ -TW

WARRANTY:

• 3 year limited

Architect/Engineer Approval Space:

SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720

P:

800-537-2107

F:

80 0 -977-2747

W:

WWW.SPEAKMAN.COM

R:

OCTOBER 2016

547

DIMENSIONS:

NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.

H O T
I N L E T

CO L D
I N L E T

Flowing Pressure

Flow Rate

Eyewash Distance

Plume ”A”

Flowing Pressure

Flow Rate

Eyewash Distance

Plume “A”

F L O O R

SEF-1826 Spray Plume Length and Flow

30 psi 40 psi 50 psi 60 psi 70 psi 80 psi

2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar

2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm

11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min

13.5” 14.25” 14.25” 13.75” 13.75” 13.75”

34.29 cm 36.2 cm 36.2 cm 34.93 cm 34.93 cm 34.93 cm

SEF-1826-8 Spray Plume Length and Flow

30 psi 40 psi 50 psi 60 psi 70 psi 80 psi

2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar

2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm

11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min

17.0” 18” 17.5” 17.0” 17.0” 17.0”

43.18 cm 45.72 cm 44.45 cm 43.18 cm 43.18 cm 43.18 cm

Architect/Engineer Approval Space:

548

SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720

P:

800-537-2107

F:

80 0 -977-2747

W:

WWW.SPEAKMAN.COM

R:

OCTOBER 2016
