SPEAKMAN

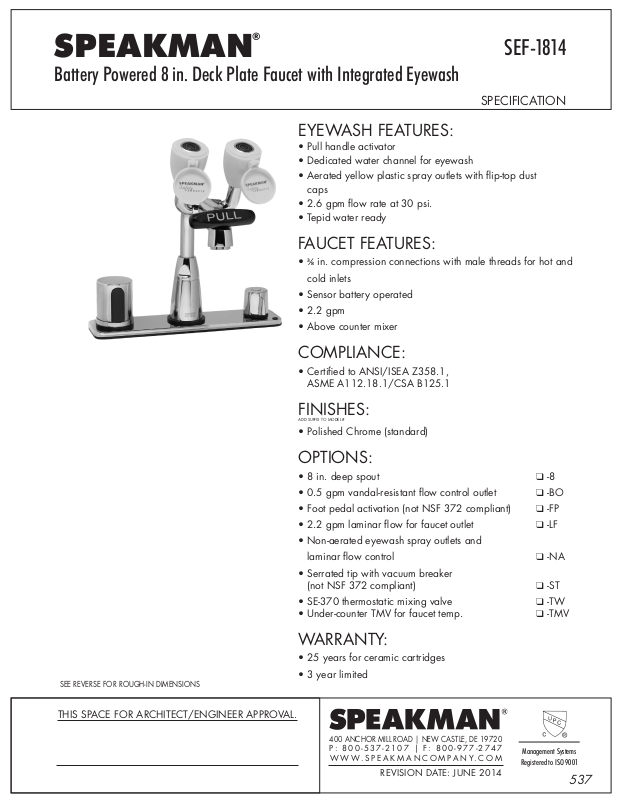

Battery Powered 8 in. Deck Plate Faucet with Integrated Eyewash
EYEWASH FEATURES:
• Pull handle activator
• Dedicated water channel for eyewash
• Aerated yellow plastic spray outlets with ip-top dust
caps
• 2.6 gpm ow rate at 30 psi.
• Tepid water ready
FAUCET FEATURES:
• 3/8 in. compression connections with male threads for hot and
cold inlets
• Sensor battery operated
• 2.2 gpm
• Above counter mixer
SEF-1814
SPECIFICATION
SEE REVERSE FOR ROUGH-IN DIMENSIONS
COMPLIANCE:
• Certied to ANSI/ISEA Z358.1,
ASME A112.18.1/CSA B125.1
FINISHES:
ADD SUFFIX TO MODEL #
• Polished Chrome (standard)
OPTIONS:
• 8 in. deep spout ❑ -8
• 0.5 gpm vandal-resistant ow control outlet ❑ -BO
• Foot pedal activation (not NSF 372 compliant) ❑ -FP
• 2.2 gpm laminar ow for faucet outlet ❑ -LF
• Non-aerated eyewash spray outlets and
laminar ow control ❑ -NA
• Serrated tip with vacuum breaker
(not NSF 372 compliant) ❑ -ST
• SE-370 thermostatic mixing valve ❑ -TW
• Under-counter TMV for faucet temp. ❑ -TMV
WARRANTY:
• 25 years for ceramic cartridges
• 3 year limited
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JUNE 2014
Management Systems
Registered to ISO 9001
537
Page 2
®
SPEAKMAN
Battery Powered 8 in. Deck Plate Faucet with Integrated Eyewash SEF-1814
SPECIFICATION
538
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to
change without notice.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JUNE 2014
Management Systems
Registered to ISO 9001
