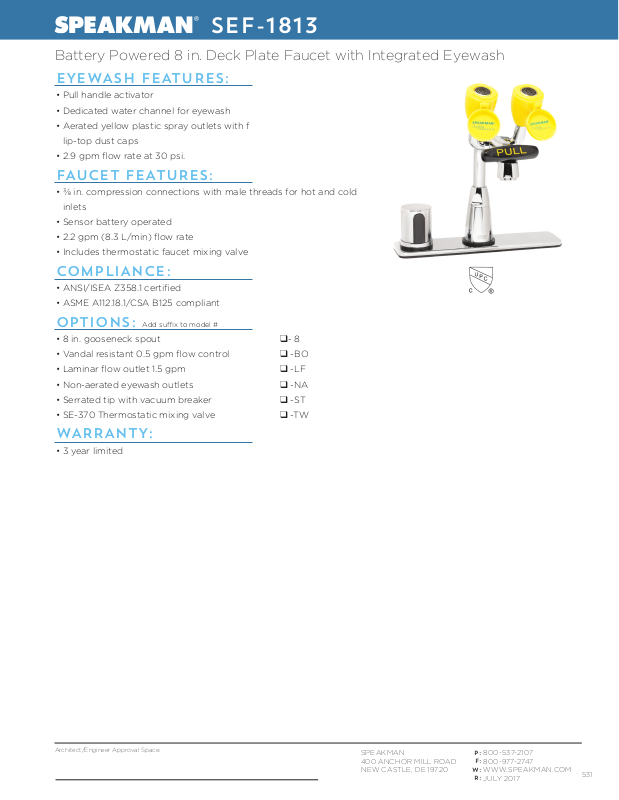

Page 1
SEF-1813
Battery Powered 8 in. Deck Plate Faucet with Integrated Eyewash
EYEWASH FEATURES:
• Pull handle activator
• Dedicated water channel for eyewash
• Aerated yellow plastic spray outlets with f
lip-top dust caps
• 2.9 gpm flow rate at 30 psi.
FAUCET FEATURES:
• ⅜ in. compression connections with male threads for hot and cold
inlets
• Sensor battery operated
• 2.2 gpm (8.3 L/min) flow rate
• Includes thermostatic faucet mixing valve
COMPLIANCE:
• ANSI/ISEA Z358.1 certified
• ASME A112.18.1/CSA B125 compliant
OPTIONS: Add sux to model #
• 8 in. gooseneck spout ❑- 8
• Vandal resistant 0.5 gpm flow control ❑ -BO
• Laminar flow outlet 1.5 gpm ❑ -LF
• Non-aerated eyewash outlets ❑ -NA
• Serrated tip with vacuum breaker ❑ -ST
• SE-370 Thermostatic mixing valve ❑ -TW
WARRANTY:
• 3 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
JULY 2017
531
Page 2
DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specifi ed and are subject to change without notice.
Architect/Engineer Approval Space:
532
Flowing Pressure
Flow Rate
Eyewash Distance
Plume ”A”
Flowing Pressure
Flow Rate
Eyewash Distance
Plume “A”
SEF-1813 Spray Plume Length and Flow
30 psi 40 psi 50 psi 60 psi 70 psi 80 psi
2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar
2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm
11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min
13.5” 14.25” 14.25” 13.75” 13.75” 13.75”
34.29 cm 36.2 cm 36.2 cm 34.93 cm 34.93 cm 34.93 cm
SEF-1813-8 Spray Plume Length and Flow
30 psi 40 psi 50 psi 60 psi 70 psi 80 psi
2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar
2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm
11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min
17.0” 18” 17.5” 17.0” 17.0” 17.0”
43.18 cm 45.72 cm 44.45 cm 43.18 cm 43.18 cm 43.18 cm
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
JULY 2017
Page 3
SEF-1823
AC Powered 8 in. Deck Plate Faucet with Integrated Eyewash
EYEWASH FEATURES:
• Pull handle activator
• Dedicated water channel for eyewash
• Aerated yellow plastic spray outlets with
flip-top dust caps
• 2.9 gpm flow rate at 30 psi.
FAUCET FEATURES:
• ⅜ in. compression connections with male threads
for hot and cold inlets
• Sensor AC powered
• 2.2 gpm (8.3 L/min) flow rate
• Includes thermostatic faucet mixing valve
COMPLIANCE:
• ANSI/ISEA Z358.1 certified
• ASME A112.18.1/CSA B125 compliant
OPTIONS: Add sux to model #
• 8 in. gooseneck spout ❑- 8
• Vandal resistant 0.5 gpm flow control ❑ -BO
• Laminar flow outlet 1.5 gpm ❑ -LF
• Non-aerated eyewash outlets ❑ -NA
• Serrated tip with vacuum breaker ❑ -ST
• SE-370 Thermostatic mixing valve ❑ -TW
WARRANTY:
• 3 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
JULY 2017
541
Page 4
DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specifi ed and are subject to change without notice.
Architect/Engineer Approval Space:
542
Flowing Pressure
Flow Rate
Eyewash Distance
Plume ”A”
Flowing Pressure
Flow Rate
Eyewash Distance
Plume “A”
SEF-1823 Spray Plume Length and Flow
30 psi 40 psi 50 psi 60 psi 70 psi 80 psi
2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar
2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm
11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min
13.5” 14.25” 14.25” 13.75” 13.75” 13.75”
34.29 cm 36.2 cm 36.2 cm 34.93 cm 34.93 cm 34.93 cm
SEF-1823-8 Spray Plume Length and Flow
30 psi 40 psi 50 psi 60 psi 70 psi 80 psi
2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar
2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm
11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min
17.0” 18” 17.5” 17.0” 17.0” 17.0”
43.18 cm 45.72 cm 44.45 cm 43.18 cm 43.18 cm 43.18 cm
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
JULY 2017
