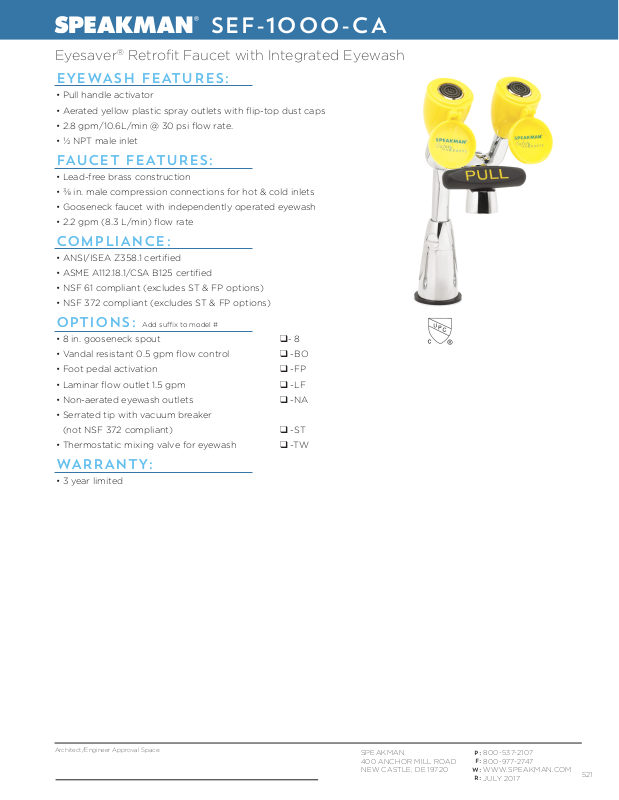

SEF-1000-CA
Eyesaver® Retrot Faucet with Integrated Eyewash
EYEWASH FEATURES:
• Pull handle activator
• Aerated yellow plastic spray outlets with flip-top dust caps
• 2.8 gpm/10.6L/min @ 30 psi flow rate.
• ½ NPT male inlet
FAUCET FEATURES:
• Lead-free brass construction
• ⅜ in. male compression connections for hot & cold inlets
• Gooseneck faucet with independently operated eyewash
• 2.2 gpm (8.3 L/min) flow rate
COMPLIANCE:
• ANSI/ISEA Z358.1 certified
• ASME A112.18.1/CSA B125 certified
• NSF 61 compliant (excludes ST & FP options)
• NSF 372 compliant (excludes ST & FP options)
OPTIONS: Add sux to model #
• 8 in. gooseneck spout ❑- 8
• Vandal resistant 0.5 gpm flow control ❑ -BO
• Foot pedal activation ❑ -FP
• Laminar flow outlet 1.5 gpm ❑ -LF
• Non-aerated eyewash outlets ❑ -NA
• Serrated tip with vacuum breaker
(not NSF 372 compliant) ❑ -ST
• Thermostatic mixing valve for eyewash ❑ -TW
WARRANTY:
• 3 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
JULY 2017
521
Page 2
DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
Architect/Engineer Approval Space:
522
Flowing Pressure
Flow Rate
Eyewash Distance
Plume ”A”
Flowing Pressure
Flow Rate
Eyewash Distance
Plume “A”
SEF-1000-CA Spray Plume Length and Flow
30 psi 40 psi 50 psi 60 psi 70 psi 80 psi
2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar
2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm
11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min
13.5” 14.25” 14.25” 13.75” 13.75” 13.75”
34.29 cm 36.2 cm 36.2 cm 34.93 cm 34.93 cm 34.93 cm
SEF-1000-CA-8 Spray Plume Length and Flow
30 psi 40 psi 50 psi 60 psi 70 psi 80 psi
2.07 Bar 2.76 Bar 3.45 Bar 4.14 Bar 4.83 Bar 5.52 Bar
2.9 gpm 3.1 gpm 2.9 gpm 2.9 gpm 2.9 gpm 2.9 gpm
11.09 L/min 11.55 L/min 11.13 L/min 10.98 L/min 10.90 L/min 10.86 L/min
17.0” 18” 17.5” 17.0” 17.0” 17.0”
43.18 cm 45.72 cm 44.45 cm 43.18 cm 43.18 cm 43.18 cm
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
JULY 2017
