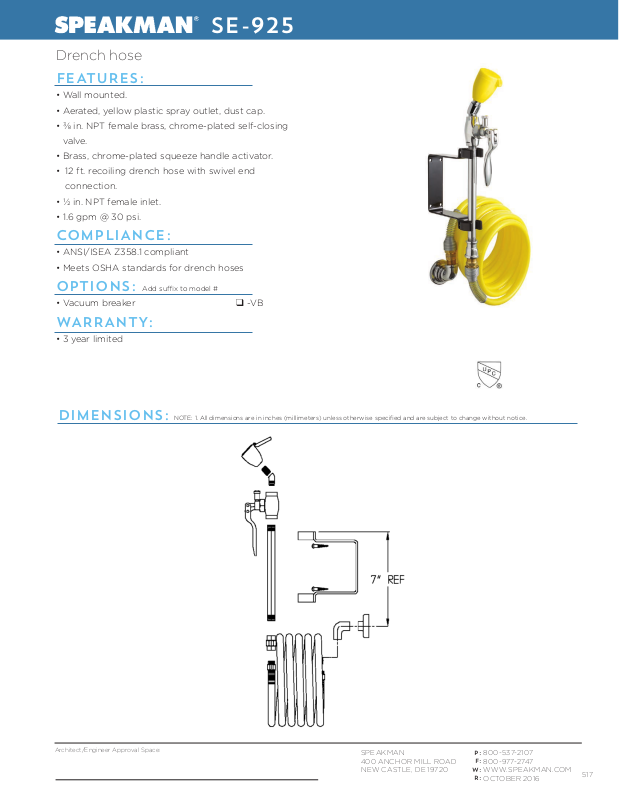

Page 1
SE-925
Drench hose
FEATURES:
• Wall mounted.
• Aerated, yellow plastic spray outlet, dust cap.
• ⅜ in. NPT female brass, chrome-plated self-closing
valve.
• Brass, chrome-plated squeeze handle activator.
• 12 ft. recoiling drench hose with swivel end
connection.
• ½ in. NPT female inlet.
• 1.6 gpm @ 30 psi.
COMPLIANCE:
• ANSI/ISEA Z358.1 compliant
• Meets OSHA standards for drench hoses
OPTIONS: Add sux to model #
• Vacuum breaker ❑ -VB
WARRANTY:
• 3 year limited
DIMENSIONS: NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2016
517
Page 2
SE-925-TEW
Combination Eyewash & Drench Hose
FEATURES:
• Wall mounted
• Twin aerated, yellow plastic spray outlet, dust cap
and an automatic flow control
• ⅜ in. NPT female brass, chrome-plated self-closing
valve.
• Brass, chrome-plated squeeze handle activator
• 12 ft. recoiling hose with swivel end connection.
• ½ in. NPT female inlet.
• 2.69 gpm @ 30 psi
COMPLIANCE:
• ANSI/ISEA Z358.1 compliant
OPTIONS: Add sux to model #
• Vacuum breaker ❑ -VB
WARRANTY:
• 3 year limited
DIMENSIONS: NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
518
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
OCTOBER 2016
