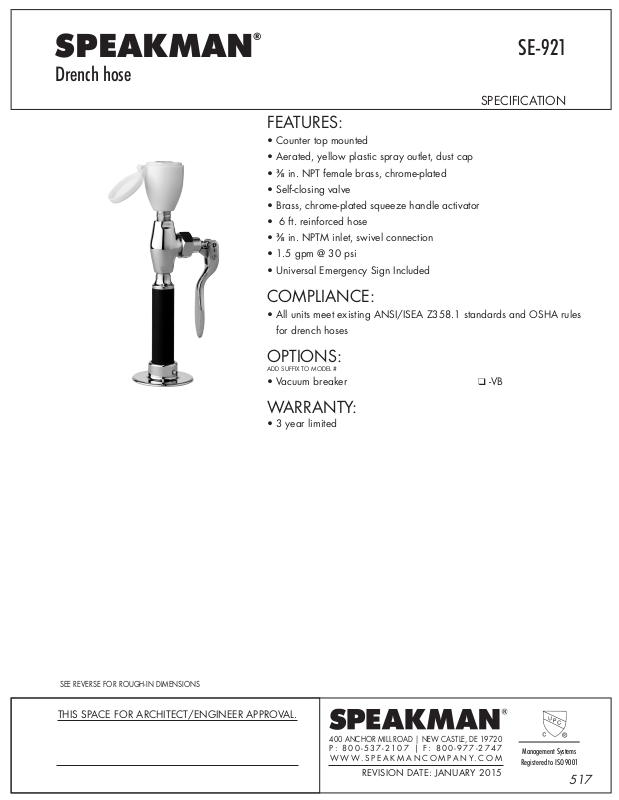

Page 1
SPEAKMAN
Drench hose
®
SE-921
SPECIFICATION
FEATURES:
• Counter top mounted
• Aerated, yellow plastic spray outlet, dust cap
• ⅜ in. NPT female brass, chrome-plated
• Self-closing valve
• Brass, chrome-plated squeeze handle activator
• 6 ft. reinforced hose
• ⅜ in. NPTM inlet, swivel connection
• 1.5 gpm @ 30 psi
• Universal Emergency Sign Included
COMPLIANCE:
• All units meet existing ANSI/ISEA Z358.1 standards and OSHA rules
for drench hoses
OPTIONS:
ADD SUFFIX TO MODEL #
• Vacuum breaker ❑ -VB
WARRANTY:
• 3 year limited
SEE REVERSE FOR ROUGH-IN DIMENSIONS
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JANUARY 2015
Management Systems
Registered to ISO 9001
517
Page 2
SPEAKMAN
Drench hose SE-921
®
SPECIFICATION
518
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to
change without notice.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JANUARY 2015
Management Systems
Registered to ISO 9001
