SPEAKMAN COMPANY

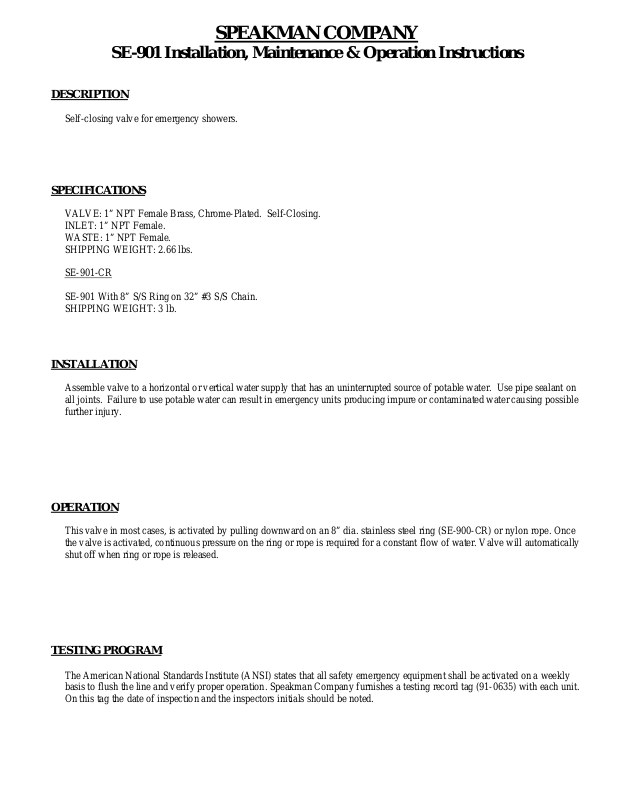

SE-901 Installation, Maintenance & Operation Instructions
DESCRIPTION
Self-closing valve for emergency showers.
SPECIFICATIONS
VALVE: 1” NPT Female Brass, Chrome-Plated. Self-Closing.
INLET: 1” NPT Female.
WASTE: 1” NPT Female.
SHIPPING WEIGHT: 2.66 lbs.
SE-901-CR
SE-901 With 8” S/S Ring on 32” #3 S/S Chain.
SHIPPING WEIGHT: 3 lb.
INSTALLATION
Assemble valve to a horizontal or vertical water supply that has an uninterrupted source of potable water. Use pipe sealant on
all joints. Failure to use potable water can result in emergency units producing impure or contaminated water causing possible
further injury.
OPERATION
This valve in most cases, is activated by pulling downward on an 8” dia. stainless steel ring (SE-900-CR) or nylon rope. Once
the valve is activated, continuous pressure on the ring or rope is required for a constant flow of water. Valve will automatically
shut off when ring or rope is released.
TESTING PROGRAM
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated on a weekly
basis to flush the line and verify proper operation. Speakman Company furnishes a testing record tag (91-0635) with each unit.
On this tag the date of inspection and the inspectors initials should be noted.
Page 2
MAINTENANCE
Should you need parts
to repair this unit,
please reference the
parts list below for
correct part numbers.
Before any
maintenance is done
be sure to shut the
water supply off.
WARNING: Use
only genuine Speakman parts when repairing or replacing components. To order parts call 1-800537-2107.

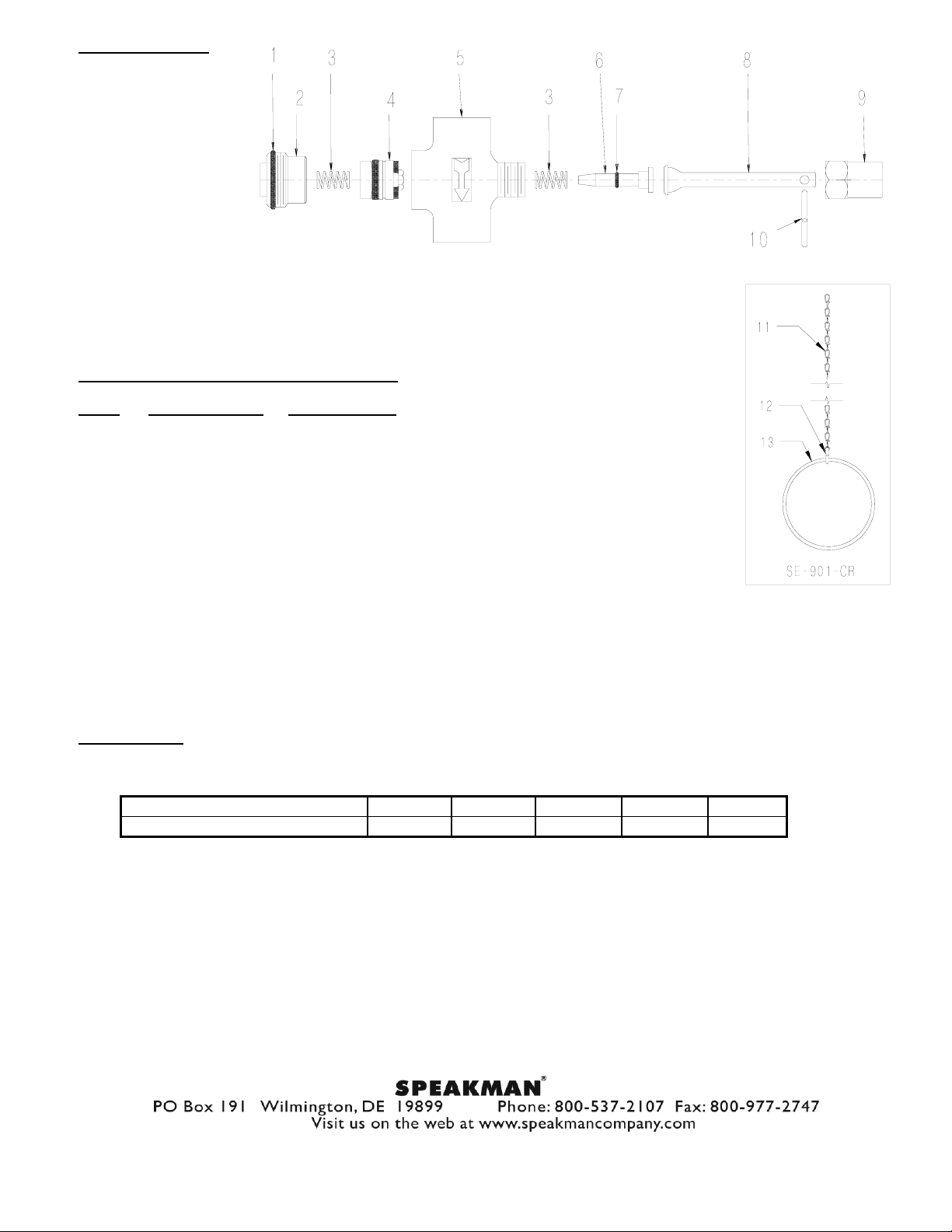

SE-901 REPLACEMENT/REPAIR PARTS
ITEM PART/GROUP # DESCRIPTION
SE-901:
1 49-0131 #126 O-Ring
2 01-0522-RCP Cap Nut
3 37-0038-MO (2) Piston Spring
4 G05-0205-MO Piston Assy.
5 20-0457-RNP-P Self-Closing Valve Body
6 G05-0363 Plunger Assy.
7 49-0075 #10 O-Ring
8 04-0425-RCP-P Safety Handle for Self-Closing Valve
9 01-0677-RCP Nut for Self-Closing Valve
10 35-0029 S-Hook
SE-901-CR:
11 05-1332-RNP 32” #3 S/S Chain
12 35-0029 S-Hook
13 22-0039-SS 8” Dia. S/S Ring
FLOW DATA
VALVE:
FLOW PRESSURE PSI (BAR) 5 (.34) 10 (.69) 15 (1.03) 25 (1.72) 35 (2.41)
FLOW RATE GPM (LPM) 22 (84) 31 (118) 38 (144) 49 (186) 58 (220)
NOTE: This unit should be connected to an uninterrupted source of potable water, with a minimum flowing
pressure of 20 PSI and a maximum static pressure of 80 PSI.
Note: All units meet existing
ANSI Z358.1 2004 Standards
and OSHA Rules. Product
improvements may cause
specification and dimensional
changes without notice.
92-1525
7/05
Rev-4
