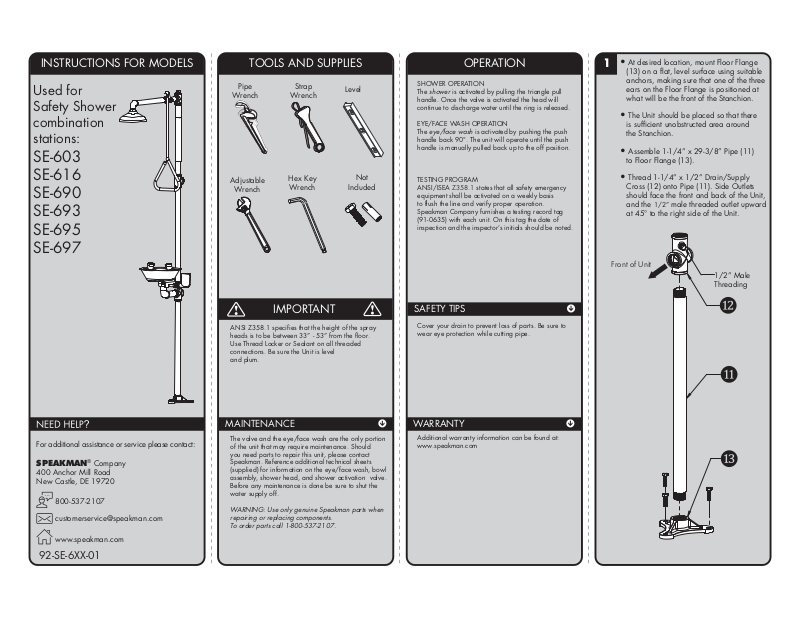

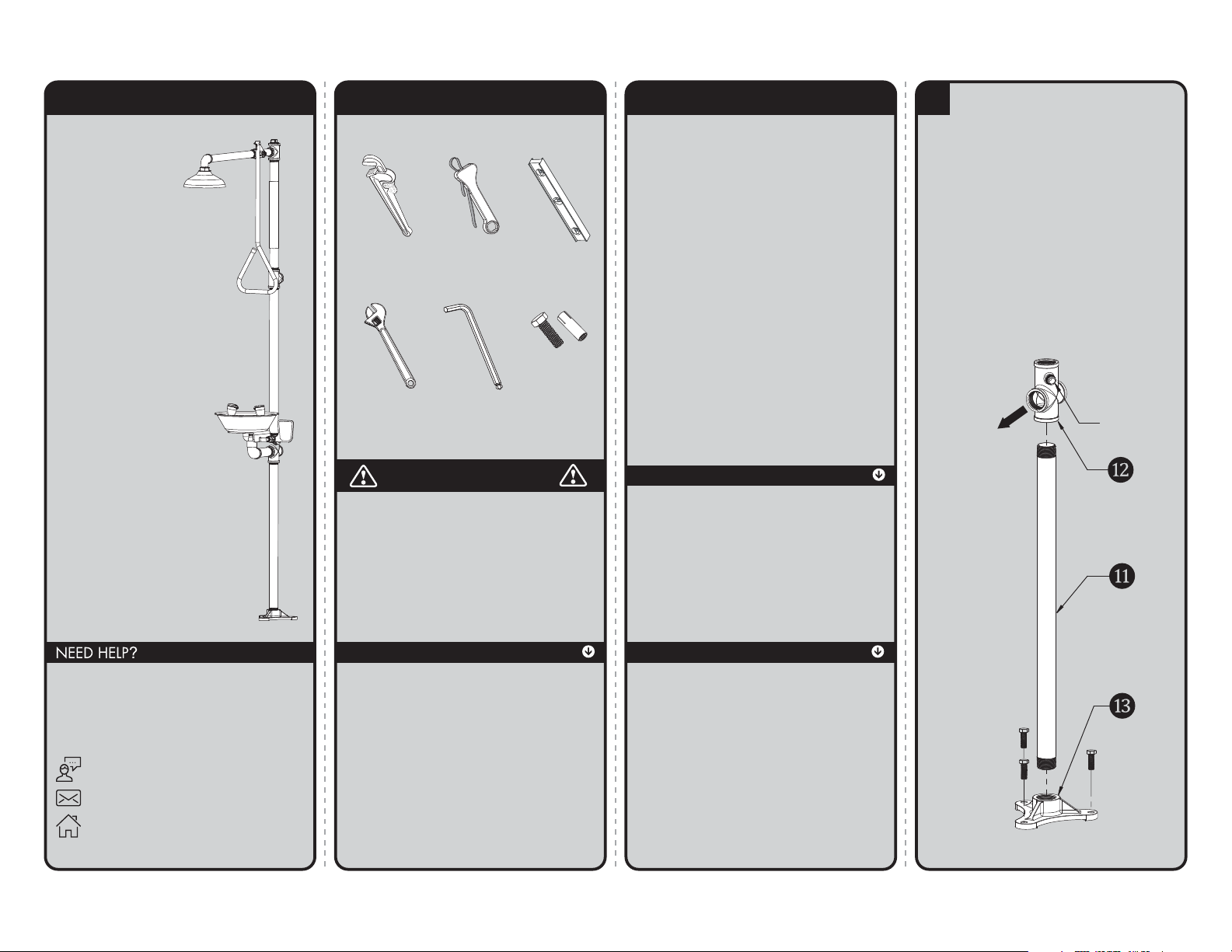

INSTRUCTIONS FOR MODELS
Used for
TOOLS AND SUPPLIES
OPERATION
1
Front of Unit
1/2” Male
Threading
• At desired location, mount Floor Flange
(13) on a flat, level surface using suitable
anchors, making sure that one of the three
ears on the Floor Flange is positioned at
what will be the front of the Stanchion.
• The Unit should be placed so that there
is sufficient unobstructed area around
the Stanchion.
• Assemble 1-1/4” x 29-3/8” Pipe (11)
to Floor Flange (13).
• Thread 1-1/4” x 1/2” Drain/Supply
Cross (12) onto Pipe (11). Side Outlets
should face the front and back of the Unit,
and the
1/2” male threaded outlet upward
at 45° to the right side of the Unit.
Safety Shower
combination
stations:
SE-603
SE-616
SE-690
SE-693
SE-695
SE-697
Pipe
Wrench
Adjustable
Wrench
Strap
Wrench
Hex Key
Wrench
Level
Not
Included
SHOWER OPERATION
The shower is activated by pulling the triangle pull
handle. Once the valve is activated the head will
continue to discharge water until the ring is released.
EYE/FACE WASH OPERATION
The eye/face wash is activated by pushing the push
handle back 90°. The unit will operate until the push
handle is manually pulled back up to the off position.
TESTING PROGRAM
ANSI/ISEA Z358.1 states that all safety emergency
equipment shall be activated on a weekly basis
to flush the line and verify proper operation.
Speakman Company furnishes a testing record tag
(91-0635) with each unit. On this tag the date of
inspection and the inspector’s initials should be noted.
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
®
Company
92-SE-6XX-01
IMPORTANT
ANSI Z358.1 specifies that the height of the spray
heads is to be between 33” - 53” from the floor.
Use Thread Locker or Sealant on all threaded
connections. Be sure the Unit is level
and plum.
MAINTENANCE
The valve and the eye/face wash are the only portion
of the unit that may require maintenance. Should
you need parts to repair this unit, please contact
Speakman. Reference additional technical sheets
(supplied) for information on the eye/face wash, bowl
assembly, shower head, and shower activation valve.
Before any maintenance is done be sure to shut the
water supply off.
WARNING: Use only genuine Speakman parts when
repairing or replacing components.
To order parts call 1-800-537-2107.
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 2
2

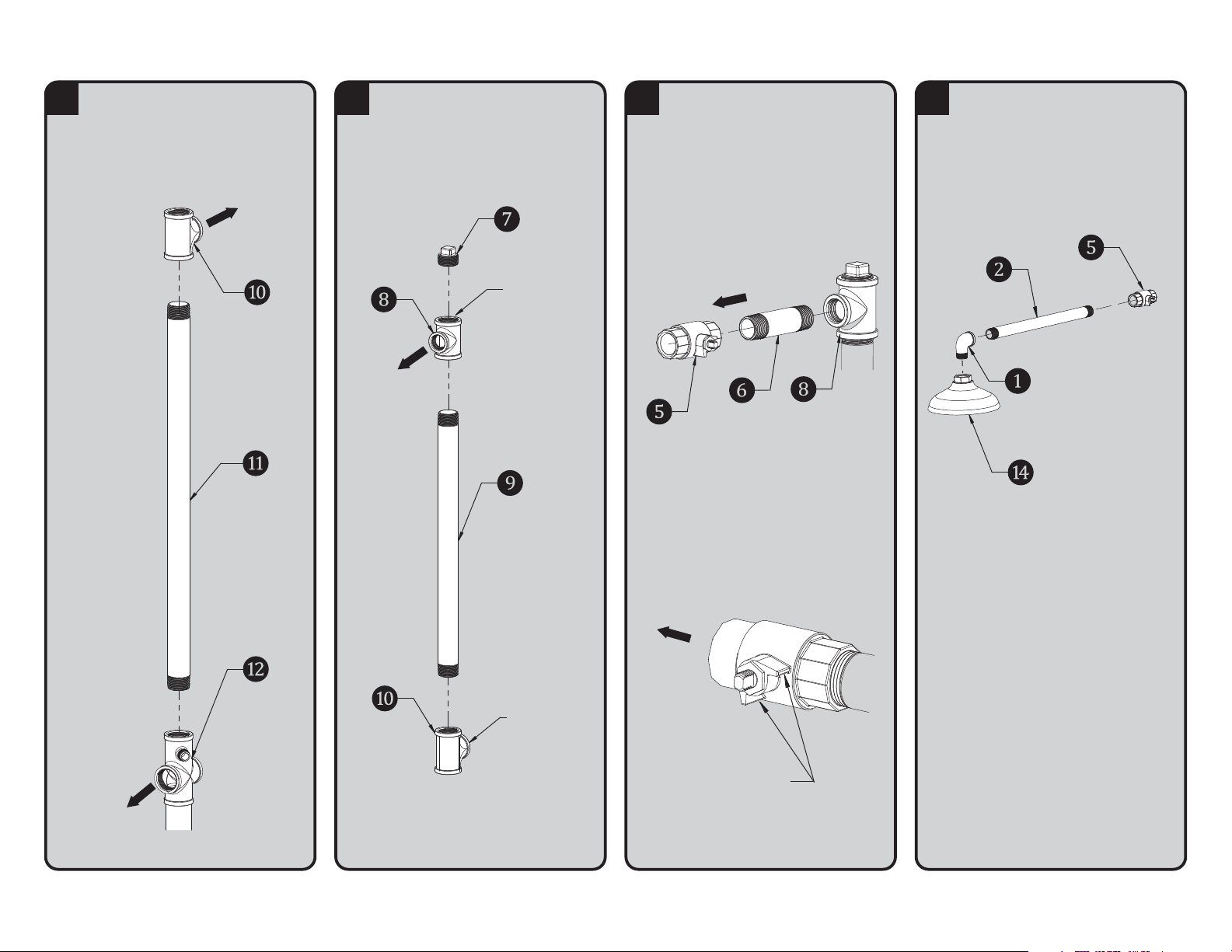

• Assemble 1-1/4” x 29-3/8” Pipe (11)
to Drain/Supply Cross (12). Assemble
1-1/4” Tee (10) to Pipe (11).
• Assure the Side Outlet portion of Tee (10)
is facing the rear of the Unit.
Rear of Unit
Front of Unit
3
• If water supply is coming from above Unit,
install Plug (7) into side outlet of Tee (10).
• If water supply is coming from behind
Unit, install Plug (7) into top outlet of
Tee (10).
Front of Unit
For Back Supply,
install Plug
(7) here.
For Top Supply,
install Plug
(7) here.
4
• Assemble 1” x 4-1/2” Pipe (6) into Side
Outlet of Tee (8). Review View 4a below
to understand the orientation of Ball
Valve (5).
• Assemble 1” Ball Valve (5) onto Pipe (6).
Valve Stops must be aligned correctly in
order for the Pull Handle to operate
properly.
Detail View 4a
To Showerhead
Valve Stops
To Showerhead
5
• Install Pipe (2) into Ball Valve (5).
• Assemble Elbow (1) to Pipe (2) being sure
to orient Elbow (1) so that the outlet is
facing down.
• Assemble Showerhead (14) to Elbow (1).
Page 3

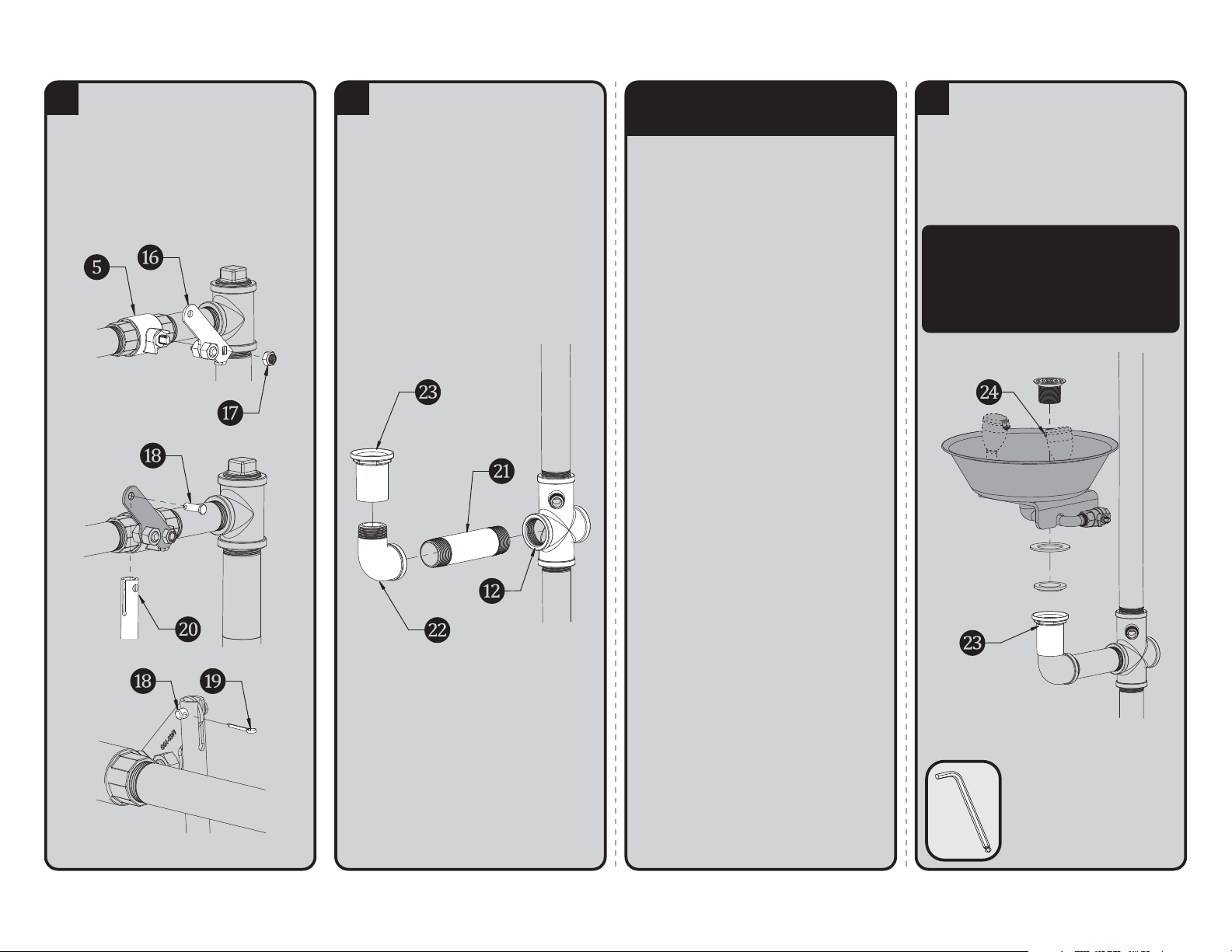

6
• Assemble the Lever Handle Assembly (16)
to Ball Valve (5) using Nylo-Hex Nut (17),
being sure to orient the Handle as shown
below.
• Insert the slot in the Pull Rod (20) over the
Lever Handle Assembly (16) and insert
Pin (18).
• Secure Pin (18) with Cotter Pin (19).
7
• Assemble 1-1/4” x 6“ Pipe (21) to Drain/
Supply Cross (12).
• Install Street Elbow (22), making sure
the male threading is plum.
• Assemble the 1-1/4” Bowl Mounting
Spud (23) to Street Elbow (22), making
sure the top surface is level.
BOWL GROUP AND
EYE/FACE WASH REFERENCE
• SE-603 Series
Includes SE-400 Eye/Face Wash Unit with
Aerated Sprays and Stainless Steel Bowl
• SE-616 Series
Includes SE-505 Eyewash Unit with Aerated
Sprays and Stainless Steel Bowl
• SE-690 Series
Includes SE-490 Eye/Face Wash Unit with
Soft Flow Sprays and Stainless Steel Bowl
• SE-693 Series
Includes SE-582 Eyewash Unit with Aerated
Sprays and Stainless Steel Bowl
• SE-695 Series
Includes SE-495 Eye/Face Wash Unit with
Soft Flow Sprays and Plastic Bowl
• SE-697 Series
Includes SE-580 Eyewash Unit with Aerated
Sprays and Plastic Bowl
8
• Assemble Eyewash Assembly (24) by
aligning the Strainer Drain thread on
the Eyewash with the Bowl Mounting
Spud (23) on Stanchion.
• Secure Eyewash by tightening Strainer
Drain with a 7/16” Allen Wrench, making
sure the Eyewash Assembly (24) is level
once fully tightened.
Note: Your Bowl and Eyewash appearance
may vary depending on model. Image shown
is for reference only. Install Bowl group as
described. Reference additional technical sheets
(supplied) for information on the bowl assembly.
Before any maintenance is done be sure to shut
the water supply off.
Page 4

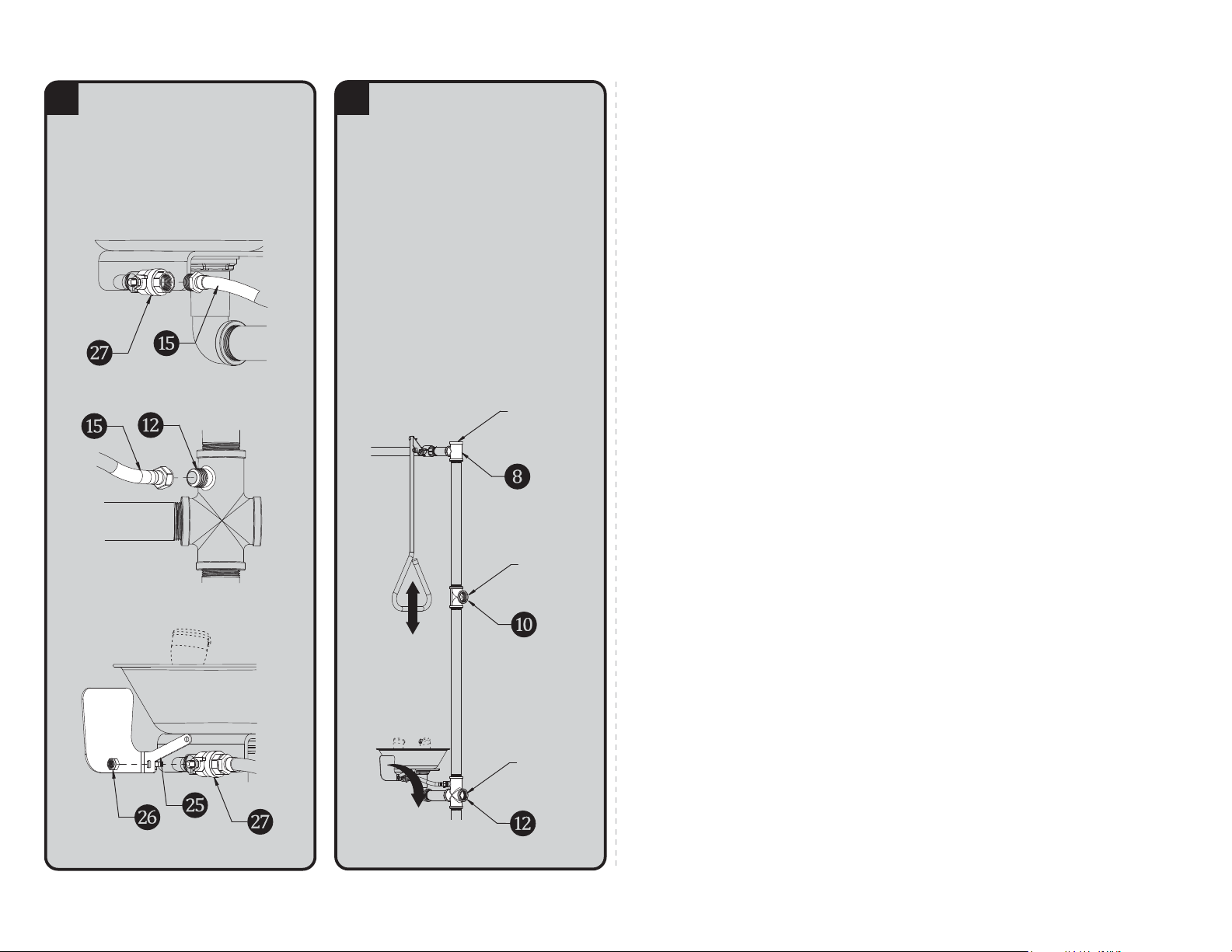

9
• Assemble male end of Flex Hose (15) to
Ball Valve (27) (Detail View 9a).
• Assemble female end of Flex Hose (15) to
Drain/Supply Cross (12) (Detail View 9b).
• Install Paddle Handle (25) to Ball Valve
(27) using Nylo-Hex Nut (26) (Detail
View 9c).
Detail View 9a
Detail View 9b
Detail View 9c
10
• Connect an uninterruptible potable water
supply with a minimum of 30psi flowing
pressure to Water Inlet (8) (10). Failure
to use potable water can result in further
injury.
• Connect an adequate drain to Drain
Outlet (12) that complies with all local
plumbing codes.
• Turn on water supply and check
connections for leaks.
• To test the Eye/Face Wash, and for
subsequent operation, push the Paddle
Handle forward 90°. The unit will operate
until the Paddle Handle is manually pulled
back to the OFF position.
• To test the Shower, and for subsequent
operation, pull the Pull Rod down. The
unit will operate until the Pull Rod is
manually pushed back to the OFF position.
Standard
Water
Inlet
Alternate
Water
Inlet
Drain Outlet
Page 5

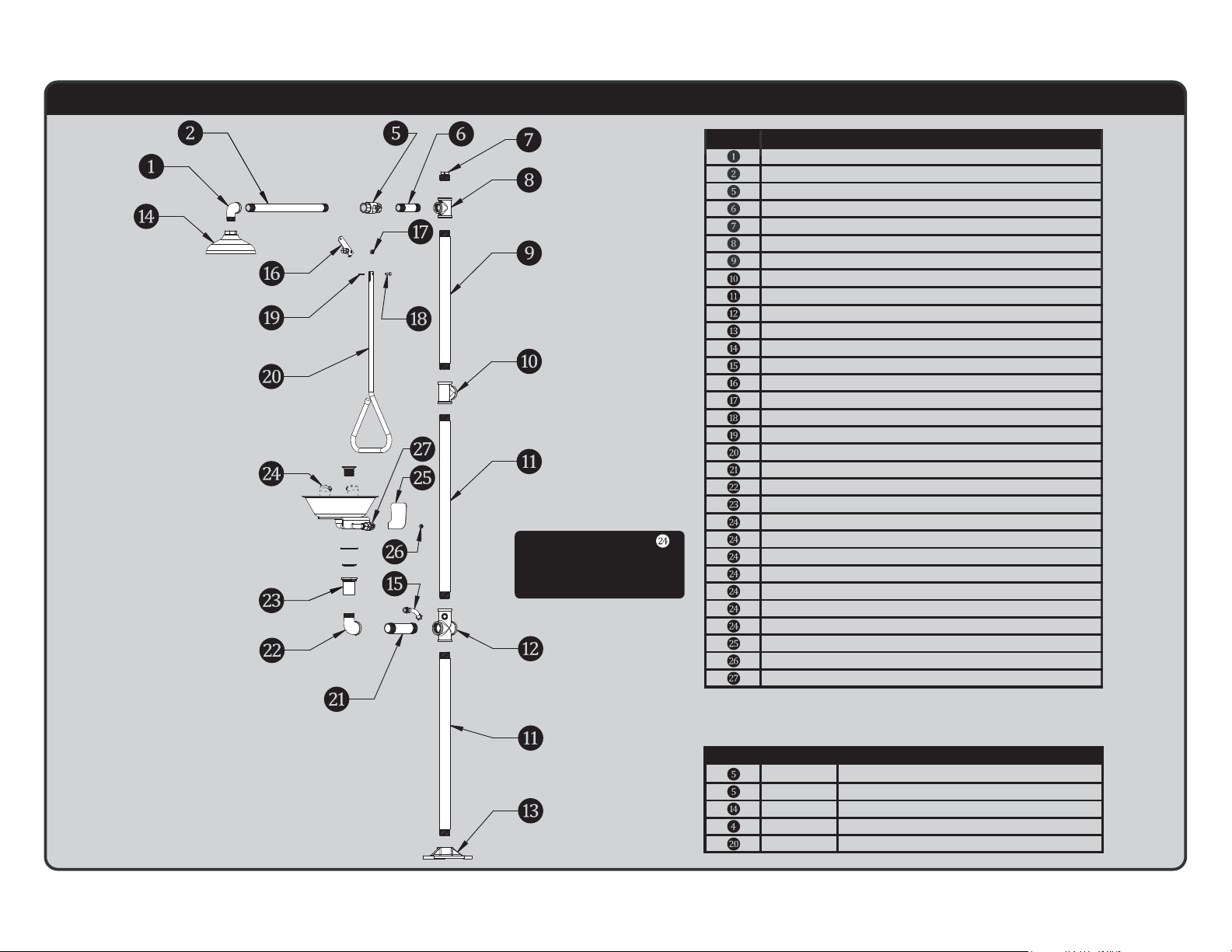

SE-603 / 616 / 690 / 693 / 695 / 697 EXPLODED VIEW AND REPAIR PARTS
REPAIR PARTS
SPEAKMAN
®
SE-911 1” BALL VALVE
SE-911-SS 1” STAINLESS STEEL BALL VALVE
SE-810 8” PLASTIC SHOWERHEAD
RPG63-0095 STAINLESS STEEL SUPPLY HOSE
RPG47-0046 PULL ROD
ITEM NO. PART NO. DESCRIPTION
1" X 90° GALV. STREET ELBOW
1" X 17-5/8" GALV. PIPE, TBE
1" CHROME PLATED BRASS BALL VALVE
1" X 4-1/2" GALV. PIPE, TBE
1-1/4" GALV. PLUG
1-1/4" X 1-1/4" X 1" GALV. TEE
1-1/4" X 22-1/4" LG. PIPE, TBE
ITEM NO. DESCRIPTION
1-1/4" GALV. TEE
1-1/4" X 29-3/8" LG. GALV. PIPE, TBE
1-1/4" X 1/2" GALV. DRAIN/SUPPLY CROSS
1-1/4" GALV. FLOOR FLANGE
8" DELUGE SHOWERHEAD
STAINLESS STEEL FLEXIBLE SUPPLY HOSE
LEVER HANDLE ASSEMBLY WITH SPRING PLUNGER
7/16-20 UNF STAINLESS STEEL NYLO-HEX NUT
CLEVIS PIN
COTTER PIN
29" ALUMINUM PULL ROD
1-1/4" X 6" LG. GALV. PIPE, TBE
1-1/4" GALV. STREET ELBOW
1-1/4" GALV. BOWL MOUNTING SPUD
SE-616 STAINLESS STEEL BOWL / SE-505 (AERATED) EYEWASH
SE-603 STAINLESS STEEL BOWL / SE-400 (AERATED) EYE/FACE WASH
BOWL AND EYEWASH UNIT COMBINATIONS
SE-690 STAINLESS STEEL BOWL / SE-490 (SOFT FLOW) EYE/FACE WASH
SE-693 STAINLESS STEEL BOWL / SE-582 (AERATED) EYEWASH
SE-695 PLASTIC BOWL / SE-495 (SOFT FLOW) EYE/FACE WASH
SE-697 PLASTIC BOWL / SE-580 (AERATED) EYEWASH
PADDLE HANDLE
3/8" STAINLESS STEEL NYLO-HEX NUT
1/2" CHROME PLATED BRASS BALL VALVE
Note: Bowl and Eyewash
unit combinations. Please refer
to the respective IOM for repair
part information.
Page 6

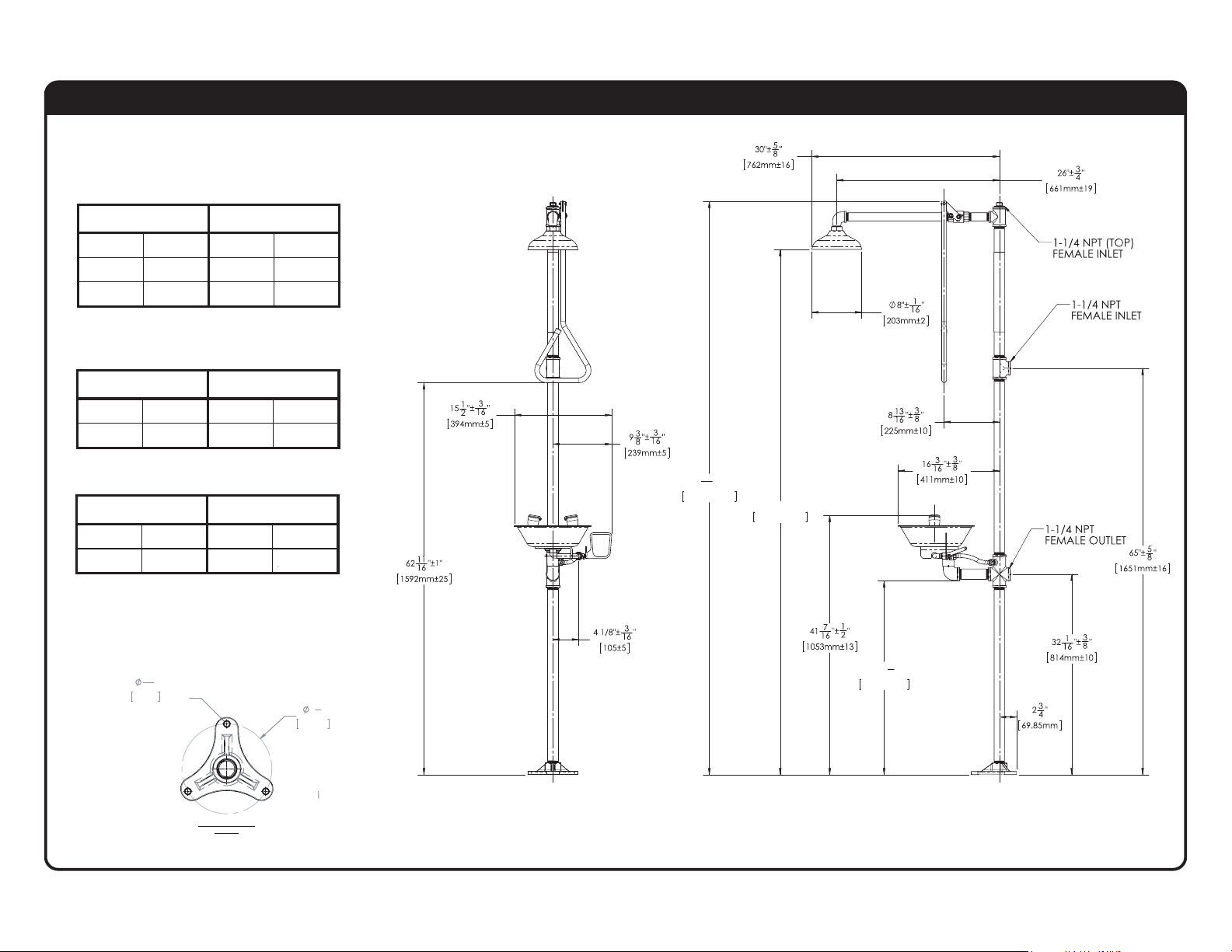

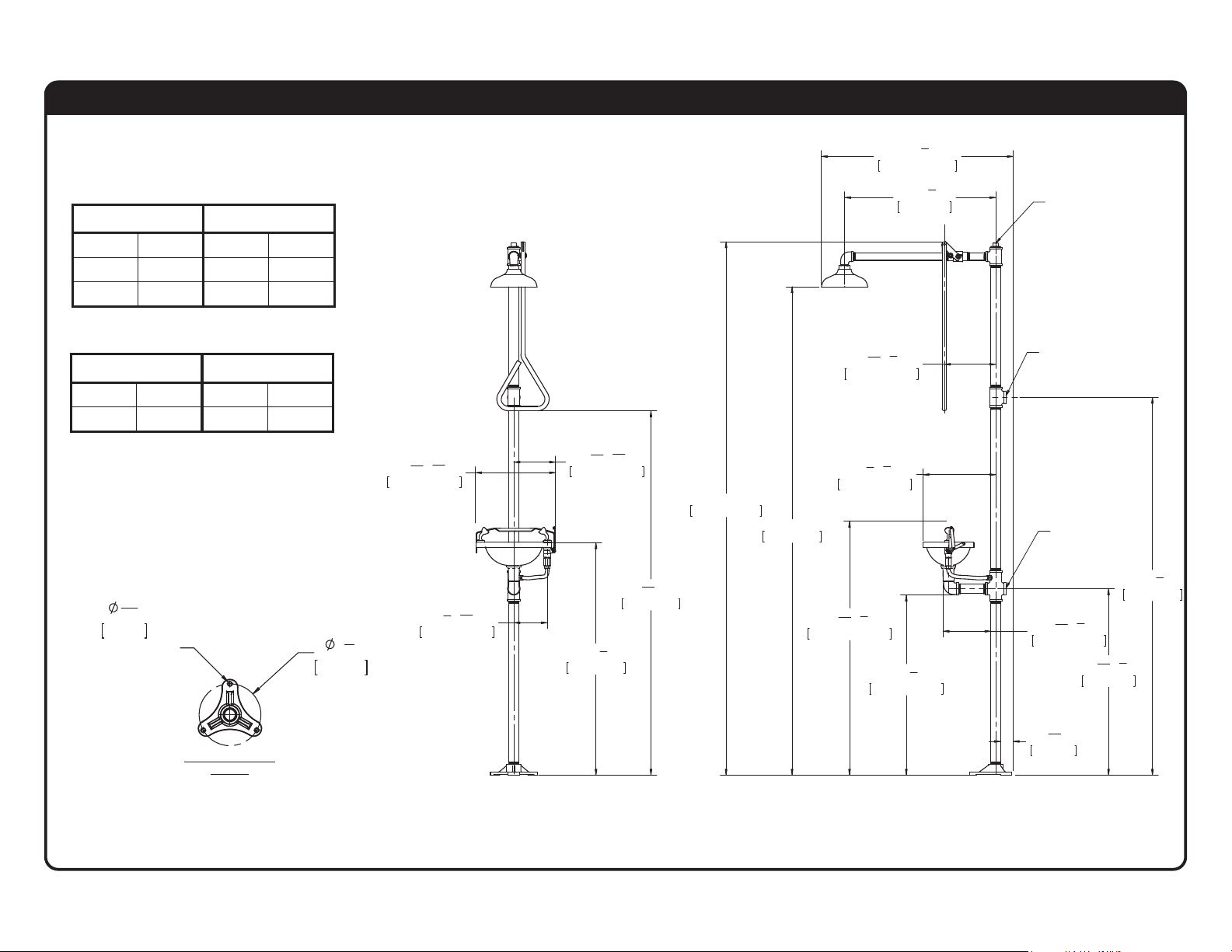

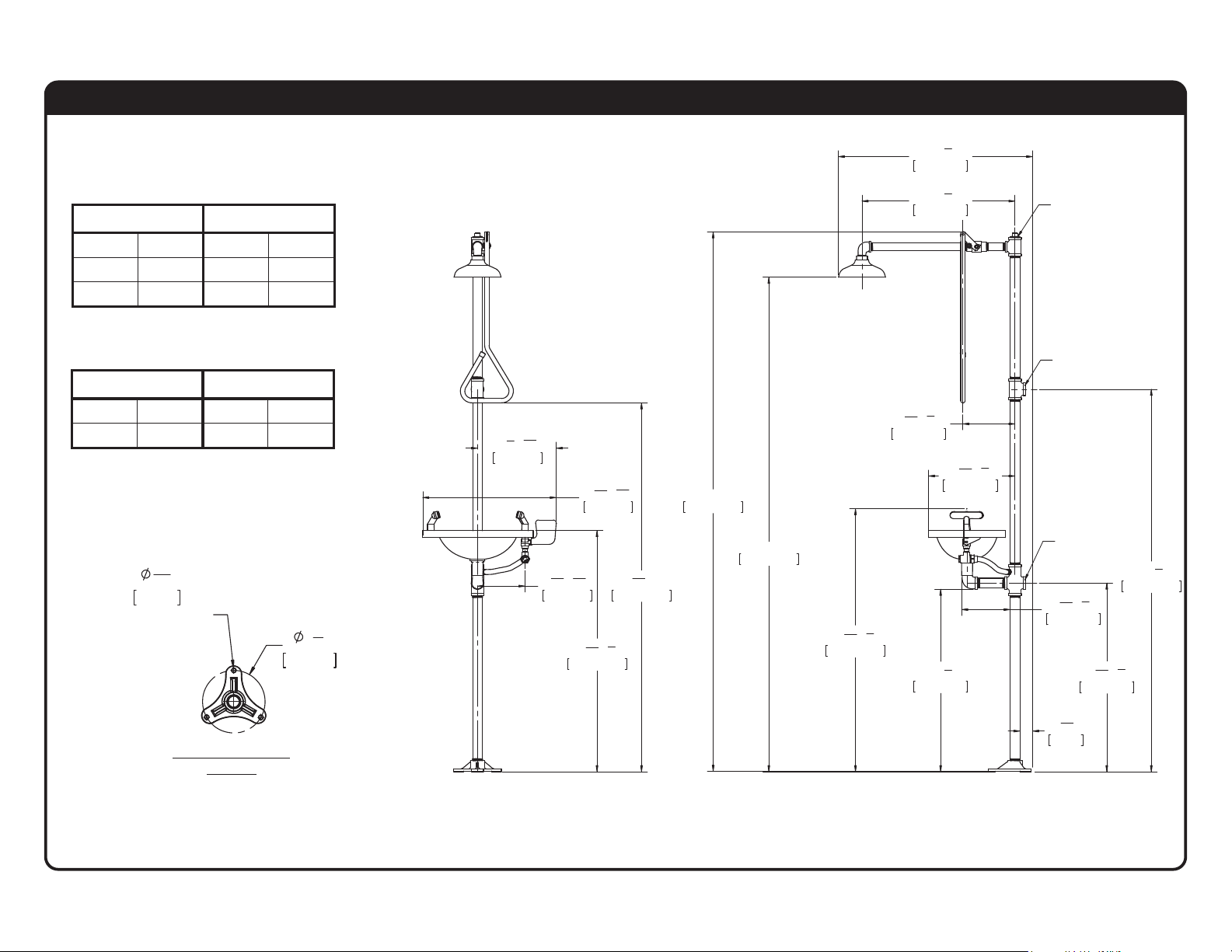

SE-603 ROUGH-IN DIAGRAMS
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
SHOWER FLOW DATA
PRESSURE
psi
30
90
bar
2.07
4.14
FLOW RATE
gpm
20
25
SE-603 EYE/FACE
WASH FLOW DATA
SE-603
PRESSURE
psi
30
bar
2.07
FLOW RATE
gpm
9.55
L/min
75
94
L/min
36.6
3
13
8
339mm±5
5
33"±
"
8
838mm±16
3
26"±
4
660mm±19
3
13
8"
"±
8
16
3
"±
"
16
3
21
22
"±
32
576mm±5
"
16
91 11/16"±1"
2330mm±25
225mm±10
14
373mm±10
"
3
21
"
"±
8
32
1-1/4" NPT
FEMALE INLET
1-1/4" NPT
FEMALE INLET
17
"
32
13mm
(TYP.) 3 PLACED
EQUALLY SPACED
120° APART
FLOOR FLANGE
DETAIL
7
7
8
200mm
84"±1"
3
1
"±
16
16
205mm±5
40
1041mm±13
"
31
32
8
"
62
1592mm±25
1
"±
"
2
11
"±1"
16
2134mm±25
11
44
16
1135mm±13
1
"±
"
2
3
31"±
"
8
787mm±10
1-1/4" NPT
FEMALE OUTLET
3
7
"
"±328
8
209mm±10
32
16
814mm±10
5
"
2
32
55mm
1
"± "
65"±
1651mm±16
3
8
5
"
8
NOTE: ALL UNITS MEET EXISTING ANSI/ISEA Z358.1 STANDARDS. PRODUCT IMPROVEMENTS MAY CAUSE
