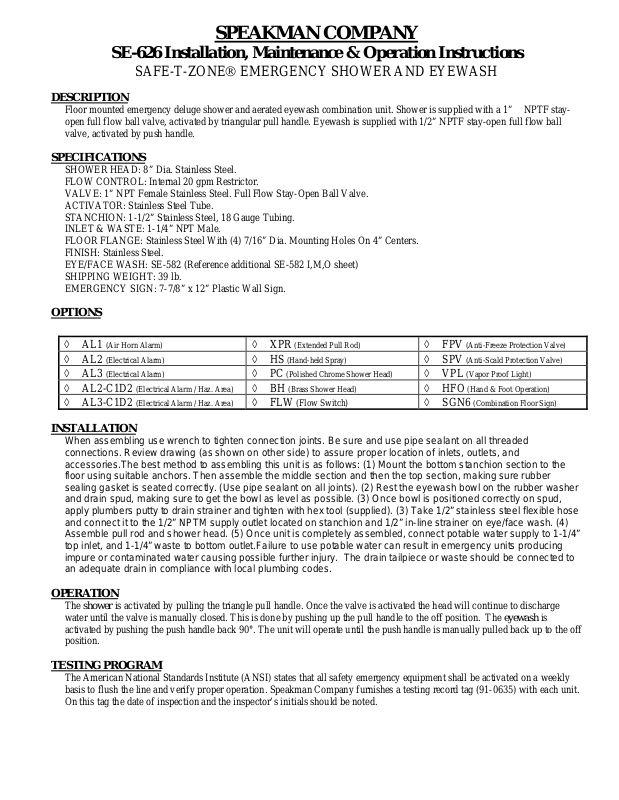

SPEAKMAN COMPANY
SE-626 Installation, Maintenance & Operation Instructions
SAFE-T-ZONE® EMERGENCY SHOWER AND EYEWASH
DESCRIPTION
Floor mounted emergency deluge shower and aerated eyewash combination unit. Shower is supplied with a 1” NPTF stay-
open full flow ball valve, activated by triangular pull handle. Eyewash is supplied with 1/2” NPTF stay-open full flow ball
valve, activated by push handle.
SPECIFICATIONS
SHOWER HEAD: 8” Dia. Stainless Steel.
FLOW CONTROL: Internal 20 gpm Restrictor.
VALVE: 1” NPT Female Stainless Steel. Full Flow Stay-Open Ball Valve.
ACTIVATOR: Stainless Steel Tube.
STANCHION: 1-1/2” Stainless Steel, 18 Gauge Tubing.
INLET & WASTE: 1-1/4” NPT Male.
FLOOR FLANGE: Stainless Steel With (4) 7/16” Dia. Mounting Holes On 4” Centers.
FINISH: Stainless Steel.
EYE/FACE WASH: SE-582 (Reference additional SE-582 I,M,O sheet)
SHIPPING WEIGHT: 39 lb.
EMERGENCY SIGN: 7-7/8” x 12” Plastic Wall Sign.
OPTIONS
◊ AL1
(Air Horn Alarm) ◊ XPR (Extended Pull Rod) ◊ FPV (Anti-Freeze Protection Valve)
◊ AL2 (Electrical Alarm) ◊ HS (Hand-held Spray) ◊ SPV (Anti-Scald Protection Valve)
◊ AL3 (Electrical Alarm) ◊ PC (Polished Chrome Shower Head) ◊ VPL (Vapor Proof Light)
◊ AL2-C1D2 (Electrical Alarm / Haz. Area) ◊ BH (Brass Shower Head) ◊ HFO (Hand & Foot Operation)
◊ AL3-C1D2 (Electrical Alarm / Haz. Area) ◊ FLW (Flow Switch) ◊ SGN6 (Combination Floor Sign)
INSTALLATION
When assembling use wrench to tighten connection joints. Be sure and use pipe sealant on all threaded

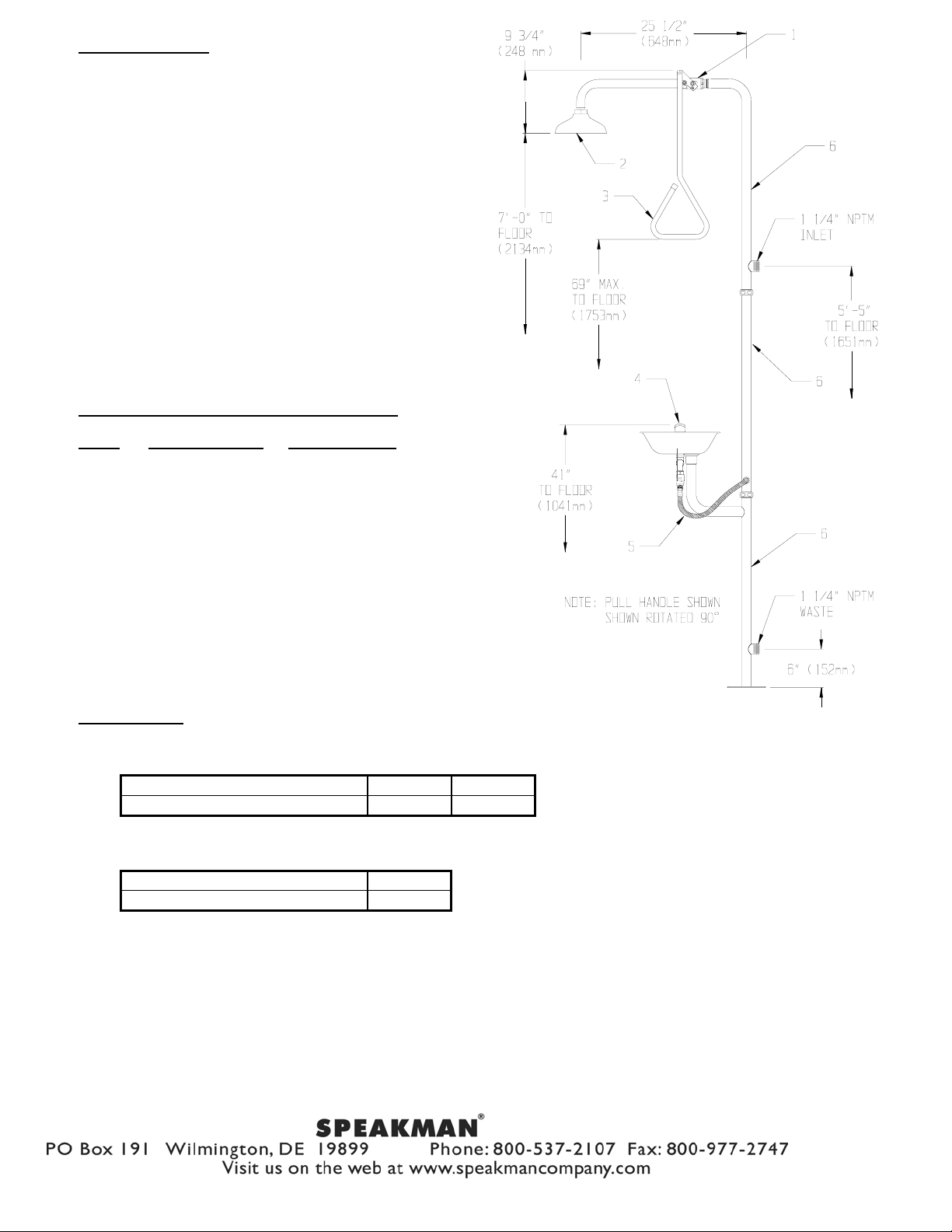

connections. Review drawing (as shown on other side) to assure proper location of inlets, outlets, and
accessories.The best method to assembling this unit is as follows: (1) Mount the bottom stanchion section to the
floor using suitable anchors. Then assemble the middle section and then the top section, making sure rubber
sealing gasket is seated correctly. (Use pipe sealant on all joints). (2) Rest the eyewash bowl on the rubber washer
and drain spud, making sure to get the bowl as level as possible. (3) Once bowl is positioned correctly on spud,
apply plumbers putty to drain strainer and tighten with hex tool (supplied). (3) Take 1/2” stainless steel flexible hose
and connect it to the 1/2” NPTM supply outlet located on stanchion and 1/2” in-line strainer on eye/face wash. (4)
Assemble pull rod and shower head. (5) Once unit is completely assembled, connect potable water supply to 1-1/4”
top inlet, and 1-1/4” waste to bottom outlet.Failure to use potable water can result in emergency units producing
impure or contaminated water causing possible further injury. The drain tailpiece or waste should be connected to
an adequate drain in compliance with local plumbing codes.
OPERATION
The shower is activated by pulling the triangle pull handle. Once the valv e is activated the head will continue to discharge
water until the valve is manually closed. This is done by pushing up the pull handle to the off position. The eyewash is
activated by pushing the push handle back 90°. The unit will operate until the push handle is manually pulled back up to the off
position.
TESTING PROGRAM
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated on a weekly
basis to flush the line and verify proper operation. Speakman Company furnishes a testing record tag (91-0635) with each unit.
On this tag the date of inspection and the inspector’s initials should be noted.
Page 2
MAINTENANCE
The valve and the eyewash are the only portion of the unit that
may require maintenance. Should you need parts to repair this
unit, please reference the parts listing below for correct part
numbers. Reference additional technical sheets (supplied) for
information on the SE-582 eyewash, SE-911-SS valve, and the
SE-880 shower head. Before any maintenance is done be sure
to shut the water supply off.
WARNING: Use only genuine Speakman parts when
repairing or replacing components. To order parts call 1-
800-537-2107.
SE-626 REPLACEMENT/REPAIR PARTS
ITEM PART/GROUP # DESCRIPTION
1 SE-911-SS 1” Ball Valve with Pull Rod
2 SE-880 8” Stainless Steel Shower
Head
3 G47-0043 Pull Handle
4 SE-582 Eyewash
5 63-0027 S/S Flexible Hose
6 G74-0032-SS Stanchion Assy.
FLOW DATA
SHOWER:
FLOW PRESSURE PSI (BAR) 30 (2.07) 60 (4.14)
FLOW RATE GPM (LPM) 20 (75) 25 (94)
EYEWASH:
FLOW PRESSURE PSI (BAR) 30 (2.07)
FLOW RATE GPM (LPM) 3.6 (14)
NOTE: This unit should be connected to an uninterrupted source of potable water, with a minimum flowing
pressure of 30 PSI and a maximum static pressure of 125 PSI.
Note: All units meet existing
ANSI Z358.1 Standards and
OSHA Rules. Product
improvements may cause
specification and dimensional
changes without notice.
92-1594
1/06
Rev-7
