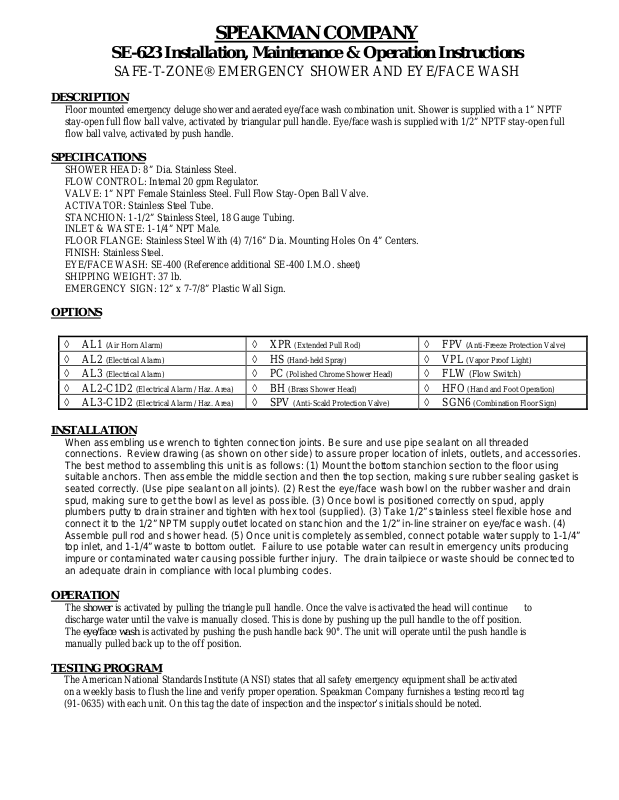

SPEAKMAN COMPANY
SE-623 Installation, Maintenance & Operation Instructions
SAFE-T-ZONE® EMERGENCY SHOWER AND EYE/FACE WASH
DESCRIPTION
Floor mounted emergency deluge shower and aerated eye/face wash combination unit. Shower is supplied with a 1” NPTF
stay-open full flow ball valve, activated by triangular pull handle. Eye/face wash is supplied with 1/2” NPTF stay-open full
flow ball valve, activated by push handle.
SPECIFICATIONS
SHOWER HEAD: 8” Dia. Stainless Steel.
FLOW CONTROL: Internal 20 gpm Regulator.
VALVE: 1” NPT Female Stainless Steel. Full Flow Stay-Open Ball Valve.
ACTIVATOR: Stainless Steel Tube.
STANCHION: 1-1/2” Stainless Steel, 18 Gauge Tubing.
INLET & WASTE: 1-1/4” NPT Male.
FLOOR FLANGE: Stainless Steel With (4) 7/16” Dia. Mounting Holes On 4” Centers.
FINISH: Stainless Steel.
EYE/FACE WASH: SE-400 (Reference additional SE-400 I.M.O. sheet)
SHIPPING WEIGHT: 37 lb.
EMERGENCY SIGN: 12” x 7-7/8” Plastic Wall Sign.
OPTIONS
◊ AL1
(Air Horn Alarm) ◊ XPR (Extended Pull Rod) ◊ FPV (Anti-Freeze Protection Valve)
◊ AL2 (Electrical Alarm) ◊ HS (Hand-held Spray) ◊ VPL (Vapor Proof Light)
◊ AL3 (Electrical Alarm) ◊ PC (Polished Chrome Shower Head) ◊ FLW (Flow Switch)
◊ AL2-C1D2 (Electrical Alarm / Haz. Area) ◊ BH (Brass Shower Head) ◊ HFO (Hand and Foot Operation)
◊ AL3-C1D2 (Electrical Alarm / Haz. Area) ◊ SPV (Anti-Scald Protection Valve) ◊ SGN6 (Combination Floor Sign)
INSTALLATION
When assembling use wrench to tighten connection joints. Be sure and use pipe sealant on all threaded

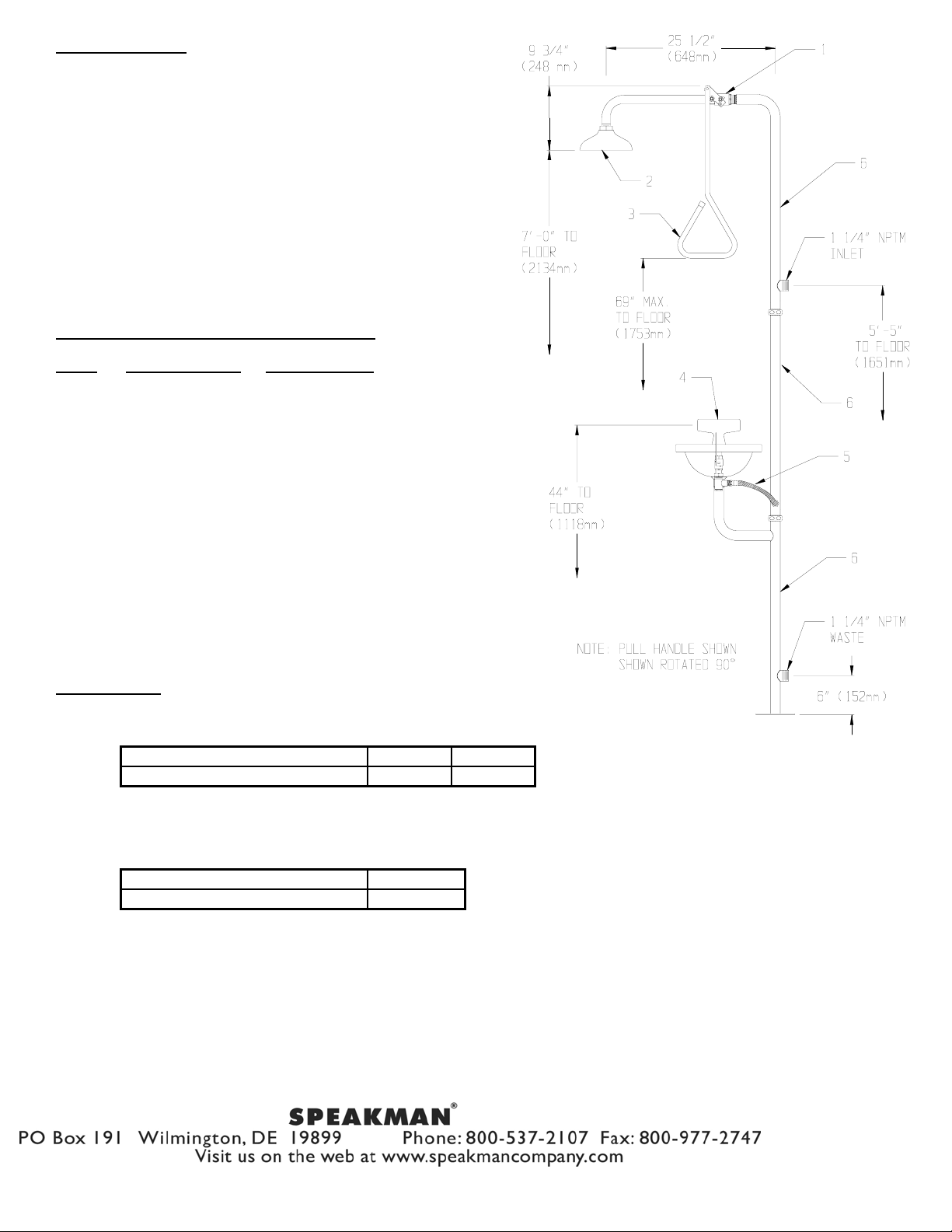

connections. Review drawing (as shown on other side) to assure proper location of inlets, outlets, and accessories.
The best method to assembling this unit is as follows: (1) Mount the bottom stanchion section to the floor using
suitable anchors. Then assemble the middle section and then the top section, making sure rubber sealing gasket is
seated correctly. (Use pipe sealant on all joints). (2) Rest the eye/face wash bowl on the rubber washer and drain
spud, making sure to get the bowl as level as possible. (3) Once bowl is positioned correctly on spud, apply
plumbers putty to drain strainer and tighten with hex tool (supplied). (3) Take 1/2” stainless steel flexible hose and
connect it to the 1/2” NPTM supply outlet located on stanchion and the 1/2” in-line strainer on eye/face wash. (4)
Assemble pull rod and shower head. (5) Once unit is completely assembled, connect potable water supply to 1-1/4”
top inlet, and 1-1/4” waste to bottom outlet. Failure to use potable water can result in emergency units producing
impure or contaminated water causing possible further injury. The drain tailpiece or waste should be connected to
an adequate drain in compliance with local plumbing codes.
OPERATION
The shower is activated by pulling the triangle pull handle. Once the valv e is activated the head will continue to
discharge water until the valve is manually closed. This is done by pushing up the pull handle to the off position.
The eye/face wash is activated by pushing the push handle back 90°. The unit will operate until the push handle is
manually pulled back up to the off position.
TESTING PROGRAM
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated
on a weekly basis to flush the line and verify proper operation. Speakman Company furnishes a testing record tag
(91-0635) with each unit. On this tag the date of inspection and the inspector’s initials should be noted.
Page 2
MAINTENANCE
The valve and the eye/face wash are the only portion of the unit that
may require maintenance. Should you need parts to repair this unit,
please reference the parts listing below for correct part numbers.
Reference additional technical sheets (supplied) for information on
the SE-400 eye/face wash, SE-911-SS valve, and SE-880 shower
head. Before any maintenance is done be sure to shut the water
supply off.
WARNING: Use only genuine Speakman parts when repairing
or replacing components. To order parts call 1-800-537-2107.
SE-623 REPLACEMENT/REPAIR PARTS
ITEM PART/GROUP # DESCRIPTION
1 SE-911-SS 1” Ball Valve with Pull Rod
2 SE-880 8” Stainless Steel Shower head
3 G47-0043 Pull Handle
4 SE-400 Eye/Face Wash
5 63-0027 S/S Flexible Hose
6 G74-0032-SS Stanchion Assy.
FLOW DATA
SHOWER:
FLOW PRESSURE PSI (BAR) 30 (2.07) 60 (4.14)
FLOW RATE GPM (LPM) 20 (75) 25 (94)
EYE/FACE WASH:
FLOW PRESSURE PSI (BAR) 30 (2.07)
FLOW RATE GPM (LPM) 9.55 (36.6)
NOTE: This unit should be connected to an uninterrupted source of potable water, with a minimum flowing
pressure of 20 PSI and a maximum static pressure of 125 PSI.
Note: All units meet existing
ANSI Z358.1 Standards and
OSHA Rules. Product
improvements may cause
specification and dimensional
changes without notice.
92-1492
2/06
Rev-8
