Page 1

Instructions for Models:

SE-490 SE-495 SE-580 SE-582

What You Need To Know:

Tools:

Required:

*Socket Wrench

①

After selecting a suitable mounting location, measure to ensure the spray head height is between 33”- 45” from the floor. Mark and drill holes according to hardware selection specifications.

Using appropriate hardware (not included), affix bowl to mounting surface. Using a Level, confirm the bowl is both level and plum.

②

*Drill

*Crescent Wrench

*Level

ANSI Z358.1 states that weekly activation should be conducted on all plumbed emergency equipment to ensure that there is a suitable flushing fluid supply present and to clear the supply line of any sediment build-up that could

*Pencil

*Tape Measure

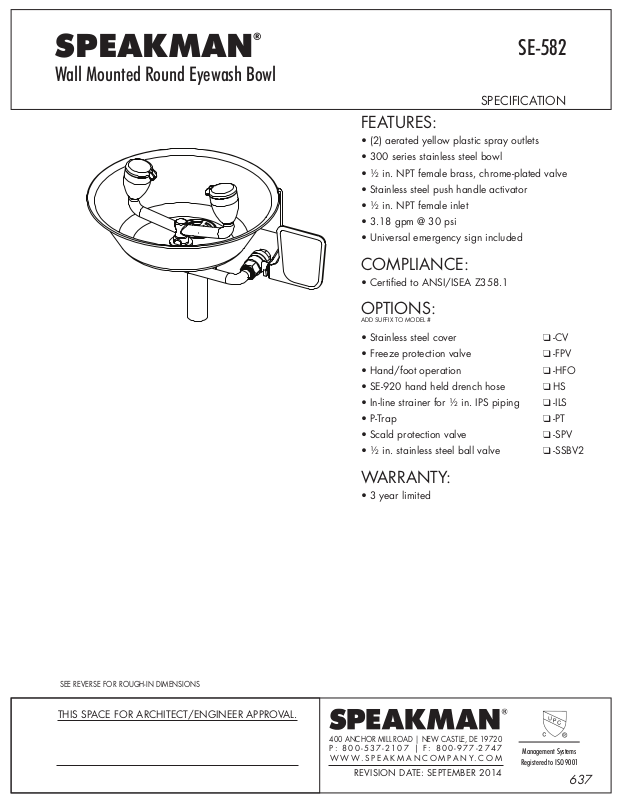

SPEAKMAN

Wall Mounted Round Eyewash Bowl

SE-582

SPECIFICATION

FEATURES:

• (2) aerated yellow plastic spray outlets

• 300 series stainless steel bowl

• ½ in. NPT female brass, chrome-plated valve

• Stainless steel push handle activator

• ½ in. NPT female inlet

• 3.18 gpm @ 30 psi

• Universal emergency sign included

COMPLIANCE:

• Certied to ANSI/ISEA Z358.1

OPTIONS:

ADD SUFFIX TO MODEL #

• Stainless steel cover ❑ -CV

• Freeze protection valve ❑ -FPV

• Hand/foot operation ❑ -HFO

• SE-920 hand held drench hose ❑ HS

• In-line strainer for ½ in. IPS piping ❑ -ILS

• P-Trap ❑ -PT

• Scald protection valve ❑ -SPV

• ½ in. stainless steel ball valve ❑ -SSBV2

WARRANTY:

• 3 year limited

SEE REVERSE FOR ROUGH-IN DIMENSIONS

THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.

400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720 P: 800-537-2107 | F: 800-977-2747 WWW.SPEAKMANCOMPANY.COM

REVISION DATE: SEPTEMBER 2014

Management Systems

Registered to ISO 9001

637
