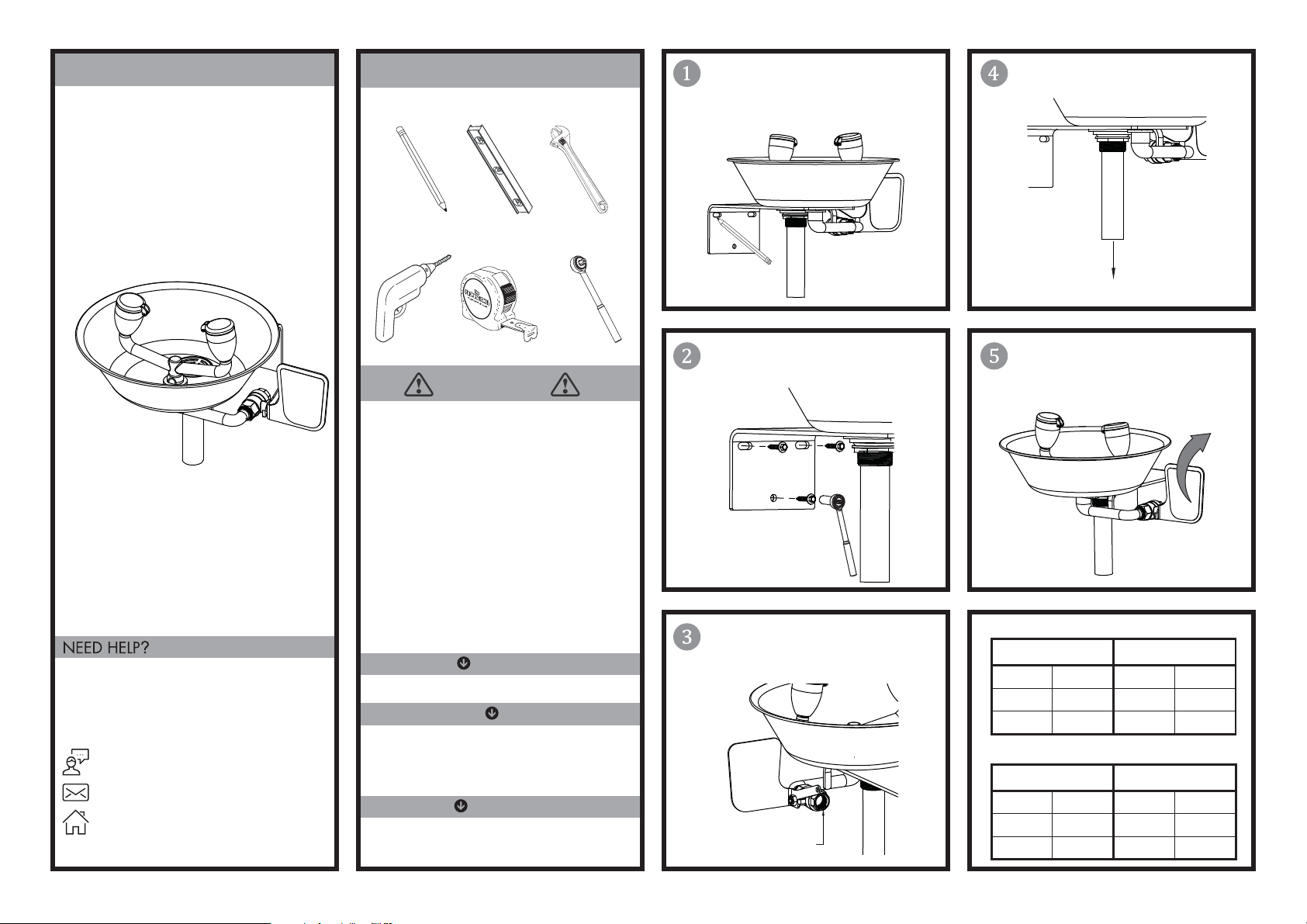

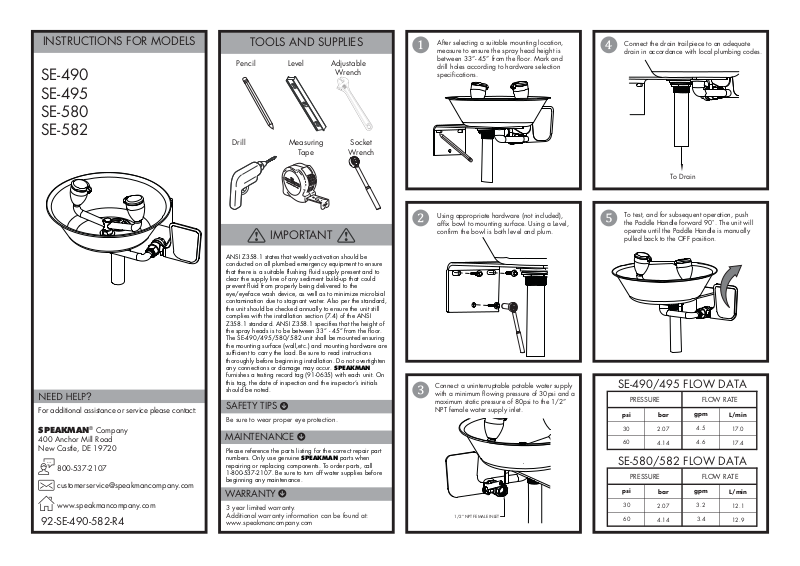

INSTRUCTIONS FOR MODELS
SE-490
SE-495
SE-580
SE-582
TOOLS AND SUPPLIES
Pencil Adjustable
Drill
Level
Measuring
Tape
Wrench
Wrench
Socket
After selecting a suitable mounting location,
measure to ensure the spray head height is
between 33”- 45” from the floor. Mark and
drill holes according to hardware selection
specifications.
Connect the drain trailpiece to an adequate
drain in accordance with local plumbing codes.
To Drain
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakmancompany.com
92-SE-490-582-R4
IMPORTANT
ANSI Z358.1 states that weekly activation should be
conducted on all plumbed emergency equipment to ensure
that there is a suitable flushing fluid supply present and to
clear the supply line of any sediment build-up that could
prevent fluid from properly being delivered to the
eye/eyeface wash device, as well as to minimize microbial
contamination due to stagnant water. Also per the standard,
the unit should be checked annually to ensure the unit still
complies with the installation section (7.4) of the ANSI
Z358.1 standard. ANSI Z358.1 specifies that the height of
the spray heads is to be between 33” - 45” from the floor.
The SE-490/495/580/582 unit shall be mounted ensuring
the mounting surface (wall,etc.) and mounting hardware are
sufficient to carry the load. Be sure to read instructions
thoroughly before beginning installation. Do not overtighten
any connections or damage may occur. SPEAKMAN
furnishes a testing record tag (91-0635) with each unit. On
this tag, the date of inspection and the inspector’s initials
should be noted.
SAFETY TIPS
Be sure to wear proper eye protection.
MAINTENANCE
Please reference the parts listing for the correct repair part
numbers. Only use genuine SPEAKMAN parts when
repairing or replacing components. To order parts, call
1-800-537-2107. Be sure to turn off water supplies before
beginning any maintenance.
WARRANTY
3 year limited warranty.
Additional warranty information can be found at:
www.speakmancompany.com
Using appropriate hardware (not included),
affix bowl to mounting surface. Using a Level,
confirm the bowl is both level and plum.
Connect a uninterruptable potable water supply
with a minimum flowing pressure of 30psi and a
maximum static pressure of 80psi to the 1/2”
NPT female water supply inlet.
1/2” NPT FEMALE INLET
To test, and for subsequent operation, push
the Paddle Handle forward 90˚. The unit will
operate until the Paddle Handle is manually
pulled back to the OFF position.
SE-490/495 FLOW DATA
PRESSURE
psi
30
60
bar
2.07
4.14
FLOW RATE
gpm
4.5
4.6
L/min
17.0
17.4
SE-580/582 FLOW DATA
PRESSURE
psi
30
60
bar
2.07
4.14
FLOW RATE
gpm
3.2
3.4
L/min
12.1
12.9
Page 2
17
Part No.
SE-910
SE-910-SSBV
RPG05-1177
RPG21-0082-PC-P
RPG05-0715
RPG38-0390
RPG05-0714
RPG38-0379
RPG05-0943
RPG07-0104
SE-490 / SE-495 Non-Aerated Sprayhead Assembly
SE-580 / SE-582 Aerated Eye/Face Wash Bullhorn Assembly
SE-580 / SE-582 Aerated Sprayhead Assembly
Bullhorn Washer Group
Flip Top Dust Cap Replacement (20 per bag)
Description
Brass 1/2" Ball Valve Assembly
Stainless Steel 1/2" Ball Valve Assembly
Aerator Replacement Group (6 each)
In-Line Strainer Repair Assembly
SE-490 / SE-495 Non-Aerated Eye/Face Wash Bullhorn Assembly
15
32
394mm±10

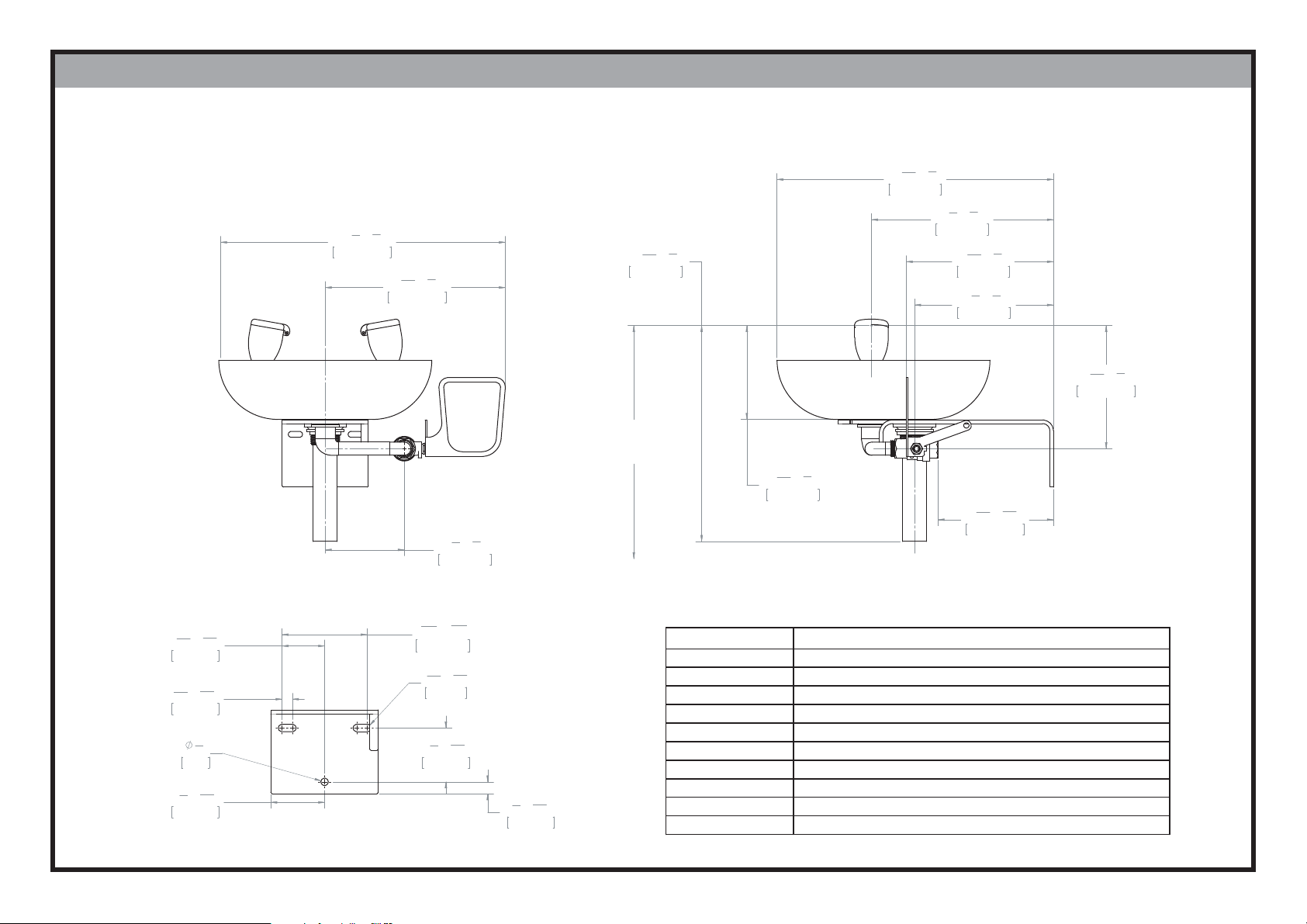

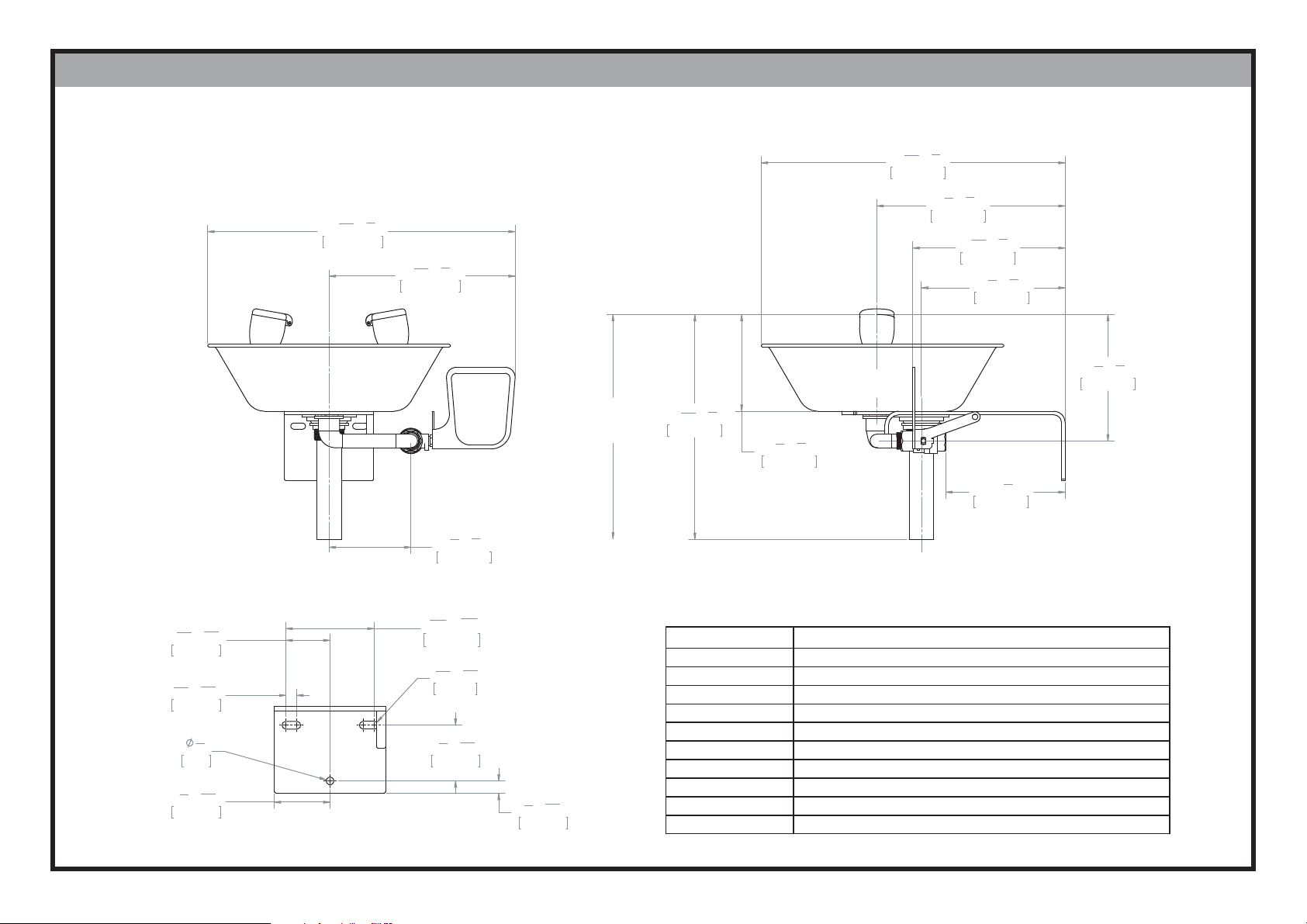

ROUGH IN DIMENSIONS / REPAIR PART GROUPS
SE-490 / SE-582
1
11
15
"±
"
32
8
1
9
2
241mm±3
1
"±
8
11
7
16
195mm±3
"
1
"±
8
1
7
"±
4
184mm±3
6"±
153mm±3
"
1
"
8
1
3
6
"±
"
8
8
162mm±3
1
"
8
390mm±3
3
"±
"
8
3
13
9
"±
"
8
32
239mm±10
33"-45"
ABOVE FINISHED
FLOOR
(838-1143mm)
11
11
32
289mm±6
1
"±
"
4
1
7
4
"±
"
4
8
124mm±6
1
25
1
"±
"
32
32
45mm±1
1
7
"±
"
8mm
1
4
32
3
"
8
1
"±
"
32
16
11mm±1
2
57mm±1
4
105mm±3
9
3
"±
16
90mm±1
5
R
32
4mm±1
1
2
4
57mm±1
1
1
"±
"
8
8
1
"
32
1
"±
"
32
1
"±
"
32
1
1
"±
"
32
2
13mm±1
REPAIR PARTS
Page 3
Part No.
SE-910
SE-910-SSBV
RPG05-1177
RPG21-0082-PC-P
RPG05-0715
RPG38-0390
RPG05-0714
RPG38-0379
RPG05-0943
RPG07-0104
SE-490 / SE-495 Non-Aerated Sprayhead Assembly
SE-580 / SE-582 Aerated Eye/Face Wash Bullhorn Assembly
SE-580 / SE-582 Aerated Sprayhead Assembly
Bullhorn Washer Group
Flip Top Dust Cap Replacement (20 per bag)
Description
Brass 1/2" Ball Valve Assembly
Stainless Steel 1/2" Ball Valve Assembly
Aerator Replacement Group (6 each)
In-Line Strainer Repair Assembly
SE-490 / SE-495 Non-Aerated Eye/Face Wash Bullhorn Assembly
7
14
8
378mm±10
"±
3
"
8
239mm±10
ROUGH IN DIMENSIONS / REPAIR PART GROUPS
SE-495 / SE-580
1
7
14
"±
"
367mm±3
1
9
11
"±
"
3
13
9
"±
"
8
32
1
1
4
"±
"
8
8
105mm±3
286mm±6
33"-45"
ABOVE FINISHED
FLOOR
(838-1143mm)
4
32
1
29
4
"±
"
4
32
125mm±6
8
16
1
1
9
"±
"
8
2
241mm±3
1
11
7
"±
"
8
16
1
1
7
"±
4
8
1
6
"±
32
153mm±10
"
3
7
6
"±
"
8
16
163mm±10
13
"
32
195mm±3
184mm±3
1
25
1
"±
"
32
32
45mm±1
1
7
"±
"
16
11mm±1
8mm
1
2
"±
4
57mm±1
32
3
"
8
1
"
32
9
3
"±
16
90mm±1
5
R
32
4mm±1
1
2
4
57mm±1
1
"
32
1
"±
"
32
1
"±
"
32
1
1
"±
"
32
2
13mm±1
REPAIR PARTS
