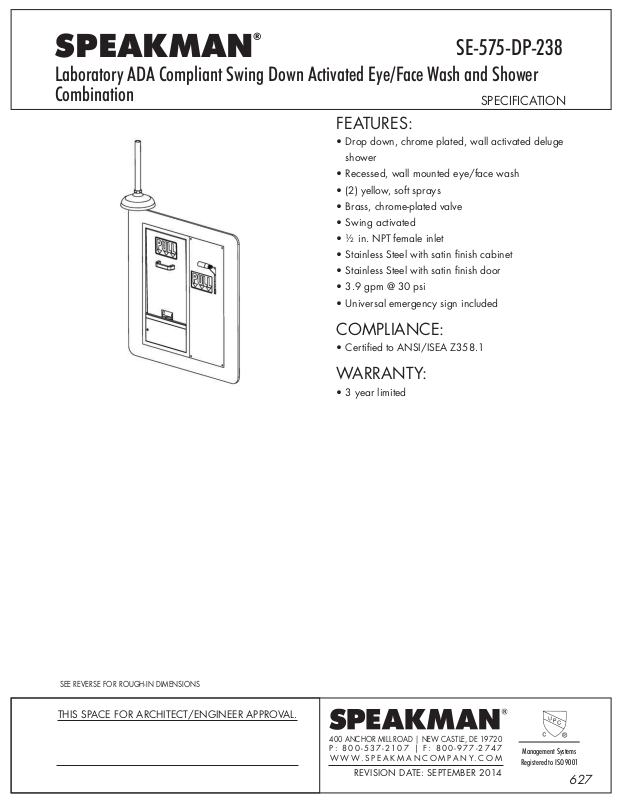

Page 1
®
SPEAKMAN
SE-575-DP-238
Laboratory ADA Compliant Swing Down Activated Eye/Face Wash and Shower
Combination
SPECIFICATION
FEATURES:
• Drop down, chrome plated, wall activated deluge
shower
• Recessed, wall mounted eye/face wash
• (2) yellow, soft sprays
• Brass, chrome-plated valve
• Swing activated
• ½ in. NPT female inlet
• Stainless Steel with satin nish cabinet
• Stainless Steel with satin nish door
• 3.9 gpm @ 30 psi
• Universal emergency sign included
COMPLIANCE:
• Certied to ANSI/ISEA Z358.1
WARRANTY:
• 3 year limited
SEE REVERSE FOR ROUGH-IN DIMENSIONS
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: SEPTEMBER 2014
Management Systems
Registered to ISO 9001
627
Page 2
®
SPEAKMAN
Laboratory ADA Compliant Swing Down Activated Eye/Face Wash and Shower
Combination SE-575-DP-238
SPECIFICATION
628
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to
change without notice.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: SEPTEMBER 2014
Management Systems
Registered to ISO 9001
