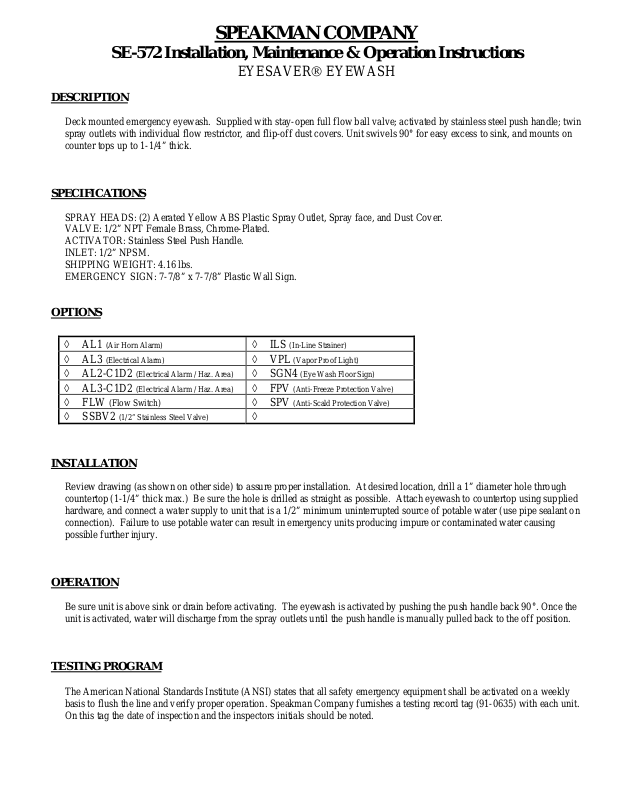

Page 1
SPEAKMAN COMPANY
SE-572 Installation, Maintenance & Operation Instructions
EYESAVER® EYEWASH
DESCRIPTION
Deck mounted emergency eyewash. Supplied with stay-open full flow ball valve; activated by stainless steel push handle; twin
spray outlets with individual flow restrictor, and flip-off dust covers. Unit swivels 90° for easy excess to sink, and mounts on
counter tops up to 1-1/4” thick.
SPECIFICATIONS
SPRAY HEADS: (2) Aerated Yellow ABS Plastic Spray Outlet, Spray face, and Dust Cover.
VALVE: 1/2” NPT Female Brass, Chrome-Plated.
ACTIVATOR: Stainless Steel Push Handle.
INLET: 1/2” NPSM.
SHIPPING WEIGHT: 4.16 lbs.
EMERGENCY SIGN: 7-7/8” x 7-7/8” Plastic Wall Sign.
OPTIONS
◊ AL1
◊ AL3 (Electrical Alarm) ◊ VPL (Vapor Proof Light)
◊ AL2-C1D2 (Electrical Alarm / Haz. Area) ◊ SGN4 (Eye Wash Floor Sign)
◊ AL3-C1D2 (Electrical Alarm / Haz. Area) ◊ FPV (Anti-Freeze Protection Valve)
◊ FLW (Flow Switch) ◊ SPV (Anti-Scald Protection Valve)
◊ SSBV2 (1/2” Stainless Steel Valve) ◊
INSTALLATION
Review drawing (as shown on other side) to assure proper installation. At desired location, drill a 1” diameter hole through
countertop (1-1/4” thick max.) Be sure the hole is drilled as straight as possible. Attach eyewash to countertop using supplied
hardware, and connect a water supply to unit that is a 1/2” minimum uninterrupted source of potable water (use pipe sealant on
connection). Failure to use potable water can result in emergency units producing impure or contaminated water causing
possible further injury.
OPERATION
Be sure unit is above sink or drain before activating. The eyewash is activated by pushing the push handle back 90°. Once the
unit is activated, water will discharge from the spray outlets until the push handle is manually pulled back to the off position.
TESTING PROGRAM
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated on a weekly
basis to flush the line and verify proper operation. Speakman Company furnishes a testing record tag (91-0635) with each unit.
On this tag the date of inspection and the inspectors initials should be noted.
(Air Horn Alarm) ◊ ILS (In-Line Strainer)
Page 2
MAINTENANCE
The valve and the eyewash are
the only portions of the unit
that may require maintenance.
Should you need parts to
repair this unit, please
reference the parts listing
below for correct part
numbers. Before any
maintenance is done be sure to
shut the water supply off.
WARNING: Use only
genuine Speakman parts
when repairing or replacing
components. To order parts
call 1-800-537-2107.

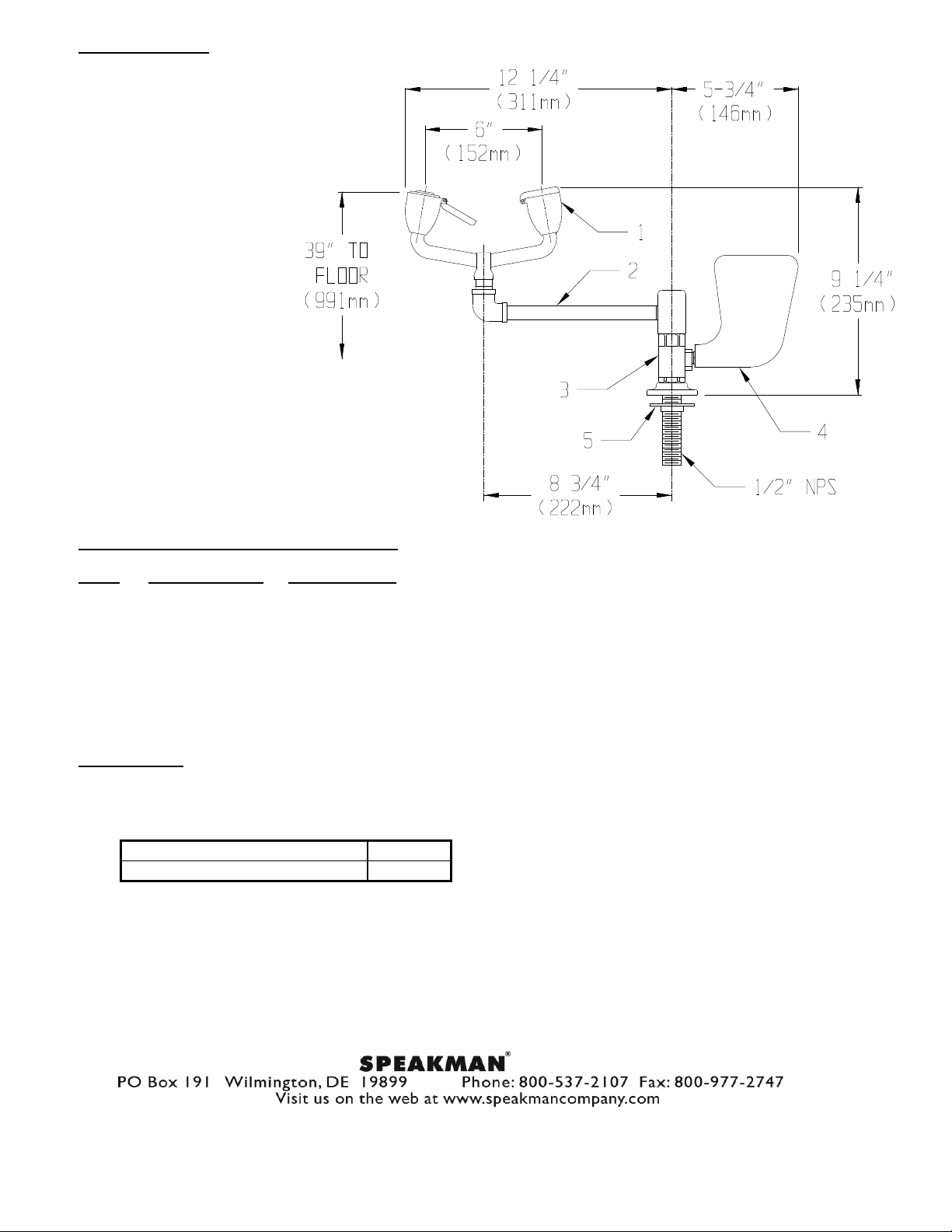

SE-572 REPLACEMENT/REPAIR PARTS
ITEM PART/GROUP # DESCRIPTION
1 G05-0714 Aerated Bullhorn Assy.
2 31-0546 Eyewash Arm
3 20-0953-PC 1/2” Ball Valve
4 04-0841 Paddle Handle
5 01-0412-MO 1/2”-14 NPSM Locknut
FLOW DATA
EYEWASH:
FLOW PRESSURE PSI (BAR) 30 (2.07)
FLOW RATE GPM (LPM) 3.6 (15)
NOTE: This unit should be connected to an uninterrupted source of potable water, with a minimum flowing
pressure of 30 PSI and a maximum static pressure of 125 PSI.
Note: All units meet existing
ANSI Z358.1 Standards and
OSHA Rules. Product
improvements may cause
specification and dimensional
changes without notice.
92-1450
07/07
Rev-11
