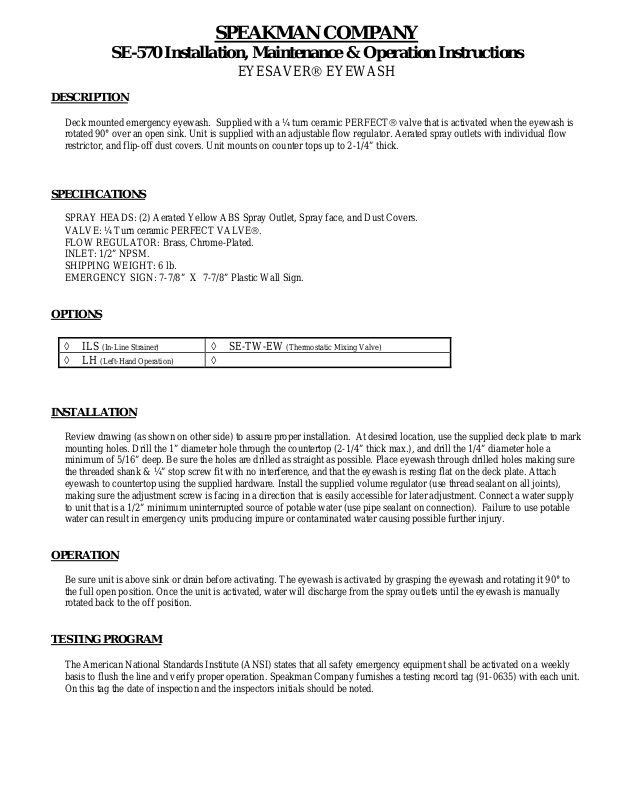

SPEAKMAN COMPANY
SE-570 Installation, Maintenance & Operation Instructions
EYESAVER EYEWASH
DESCRIPTION
Deck mounted emergency eyewash. Supplied with a ¼ turn ceramic PERFECT valve that is activated when the eyewash is
rotated 90° over an open sink. Unit is supplied with an adjustable flow regulator. Aerated spray outlets with individual flow
restrictor, and flip-off dust covers. Unit mounts on counter tops up to 2-1/4” thick.
SPECIFICATIONS
SPRAY HEADS: (2) Aerated Yellow ABS Spray Outlet, Spray face, and Dust Covers.
VALVE: ¼ Turn ceramic PERFECT VALVE.
FLOW REGULATOR: Brass, Chrome-Plated.
INLET: 1/2” NPSM.
SHIPPING WEIGHT: 6 lb.
EMERGENCY SIGN: 7-7/8” X 7-7/8” Plastic Wall Sign.
OPTIONS
ILS
LH (Left-Hand Operation)
INSTALLATION

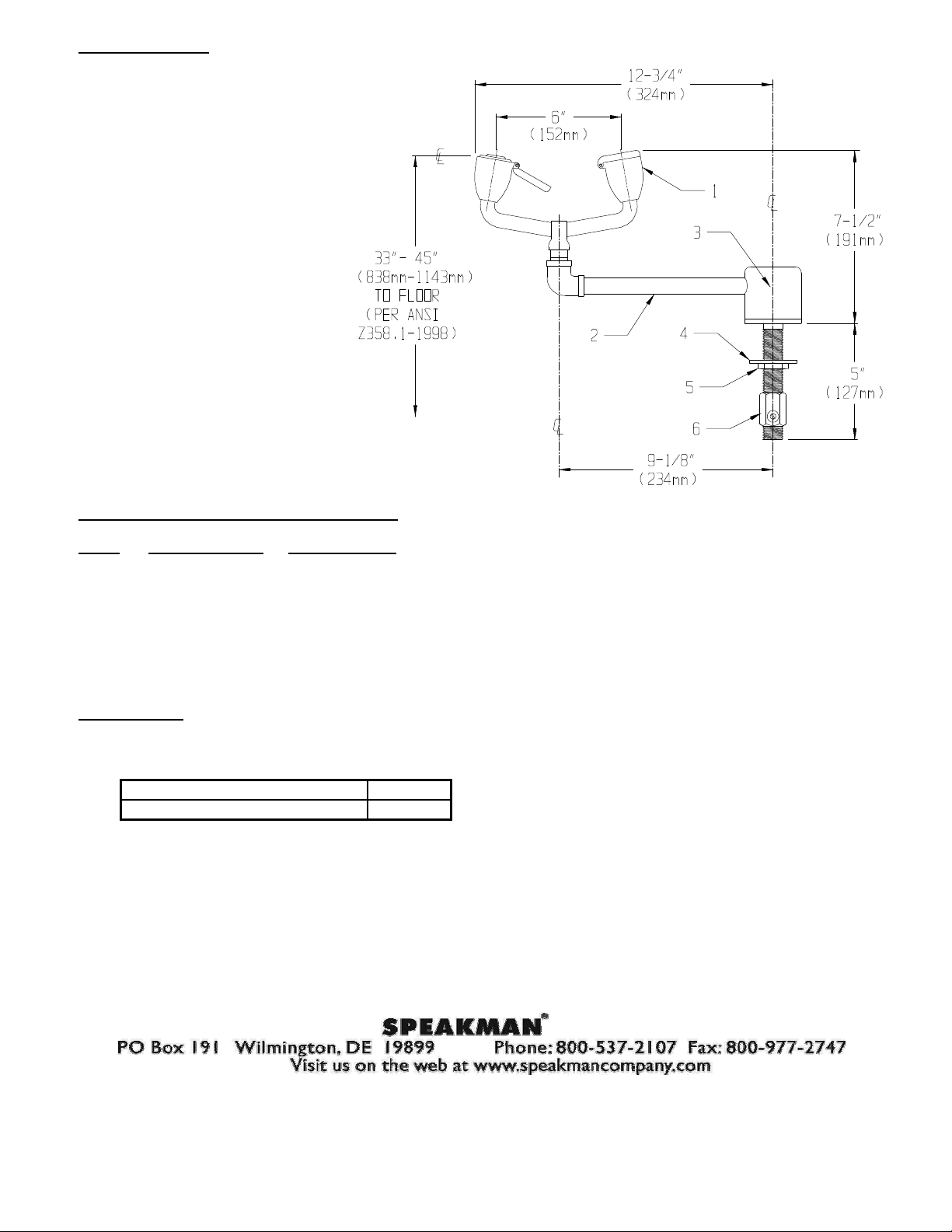

Review drawing (as shown on other side) to assure proper installation. At desired location, use the supplied deck plate to mark
mounting holes. Drill the 1” diameter hole through the countertop (2-1/4” thick max.), and drill the 1/4” diameter hole a
minimum of 5/16” deep. Be sure the holes are drilled as straight as possible. Place eyewash through drilled holes making sure
the threaded shank & ¼” stop screw fit with no interference, and that the eyewash is resting flat on the deck plate. Attach
eyewash to countertop using the supplied hardware. Install the supplied volume regulator (use thread sealant on all joints),
making sure the adjustment screw is facing in a direction that is easily accessible for later adjustment. Connect a water supply
to unit that is a 1/2” minimum uninterrupted source of potable water (use pipe sealant on connection). Failure to use potable
water can result in emergency units producing impure or contaminated water causing possible further injury.
OPERATION
Be sure unit is above sink or drain before activating. The eyewash is activated by grasping the eyewash and rotating it 90° to
the full open position. Once the unit is activated, water will discharge from the spray outlets until the eyewash is manually
rotated back to the off position.
TESTING PROGRAM
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated on a weekly
basis to flush the line and verify proper operation. Speakman Company furnishes a testing record tag (91-0635) with each unit.
On this tag the date of inspection and the inspectors initials should be noted.
(In-Line Strainer) SE-TW-EW (Thermostatic Mixing Valve)
Page 2
MAINTENANCE
The valve and the eyewash aerators are
the only portions of the unit that may
require maintenance. Should you need
parts to repair this unit, please
reference the parts listing below for
correct part numbers. Before any
maintenance is done be sure to shut the
water supply off.
WARNING: Use only genuine
Speakman parts when repairing or
replacing components. To order parts
call 1-800-537-2107.
SE-570 REPLACEMENT/REPAIR PARTS
ITEM PART/GROUP # DESCRIPTION
1 G05-0714 Aerated Bull Horn Assembly
2 31-0546 Eyewash Arm
3 RPG05-0686 PERFECT Valve (Not Shown)
4 45-0678 Flat Steel Washer
5 01-0412-MO ½” – 14 NPSM Locknut
6 G20-1940-RCP ½” Volume Regulator
FLOW DATA
EYEWASH:
FLOW PRESSURE PSI (BAR) 15 (1)
FLOW RATE GPM (LPM) 3 (11)
NOTE: This unit should be connected to an uninterrupted source of potable water, with a minimum flowing pressure of 15
PSI and a maximum static pressure of 80 PSI.
Note: All units meet existing
ANSI Z358.1 Standards and
OSHA Rules. Product
improvements may cause
specification and dimensional
changes without notice.
92-1667
2/14
Rev-5
