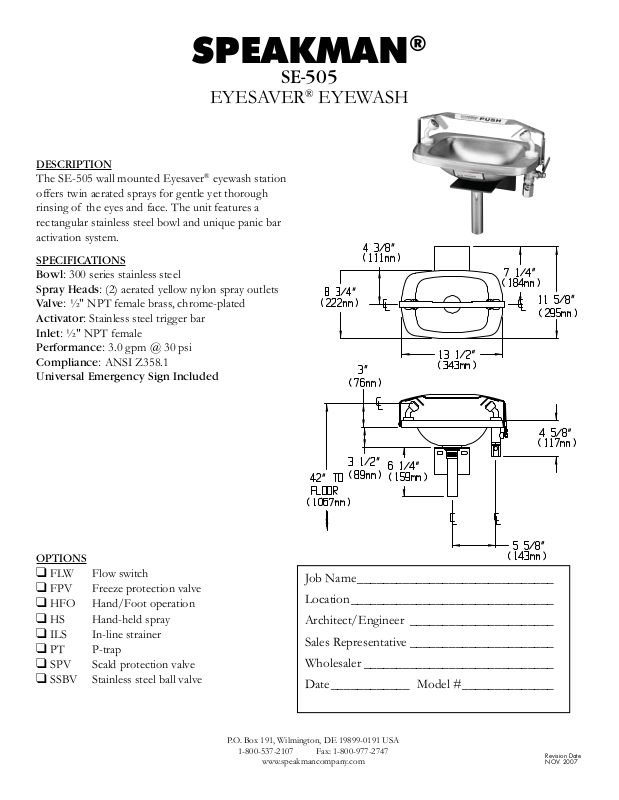

SPEAKMAN
SE-505
EYESAVER® EYEWASH
DESCRIPTION
The SE-505 wall mounted Eyesaver® eyewash station
offers twin aerated sprays for gentle yet thorough
rinsing of the eyes and face. The unit features a
rectangular stainless steel bowl and unique panic bar
activation system.
SPECIFICATIONS
Bowl: 300 series stainless steel
Spray Heads: (2) aerated yellow nylon spray outlets
Valve: ½" NPT female brass, chrome-plated
Activator: Stainless steel trigger bar
Inlet: ½" NPT female
Performance: 3.0 gpm @ 30 psi
Compliance: ANSI Z358.1
Universal Emergency Sign Included
®
OPTIONS
❑ FLW Flow switch
❑ FPV Freeze protection valve
❑ HFO Hand/Foot operation
❑ HS Hand-held spray
❑ ILS In-line strainer
❑ PT P-trap
❑ SPV Scald protection valve
❑ SSBV Stainless steel ball valve
Job Name ______________________________
Location _______________________________
Architect/Engineer ______________________
Sales Representative ______________________
Wholesaler _____________________________
Date ____________ Model # ______________
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107 Fax: 1-800-977-2747
www.speakmancompany.com
Revision Date
NOV. 2007
