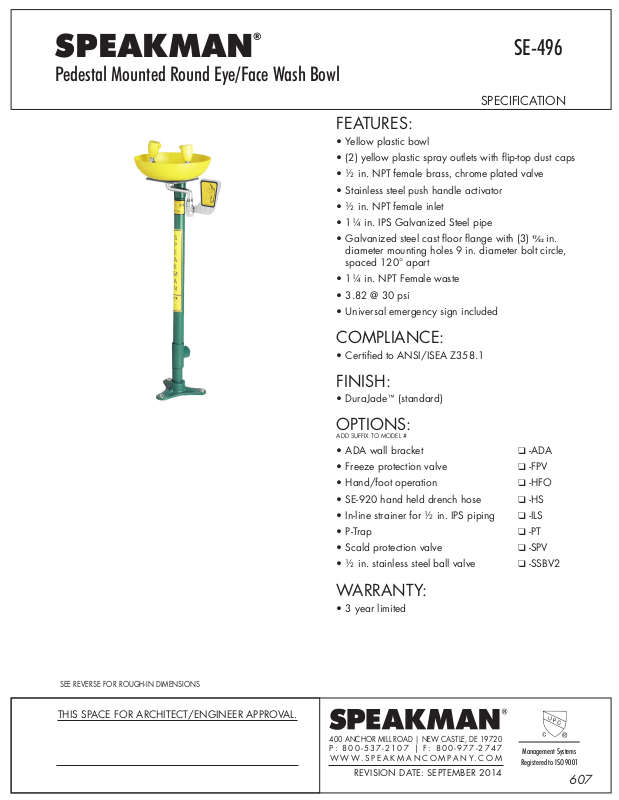

Page 1
®
SPEAKMAN
Pedestal Mounted Round Eye/Face Wash Bowl
SE-496
SPECIFICATION
FEATURES:
• Yellow plastic bowl
• (2) yellow plastic spray outlets with ip-top dust caps
• ½ in. NPT female brass, chrome plated valve
• Stainless steel push handle activator
• ½ in. NPT female inlet
• 1¼ in. IPS Galvanized Steel pipe
• Galvanized steel cast oor ange with (3) 1 7/3 2 in.
diameter mounting holes 9 in. diameter bolt circle,
spaced 120° apart
• 1¼ in. NPT Female waste
• 3.82 @ 30 psi
• Universal emergency sign included
COMPLIANCE:
• Certied to ANSI/ISEA Z358.1
FINISH:
• DuraJade™ (standard)
OPTIONS:
ADD SUFFIX TO MODEL #
• ADA wall bracket ❑ -ADA
• Freeze protection valve ❑ -FPV
• Hand/foot operation ❑ -HFO
• SE-920 hand held drench hose ❑ -HS
• In-line strainer for ½ in. IPS piping ❑ -ILS
• P-Trap ❑ -PT
• Scald protection valve ❑ -SPV
• ½ in. stainless steel ball valve ❑ -SSBV2
WARRANTY:
• 3 year limited

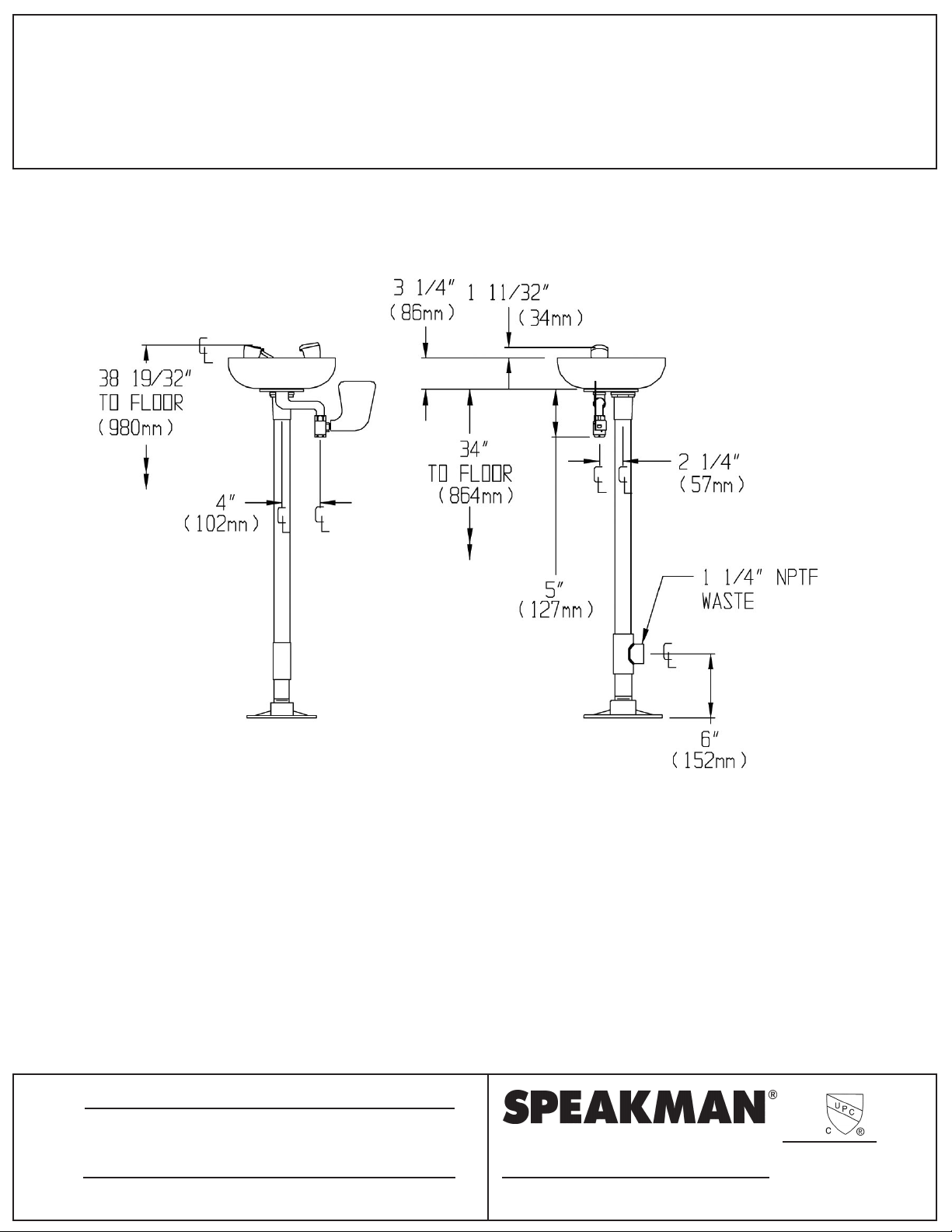

SEE REVERSE FOR ROUGH-IN DIMENSIONS
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: SEPTEMBER 2014
Management Systems
Registered to ISO 9001
607
Page 2
®
SPEAKMAN
Pedestal Mounted Round Eye/Face Wash Bowl SE-496
SPECIFICATION
608
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to
change without notice.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: SEPTEMBER 2014
Management Systems
Registered to ISO 9001
