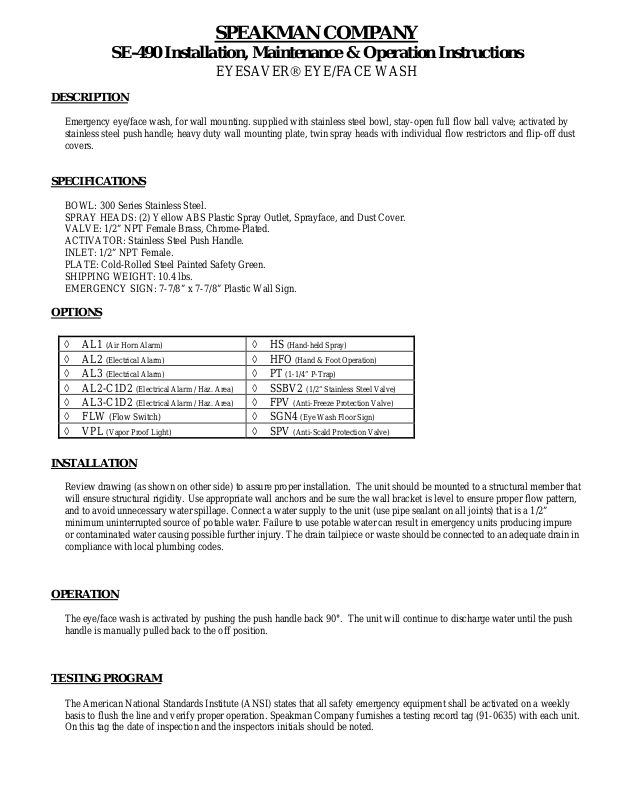

Page 1
SPEAKMAN COMPANY
SE-490 Installation, Maintenance & Operation Instructions
EYESAVER® EYE/FACE WASH
DESCRIPTION
Emergency eye/face wash, for wall mounting. supplied with stainless steel bowl, stay-open full flow ball valve; activated by
stainless steel push handle; heavy duty wall mounting plate, twin spray heads with individual flow restrictors and flip-off dust
covers.
SPECIFICATIONS
BOWL: 300 Series Stainless Steel.
SPRAY HEADS: (2) Yellow ABS Plastic Spray Outlet, Sprayface, and Dust Cover.
VALVE: 1/2” NPT Female Brass, Chrome-Plated.
ACTIVATOR: Stainless Steel Push Handle.
INLET: 1/2” NPT Female.
PLATE: Cold-Rolled Steel Painted Safety Green.
SHIPPING WEIGHT: 10.4 lbs.
EMERGENCY SIGN: 7-7/8” x 7-7/8” Plastic Wall Sign.
OPTIONS
◊ AL1 (Air Horn Alarm) ◊ HS (Hand-held Spray)
◊ AL2 (Electrical Alarm) ◊ HFO (Hand & Foot Operation)
◊ AL3 (Electrical Alarm) ◊ PT (1-1/4” P-Trap)
◊ AL2-C1D2 (Electrical Alarm / Haz. Area) ◊ SSBV2 (1/2” Stainless Steel Valve)
◊ AL3-C1D2 (Electrical Alarm / Haz. Area) ◊ FPV (Anti-Freeze Protection Valve)
◊ FLW (Flow Switch) ◊ SGN4 (Eye Wash Floor Sign)
◊ VPL (Vapor Proof Light) ◊ SPV (Anti-Scald Protection Valve)
INSTALLATION
Review drawing (as shown on other side) to assure proper installation. The unit should be mounted to a structural member that
will ensure structural rigidity. Use appropriate wall anchors and be sure the wall bracket is level to ensure proper flow pattern,
and to avoid unnecessary water spillage. Connect a water supply to the unit (use pipe sealant on all joints) that is a 1/2”
minimum uninterrupted source of potable water. Failure to use potable water can result in emergency units producing impure
or contaminated water causing possible further injury. The drain tailpiece or waste should be connected to an adequate drain in
compliance with local plumbing codes.
OPERATION
The eye/face wash is activated by pushing the push handle back 90°. The unit will continue to discharge water until the push
handle is manually pulled back to the off position.
TESTING PROGRAM
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated on a weekly
basis to flush the line and verify proper operation. Speakman Company furnishes a testing record tag (91-0635) with each unit.
On this tag the date of inspection and the inspectors initials should be noted.
Page 2
MAINTENANCE
Should you need parts to repair this unit, please
reference the parts list below for correct part
numbers. Reference additional technical sheet
(supplied) for information on the SE-910 ball valve.
Before any maintenance is done be sure to shut the
water supply off.
WARNING: Use only genuine Speakman parts
when repairing or replacing components. To order
parts call 1-800-537-2107.

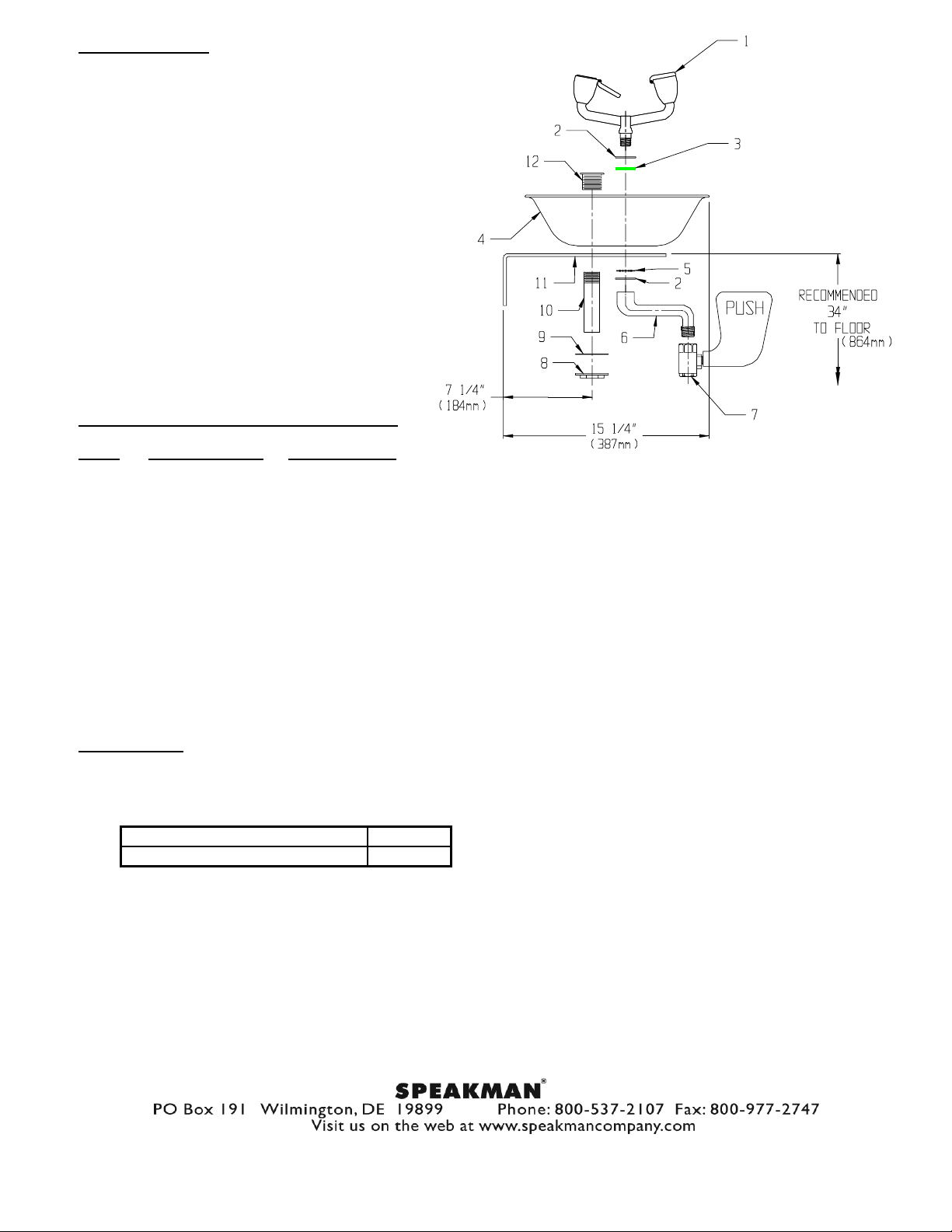

SE-490 REPLACEMENT/REPAIR PARTS
ITEM PART/GROUP # DESCRIPTION
1 G05-0715 Bullhorn &
Sprayhead Assy.
2 45-0693 (2) 1-7/16” x 7/8” x 1/8” Brass Washer
3 45-0412 Black Rubber Washer
4 68-0035-MO-P S/S Bowl
5 45-0690 Internal Tooth Lock Washer
6 31-0491-RCP Supply Pipe
7 SE-910 1/2” Stay-Open Ball Valve
8 01-0791-RCP Locknut
9 45-0615 Washer for Drain
10 43-0642 Drain Tube
11 56-0143-PNT Wall Bracket
12 05-2034 Drain
FLOW DATA
EYE/FACE WASH:
FLOW PRESSURE PSI (BAR) 30 (2.07)
FLOW RATE GPM (LPM) 3.82 (15)
NOTE: This unit should be connected to an uninterrupted source of potable water, with a minimum flowing
pressure of 30 PSI and a maximum static pressure of 125 PSI.
Note: All units meet existing
ANSI Z358.1 2004 Standards
and OSHA Rules. Product
improvements may cause
specification and dimensional
changes without notice.
92-1429
10/05
Rev-8
