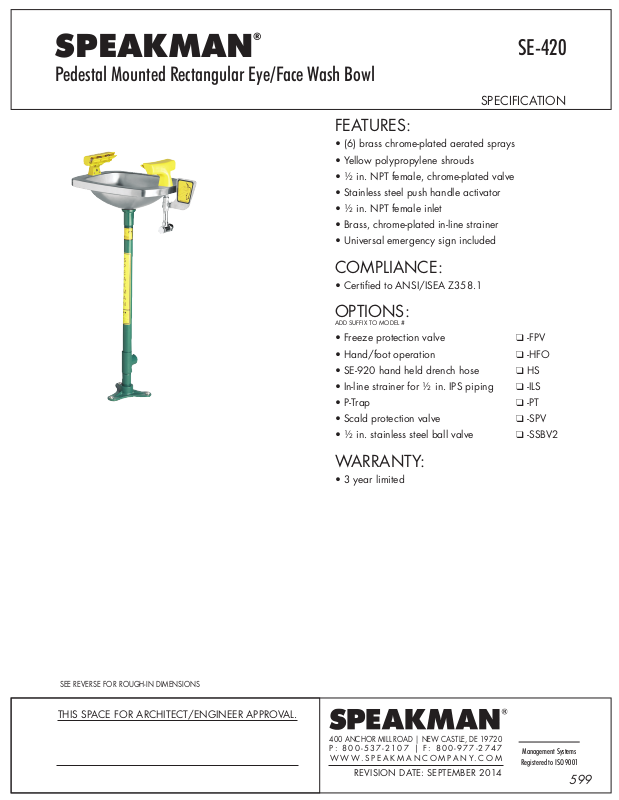

Page 1
®
SPEAKMAN
Pedestal Mounted Rectangular Eye/Face Wash Bowl
FEATURES:
• (6) brass chrome-plated aerated sprays
• Yellow polypropylene shrouds
• ½ in. NPT female, chrome-plated valve
• Stainless steel push handle activator
• ½ in. NPT female inlet
• Brass, chrome-plated in-line strainer
• Universal emergency sign included
COMPLIANCE:
• Certied to ANSI/ISEA Z358.1
OPTIONS:
ADD SUFFIX TO MODEL #
• Freeze protection valve ❑ -FPV
• Hand/foot operation ❑ -HFO
• SE-920 hand held drench hose ❑ HS
• In-line strainer for ½ in. IPS piping ❑ -ILS
• P-Trap ❑ -PT
• Scald protection valve ❑ -SPV
• ½ in. stainless steel ball valve ❑ -SSBV2
SE-420
SPECIFICATION
SEE REVERSE FOR ROUGH-IN DIMENSIONS
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
WARRANTY:
• 3 year limited
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: SEPTEMBER 2014
Management Systems
Registered to ISO 9001
599
Page 2
®
SPEAKMAN
Pedestal Mounted Rectangular Eye/Face Wash Bowl SE-420
SPECIFICATION
600
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to
change without notice.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: SEPTEMBER 2014
Management Systems
Registered to ISO 9001
