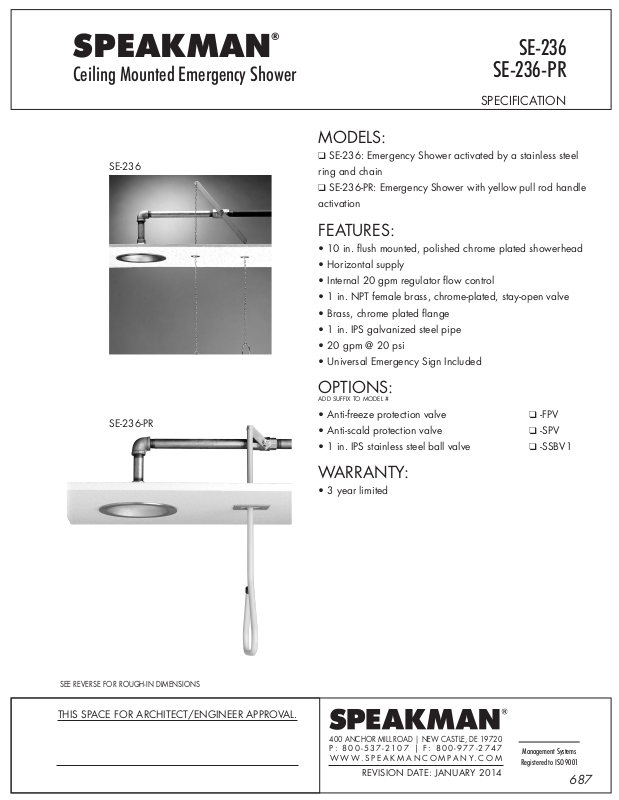

Page 1
SPEAKMAN
®
SE-236
Ceiling Mounted Emergency Shower
SE-236
SE-236-PR
SPECIFICATION
MODELS:
❑ SE-236: Emergency Shower activated by a stainless steel
ring and chain
❑ SE-236-PR: Emergency Shower with yellow pull rod handle
activation
FEATURES:
• 10 in. ush mounted, polished chrome plated showerhead
• Horizontal supply
• Internal 20 gpm regulator ow control
• 1 in. NPT female brass, chrome-plated, stay-open valve
• Brass, chrome plated ange
• 1 in. IPS galvanized steel pipe
• 20 gpm @ 20 psi
• Universal Emergency Sign Included
SE-236-PR
OPTIONS:
ADD SUFFIX TO MODEL #
• Anti-freeze protection valve ❑ -FPV
• Anti-scald protection valve ❑ -SPV
• 1 in. IPS stainless steel ball valve ❑ -SSBV1
WARRANTY:
• 3 year limited
SEE REVERSE FOR ROUGH-IN DIMENSIONS
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JANUARY 2014
Management Systems
Registered to ISO 9001
687
Page 2
®
SPEAKMAN
Ceiling Mounted Emergency Shower SE-236, SE-236-PR
SE-236
SPECIFICATION
SE-236-PR
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to
change without notice.
688
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JANUARY 2014
Management Systems
Registered to ISO 9001
