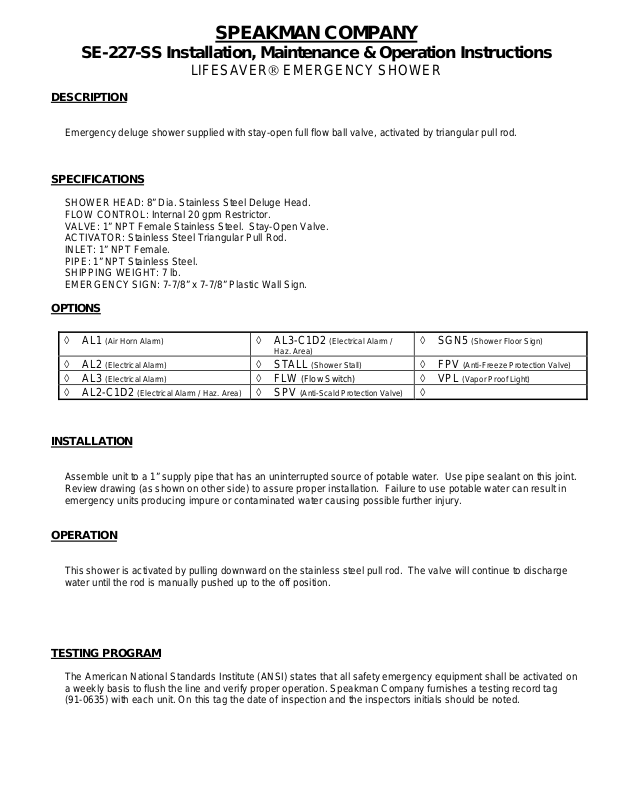

SPEAKMAN COMPANY
SE-227-SS Installation, Maintenance & Operation Instructions
LIFESAVER® EMERGENCY SHOWER
DESCRIPTION
Emergency deluge shower supplied with stay-open full flow ball valve, activated by triangular pull rod.
SPECIFICATIONS
SHOWER HEAD: 8” Dia. Stainless Steel Deluge Head.
FLOW CONTROL: Internal 20 gpm Restrictor.
VALVE: 1” NPT Female Stainless Steel. Stay-Open Valve.
ACTIVATOR: Stainless Steel Triangular Pull Rod.
INLET: 1” NPT Female.
PIPE: 1” NPT Stainless Steel.
SHIPPING WEIGHT: 7 lb.
EMERGENCY SIGN: 7-7/8” x 7-7/8” Plastic Wall Sign.
OPTIONS
◊ AL1
(Air Horn Alarm) ◊ AL3-C1D2 (Electrical Alarm /
Haz. Area)
◊ SGN5
(Shower Floor Sign)
◊ AL2 (Electrical Alarm) ◊ STALL (Shower Stall) ◊ FPV (Anti-Freeze Protection Valve)
◊ AL3 (Electrical Alarm) ◊ FLW (Flow Switch) ◊ VPL (Vapor Proof Light)
◊ AL2-C1D2 (Electrical Alarm / Haz. Area) ◊ SPV (Anti-Scald Protection Valve) ◊
INSTALLATION
Assemble unit to a 1” supply pipe that has an uninterrupted source of potable water. Use pipe sealant on this joint.

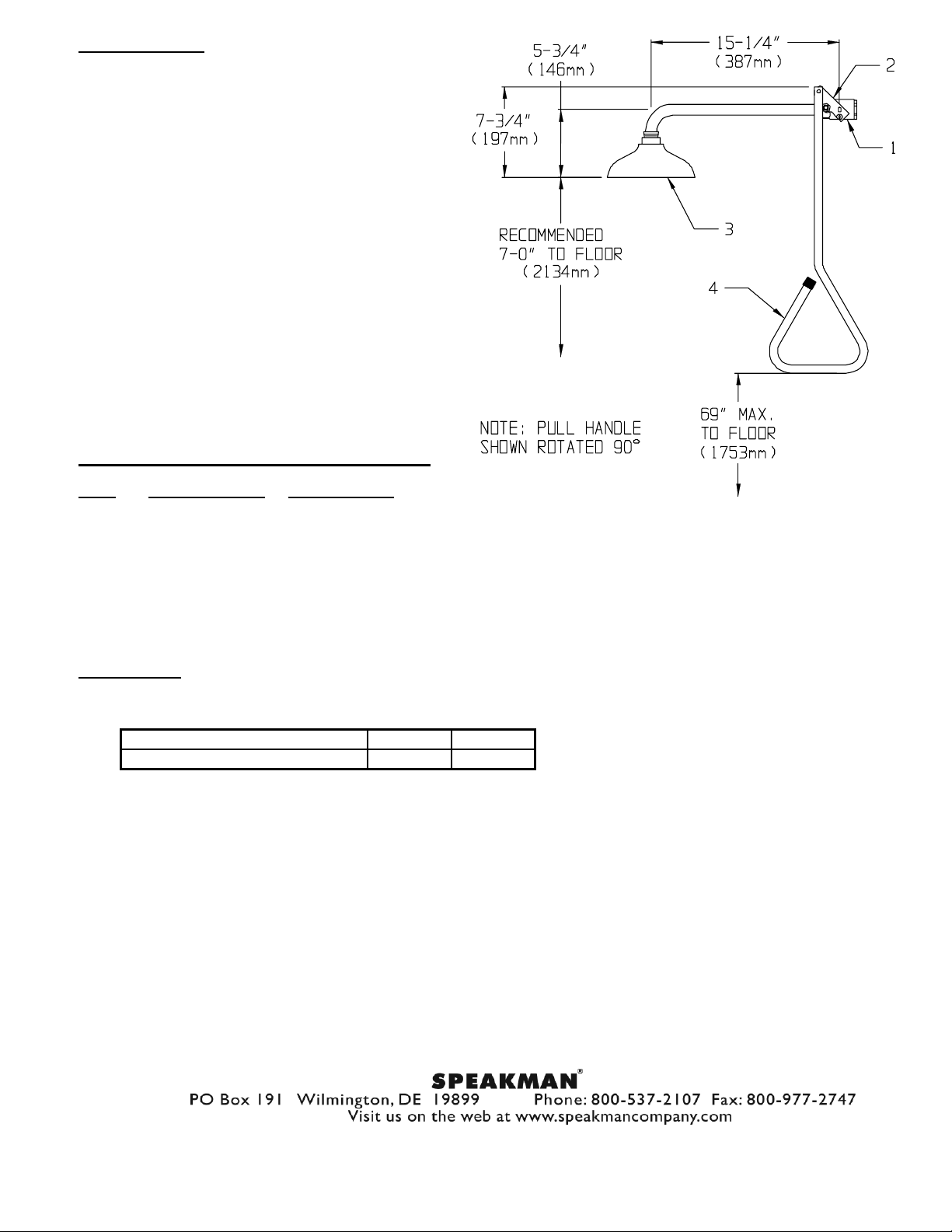

Review drawing (as shown on other side) to assure proper installation. Failure to use potable water can result in
emergency units producing impure or contaminated water causing possible further injury.
OPERATION
This shower is activated by pulling downward on the stainless steel pull rod. The valve will continue to discharge
water until the rod is manually pushed up to the off position.
TESTING PROGRAM
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated on
a weekly basis to flush the line and verify proper operation. Speakman Company furnishe s a testing record tag
(91-0635) with each unit. On this tag the date of inspection and the inspectors initials should be noted.
Page 2
MAINTENANCE
Should you need parts to repair this unit, please
reference the parts listing below for correct part
numbers. Reference additional technical sheets
(supplied) for information on the SE-880 shower
head. Before any maintenance is done be sure to
shut the water supply off.
WARNING: Use only genuine Speakman parts
when repairing or replacing components. To
order parts call 1-800-537-2107.
SE-227-SS REPLACEMENT/REPAIR PARTS
ITEM PART/GROUP # DESCRIPTION
1 20-0931-SS 1” Stay-Open Valve
2 G04-0723 Short Lever Handle w/Plunger
3 SE-880 8” Shower Head
4 G47-0043 S/S Tube Pull Handle
FLOW DATA
SHOWER:
FLOW PRESSURE PSI (BAR) 20 (1.38) 60 (4.14)
FLOW RATE GPM (LPM) 20 (75) 25 (94)
NOTE: This unit should be connected to an uninterrupted source of potable water, with a minimum flowing
pressure of 20 PSI and a maximum static pressure o f 125 PSI.
Note: All units meet existing
ANSI Z358.1 1998
Standards and OSHA Rules.
Product improvements may
cause specification and
dimensional changes
without notice.
92-1578
9/02
Rev-4
