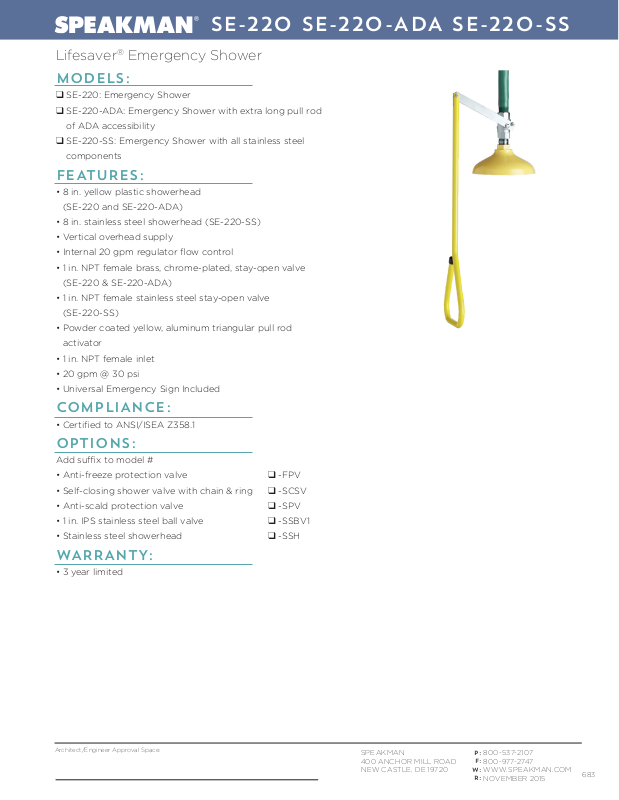

Page 1
SE-220 SE-220-ADA SE-220-SS
Lifesaver® Emergency Shower
MODELS:
❑ SE-220: Emergency Shower
❑ SE-220-ADA: Emergency Shower with extra long pull rod
of ADA accessibility
❑ SE-220-SS: Emergency Shower with all stainless steel
components
FEATURES:
• 8 in. yellow plastic showerhead
(SE-220 and SE-220-ADA)
• 8 in. stainless steel showerhead (SE-220-SS)
• Vertical overhead supply
• Internal 20 gpm regulator flow control
• 1 in. NPT female brass, chrome-plated, stay-open valve
(SE-220 & SE-220-ADA)
• 1 in. NPT female stainless steel stay-open valve
(SE-220-SS)
• Powder coated yellow, aluminum triangular pull rod
activator
• 1 in. NPT female inlet
• 20 gpm @ 30 psi
• Universal Emergency Sign Included
COMPLIANCE:
• Certified to ANSI/ISEA Z358.1
OPTIONS:
Add sux to model #
• Anti-freeze protection valve ❑ -FPV
• Self-closing shower valve with chain & ring ❑ -SCSV
• Anti-scald protection valve ❑ -SPV
• 1 in. IPS stainless steel ball valve ❑ -SSBV1
• Stainless steel showerhead ❑ -SSH
WARRANTY:
• 3 year limited
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
NOVEMBER 2015
683
Page 2

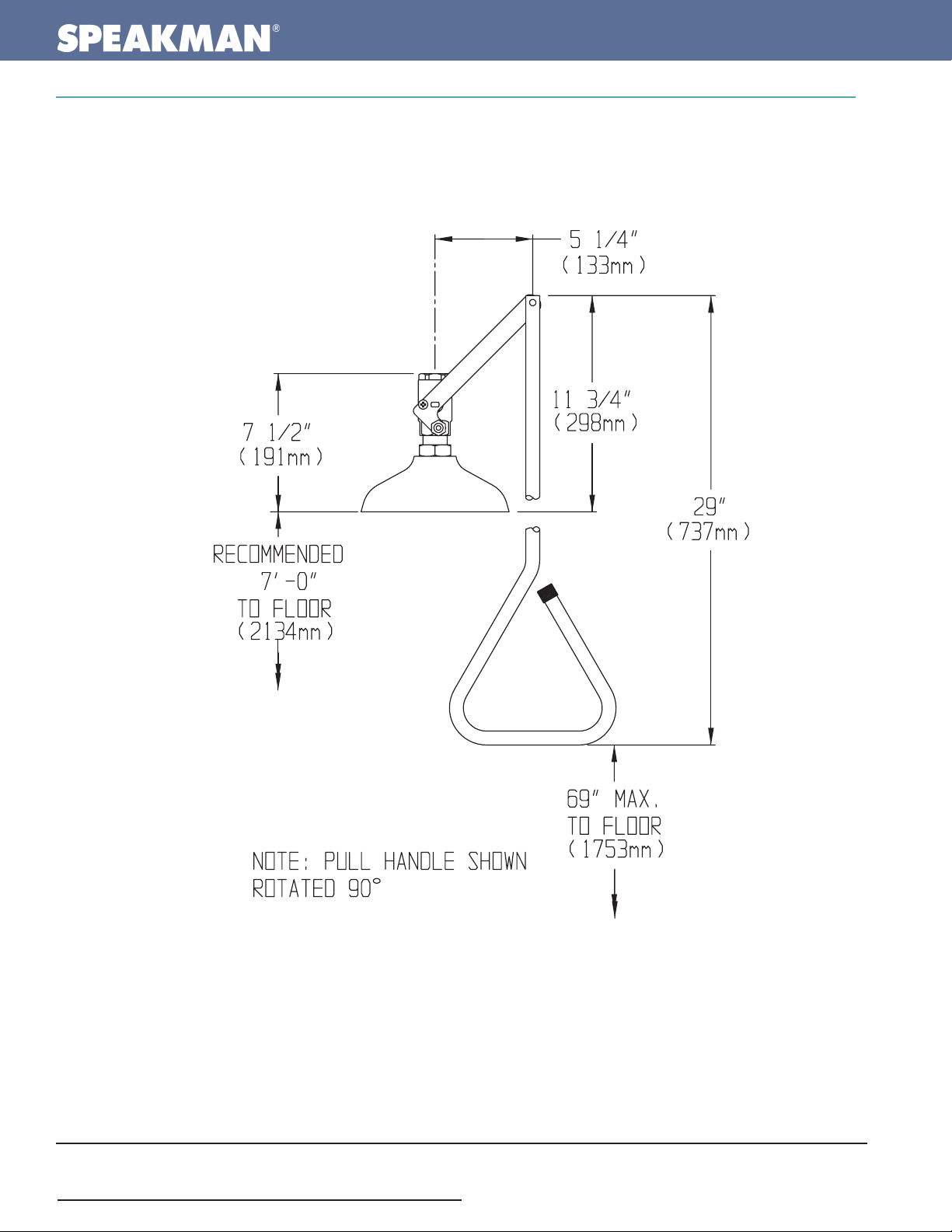

DIMENSIONS:
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specied and are subject to change without notice.
Architect/Engineer Approval Space:
684
SPEAKMAN
400 ANCHOR MILL ROAD
NEW C ASTLE, DE 19720
P:
800-537-2107
F:
80 0 -977-2747
W:
WWW.SPEAKMAN.COM
R:
NOVEMBER 2015
Page 3
SPEAKMAN
®
SE-220
SE-220-SS
Lifesaver® Emergency Shower
SE-220-ADA
SPECIFICATION
MODELS:
❑ SE-220: Emergency Shower
❑ SE-220-ADA: Emergency Shower with extra long pull rod
of ADA accessibility
❑ SE-220-SS: Emergency Shower with all stainless steel
components
FEATURES:
• 8 in. yellow plastic showerhead (SE-220 and SE-220-ADA)
• 8 in. stainless steel showerhead (SE-220-SS)
• Vertical overhead supply
• Internal 20 gpm regulator ow control
• 1 in. NPT female brass, chrome-plated, stay-open valve
(SE-220)
• 1 in. NPT female stainless steel stay-open valve (SE-220-SS)
• Powder coated yellow, aluminum triangular pull rod
activator
• 1 in. NPT female inlet
• 20 gpm @ 30 psi
• Universal Emergency Sign Included
SEE REVERSE FOR ROUGH-IN DIMENSIONS
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
FINISHES:
• DuraJade™ (SE-220, SE-220-ADA)
• Stainless steel (SE-220-SS)
OPTIONS:
ADD SUFFIX TO MODEL #
• Anti-freeze protection valve ❑ -FPV
• Self-closing shower valve with chain & ring ❑ -SCSV
• Anti-scald protection valve ❑ -SPV
• 1 in. IPS stainless steel ball valve ❑ -SSBV1
• Stainless steel showerhead ❑ -SSH
WARRANTY:
• 3 year limited
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JANUARY 2014
Management Systems
Registered to ISO 9001
683
Page 4
®
SPEAKMAN
Lifesaver® Emergency Shower SE-220, SE-220-ADA, SE-220-SS
SPECIFICATION
684
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to
change without notice.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JANUARY 2014
Management Systems
Registered to ISO 9001
Page 5
SPEAKMAN
®
SE-227
Lifesaver® Emergency Shower
SE-227-SS
SPECIFICATION
MODELS:
❑ SE-227: Emergency Shower
❑ SE-227-SS: Emergency Shower with all stainless steel
components
FEATURES:
• 8 in. yellow plastic showerhead (SE-227)
• 8 in. stainless steel showerhead (SE-227-SS)
• Horizontal supply
• Internal 20 gpm regulator ow control
• 1 in. NPT female brass, chrome-plated, stay-open valve
• 1 in. NPT female stainless steel, chrome-plated, stay-open
valve
• Powder coated yellow, aluminum triangular pull rod
activator
• 1 in. NPT female inlet
• 20 gpm @ 30 psi
• Universal Emergency Sign Included
SEE REVERSE FOR ROUGH-IN DIMENSIONS
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
FINISHES:
• DuraJade™ (SE-227)
• Stainless steel (SE-227-SS)
OPTIONS:
ADD SUFFIX TO MODEL #
• Anti-freeze protection valve ❑ -FPV
• Self-closing shower valve with chain & ring ❑ -SCSV
• Anti-scald protection valve ❑ -SPV
• 1 in. IPS stainless steel ball valve ❑ -SSBV1
• Stainless steel showerhead ❑ -SSH
WARRANTY:
• 3 year limited
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JANUARY 2014
Management Systems
Registered to ISO 9001
685
Page 6
®
SPEAKMAN
Lifesaver® Emergency Shower SE-227, SE-227-SS
SPECIFICATION
686
THIS SPACE FOR ARCHITECT/ENGINEER APPROVAL.
NOTE: 1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to
change without notice.
400 ANCHOR MILL ROAD | NEW CASTLE, DE 19720
P: 800-537-2107 | F: 800-977-2747
WWW.SPEAKMANCOMPANY.COM
REVISION DATE: JANUARY 2014
Management Systems
Registered to ISO 9001
