Speakman SE-925 Installation, Maintenance & Operation Instructions

SPEAKMAN

®

SE-925 Installation, Maintenance & Operation Instructions

LABORATORY DRENCH HOSE

DESCRIPTION

Wall mounted laboratory drench hose supplied with spray head with flip-off dust cover, and self-closing valve
with automatic stay-open feature activated by squeeze handle.

SPECIFICATIONS

SPRAY HEAD: Yellow, ABS Plastic Spray Outlet, Dust Cover.
VALVE: 3/8” NPT Female Brass. Self-Closing with Hold-Open Lever.
ACTIVATOR: Brass, Chrome-Plated Squeeze Handle.
HOSE: 12’ of 1/2” I.D. Recoiling Nylon.
ELBOW: 90°, Chrome-Plated Brass.
FLANGE: Chrome-Plated Brass.
INLET: 1/2” NPTM.
SHIPPING WEIGHT: 4.95 lbs.

EMERGENCY SIGN: 7-7/8” x 7-7/8” Plastic Wall Sign.

INSTALLATION

In desired location drill hole in wall to accommodate 1/2” NPT supply inlet. Review drawing (as shown on other
side) to assure proper assembly. Connect a water supply to the unit (use pipe sealant on connection) that is a
1/2” minimum uninterrupted source of potable water. Failure to use potable water can result in emergency
units producing impure or contaminated water causing possible further injury.

OPERATION

This drench hose is activated by squeezing the valve handle. Because of the automatic stay-open feature, the
valve will open and remain on upon activation. A non-aerated flow of water will discharge and will continue to
flow until the handle is squeezed, the stay-open plunger is pulled outward, and the handle is released.

TESTING PROGRAM

The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated
on a weekly basis to flush the line and verify proper operation. Speakman Company furnishes a testing record
tag (91-0635) with each unit. On this tag the date of inspection and the inspectors initials should be noted.

MAINTENANCE

Should you need parts to repair this unit, please reference the parts list below for correct part numbers. Before
any maintenance is done be sure to shut the water supply off.

WARNING: Use only genuine Speakman parts when repairing or replacing components. To order parts call 1­800-537-2107.

SPEAKMAN

400 Anchor Mill Rd. New Castle, DE 19720 Phone: [phone] Fax: [phone]

03/14 Visit us on the web at www.speakmancompany.com 92-SE-925-R10

®

W

w

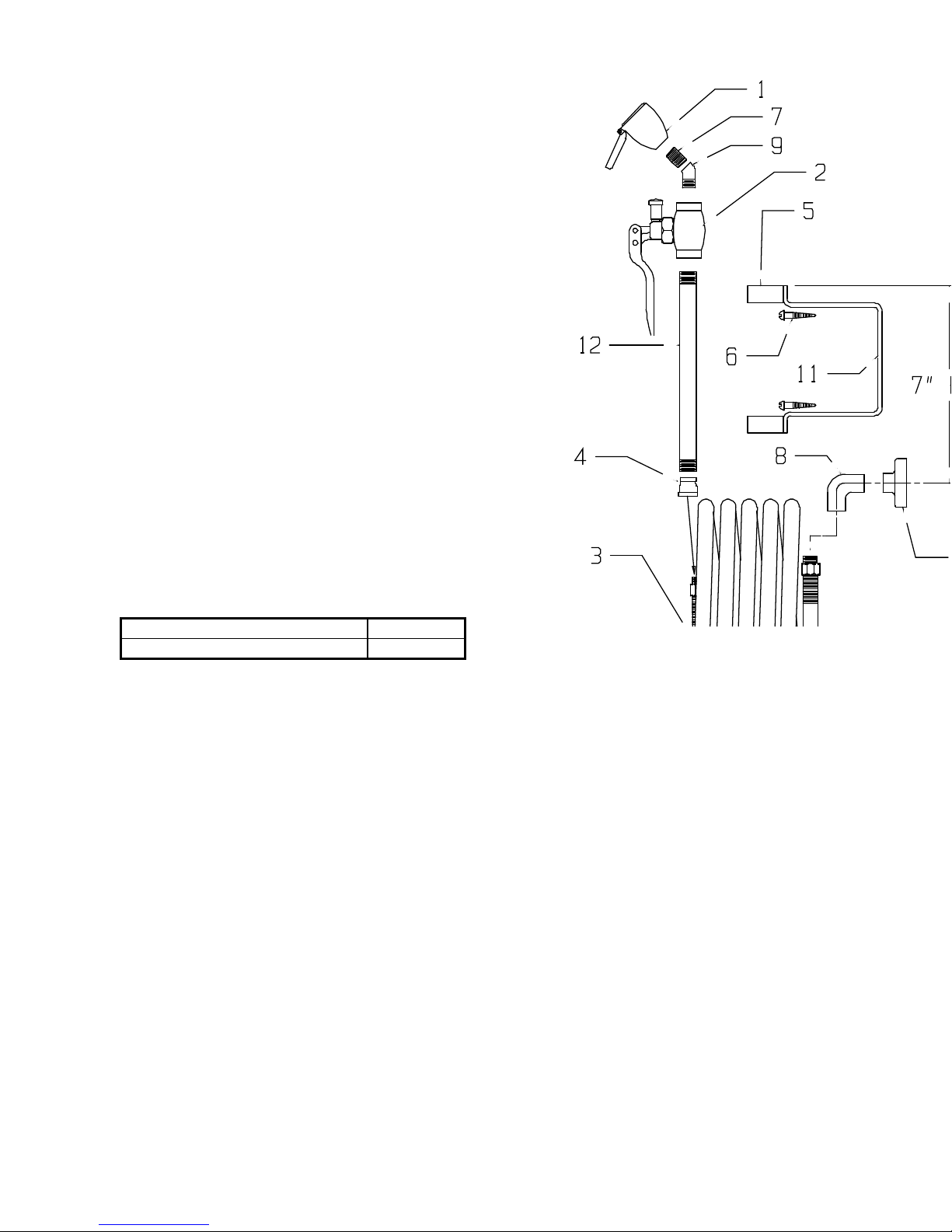

SE-925 REPLACEMENT/REPAIR PARTS

ITEM PART/GROUP# DESCRIPTION

1 RPG38-0380 Spray Head Assy.
2 G20-1742-PC Self-Closing Valve

w/Auto Stay-Open

3 G63-0025-RCP 12’ Nylon Recoil Hose
4 05-2194-PC ½ NPT to 3/8 NPT

reducer

5 05-1672-VINYL Hose Clip (2)
6 13-0032

ood Screw (4)
7 31-0356-RCP-PUR 3/8”NPT Close Nipple
8 25-0017-RCP 1/2”NPT Elbo
9 25-0204-PC 3/8”M x 3/8”F Elbow

10 26-0044-PC-P 1/2” Pipe Wali Flange
11 56-0157 Bracket
12 31-0292-PC 3/8” NPT x 5”lg Br Pipe

FLOW DATA

DRENCH HOSE:

FLOW PRESSURE PSI (BAR) 30 (2.07)
FLOW RATE GPM (LPM) 1.65 (6.3)

NOTE: This unit should be connected to an uninterrupted source of potable water, with a minimum flowing
pressure of 30 PSI and a maximum static pressure of 125 PSI.

400 Anchor Mill Rd. New Castle, DE 19720 Phone: [phone] Fax: [phone]

03/14 Visit us on the web at www.speakmancompany.com 92-SE-925-R10

SPEAKMAN

Note: All units meet existing
ANSI Z358.1 1998
Standards and OSHA Rules
for drench hoses. Product
improvements may cause
specification and
dimensional changes
without notice.

®
