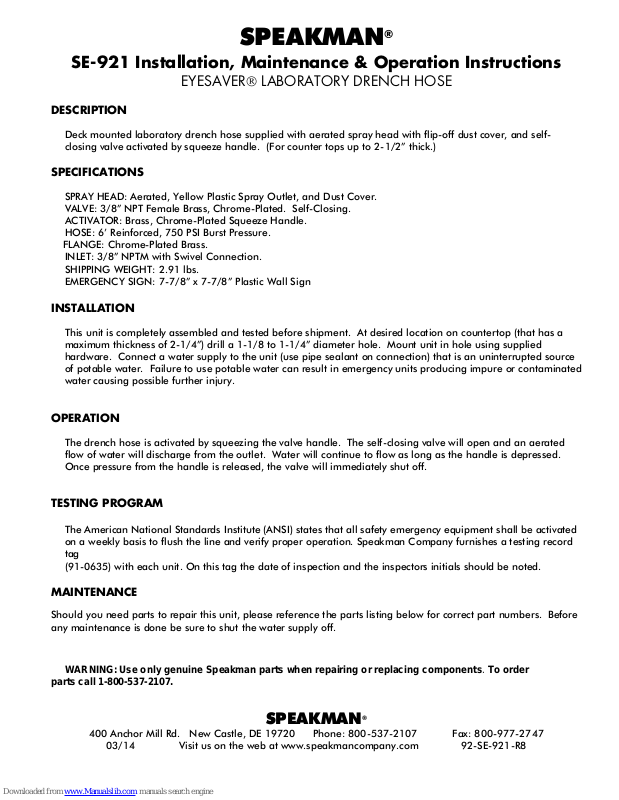

SPEAKMAN
®
SE-921 Installation, Maintenance & Operation Instructions
EYESAVER LABORATORY DRENCH HOSE
DESCRIPTION
Deck mounted laboratory drench hose supplied with aerated spray head with flip-off dust cover, and selfclosing valve activated by squeeze handle. (For counter tops up to 2-1/2” thick.)
SPECIFICATIONS
SPRAY HEAD: Aerated, Yellow Plastic Spray Outlet, and Dust Cover.
VALVE: 3/8” NPT Female Brass, Chrome-Plated. Self-Closing.
ACTIVATOR: Brass, Chrome-Plated Squeeze Handle.
HOSE: 6’ Reinforced, 750 PSI Burst Pressure.
FLANGE: Chrome-Plated Brass.
INLET: 3/8” NPTM with Swivel Connection.
SHIPPING WEIGHT: 2.91 lbs.
EMERGENCY SIGN: 7-7/8” x 7-7/8” Plastic Wall Sign
INSTALLATION
This unit is completely assembled and tested before shipment. At desired location on countertop (that has a
maximum thickness of 2-1/4”) drill a 1-1/8 to 1-1/4” diameter hole. Mount unit in hole using supplied
hardware. Connect a water supply to the unit (use pipe sealant on connection) that is an uninterrupted source
of potable water. Failure to use potable water can result in emergency units producing impure or contaminated
water causing possible further injury.
OPERATION
The drench hose is activated by squeezing the valve handle. The self-closing valve will open and an aerated
flow of water will discharge from the outlet. Water will continue to flow as long as the handle is depressed.
Once pressure from the handle is released, the valve will immediately shut off.
TESTING PROGRAM
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated
on a weekly basis to flush the line and verify proper operation. Speakman Company furnishes a testing record
tag
(91-0635) with each unit. On this tag the date of inspection and the inspectors initials should be noted.
MAINTENANCE
Should you need parts to repair this unit, please reference the parts listing below for correct part numbers. Before
any maintenance is done be sure to shut the water supply off.
WARNING: Use only genuine Speakman parts when repairing or replacing components. To order
parts call 1-800-537-2107.
SPEAKMAN
400 Anchor Mill Rd. New Castle, DE 19720 Phone: 800-537-2107 Fax: 800-977-2747
03/14 Visit us on the web at www.speakmancompany.com 92-SE-921-R8
®
Page 2

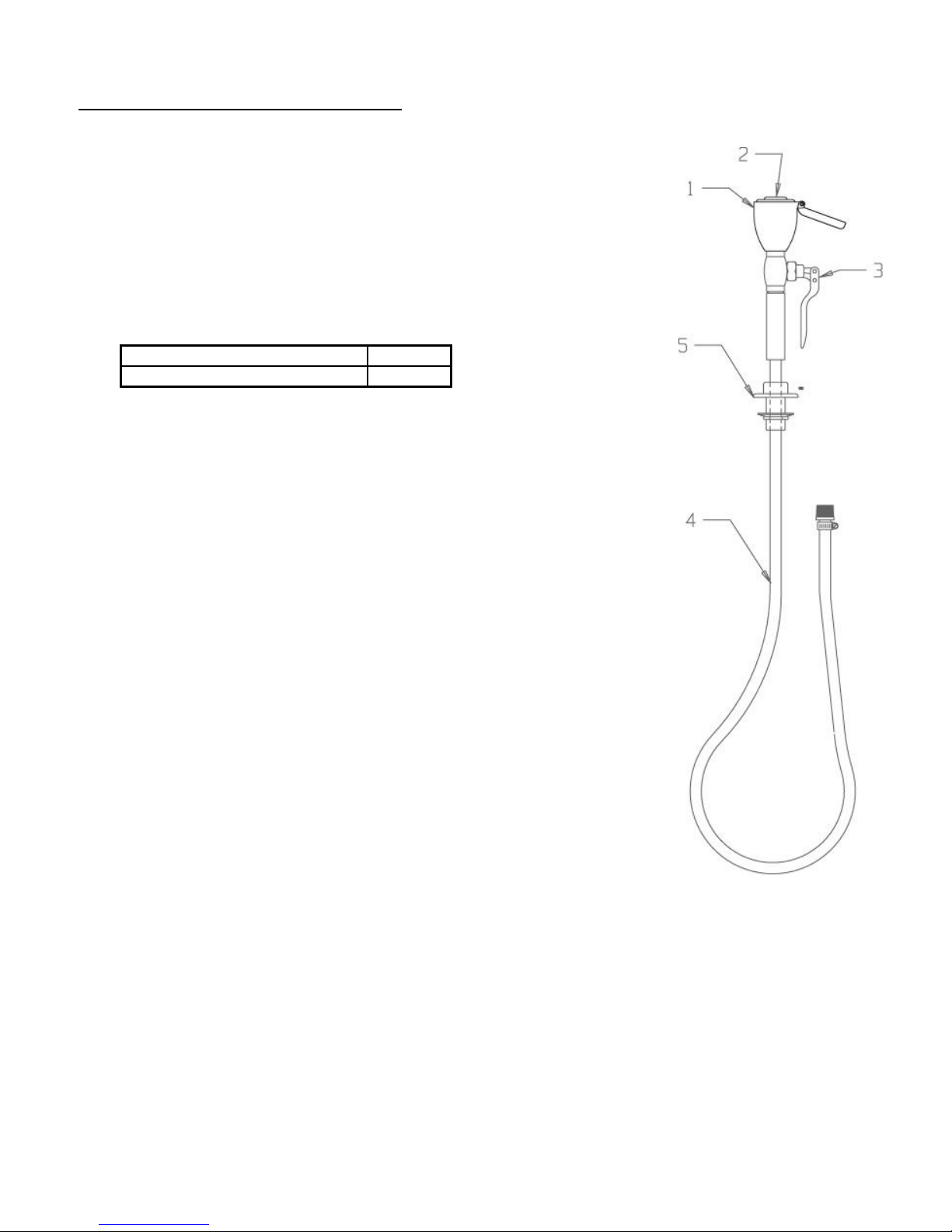

SE-921 REPLACEMENT/REPAIR PARTS
ITEM PART/GROUP # DESCRIPTION
1 RPG38-0379 Spray Head Assy.
2 RPG05-1177 Aerator Cap & Shell
3 RPG20-2020 3/8” NPT Valve
4 RPG63-0064 6’ Reinforced Hose Assy
5 RPG05-0484 Mounting Hardware
FLOW DATA
DRENCH HOSE:
FLOW PRESSURE PSI (BAR) 30 (2.07)
FLOW RATE GPM (LPM) 1.6 (6)
NOTE:This unit should be connected to an uninterrupted source of potable water,
with a minimum flowing pressure of 30 PSI and a maximum static pressure of 125
PSI.
Note: All units meet existing
ANSI Z358.1 Standards and
OSHA Rules for drench
hoses. Product
improvements may cause
specification and
dimensional changes
without notice.
400 Anchor Mill Rd. New Castle, DE 19720 Phone: 800-537-2107 Fax: 800-977-2747
03/14 Visit us on the web at www.speakmancompany.com 92-SE-921-R8
