SPEAKMAN COMPANY
SE-700 Installation, Maintenance & Operation Instructions
EYESAVER® LABORATORY EYEWASHES AND SHOWERS
DESCRIPTION
Deck mounted laboratory shower supplied with stay-open full flow ball valve, flange with riser for deck mounting,
and shower head activated by pull lever.
SPECIFICATIONS
SHOWER HEAD: 5” Chrome-Plated Brass with Holes.
VALVE: 3/4” NPT Female Brass, Chrome-Plated.
ACTIVATOR: Brass Pull Lever, Chrome-Plated.
RISER: 3/4” Chrome-Plated Brass.
INLET: 3/4” NPSM
FINISH: Polished Chrome.
SHIPPING WEIGHT: 16 lb.
EMERGENCY SIGN: 7-7/8” x 7-7/8” Plastic Wall Sign.
OPTIONS
◊ AL1
(Air Horn Alarm) ◊ AL3-C1D2 (Electrical Alarm / Haz.
Area)
◊ VPL
(Vapor Proof Light)
◊ AL2 (Electrical Alarm) ◊ FLW (Flow Switch) ◊ SGN5 (Shower Floor Sign)
◊ AL3 (Electrical Alarm) ◊ FPV (Anti-Freeze Protection Valve) ◊
◊ AL2-C1D2 (Electrical Alarm / Haz.
Area)
◊ SPV
(Anti-Scald Protection Valve) ◊
INSTALLATION

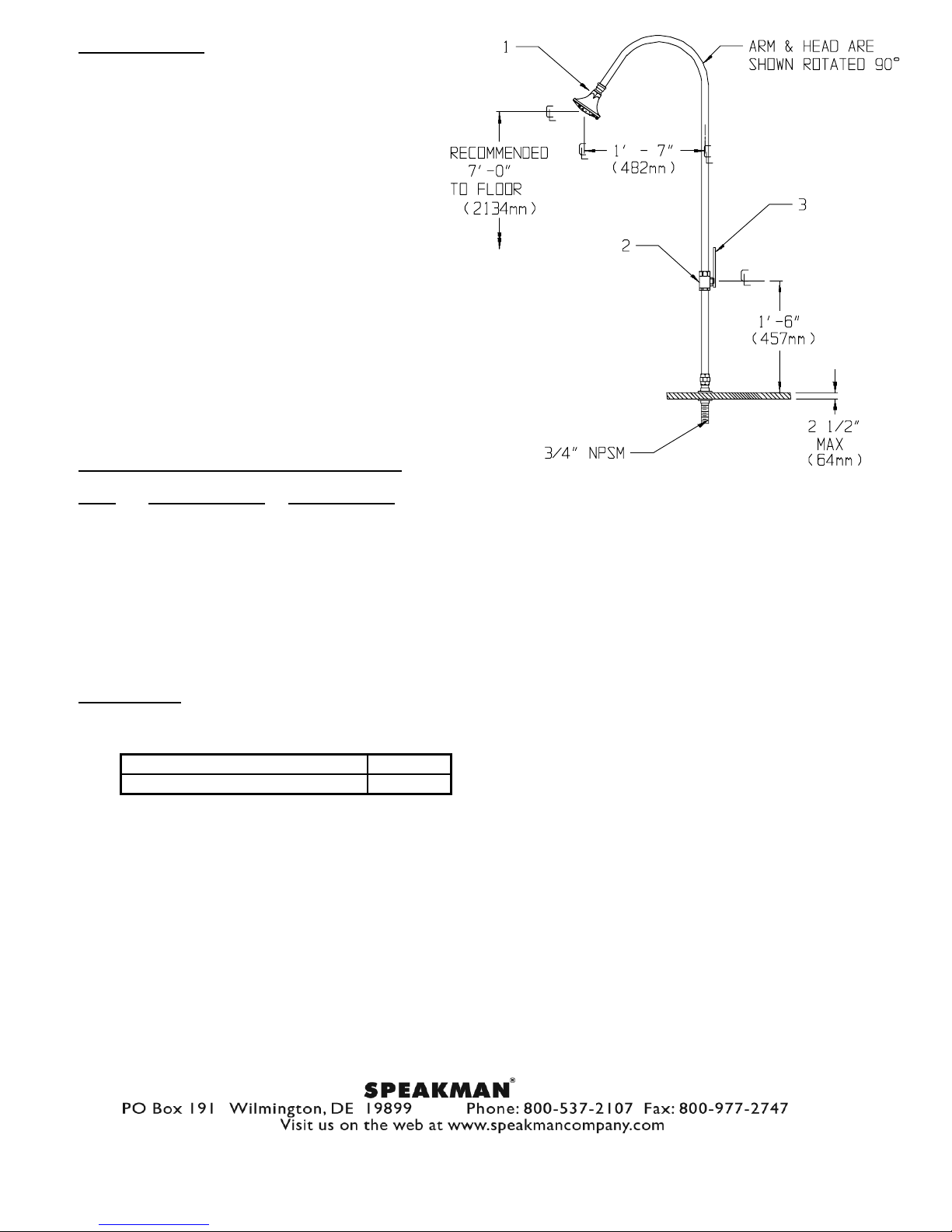

Review drawing (as shown on other side) to assure proper installation and assembly of emergency shower. At
desired location, drill a 1-1/4” diameter hole through countertop(2-1/4” max.). Be sure the hole is drilled as straight
as possible. Assemble upper section (bent riser) of shower to lower section (valve, union, etc.), making sure that
lever handle is located on right side when completely assembled. Use pipe sealant on all connections. Attach
shower to countertop using supplied hardware. Mount support hanger to wall or suitable structure, and attach to
shower. Attach shower head to end of bent riser. Connect a water supply to unit that is a 3/4” minimum
uninterrupted source of potable water. Failure to use potable water can result in emergency units producing impure
or contaminated water causing possible further injury
OPERATION
The shower is activated by pulling the lever handle down 90°. Once the unit is activated, water will discharge from
the shower head until the lever handle is manually pushed back to the off position.
TESTING PROGRAM
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated on
a weekly basis to flush the line and verify proper operation. Speakman Company furnishes a testing record tag
(91-0635) with each unit. On this tag the date of inspection and the inspectors initials should be noted.
Page 2
MAINTENANCE
Should you need parts to repair this unit, please
reference the parts list below for correct part
numbers. Reference additional technical sheet
(supplied) for information on the SE-855 shower
head. Before any maintenance is done be sure
to shut the water supply off.
WARNING: Use only genuine Speakman
parts when repairing or replacing
components. To order parts call 1-800-537-
2107.
SE-700 REPLACEMENT/REPAIR PARTS
ITEM PART/GROUP # DESCRIPTION
1 SE-855 5” Dia. Shower Head, Chrome-Plated
2 20-0845-PC 3/4” Ball Valve
3 04-0349-PC Lever Handle for Ball Valve
FLOW DATA
SHOWER:
FLOW PRESSURE PSI (BAR) 30 (2.07)
FLOW RATE GPM (LPM) 30 (114)
NOTE: This unit should be connected to an uninterrupted source of potable water, with a minimum flowing
pressure of 20 PSI and a maximum static pressure of 125 PSI.
Note: All units meet existing
ANSI Z358.1 1998
Standards and OSHA Rules.
Product improvements may
cause specification and
dimensional changes
without notice.
92-1513
2/02
Rev-3
