SPEAKMAN COMPANY
SE-597 Installation, Maintenance & Operation Instructions
DESCRIPTION
Portable body wash. Supplied with stainless steel tank, pressure gauge, air filler, pressure relief valve, and drench hose
activated by squeeze handle with non-aerated spray nozzle, and dust cover.
SPECIFICATIONS
TANK: 5 Gallon Stainless Steel.
DRENCH HOSE:
VALVE: 3/8” NPT Female Brass, Chrome-Plated.
HOSE: 6’ Reinforced, 750 PSI Burst Pressure, Hose Clip for Valve.
SPRAYHEAD: Yellow Plastic Spray Outlet w/ Flip Top Dust Cap and an Automatic Flow Control.
SHIPPING WEIGHT: 13 lb.
INSTALLATION
Failure to use potable water can result in emergency units producing impure or contaminated water causing possible further
injury. Fill tank with 4 gallons of water, and pressurize tank with 100 psi air.
OPERATION
The drench hose is activated by applying pressure to the v alve handle. The self-closing valve will open and an aerated flow of
water will discharge from the outlet. Water will continue to flow as long as the handle is depressed. Once pressure on the
handle is released, the valve will immediately shut off.
TESTING PROGRAM
The American National Standards Institute (ANSI) states that all safety emergency equipment shall be activated on a weekly
basis to flush the line and verify proper operation. Speakman Company furnishes a testing record tag (91-0635) with each unit.
On this tag the date of inspection and the inspector’s initials should be noted.
Page 2
MAINTENANCE
The valve and the spray head are the only portions of
the unit that may require maintenance. Should you
need parts to repair this unit, please reference the
parts listing below for correct part numbers? Before
any maintenance is done be sure to relieve the water
pressure in the tank.
Replace the water and clean the
Tank at least once a month. To clean the tank,
Drain the water through the hand held drench
Hose. Refill as instructed in the operation section.
WARNING: Use only genuine Speakman parts
when repairing or replacing components. To order
parts call 1-800-537-2107.

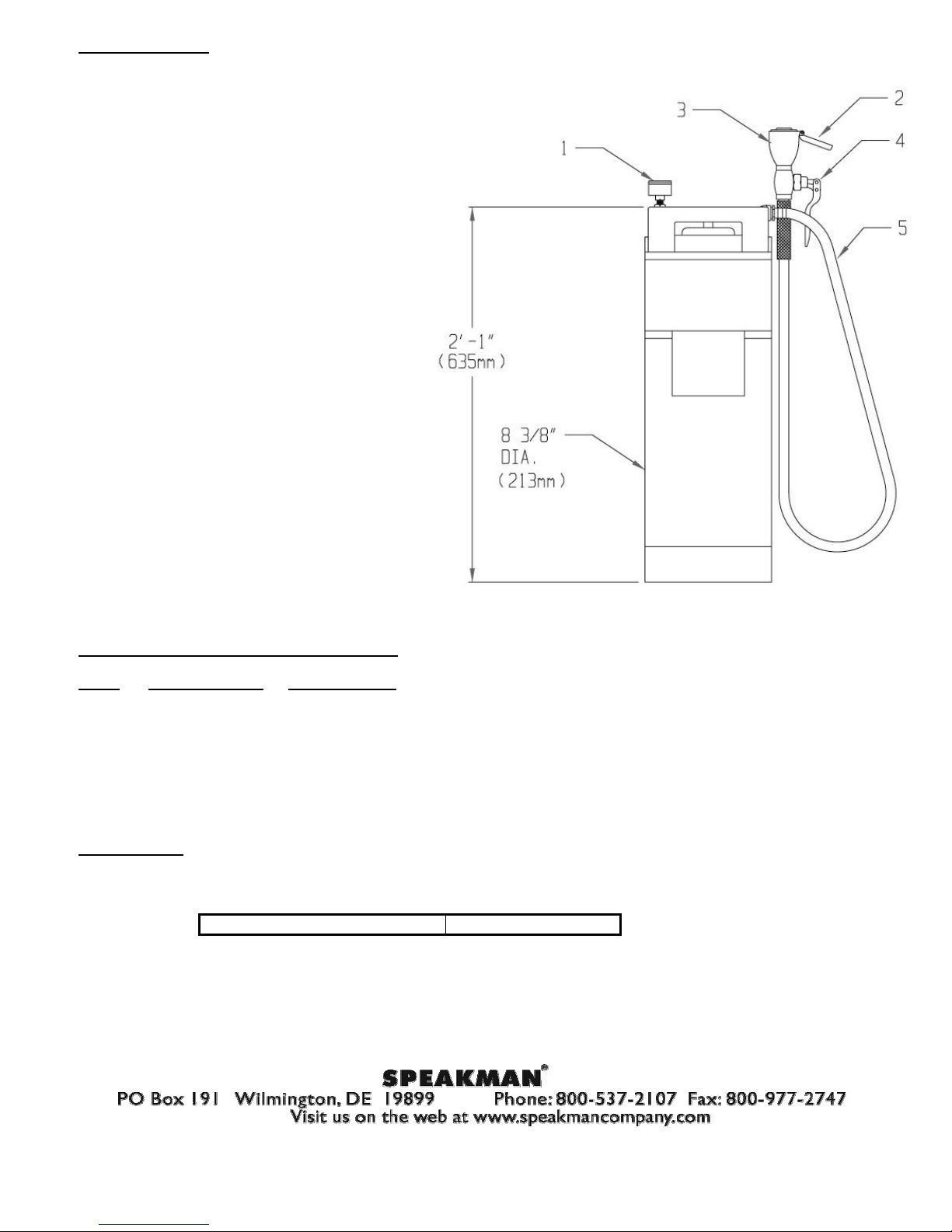

SE-597 REPLACEMENT/REPAIR PARTS
ITEM PART/GROUP # DESCRIPTION
1 RPG05-1671 Pressure Gage
2 RPG07-0104 Dust Cap
3 RPG38-0422 Sprayhead Assembly
4 RPG20-2020 3/8” Self-Closing Valve
5 RPG63-0064 Hose Assembly
FLOW DATA
Body Spray:
FLOW RATE GPM (LPM) .75(2.83) for 7 minutes.
92-1464
1/10
Rev-8
