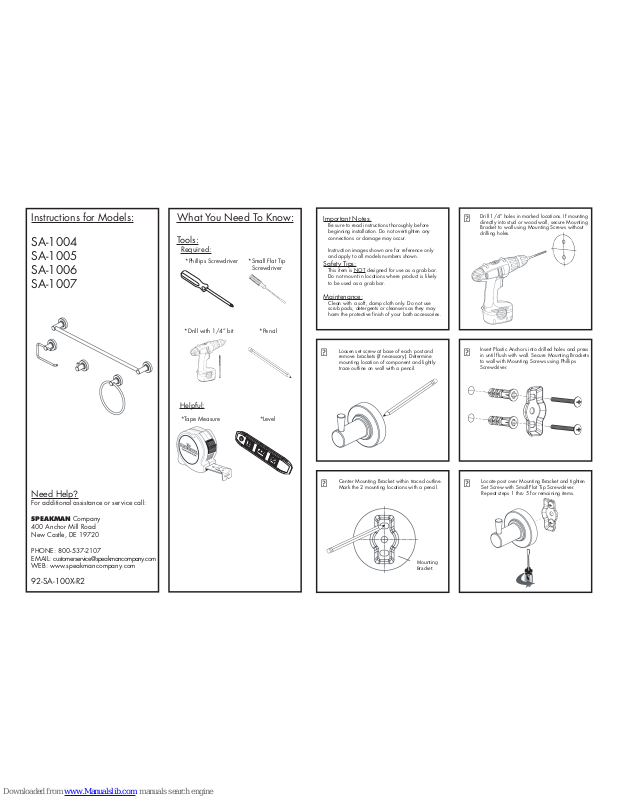

Instructions for Models:
SA-1004
SA-1005
SA-1006
SA-1007
Need Help?
For additional assistance or service call:
SPEAKMAN Company
400 Anchor Mill Road
New Castle, DE 19720
PHONE: 800-537-2107
EMAIL: [email protected]
WEB: www.speakmancompany.com
92-SA-100X-R2

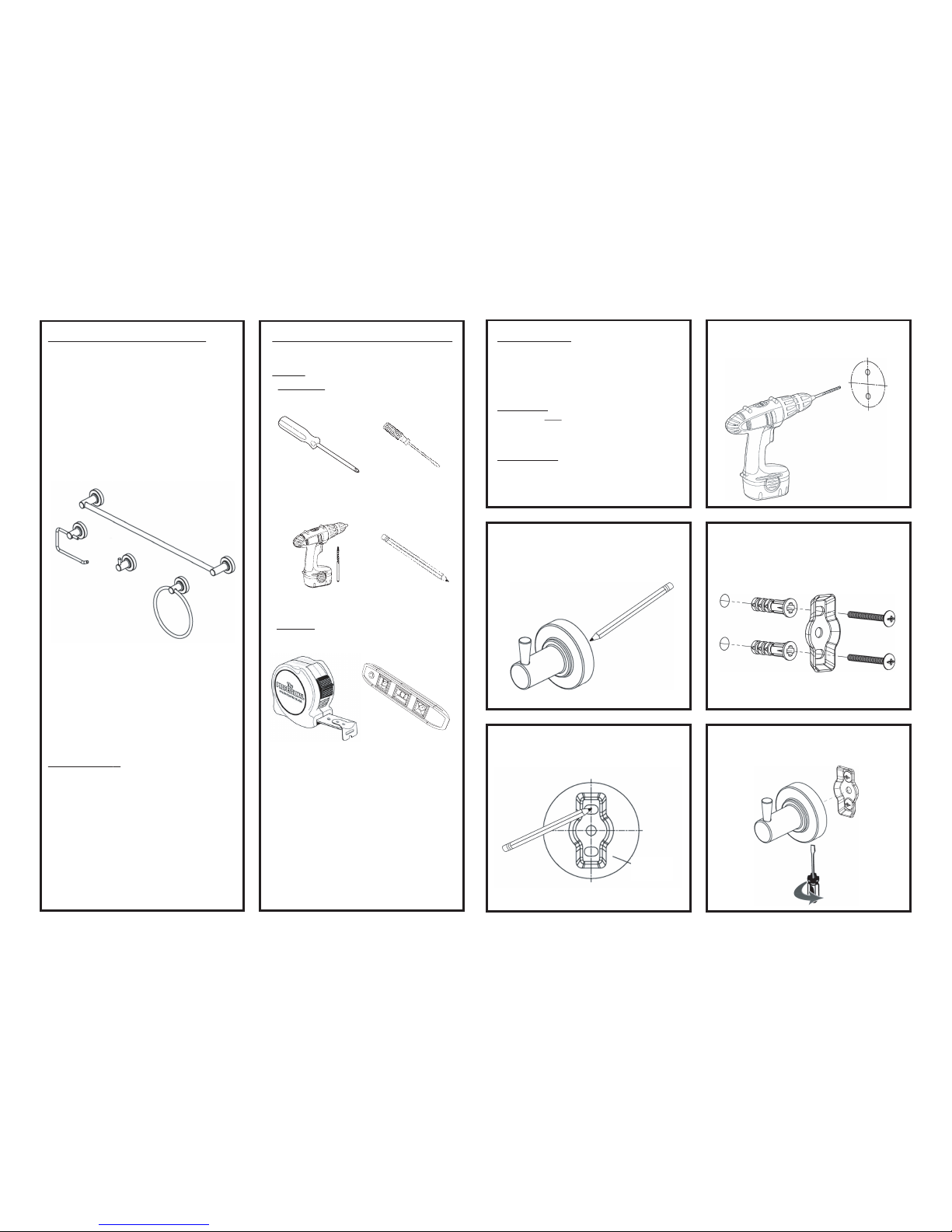

What You Need To Know:
Tools:
Required:
*Phillips Screwdriver *Small Flat Tip
Screwdriver
*Drill with 1/4” bit *Pencil
Helpful:
*Tape Measure *Level
Important Notes:
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
Instruction images shown are for reference only
and apply to all models numbers shown.
Safety Tips:
This item is NOT designed for use as a grab bar.
Do not mount in locations where product is likely
to be used as a grab bar.
Maintenance:
Clean with a soft, damp cloth only. Do not use
scrub pads, detergents or cleansers as they may
harm the protective finish of your bath accessories.
�
�
�
�
�
Loosen set screw at base of each post and
remove brackets (if necessary). Determine
mounting location of component and lightly
trace outline on wall with a pencil.
Center Mounting Bracket within traced outline.
Mark the 2 mounting locations with a pencil.
Drill 1/4” holes in marked locations. If mounting
directly into stud or wood wall, secure Mounting
Bracket to wall using Mounting Screws without
drilling holes.
Insert Plastic Anchors into drilled holes and press
in until flush with wall. Secure Mounting Brackets
to wall with Mounting Screws using Phillips
Screwdriver.
Locate post over Mounting Bracket and tighten
Set Screw with Small Flat Tip Screwdriver.
Repeat steps 1 thru 5 for remaining items.
Mounting
Bracket
Page 2
24”
[609.6mm]
26.2”
[665.5mm]

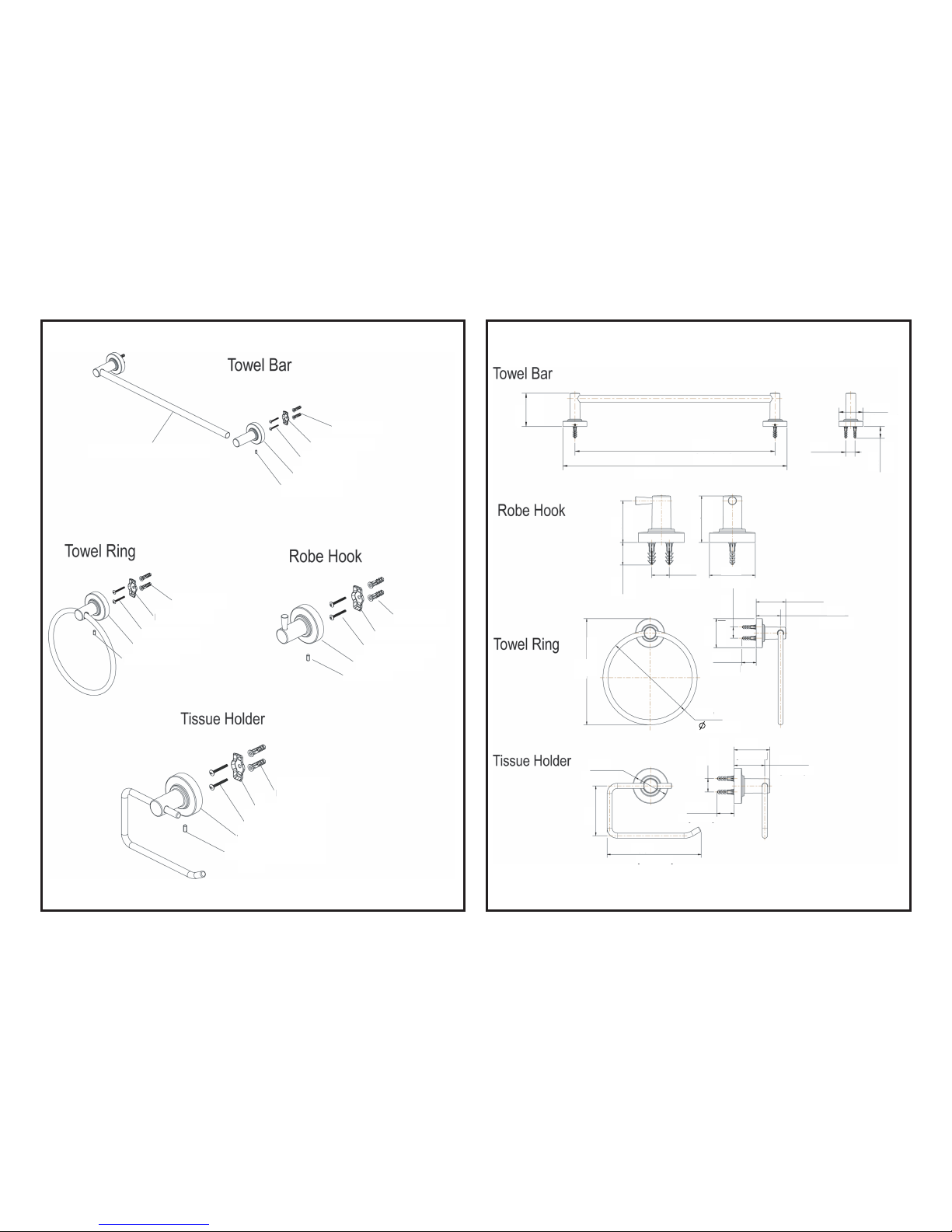

18”Towel Bar(24”Towel Bar)
Plastic Anchor
Mounting Bracket
Mounting Screw
Towel Bar Post
Holding Screw
Plastic Anchor
Mounting Bracket
Mounting Screw
Robe Hook Post
Holding Screw
Platstic Anchor
Mounting Bracket
Mounting Screw
Towel Ring Post
Holding Screw
Tissue Holder Post
Platstic Anchor
Mounting Bracket
Mounting Screw
Holding Screw
2.17”
[55mm]
.83”
[21mm]
2.17”
[55mm]
1.08”
[27mm]
2.98”
[75.8mm]
1.97”
[50mm]
2.2”
[55.8mm]
1.08”
[27mm]
.83”
[21mm]
1.08”
[27mm]
2.17”
[55mm]
.83”
[21mm]
2.2”
[55.8mm]
1.89”
[48mm]
7.9”
[200.7mm]
6.94”
[ 176.3mm]
2.17”
[55mm]
3.07”
[78mm]
5.8”
[147.2mm]
1.08”
[27mm]
.83”
[21mm]
2.2”
[55.8mm]
1.89”
[48mm]
