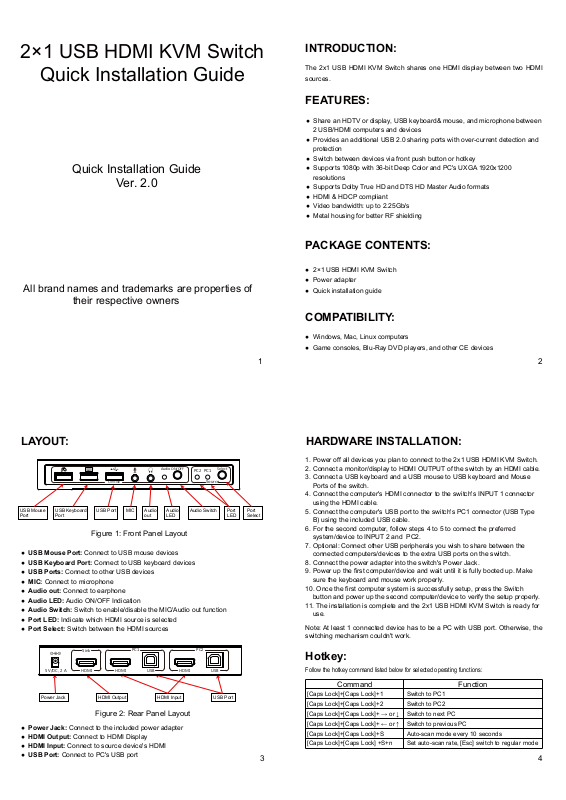

2×1 USB HDMI KVM Switch

Quick Installation Guide

Quick Installation Guide

Ver. 2.0

All brand names and trademarks are properties of
their respective owners

INTRODUCTION:

The 2x1 USB HDMI KVM Switch shares one HDMI display between two HDMI

sources.

FEATURES:

● Share an HDTV or display, USB keyboard& mouse, and microphone between
2 USB/HDMI computers and devices

● Provides an additional USB 2.0 sharing ports with over-current detection and

protection

● Switch between devices via front push button or hotkey

● Supports 1080p with 36-bit Deep Color and PC's UXGA 1920x1200

resolutions

● Supports Dolby True HD and DTS HD Master Audio formats

● HDMI & HDCP compliant

● Video bandwidth: up to 2.25Gb/s

● Metal housing for better RF shielding

PACKAGE CONTENTS:

● 2×1 USB HDMI KVM Switch

● Power adapter

● Quick installation guide

COMPATIBILITY:

LAYOUT:

ON/OFF

Audio

Console

USB Mouse

Port

USB Keyboard

Port

USB Port MIC Audio

out

Audio
LED

Figure 1: Front Panel Layout

● USB Mouse Port: Connect to USB mouse devices

● USB Keyboard Port: Connect to USB keyboard devices

● USB Ports: Connect to other USB devices

● MIC: Connect to microphone

● Audio out: Connect to earphone

● Audio LED: Audio ON/OFF Indication

● Audio Switch: Switch to enable/disable the MIC/Audio out function

● Port LED: Indicate which HDMI source is selected

● Port Select: Switch between the HDMI sources

PC1

HDMI USB

HDMI USB

5 V/DC, 2 A HDMI

Power Jack

Sink

HDMI Output HDMI Input USB Port

Figure 2: Rear Panel Layout

● Power Jack: Connect to the included power adapter

● HDMI Output: Connect to HDMI Display

● HDMI Input: Connect to source device's HDMI

● USB Port: Connect to PC's USB port

Select

PC2 PC1

Source

Audio Switch Port

PC2

LED

Port

Select

● Windows, Mac, Linux computers

● Game consoles, Blu-Ray DVD players, and other CE devices

1

2

HARDWARE INSTALLATION:

1. Power off all devices you plan to connect to the 2x1 USB HDMI KVM Switch.

2. Connect a monitor/display to HDMI OUTPUT of the switch by an HDMI cable.

3. Connect a USB keyboard and a USB mouse to USB keyboard and Mouse
Ports of the switch.

4. Connect the computer's HDMI connector to the switch's INPUT 1 connector
using the HDMI cable.

5. Connect the computer's USB port to the switch's PC1 connector (USB Type
B) using the included USB cable.

6. For the second computer, follow steps 4 to 5 to connect the preferred
system/device to INPUT 2 and PC2.

7. Optional: Connect other USB peripherals you wish to share between the
connected computers/devices to the extra USB ports on the switch.

8. Connect the power adapter into the switch's Power Jack.

9. Power up the first computer/device and wait until it is fully booted up. Make
sure the keyboard and mouse work properly.

10. Once the first computer system is successfully setup, press the Switch
button and power up the second computer/device to verify the setup properly.

11. The installation is complete and the 2x1 USB HDMI KVM Switch is ready for

use.

Note: At least 1 connected device has to be a PC with USB port. Otherwise, the
switching mechanism couldn't work.

Hotkey:

Follow the hotkey command listed below for selected operating functions:

[Caps Lock]+[Caps Lock]+1

[Caps Lock]+[Caps Lock]+2

[Caps Lock]+[Caps Lock]+ → or ↓

[Caps Lock]+[Caps Lock]+ ← or ↑

[Caps Lock]+[Caps Lock]+S

[Caps Lock]+[Caps Lock] +S+n

3

Command Function

Switch to PC1

Switch to PC2

Switch to next PC

Switch to previous PC

Auto-scan mode every 10 seconds

Set auto-scan rate, [Esc] switch to regular mode
