Installation and Operating Manual

ebios-fire Quadra Inside I / II / III SL

GB 2

PREFACE / QUALITY PHILOSOPHY

You have decided in favour of a SPARTHERM ebios-fire - thank you for your confidence in our company.

In a world of excess and mass production, our company stands for the values expressed by our owner, Gerhard Manfred Rokossa:

'High technical quality combined with contemporary design and service to the satisfaction of our customers, so they will recommend us to others'.

Together with our specialist retail partners, we offer you first-class products that will touch your customers emotionally, and will inspire feelings such as a feeling of security, safety and comfort. To achieve this, we recommend that you read the operating instructions carefully in order to get a quick and comprehensive overview of your decorative fireplace.

In addition to information on use, these instructions also include important details on care and operation to guarantee your safety and to protect the value of your ebios-fire as well as useful tips and guidance.

For further enquiries, please contact your specialist dealer.

We hope you enjoy your new stove.

Your SPARTHERM Team G.M. Rokossa

GB 3

CONTENTS

1. General instructions 5

1.1 Special notes on installation Quadra Inside II SL & III SL 5

2 Scope of delivery 6

3. Assembly instructions 6

3.1 Technical data 7

3.1.1 Quadra Inside SL 7

3.1.2 Quadra Inside II SL 8

3.1.3 Quadra Inside III SL 9

3.2 CER AM AT FN burner fleece 10

3.3 Basic installation requirements 10

3.4 Installation site 10

3.5 Installation/assembly 11

3.6 General notes for installation in bespoke furniture items 11

3.6.1 Minimum dimensions for furniture construction 13

3.6.1.1 Quadra Inside I SL 13

3.6.1.2 Quadra Inside II SL 13

3.6.1.3 Quadra Inside III SL 14

3.6.2 Installation of Quadra Inside I / II / III SL 14

3.6.3 Fire protection/minimum distances during the set-up of furniture 16

3.7 General notes on installation in open fire areas / fireplace inser ts Sbuilt by craftsmen 19

3.7.1 Minimum dimensions for fireplaces created by craf tsmen 21

3.7.1.1 Quadra Inside I SL 21

3.7.1.2 Quadra Inside II SL 22

3.7.1.3 Quadra Inside III SL 23

3.8 Fire protection / minimum distances for fire areas created by craftsmen 24

3.8.1 Quadra Inside I SL 24

3.8.2 Quadra Inside II SL 24

3.8.3 Quadra Inside III S L 24

3.9 Combustion air supply 24

4. Safety check 25

4.1 General information on operation 25

4.2 Fire protection 26

4.3 Fuel 27

4.4 Commissioning 27

4.4.1 Commissioning of the Quadra Inside SL 27

4.4.2 Refilling the burner 29

4.4.3 Taking out of operation safely 30

5. Cleaning and care 30

5.1 Cleaning cladding parts 30

6. Maintenance/troubleshooting 30

6.1 Furniture and glass becomes sooted heavily, rapidly and unevenly. 30

6.2 Fire is difficult to ignite 30

6.3 Unpleasant odours 31

6.4 Change in appearance of flames 31

6.5 Spilt ethanol ignites 31

7. General warranty conditions 31

7.1 Range of application 31

7.2 General information 31

7.3 Warranty period 31

7.4 Warranty requirements 32

7.5 Exclusions from the warranty 32

7.6 Elimination of defects / repair 32

7.7 Extension to the warranty period 32

7.8 Spare parts 32

7.9 Liability 33

7.10 Closing remarks 3 3

8. Declaration by builder of a bespoke furniture item or fireplace insert with Quadra Inside 34

GB 4

IMPORTANT INFORMATION

As per the German Equipment and Product Safety Act (GPSG) and our statutory duty to notify, we would like to inform you about heating with this product.

As per our statutory duty to notify, we would like to inform you about heating with this product: The Bio chimney combustion heat with:

• Quadra Inside I SL – 0.5 l / hr amounts to approx. 3300 Watts

• Quadra Inside II SL – 1.0 l / hr amounts to approx. 6600 Watts

• Quadra Inside III SL – 1.5 l / hrs measures approx. 9900 Watts

The calorific value of 96.6% ethanol equates to approx. 29,600 kJ / kg. With fuel consumption in the:

• Quadra Inside I SL (0.5 l/hr approx. 0.4 kg/hr) = heat released approx. 3300 Watts

• Quadra Inside II SL (1.0 l/hr approx. 0.8 kg/hr = heat released approx. 6600 Watts

• Quadra Inside III SL (1.5 l/hr approx. 0.8 kg/hr = heat released approx. 9900 Watts

However, the decorative fireplace requires a plentiful supply of fresh air when operated as otherwise the amount of carbon dioxide created exceeds the permitted concentration in the room air.

As a rule, the fresh air supplied is cooler than the room air to be heated up which results in a loss of energy. The effective heat output of a biofuel fireplace is thus minimal and, as such, decorative fireplaces which use biofuel are not sources of heat.

This is a decorative fireplace that is not intended for heating or continuous operation. Nevertheless, it should be taken into account that heat is generated as a by-product of the combustion process. This can cause increased heating in the room where the fireplace is installed. Read the safety instructions and measures for rear ventilation carefully.

Observe these operating instructions.

GB 5

1. GENERAL INSTRUCTIONS

Small children, older or frail persons: As is the case with all heaters, it makes sense to install a safety device for these person groups. Danger of burn injuries! Never leave these groups of persons unattended near the stove when an ebios-fire is burning or has just been extinguished! The ebios-fire must not be operated without supervision!

State-specific and local directives and regulations, in particular the fire safety regulations of the German Federal State or the Association of Swiss Canton Fire Insurance companies (VKF) must be complied with for the setup and operation of your ebios-fire.

The ebios-fire Quadra Inside units are tested in accordance with the very latest safety standards and represent state-of-the-art technology.

During installation, ensure that the stipulations in this installation manual are followed accurately. Select the installation location to assure compliance with the rear ventilation and fire safety measures described in this manual. The installation location must ensure that the burner does not move in response to jolts or similar events while it is operating.

The ebios-fire Quadra Inside is designed for bespoke or 'individual' installations. The builder of the fireplace is responsible for complying with the stipulations governing operational and fire safety, and for checking this at the commissioning stage. (on this subject, refer to 4. Safety assessment)

All models may only be operated with the closed housing cover.

Please note that fuel must not be refilled while the appliance is still hot or while a fire is still burning. NEVER fill at the burner channel. Instead, ONLY refill it via the filling opening!

We recommend that you put out the ebios-fire by running it until the fuel tank runs dry. When not in use, the cover plates must always be placed over the burner.

Only permit people to fill the equipment with fuel who are familiar with the equipment and with the safety requirements, and who have received instructions from you in the operation of this appliance.

The ebios-fire is not a heater but a decorative fire.

Bioethanol is a dangerous substance and must only be stored in the specified quantities as per the regulations:

Storage in a cellar: max. 20 litres Storage in the living room: max. 5 litres

1.1 SPECIAL NOTES ON INSTALLATION

QUADRA INSIDE II SL & III SL

Due to their design, the models Quadra Inside II & III are classified in Germany as heating appliances, and therefore as fireplaces for which official approval is required. Obtain advice in advance about construction legislation provisions and stipulations governing the installation of this heating appliance. Please direct any questions you may have to your district chimney sweep. In addition, national and European standards, the respective statespecific and local directives and regulations, in particular the respective firing installation ordinance must be followed.

GB 6

2 SCOPE OF DELIVERY

ebios-fire with the following features:

• 1 x housing Quadra Inside I SL, II SL, III SL

• Inside I SL 1 x ethanol burner EB 500

• Inside II SL 2 x ethanol burner EB 500

• Inside III SL 3 x ethanol burner EB 500

• Ethanol burner EB 500 comprising:

• Safety pan

• Tank with burner channel

• Burner fleece

• Filler aperture

• Fill level indicator

• Cover plate

• Key (tank seal)

• 1 x cold hand

• Ethanol canister (Inside I SL, 1 x, Inside II SL, 2 x, Inside III SL, 3 x)

• 1 x pouring cock on each canister

• 1 x funnel

• 1 x bottle for coating

Here is an example of the Quadra Inside I SL

Item Designation Pos. Designation

A Housing H Filling opening

B Burner fleece I Cold Hand

C Burner channel K Key (tank seal)

D Cover plate L Bottle for wetting the burner

E Stick lighter M 5L ethanol canister

F Tank N Pouring cock

G Fill level indicator

3. ASSEMBLY INSTRUCTIONS

Please follow the information below carefully. Bear in mind that bioethanol is a liquid fuel which is highly flammable and which results in high local temperatures when burnt. Failure to comply with the instructions for installation and operation can result in dangerous situations and even explosion of the fuel. Proper installation and handling ensure safe and reliable operation. The device must not be able to tilt and must be positioned horizontally.

GB 7

3.1 TECH NICAL DATA

3.1.1 QUADRA INSIDE SL

Quadra Inside I SL

Fuel type

Bioethanol

(ethanol content 96.6%)

Fill quantity Max. 2.6 litres

Fuel consumption 0.5 l/h

Combustion duration Approx. 5 h*

Temperature in the tank < 65°C

Weight of the burner (empty) with cover plate 5.3 kg

Minimum room volume ** 84 m³ 167 m³ 418 m³

Air exchange at air exchange rate ** 1 0.5 0.2

Corresponding room size with room height of 2.5 m ** 34 m² 67 m² 167 m²

As a rough guide, the following air exchange rates1) are named:

Air change [1/hr] Comments

0…0.5 Windows and doors closed

0.3…1.5 Window tilted, no roller blinds

5…10 Window half open

Recknagel, Sprenger, Schrameck: Heizung+Klimatechnik, Oldenbourg Verlag

** Please note that the luminosity of the flame can decrease to such an

extent that the flame is no longer clearly visible. Make your children and others in the home aware of this.

** These details relate solely to the combustion air requirements of the

ebios-fire. If other air-consumers (e.g. closed flue fireplaces such as stoves or central heating, fume extractor hoods with an external connection, ventilation systems etc.) are located in the installation room, these must be taken into account separately.

Model Quadra Inside I SL

Placement

Installation in combustion chamber of a fireplace insert

Installation in a bespoke furniture item

Number of burners 1

Width in mm 665

Depth in mm 233

Height in mm 102 (without protective panes) / 225 (with protective panes)

Weight in kg approx. 18.5 kg

Illustration of the Quadra Inside I SL:

Locating surface

GB 8

3.1.2 QUADRA INSIDE II SL

Quadra Inside II SL

Fuel type

Bioethanol

(ethanol content 96.6%)

Fill quantity Max. 2.6 litres

Fuel consumption 0.5 l/h

Combustion duration Approx. 5 h*

Temperature in the tank < 65°C

Weight of the burner (empty) with cover plate 18.5 kg

Minimum room volume ** 168 m³ 334 m³ 836 m³

Air exchange at air exchange rate ** 1 0.5 0.2

Corresponding room size with room height of 2.5 m ** 68 m² 134 m² 334 m²

As a rough guide, the following air exchange rates1) are named:

Air change [1/hr] Comments

0…0.5 Windows and doors closed

0.3…1.5 Window tilted, no roller blinds

5…10 Window half open

Recknagel, Sprenger, Schrameck: Heizung+Klimatechnik, Oldenbourg Verlag

** Please note that the luminosity of the flame can decrease to such an

extent that the flame is no longer clearly visible. Make your children and others in the home aware of this.

** These details relate solely to the combustion air requirements of the

Model Quadra Inside II SL

Placement

Installation in combustion chamber of a fireplace insert

Installation in a bespoke furniture item

Number of burners 2

Width in mm 1198

Depth in mm 233

Height in mm 102 (without protective panes) / 225 (with protective panes)

Weight in kg approx. 33 kg

Illustration of the Quadra Inside II SL:

Locating surface

GB 9

3.1.3 QUADRA INSIDE III SL

Quadra Inside III SL

Fuel type

Bioethanol

(ethanol content 96.6%)

Fill quantity Max. 2.6 litres

Fuel consumption 0.5 l/h

Combustion duration Approx. 5 h*

Temperature in the tank < 65°C

Weight of the burner (empty) with cover plate 28.5 kg

Minimum room volume ** 252 m³ 501 m³ 1254 m³

Air exchange at air exchange rate ** 1 0.5 0.2

Corresponding room size with room height of 2.5 m ** 102 m² 201 m² 501 m²

As a rough guide, the following air exchange rates1) are named:

Air change [1/hr] Comments

0…0.5 Windows and doors closed

0.3…1.5 Window tilted, no roller blinds

5…10 Window half open

Recknagel, Sprenger, Schrameck: Heizung+Klimatechnik, Oldenbourg Verlag

** Please note that the luminosity of the flame can decrease to such an

extent that the flame is no longer clearly visible. Make your children and others in the home aware of this.

** These details relate solely to the combustion air requirements of the

Model Quadra Inside III SL

Placement

Installation in combustion chamber of a fireplace insert

Installation in a bespoke furniture item

Number of burners 3

Width in mm 1711

Depth in mm 233

Height in mm 102 (without protective panes) / 225 (with protective panes)

Weight in kg approx. 47.5 kg

Illustration of the Quadra Inside III SL:

Locating surface

GB 10

3.2 CERAMAT FN BURNER FLEECE

The CERAMAT FN burner fleece (black) included should only be touched when wearing gloves as there is otherwise a risk of skin irritations. The material can be easily damaged. For this reason, you should not bend or fold the fleece, nor perform any similar action to it.

3.3 BASIC INSTALLATION REQUIREMENTS

All the relevant national and European standards as well as the local regulations (fire protection regulations etc.) must be observed and applied during installation and operation of the ebios-fire! The list of regulations given below is not exhaustive.

BetrSichV Operational safety ordinance

Vbf Flammable liquids directive

BsV Fire protection directive of the relevant German federal state (Bundesland)

LBO Federal state construction directives

GefStoffV Hazardous substances directive

The ebios-fire may only be set up in rooms and locations where there are no hazards due to the site, structural conditions and type of use. The floor area of the installation must be of a design and size such that the ebios-fire can be operated properly and as intended.

Only permitted and sufficiently strong transport aids may be used to transport the ebios-fire.

The following points must be noted to ensure safe and problem-free transport.

• Transport aids (if required), specifically barrows must only be used to support the ebios-fire from the back.

• There must be no fuel in the tank during transportation.

DAMAGE DURING TRANSIT should be reported immediately to your supplier. Protect the cladding and visible elements of the fireplace furniture from soiling and damage during installation and transportation.

3.4 INSTALLATION SITE

Your ebios-fire must not be installed:

1. In stairways, unless they are in residential buildings with two or fewer flats.

2. In hallways with general access.

3. in garages.

4. In rooms in which highly combustible or potentially explosive substances or mixtures are processed, stored or manufactured in quantities that would be hazardous in the event of ignition or explosion.

5. In insufficiently ventilated rooms.

GB 11

6. In areas accessible to the public which are not supervised.

7. In areas which are not protected against transverse ventilation

8. On tables, pieces of furniture, shelves etc.

3.5 INSTALLATION/ASSEMBLY

The ebios-fire Quadra Inside appliances are turnkey units for installation in the cover plate of a bespoke furniture item (combustible materials) or in a tailor-made open fireplace (non-combustible materials). No flue gas extraction is required for bespoke fireplaces featuring the Quadra Inside SL. The ebios-fire furniture item, which may be free-standing or wall-mounted, must be aligned horizontally and secured to prevent tilting. Rear ventilation must not be closed. Place the burner with reactor containment and cover plate into the receiving units provided in the Quadra Inside. Floor-mounted furniture may only be set up on floors with sufficient load-bearing capacity. If the load bearing capacity is not sufficient, suitable measures must be

taken (e.g., plate for load distribution) to remedy this. Use suitable fastening material (wall plugs, screws etc.) when securing to the wall. NO design modifications whatsoever are permitted to the design of the Quadra Inside SL models.

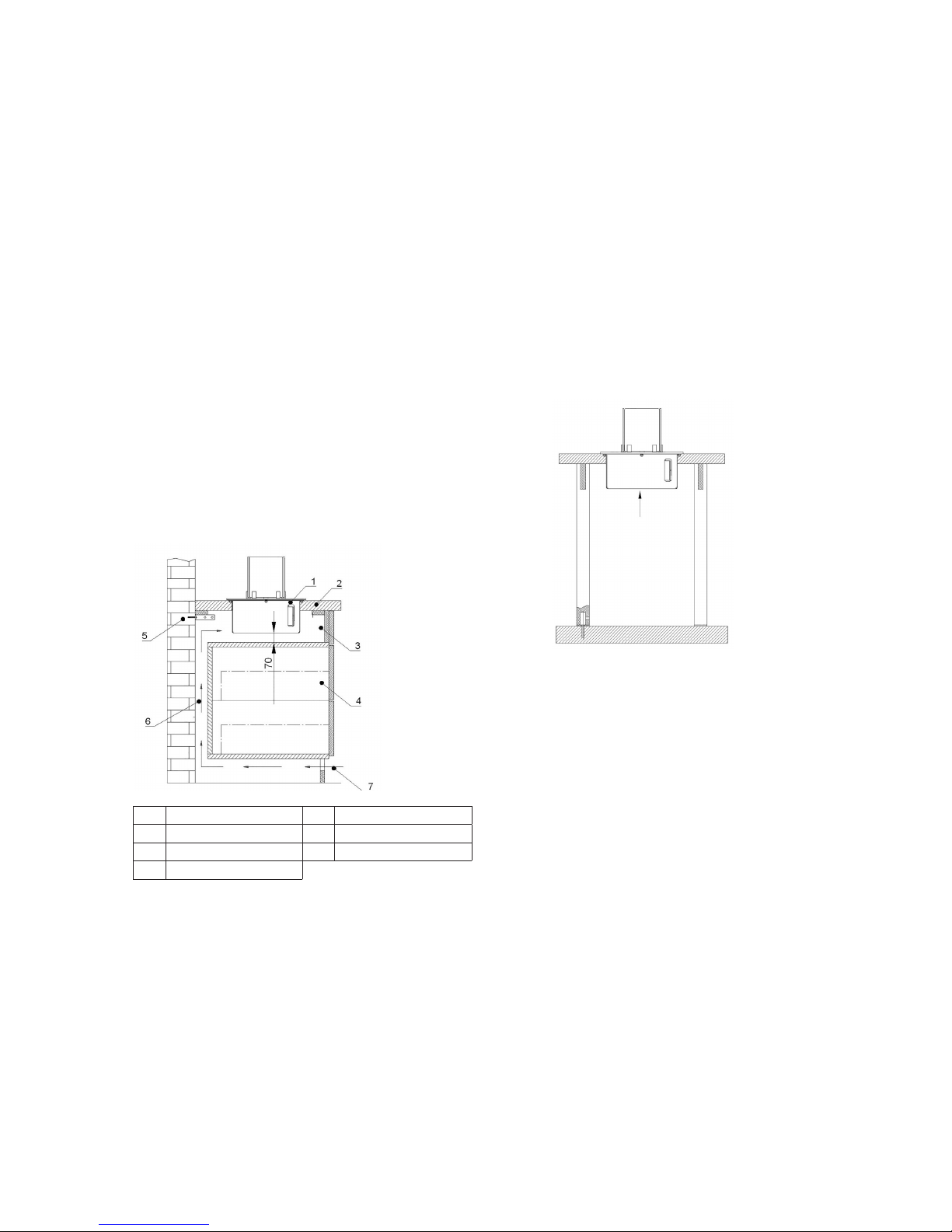

3.6 GENERAL NOTES FOR INSTALLATION IN BESPOKE FURNITURE ITEMS

• In all cases involving bespoke furniture design for installation with

Quadra Inside SL, they at least comprise a cover plate/table-top and a housing area with an additional air intake. No housing area is needed for table-top installations, but it would be advisable to have one.

• During installation in a bespoke furniture item (combustible materials),

always bear in mind that the Quadra Inside must NOT be installed in a furniture niche. Risk of fire!

• There must be no objects between the Quadra Inside SL and room ceil-

ing (distance to the ceiling >1000 mm)!

• The Quadra Inside SL may only be installed in the cover plate / table-

tops of a furniture item. (example: bureau, sideboard, pull-out cabinet, table)

• The Quadra Inside must always be bolted to the cover plate / table-top.

• The furniture items must always be securely mounted to the wall or

to the floor and secured to prevent any accidental movement, toppling and/or lifting action. For this, appropriate fastening material must be selected.

• All inlet apertures and rear ventilation features must be left unob-

structed, and must not be blocked since otherwise a heat build-up would take place. Risk of fire!

GB 12

• Here are the minimum cross sections of free aperture for additional air in furniture items:

• Quadra Inside I SL 200 cm²

• Quadra Inside II SL 400 cm²

• Quadra Inside III SL 600 cm²

• The rear ventilation features must be dimensioned appropriately.

• The area below the Quadra Inside housing (housing area) must not be used as a storage area. Storage area and housing area must be separated by a partition floor panel and a back wall.

1 Quadra Inside SL 5 Wall mounting

2 Cover plate / table-top 6 Rear ventilation

3 Housing room 7 Air inlet opening

4 Storage room

• With open table furniture items, always ensure that the apertures in the underside of the Quadra Inside SL housing are not obstructed by objects.

min.

Example of pull-out cabinet

No objects are permitted

under open table-top

furniture items.

An example of an open table-top furniture item

GB 13

3.6.1 MINIMUM DIMENSIONS FOR FURNITURE CONSTRUCTION

3.6.1.1 QUADRA INSIDE I SL

• The minimum dimension for the cover plate / table-top (Fig. 4) is at least

738 x 333 mm (width x depth).

• The cutaway for the Quadra Inside I SL measures 689 x 224 mm and it

is cut centrally into the cover plate / table-top.

Quadra Inside I SL

Cover plate / table-top

• The minimum distance between housing and base of housing area (Fig.

5) measures 70 mm.

• Ensure that additional air can flow into the housing area without

obstruction. Free cross section for additional air is 200 cm². To this end, appropriate inlet apertures must be provided.

3.6.1.2 QUADRA INSIDE II SL

• The minimum dimension of the cover plate / table-top (Fig. 6) measures at least 1250 x 400 mm (width x depth).

• The cutaway for the Quadra Inside II SL measures 1188 x 223 mm and is cut centrally into the cover plate / table-top.

Quadra Inside II SL

Cover plate / table-top

• The minimum distance between housing and floor of housing area (Fig.

7) measures 70 mm.

• Ensure that additional air can flow into the housing area without obstruction. Free minimum cross section for additional air measures 400 cm². To this end, appropriate inlet apertures must be provided.

Fig. 4 Minimum dimensions of upper/table-top plate

Fig. 5 Minimum dimensions for housing space

min.

Fig. 6 Minimum dimensions for upper/table-top plate

min.

Fig. 7 Minimum dimensions of housing space

GB 14

3.6.2 INSTALLATION OF QUADRA INSIDE I / II / III SL

• The Quadra Inside must be installed and aligned in the prefabricated aperture in the cover plate / table-top.

• Open the housing cover as follows:

• After this, the housing with cover plate / table-top is bolted firmly to the 6 spacer brackets with 6 screws. For this, appropriate fastening screws must be selected.

• Install the burner in the housing.

3.6.1.3 QUADRA INSIDE III SL

• The minimum dimension of cover plate / table-top (Fig. 8) measures at least 1751 x 400 mm (width x depth).

• The cutaway for the Quadra Inside III SL measures 1701 x 223 mm and is cut centrally into the cover plate / table-top.

Quadra Inside III SL

Cover plate / table-top

• The minimum distance between housing and housing area base (Fig. 9) measures 70 mm.

• Ensure that additional air can flow into the housing area without obstruction. Free minimum cross section for additional air is 600 cm². For this, appropriate additional air apertures must be provided.

Fig. 8 Minimum dimensions for upper/table-top plate

Fig. 9 Minimum dimensions for housing space

min.

GB 15

• Close the housing cover on the Quadra Inside. Please note the correct placement to ensure that a uniform air gap appears between housing cover and flame area (see Fig. 10, 11 and 12) to assure a sufficient supply of air. Otherwise the housing cover can become covered in soot and the flames may no longer be uniform in appearance.

Quadra Inside I SL

• Then the 4 protective panes are installed.

Quadra Inside II SL

• Then the 6 protective panes are installed.

Quadra Inside III SL

• Then the 8 protective panes are installed.

Fig. 10 Air gap approx. 9 mm (without cover plate)

Fig. 11 Air gap approx. 9 mm (without cover plate)

Fig. 12 Air gap approx. 9 mm (without cover plate)

GB 16

3.6.3 FIRE PROTECTION/MINIMUM DISTANCES DURING THE SET-UP OF FURNITURE

When installing a bespoke furniture unit against a wall, a minimum distance of 50 mm from that wall, i.e. behind the unit, must be maintained, and to either side. The reference point is the installation frame of the Quadra Inside housing (see Figs. 13 to 24).

Quadra Inside I SL

• In order to guarantee sufficient thermal insulation, there must be a minimum distance of 1000 mm (see Fig. 16) to flammable components, furniture, decorations and curtains at the side! There must be no objects between the ebios-fire furniture item and the room ceiling (distance to the ceiling >1000 mm) (see Fig. 15)!

min. 1000 (distance from ceiling)

Fig. 15 Minimum distance from ceiling

Fig. 14 Minimum distances in a room corner

min.

Fig. 16 Minimum distances from combustible components

min.

Fig. 13 Minimum distances to wall

min. 50

min.

GB 17

Quadra Inside II SL

• In order to guarantee sufficient thermal insulation, there must be a minimum distance of 1000 mm (see Fig. 20) to flammable components, furniture, decorations and curtains at the side! There must be no objects between the ebios-fire furniture and room ceiling (distance to the ceiling >1000 mm) (see Fig. 19)!

Fig. 17 Minimum distances from wall

min.

Fig. 18 Minimum distances in a room corner

min.

min. 1000 (distance from ceiling)

Fig. 19 Minimum distance from cover

Fig. 20 Minimum distances from combustible components

min.

GB 18

Quadra Inside III SL

• In order to guarantee sufficient thermal insulation, there must be a minimum distance of 300 mm (see Fig. 24) to flammable components at the side, furniture, decorations and curtains! There must be no objects between the ebios-fire furniture and the room ceiling (distance to the ceiling >1000 mm) (see Fig. 23)!

Fig. 22 Minimum distances in a room corner

Fig. 21 Minimum distances from wall

min.

min. 1000

(distance from ceiling)

Fig. 23 Minimum distance from ceiling

Fig. 24 Minimum distances from combustible components

min.

GB 19

3.7 GENERAL NOTES ON INSTALLATION IN OPEN FIRE AREAS / FIREPLACE INSERTS BUILT BY CRAFTSMEN

• A bespoke, open fire area always comprises the combustion chamber,

the housing area with air inlet and the insulation or, where applicable, front-mounted masonry.

• The combustion chamber must NOT be sealed with a firebox door.

• All inlet apertures and rear ventilation features must be left unob-

structed, and must not be blocked since otherwise a heat build-up would take place. Risk of fire!

• The minimum cross section at the free aperture for additional air in a

furniture unit measures: Quadra Inside I SL – 200 cm² Quadra Inside II SL – 400 cm² Quadra Inside III SL – 600 cm²

• The rear ventilation features must be dimensioned appropriately.

• The Quadra Inside models must be secured to the base of the com-

bustion chamber (support panel in the Quadra Inside models) using 6 appropriate screws.

• The floor plate of the combustion chamber (with a cutaway for the

Quadra Inside) must be dimensioned appropriately.

Variants of open fireplace inserts: Quadra Inside I SL

Variants of open fireplace inserts

A Front variant

B Corner variant, left

C Corner variant, right

D Three-sided open variant

E Transparent variant

Fig. 25

GB 20

Variants of open fireplace inserts: Quadra Inside II SL

Variants of open fireplace inserts

A Front variant

B Corner variant, left

C Corner variant, right

D Three-sided open variant

E Transparent variant

Variants of open fireplace inserts: Quadra Inside III SL

Variants of open fireplace inserts

A Front variant

B Corner variant, left

C Corner variant, right

D Three-sided open variant

E Transparent variant

Fig. 26

Fig. 27

GB 21

3.7.1 MINIMUM DIMENSIONS FOR FIREPLACES CRE-

ATED BY CRAFTSMEN

3.7.1.1 QUADRA INSIDE I SL

• The minimum width of fireplace measures 750 mm.

• The height of the fireplace insert measures at least 350 mm.

• The depth of the fireplace insert is defined as 400 mm.

• The distance from front edge of combustion chamber to housing frame

is defined as 50 mm.

• The cutaway in the base of the combustion chamber (support panel of

the Quadra Inside I) measures 689 x 224 mm.

• The minimum distance between housing and housing area base meas-

ures 70 mm.

• The minimum width of combustion chamber measures 750 mm.

• The minimum depth of housing area measures 360 mm.

• The minimum free cross section for the additional air aperture on

the housing area measures 200 cm².

• The combustion chamber is made of vermiculite slabs or ob calcium silicate slabs with a material thickness of at least 40 mm. These building materials must be approved by the German Institute of Building Technology in Berlin (DIBt), to verify their suitability for use as combustion chamber lining.

• The thermal insulation to be used comprises mats, slabs or pipe sections of silica-based insulation material (stone or slag and ceramic fibres) of material class A1 as per DIN 4102, part 1 with an upper application limit temperature of at least 700°C when measured as per DIN 52271 and a rated gross density of 80 kg/m³. When using insulating materials of this type, ensure they are provided with an AGI-Q 132 code number (details of thermal insulation thickness (Fig. 28) refers to mineral wool, as defined in AGI Q 132).

• Ensure that additional air can flow into the housing area without obstruction. Free cross section for additional air is 200 cm². For this, provide appropriate additional air apertures.

• The Quadra Inside must be bolted to the support panel using 6 appropriate screws.

1 Firebox 5

Vermiculite or calcium silicate slab t ≥ 40 mm

2 Housing area 6

Mineral wool insulation (in acc. with AGI-Q 132) t ≥ 60 mm

3 Quadra Inside 7 External cladding

Additional air aperture Free cross section, min. 200 cm²

min.

Fig. 28 Minimum distances from fire area

GB 22

3.7.1.2 QUADRA INSIDE II SL

• The minimum width of combustion chamber measures 1260 mm.

• The height of the fireplace insert measures at least 350 mm.

• The depth of the fireplace insert is defined as 400 mm.

• The distance from front edge of combustion chamber to housing frame is defined as 50 mm.

• The cutaway in the combustion chamber base (support panel of the Quadra Inside II) measures 1188 x 223 mm.

• The minimum distance between housing and housing area base measures 70 mm.

• The minimum width of housing area measures 1260 mm.

• The minimum depth of housing area measures 360 mm.

• The minimum free cross section for the additional air aperture in the housing area measures 400 cm².

• The combustion chamber is made of vermiculite slabs or ob calcium silicate slabs with a material thickness of at least 40 mm. These materials must be approved by the German Institute of Building Technology in Berlin (DIBt), i.e. must hold verification of suitability for use as housing area linings.

• The thermal insulation to be used comprises mats, slabs or pipe sections of silica-based insulation material (stone or slag and ceramic fibres) of material class A1 as per DIN 4102, part 1 with an upper application limit temperature of at least 700°C when measured as per DIN 52271 and a rated gross density of 80 kg/m³. When using insulating materials of this type, ensure they are provided with an AGI-Q 132 code number (the reference to thickness of thermal insulation (Fig. 29) refers to the mineral wool, as defined in AGI Q 132).

• The Quadra Inside II must be bolted to the support panel using 6 appropriate screws.

1 Firebox 5

Vermiculite or calcium silicate slab t ≥ 40 mm

2 Housing area 6

Mineral wool insulation (in acc. with AGI-Q 132) t ≥ 60 mm

3 Quadra Inside II SL 7 External cladding

Additional air aperture free cross-section min 400 cm²

min.

Fig. 29 Minimum distances from fire area

min.

GB 23

3.7.1.3 QUADRA INSIDE III SL

• The width of the fireplace insert measures at least 1760 mm.

• The height of the fireplace insert measures at least 350 mm.

• The depth of the fireplace insert is defined as 400 mm.

• The distance from front edge of housing area to housing frame is defined as 50 mm.

• The cutaway in the base of the combustion chamber (support panel for the Quadra Inside III) measures 1701 x 223 mm.

• The minimum distance between housing and housing area base measures 70 mm.

• The minimum width of housing area measures 1760 mm.

• The minimum depth of housing area measures 360 mm.

• The free cross-section for the additional air aperture in the housing area measures at least 600 cm².

• The thermal insulation to be used includes mats, slabs or pipe sections of silica-based insulation material (stone or slag and ceramic fibres) of material class A1 as per DIN 4102, part 1 with an upper application limit temperature of at least 700°C when measured as per DIN 52271 and a rated gross density of 80 kg/m³. When using insulating materials of this type, ensure they are provided with an AGI-Q 132 code number (the indication of thermal insulation thickness (Fig. 30) also refers to mineral wool, as defined in AGI Q 132).

• Ensure that additional air can flow into the housing area without obstruction. Free minimum cross section for additional air is 600 cm². To this end, appropriate inlet apertures must be provided.

• The Quadra Inside III must be bolted to the support panel with 6 appropriate screws.

1 Firebox 5

Vermiculite or calcium silicate slab t ≥ 40 mm

2 Housing area 6

Mineral wool insulation (in acc. with AGI-Q 132) t ≥ 60 mm

3 Quadra Inside III SL 7 External cladding

Additional air aperture Free cross section, min. 600 cm²

Fig. 30 Minimum distances from fire area

min.

GB 24

3.8 FIRE PROTECTION / MINIMUM DISTANCES FOR FIRE AREAS CREATED BY CRAFTSMEN.

3.8.1 QUADRA INSIDE I SL

3.8.2 QUADRA INSIDE II SL

3.8.3 QUADRA INSIDE III SL

3.9 COMBUSTION AIR SUPPLY

Your ebios-fire draws its combustion air from the room in which it is installed (dependent on indoor air). It must be ensured that there is a sufficient supply of fresh air to the room in which the fire is installed. It is possible that there is not a sufficient supply of fresh air if the windows and doors are sealed (e.g., in combination with energy saving measures). This can compromise your well-being and, under certain circumstances, also your safety and the combustion performance. Open a window to ensure a sufficient supply of fresh air.

min. min.

min.

Minimum distances from combustible components

GB 25

4. SAFETY CHECK

The temperatures in the area of direct radiant heat of a bespoke fireplace insert must not exceed 85°C to combustible components while temperatures on the burner tanks must not exceed 65°C through compliance with the rear ventilation measures.

Bespoke designs of fireplace inserts with integrated Quadra Inside ethanol burners must be checked prior to commissioning by the stove builder to assure their operational safety. For this, temperatures must be measured while in operation. For this, suitable contact thermometers or also digital laser temperature measuring devices (e.g. VOLTCRAFT® IR 900-30S infrared thermometers with a measuring range of -50 to +900°C exist). Temperatures should be measured over a period of at least 6 hours.

For these measurements on fireplace inserts made of glass (e.g. room dividers in spa and wellness areas or restaurants, hotels etc.), appropriate measurement points should be attached with adhesive. Follow the instructions in the manual for your temperature measuring appliance.

Ensure that the ethanol in the tank never reaches boiling temperature, i.e. the maximum temperature must be less than 65°C. That is particularly important.

4.1 GENERAL INFORMATION ON OPERATION

• Small children, elderly or infirm persons: As is the case with all open flames, it is expedient that you attach a protective fixture for these groups of persons (available as an accessory from specialist dealers) Risk of burn injuries! Never leave these groups of persons unattended near the stove when an ebios-fire is burning or has just been extinguished! Make these individuals aware of these risks.

• No combustible objects may be placed or laid on the free surfaces of the ebios-fire Quadra Inside. Do not place items of clothing on the furniture to dry. Racks for drying clothing may only be placed outside the radiation area (Figs. 16, 20 and 24)! Risk of fire!

• Thermal energy is released during the combustion process which causes the burner, the housing surfaces, the glass panes (depending on the model) and the protective glass panes to heat up. Do not attempt to touch these components without adequate protection (i.e. heat-resistant gloves). Danger of burn injuries!

• Never leave the fire unattended while it is lit!

• With Quadra Inside ensure that the housing apertures are closed and that the protective panes are mounted.

• It is recommended to open a window during operation.

• Several decorative ethanol fireplaces may only be operated if the fuel consumption rate of all devices together does not exceed 0.5 l/h and if additional measures are taken to ensure sufficient ventilation. In this context, please observe the Technical Data table, item 3.1.

GB 26

• The burner may only be operated with the burner fleece and these wicks. It is not permitted to change the number of wicks, the wick material or the burner fleece.

• The ebios-fire furniture must not be modified.

• This is merely a decorative fireplace for use in the home and is not intended for heating or continuous operation! Nevertheless, do bear in mind that heat is generated as a by-product of the combustion process with the: Quadra Inside I SL (approx. 3 kW) Quadra Inside II SL (approx. 6 kW) Quadra Inside III SL (approx. 6 kW) This can cause the installation room to heat up under certain circumstances.

• There should never be any fuel in the tank and the cover must always be placed on the burner when it is not in use.

• The burners are designed for the fuel to be burnt until all gone. If you only wish to enjoy the flames for a short period of time, use a correspondingly smaller amount of fuel. If you wish to take the burner out of operation at an earlier stage than normal, place the cover on the burner with the aid of the 'cold hand'. After shutting down the burner, always allow at least 1 hour

• The burner must NOT be filled when warm or alight and must NOT be filled via the burner channel! DANGER TO LIFE!

• The handling of fuel in the vicinity of the hot or burning appliance is associated with significant risks and is not permitted!

• Only fill the burner via the filling opening and never via the burner channel!

• Should you accidentally spill ethanol, clean this up immediately and before lighting the burner!

• Please note that the luminosity of the flame can decrease to such an extent that the flame is no longer clearly visible. Make children and others in the home aware of this.

• Minimum waiting time between extinguishing and refilling the burner = 1 hour!

• Do not smoke when handling fuel and operating the ebios-fire.

Failure to follow these basic rules can result in uncontrolled ignition or even explosions!

4.2 FIRE PROTECTION

Please note: In the radiation area, see Figs. 10 and 14 (in the area of the flames/furniture) no flammable components and furniture are permitted within 1000 mm upwards and to the sides (only with ventilated radiation protection fitted on both sides).

There must be no flammable objects (decorations, clothing etc.) in the radiation area. In order to guarantee sufficient thermal insulation, there must be a minimum distance of 1000 mm to flammable components at the side, furniture, decorations and curtains! There must be no objects between the fireplace and room ceiling (distance to the ceiling >1000 mm)!

1000 mm

GB 27

4.3 FUEL

Bioethanol (chemical formula C2H6O) with an ethanol content of 96.6% is used as the fuel. This can be purchased from specialist dealers. This is a hazardous substance as defined by ADR: Class 3 PG III, UN 1170.

Under no circumstances should other fuels such as petrol, spirit or similar flammable liquids be used. Do not mix the fuels together or with other substances. The burners may only be operated using the prescribed fuel otherwise the warranty will be rendered void and the device may be unsafe or dangerous to operate.

Ethanol is a highly flammable liquid which must be stored well sealed, protected from light and away from sources of fire. It is permitted to store max. 5 l in the living space and max. 20 l in the cellar. Keep bioethanol out of the reach of children. For your safety only fill the burner just before use to prevent it from being ignited unintentionally or by unauthorised persons and to also stop the fuel from evaporating.

Please note that ethanol is used exclusively for combustion and it not suitable for consumption. Supervise your children! If swallowed consult a doctor immediately and present the fuel label.

4.4 COMMISSIONING

The ebios-fire Quadra Inside is supplied with an empty burner to prevent any ethanol from flowing out or evaporating during transit. Ensure (particularly before being put into use) that there is no fuel in the safety container.

4.4.1 COMMISSIONING OF THE QUADRA INSIDE SL

Proceed as follows:

1. Ensure that the air supply is sufficient.

2. Make sure that the burner has gone out and has cooled down fully (minimum waiting time after being extinguished = 1 hour).

3. The burner can remain in the housing when being refilled. Open the housing cover. Depending on the installation situation, the protective panes may need to be removed. When being installed in a bespoke fire area (chimney system) the burner should be filled outside the housing (the level indicator must be clearly visible)

4. Check the tank content.

5. Make sure that the cover plate is placed on the burner and covers the burner fleece.

6. Use a wrench to open the filling screw.

7. Insert the funnel into the filling opening and pour a maximum of 2.6 l of bioethanol into each burner unit.

GB 28

8. The fill level indicator shows the maximum permitted fill level. The maximum fill level is reached when the bioethanol runs out of the slit (see arrow) into the reflector curve.

9. Take the bottle to wet the burner. Guide the bottle with the opening into the tank aperture until it reaches into the fuel. Press the bottle together so that the air escapes and the fuel is sucked up when it is released. Wait until the bottle returns to its original shape.

10. Seal the filling plug securely using the wrench.

11. Close the housing cover on the fireplace furniture unit and ensure that the cover does not extend into the flame area and instead maintains a uniform distance from the burner channel. Then insert the protective panes.

12. Insert the cold hand to grip the cover plate and lift it off.

13. Wet the burner fleece with fuel using the bottle which has just been filled.

14. Put the bottle down to one side.

15. Wait approx. 2 minutes before igniting the fire to allow the wick to be fully saturated with ethanol.

16. Ignite the fire on the burner fleece and step back from the flames. It may take a few minutes until uniform flames appear.

Should you ever pour in too much fuel and cause the burner to overflow, the ethanol collects in the safety container. Empty this immediately and before lighting the burner. Clean the surface of the burner until it is dry and completely free of ethanol.

Caution: Ethanol is highly combustible. There must be no sources of ignition in the vicinity!

GB 29

4.4.2 REFILLING THE BURNER

• The burner must NOT be filled when warm or alight and must NOT be

filled via the burner channel! DANGER TO LIFE!

• Minimum waiting time between extinguishing and refilling the burner = 1 hour!

• Please also leave the protective panes which may still be hot on the device during this time! Danger of burn injuries!

• The burners are designed for the fuel to be burnt until all gone. If you only wish to enjoy the flames for a short period of time, use a correspondingly smaller amount of fuel. If you wish to take the burner out of operation prematurely, place the cover on the burner with the aid of the grip stick.

Proceed as follows to refill:

1. Ensure that the air supply is sufficient.

2. Make sure that the burner has gone out and has cooled down fully (minimum waiting time after being extinguished = 1 hour).

3. The burner can remain in the housing when being refilled. Open the housing cover. Depending on the installation situation, the protective panes may need to be removed. When being installed in a bespoke fire area (chimney system), the burner should be filled outside the housing (level indicator should be clearly visible).

4. Check the tank content.

5. Make sure that the cover plate is placed on the burner and covers the burner fleece.

6. Use a wrench to open the filling screw.

7. Insert the funnel into the filling opening and pour in a maximum of 2.6 l of bioethanol.

8. The fill level indicator shows the maximum permitted fill level. That maximum fill level is reached when bioethanol begins to run out of the slot (see arrow) and into the reflector curve.

Caution: Ethanol is highly combustible. There must be no sources of ignition in the vicinity!

To ignite the burner, follow the steps 9 to 16 described in Point 4.4.1!

GB 30

4.4.3 TAKING OUT OF OPERATION SAFELY

If you wish to take the burner out of operation at an earlier stage than normal, place the cover on the burner with the aid of the 'cold hand'.

Insert the 'cold hand' to grip the cover plate and then cover this over the burner channel.

5. CLEANING AND CARE

The ebios-fire Quadra Inside must only be cleaned when cold.

5.1 CLEANING CLADDING PARTS

• Wait until the device has cooled down before cleaning (at least 1 hour)!

• Decorative metal surfaces and the cladding parts can be cleaned with a moist cloth (do not use a microfibre cloth!).

• Glass surfaces can be cleaned with a standard glass cleaner and a soft cloth (do not use a microfibre cloth!).

• Stainless steel surfaces can be cleaned with a standard stainless steel cleaner. Only use in the direction of the finish!

Remove any dust on and below the ebios-fire furniture regularly as dust particles can burn or char. This can cause dirt in the room and on the furnishings where the fire is installed.

6. MAINTENANCE/TROUBLESHOOTING

• The wick and burner fleece must be visually inspected at regular intervals. The material can be easily damaged. As such, the burner fleece should not be folded, bent or similar. It is not permitted to change the burner fleece or wick.

• The burner fleeces must be replaced after about 800 operating hours (the equivalent to fuel throughput of approx. 400 L of bio-ethanol). Please contact your specialist dealer.

• Only use our original spare parts.

• The tank seal must be examined occasionally for cracks or brittleness and should be replaced if necessary.

• Please contact your specialist dealer should you have any questions.

6.1 FURNITURE AND GLASS BECOMES SOOTED

HEAVILY, RAPIDLY AND UNEVENLY.

If this did not occur from the very start, please check the following points:

• Has the correct fuel been used?

• Cladding/cover correctly positioned?

6.2 FIRE IS DIFFICULT TO IGNITE

If this did not occur from the very start, please check the following points:

• Is there fuel in the burner?

• Have you wetted the ignition mats?

• Has the correct fuel been used?

GB 31

6.3 UNPLEASANT ODOURS

• Fuel in a burner which is not in use?

• Cover plate in position?

• Fuel was spilt when filling the device?

6.4 CHANGE IN APPEARANCE OF FLAMES

• Is the burner fleece damaged?

• Has the correct fuel been used?

• Were all safety distances observed?

• Is the installation space well enough ventilated?

• Is the installation site protected from transverse ventilation?

If the appearance of the flames changes noticeably, especially if the flames begin to extend above the protective pane, stop using the device and notify the specialist dealer!

6.5 SPILT ETHANOL IGNITES

If spilt ethanol is ignited, attempt to put out the flames immediately. Use, for example, foam fire extinguishers with alcohol-resistant foam or suitable fire blankets. We recommend that such extinguishing agents be kept at the ready.

Should it not be possible to extinguish the fire rapidly, the fire service must be notified immediately and their instructions followed.

7. GENERAL WARRANTY CONDITIONS

7.1 RANGE OF APPLICATION

These standard warranty terms apply for the contractual relationship between the manufacturer, Spartherm Feuerungstechnik GmbH, and the dealer/distributor. They are not congruent with the contractual and warranty terms which the dealer/distributor offers his customers in individual cases.

7.2 GENERAL INFORMATION

This product has been manufactured in compliance with current standards of quality control. The materials used have been carefully selected and - like the production process - are subject to on-going quality control. Specialist knowledge is required when assembling and installing the product. The product must, therefore, only be installed and commissioned into service by specialist technical staff, in compliance with current statutory provisions.

7.3 WARRANTY PERIOD

The standard warranty terms only apply within Germany and the European Union. The warranty period and scope of the warranty are ensured within the framework of these conditions outside the statutory warranty which remains unaffected.

Spartherm Feuerungstechnik GmbH grants a 24-month warranty on EBIOSFIRE devices (Solitaire and inserts)

Spartherm Feuerungstechnik GmbH grants a 6-month warranty on wearing parts in the fire area, e.g., wicks, burner fleeces, seals and glass ceramic.

GB 32

7.4 WARRANTY REQUIREMENTS

The warranty period shall begin on the date, on which the product is delivered to the dealer / distributor. Invoices or delivery notes may be used as confirmation of the warranty commencement date. The warranty certificate for the product must be presented by the claimant upon making a warranty claim.

Spartherm Feuerungstechnik GmbH is not obliged to satisfy any claim if such documentation is not presented.

7.5 EXCLUSIONS FROM THE WARRANTY

This warranty does not cover:

- Wear on the product wick / burner fleece due to thermal stress

- The surfaces: discolouration of the finish or on the galvanic surfaces of the furniture and/or burner which are a result of thermal stresses or overloading

- The viewing panes: contamination, due to soot or other burnt-on combustion materials and visual deterioration due to thermal loading.

- Use of unsuitable or non-specified fuel. We recommend bioethanol from Spartherm Feuerungstechnik GmbH with a concentration in excess of 96.6% for your ebios-fire appliance.

- incorrect transportation and/or incorrect storage:

- inappropriate or careless handling of fragile components, such as glass or ceramics

- improper operation and/or use

- incorrect filling of system

- lack of maintenance

- incorrect set-up/installation of device

- failure to comply with Installation and Operating Manual

- technical modifications made to the appliance by third parties

7.6 ELIMINATION OF DEFECTS / REPAIR

Independent of any statutory provisions acknowledged as taking precedence over the terms of this warranty, all necessary repair works resulting from material or manufacturing defect shall be carried out free-of-charge and shall not invalidate the remaining provisions of the warranty.

Within the scope of this warranty promise Spartherm Feuerungstechnik GmbH reserves the right to either remedy the fault or replace the device free of charge. The elimination of defects shall take precedence. The terms of this warranty shall not extend to any damage or compensation not covered by statutory provisions.

7.7 EXTENSION TO THE WARRANT Y PERIOD

The warranty period shall automatically be extended, where claims made in respect of these warranty provisions result in the repair or replacement of defective equipment.

7.8 SPARE PARTS

Only the manufacturer's own components, or replacement parts recommended and approved by the manufacturer, shall be used for appliance servicing and repair.

GB 33

7.9 LIABILITY

Damages and claims for compensation which are not the result of delivery of a defective appliance from Spartherm Feuerungstechnik GmbH are excluded and are not part of this warranty promise.

The above shall not include claims made in respect of statutory legal requirements.

7.10 CLOSING REMARKS

In addition to these warranty conditions and our commitment to them, our dealers and contractual partners are pledged to assist you in both word and deed. It is expressly recommended to have EBIOS-FIRE products checked regularly by a stove fitter/specialist dealer.

We reserve the right to make alterations to the technical data contained herein and accept no liability in respect of any errors made.

GB 34

8. DECLARATION BY BUILDER OF A

BESPOKE FURNITURE ITEM OR FIREPLACE INSERT WITH QUADRA INSIDE

The builder of this furniture item or fireplace insert must assure the purchaser of a bespoke furniture item or fireplace insert with Quadra Inside that the furniture item / fireplace insert will be constructed professionally, and that the same is true of the installation work (Quadra Inside). The builder confirms that all the points listed in the manual have been considered and properly implemented in his design. Furthermore, the builder must provide the buyer with this manual. The declaration by the builder to the buyer must be made in writing.

Sample declarations for the builder of the bespoke furniture item and/or fireplace insert can be found as downloads at www.ebios-fire.com.

Special notes about Quadra Inside II SL & III SL

The Quadra Inside II SL & III SL ethanol fire areas comprise components tested in accordance with DIN 4734-1. However, their design precludes them from being classified in accordance with applicable legislation on standards.

Unlike with the Quadra Inside I SL, the models Quadra Inside II SL & III SL are not covered by the DIN 4734-1 standard and cannot therefore be checked in accordance with this specification. The burners installed in the Quadra II SL & III SL do however comply with the tested variant of the Quadra Inside I SL.

For these products, prior to delivery, the stove builder must certify to the manufacturer the type of building work involved, details of the safety testing procedure, as well as arrangements for training the operating personnel in accordance with the manufacturer's specification. The manufacturer will not supply the product until this declaration has been signed and received.

A template for this certification as well as notes on how the safety test is to be carried out shall be provided to you when an order is placed for the Quadra Inside II SL & III SL, or you can download these documents from www.ebios-fire.com.

IMPORTANT: Keep in a safe place!

Store these instructions with valid and clearly dated proof of purchase and have the documents ready for our technicians in the event of service work.

GB 35

NOTES

GB 36

SPARTHERM

THE GLOBAL BRAND FOR YOUR LOUNGE

The Global brand for your living room | La référence mondiale pour votre salon | Il marchio mondiale per il vostro soggiorno

La marca mundial para su salón | Het merk van wereldformaat voor uw woonkamer | Światowa marka do Państwa salonu

Торговая марка № 1 для Вашего дома

D Ihr Fachhändler | UK Your specialist dealer | F Votre revendeur spécialisé

IT Il vostro rivenditore specializzato | E Sus comercios especializados

NL Uw vakhandelaar | PL Państwa sprzedawca | РУС Ваш дилер

A1-SP-GB/0.000/05-2017

Spartherm Feuerungstechnik GmbH · Maschweg 38 · D-49324 Melle

Phone +49 (0) 5422 94 41-0 · Fax +49 (0) 5422 9441-14 · www.spartherm.com

Spartherm Quadra Inside I SL, Quadra Inside II SL, Quadra Inside IIISL Installation And Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
