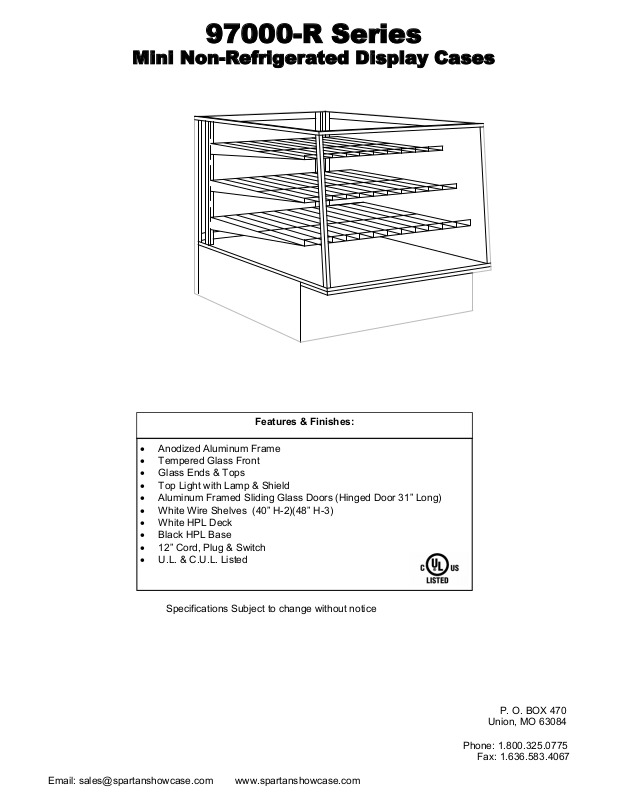

Spartan Showcase 97040-36 User Manual

97000-R Series

Mini Non-Refrigerated Display Cases

Features & Finishes:

• Anodized Aluminum Frame

• Tempered Glass Front

• Glass Ends & Tops

• Top Light with Lamp & Shield

• Aluminum Framed Sliding Glass Doors (Hinged Door 31” Long)

• White Wire Shelves (40” H-2)(48” H-3)

• White HPL Deck

• Black HPL Base

• 12” Cord, Plug & Switch

• U.L. & C.U.L. Listed

Specifications Subject to change without notice

P. O. BOX 470
Union, MO 63084

Phone: [phone]
Fax: [phone]

Email: [email protected] www.spartanshowcase.com

97000-R Series

Mini Non-Refrigerated Display Cases

97040-36
97040-40

LV97048-31

97048-36
97048-40

Specifications Subject to change without notice

L X D X H

36”X 34 13/16” X 40”
40”X 34 13/16” X 40”

31” X 30” X 48”

36”X 34 13/16” X 48”
40”X 34 13/16” X 48”

Rows of
Shelves

2
2

2

3
3

Est. Crated

Weight

310 lbs.
320 lbs.

310 lbs.

320 lbs.
330 lbs.

Case Options: Model No. Dimensions:

1. Mirror Ends

2. Mirror Doors

3. Side Lights, Lamps & Shields

4. HPL Finish Cover Front and Ends (Standard HPL)

5. Self Closing Front Doors (all cases)

6. Brasstone, Black, or White (Frame & Lights only)

7. Vented Doors

8. “ETL” Sanitation Listed (Conforms to NSF STD-2)

P. O. BOX 470
Union, MO 63084

Phone: [phone]
Fax: [phone]

Email: [email protected] www.spartanshowcase.com
