Page 1
User Manual
V1.0
Page 2
DESCRIPTION
The camera uses SONY charge coupled device (CCD)
image sensor, and employs digital signal processing
(DSP) chip-set for image control, and all int egrated state
circuitry which provides extremely long life and high
reliability. This camera offers excellent image quality, and
is not subject to distortions from magnetic fields. High
resistance to shock and vibration, and easy to install, this
camera is the best choice for your CCTV system.
TRADEMARKS
Sparsh logo is registered trademarks of Samriddhi
Automations Pvt. Ltd.
SONY, SONY Super HAD & SONY Super HAD-II is
registered trademark of Sony Incorporation.
• Do not put camera under shocks and jerks.
This may cause the serious disorientation or the
distortion in the components thereby causing the
malfunctioning of the product.
• Do not install under excess of humid conditions.
This may cause the deposition of water droplets on the
lens and several other sensitive components thereby
lowering the picture quality.
• Do not expose the camera directly to high light
intensity pulse.
This may damage the CCD or may create dead pixels
in the CCD.
• Do not expose camera to water.
All other brand, product names, and service names are
trademarks or registered trademarks of their respective
companies or organizations
LIMITATION OF LIABILITY
• This publication is provided “as is” without warranty
of any kind, either express or implied, including but
not limited to, the implied warranties of
merchantability, fitness for any particular purpose, or
non-infringement of the third party’s right.
• This publication could include technical inaccuracies
or typographical errors. Changes are added to the
information herein, at any time, for t he improvements
of the publications and/or the corresponding
product(s).
WARNINGS & CAUTIONS
• The information provided in the user manual is for the
safety of the customers. Please read the user manual
before operating the product and follow the
instructions provided accordingly.
This may result in malfunctioning of the camera or
may result in the corrosion of certain components due
to minerals contained in water.
• Do not expose camera to radioactivity.
Radioactive exposure may cause damage to CCD or
may produce dead pixels.
• Do not attempt to open the camera.
Unauthorized opening of camera is not permissible as
it could cause breakage of the fragile components.
• Do not use low quality cables and power supply.
Only recommended cables/wires and power supply
should be used for proper functioning of the camera.
If any abnormality occurs, make sure to unplug the
unit and contact your local dealer or our service centre.
INSTALLATION
Warning Messages
• Do not install under excess hot conditions.
Optimum operational temperature range is 0°C and
+50°C.
• Do not install under varying light conditions.
Continuously varying light frequency might cause
problems in the normal functioning of the camera.
• Installation must be carried out by the authorized
personals only.
• Surface on which the camera is to be mounted must
be strong enough to hold the camera firmly, if not so
reinforce the surface again so that the camera may not
fall off the surface.
Page 3
•
•

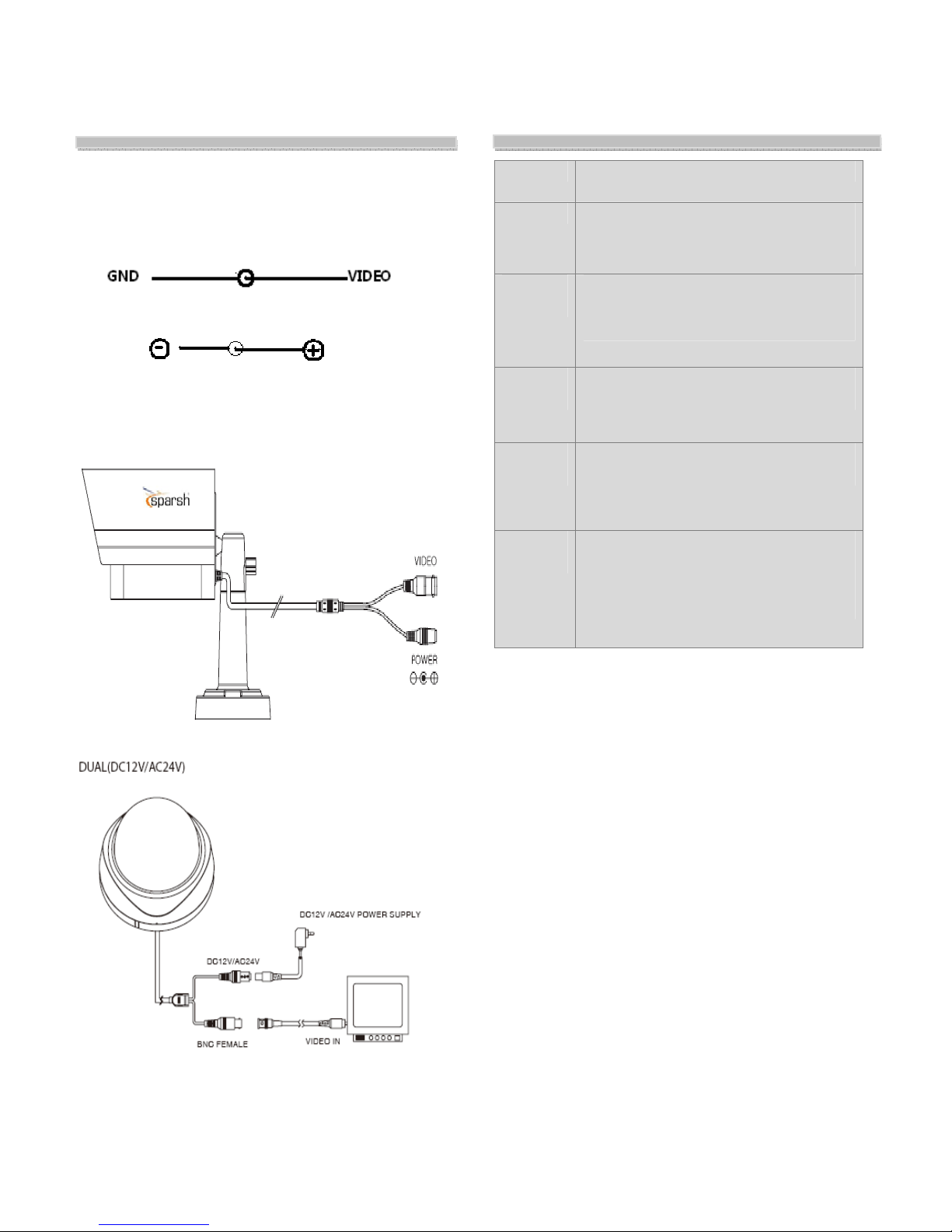

CONNECTIONS:
The functions of connecting plugs or terminals are as
below:
Video Output terminal, BNC or RCA
TROUBLESHOOTING
Problem Solution
No Video Check the power supply and line
connection between the camera and
monitor.
DC 12V power supply plug
Image not
Clear
Weak
Contrast
Flicker
Noise in
Video
Check the surface of the lens
• Check the focus of the lens and
refocus it.
Check whether the camera is exposed
under too strong light or not
Check whether the camera face to the s un
directly or strong light
Check illumination is low or not
• Check power supply voltage is low or
not
• Check proper wire connectivity
Page 4
SPECIFICATIONS:
DOME CAMERA MODEL
SP3XXDS, SP3XXDN, SP3XXDVA49, SP3XXDV
XX – 45 (450 TVL), 48 (480 TVL), 54 (540 TVL)
MODEL
Camera Type
Image sensor 1/3 “ SONY SUPER HAD-II CCD
Effective Pixels
Operation Area Indoor Indoor Indoor Indoor Indoor
System View PAL/NTSC
Flicker less
Lens
S/N Ratio More than 48dB
Video output level 1.0vp-p (75 Ohms Composite Video Out)
SP3XXDS SP3XXDN
Dome with DIP
Switch
NTSC : 768 (H) x 494 (V), PAL : 752 (H) x 582 (V) (For 480 & 54 0TVL model)
Switchable -
On/Off
3.6 mm Board Lens, Optional Lens:
2.5 / 6 / 8 / 12 / 16 / 25 mm
Elegant Dome Vari Focal Auto Iris
NTSC: 510 (H) x 492V, PAL: 500 (H) x 582 (V) (For 450 TVL model)
- - -
SP3XXDVA49 SP3XXDV
Vandal Proof
Dome
Built in 4-9 / F 1.6
Optional 2.8-10 mm
/ F 1.6
Dome Camera
3.6 mm Board
Lens, Optional
Lens: 2.5 / 6 / 8 /
12 / 16 / 25 mm
SP3XXCSN
C/CS mount
Camera
C/CS mount
-
Resolution 450TVL/480TVL/540 TVL
Min. Illumination 0.05 Lux / F2.0
White Balance
AGC
Back Light
Compensation
Audio Optional Optional Optional Optional Optional
Input Voltage 12 V DC 12 V DC 12 V DC 12 V DC 12 V DC
Current Drawn Approx. 90 m A Approx. 90 m A Approx. 200 m A Approx. 200 m A Approx. 250 m A
I/O Connectors DC FEMALE / BNC FEMALE
Operating
Temperature/Humidity
Switchable -
On/Off
Switchable -
On/Off
On/Off Auto On/Off On/Off On/Off
ATWB Switchable -On/Off
Auto Switchable -On/Off
0°C to +50°C / 30% to 80% RH
Switchable -
On/Off
Switchable -
On/Off
Switchable -On/Off
Switchable -On/Off
Page 5
IR CAMERA – SP3XXIRYY
IR Distance IR LEDs
SP3 1/3” Sensor
XX Resolution: 45,48,54 ( 450 TVL, 480TVL , 540
10 mtr. 12 Pcs 850nm /Ø 5 mm
20 mtr. 24 pcs 850nm /Ø 5 mm
TVL)
30 mtr. 36 pcs. 850 nm /Ø 5 mm
IR IR Camera Range
40 mtr. 48 pcs. 850 mm / Ø 5 mm
YY IR Distance 10,20,30,40,50,70
50 mtr. 60 pcs. 850 nm/ Ø 5 mm
W With FAN
70 mtr. 12 pcs. 850 mm / Ø 10 mm
MODEL SP3XXIRYYD SP3XXIRDV49L SP3XXIRYY
Camera Type
Image sensor 1/3 “ SONY SUPER HAD-II CCD
Effective Pixels
Operation Area Outdoor Outdoor Outdoor Outdoor
IR Dome Vari Focal IR Dome 10-
30Mtr.
NTSC: 510 (H) x 492V, PAL: 500 (H) x 582 (V) (For 450 TVL model)
NTSC : 768 (H) x 494 (V), PAL : 752 (H) x 582 (V) (For 480 & 540TVL model)
IR Box Camera IR with Heater & Fan
SP3XXIR50W
System View PAL/NTSC
3.6 mm Board Lens,
Lens
IR Distance 20 mtr, 30 mtr 10-30 mtr. 10, 20, 30,40,50,70 mtr. 50 mtr.
S/N Ratio More than 48dB
Video output level 1.0vp-p (75 Ohms Composite Video Out)
Resolution 450TVL/480TVL/540 TVL
Min. Illumination 0.05 Lux / F2.0
White Balance ATWB ATWB ATWB ATWB
AGC Auto Auto Auto Auto
Back Light
Compensation
Audio Optional Optional Optional Optional
Input Voltage 12 V DC 12 V DC 12 V DC 12 V DC
Optional Lens: 2.5 / 6 / 8
/ 12 / 16 / 25 mm
Auto Auto Auto Auto
Built in 4-9 / F 1.6
Optional 2.8-10 mm / F
1.6
3.6 mm Board Lens,
Optional Lens: 2.5 / 6 /
8 / 12 / 16 / 25 mm
In-built 12mm C-
Mount Lens (Option
Vari-Focal)
I/O Connectors DC FEMALE / BNC FEMALE
Operating
Temperature/Humidity
0°C to +50°C / 30% to 80% RH
Page 6
Samriddhi Automations Pvt. Ltd.
Corporate Office: F- 365, Sector - 63, Noida, U.P. (India) Tel: + 91 - 120 - 4518 900 (20 Lines)
Works: Plot No. : 75, Sector - 7, I.I.E., SIDCUL, Haridwar (India) Tel: + 91- 01334 - 645 011, 239 396
Service Center: A - 1 / 15, New Kondli, New Delhi. (India) Tel: 91-11-2262 3325
[email protected] | www.sparshsecuritech.com
