Sparoom Phoenix User Manual

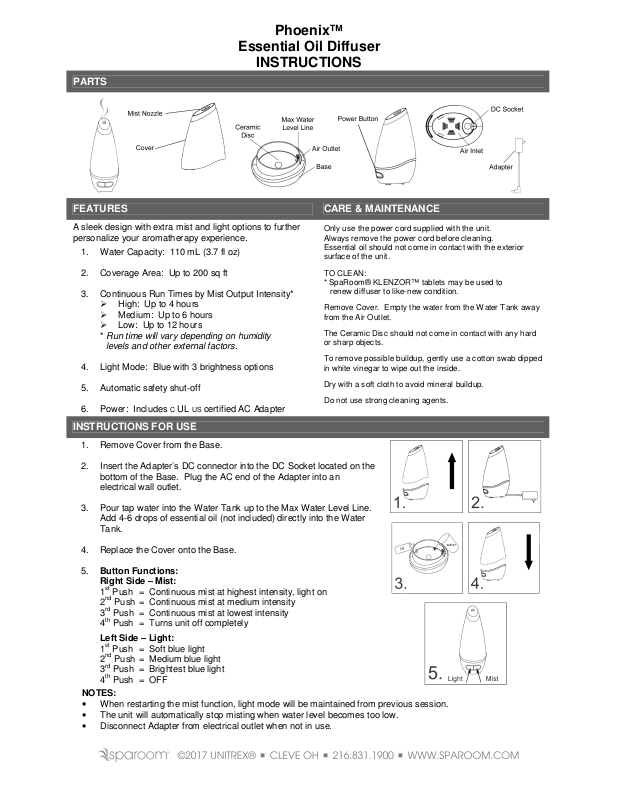

Phoenix™

Essential Oil Diffuser

INSTRUCTIONS

PARTS

FEATURES CARE & MAINTENANCE

A sleek design with extra mist and light options to further
personalize your aromatherapy experience.

1.

Water Capacity: 110 mL (3.7 fl oz)

2.

Coverage Area: Up to 200 sq ft

3.

Continuous Run Times by Mist Output Intensity*

 High: Up to 4 hours
 Medium: Up to 6 hours
 Low: Up to 12 hours

* Run time will vary depending on humidity

levels and other external factors.

4.

Light Mode: Blue with 3 brightness options

5.

Automatic safety shut-off

6.

Power: Includes C UL US certified AC Adapter

Only use the power cord supplied with the unit.
Always remove the power cord before cleaning.
Essential oil should not come in contact with the exterior
surface of the unit.

TO CLEAN:
* SpaRoom® KLENZOR™ tablets may be used to
renew diffuser to like-new condition.

Remove Cover. Empty the water from the Water Tank away
from the Air Outlet.

The Ceramic Disc should not come in contact with any hard
or sharp objects.

To remove possible buildup, gently use a cotton swab dipped
in white vinegar to wipe out the inside.

Dry with a soft cloth to avoid mineral buildup.

Do not use strong cleaning agents.

INSTRUCTIONS FOR USE

1.

Remove Cover from the Base.

2.

Insert the Adapter’s DC connector into the DC Socket located on the
bottom of the Base. Plug the AC end of the Adapter into an
electrical wall outlet.

3.

Pour tap water into the Water Tank up to the Max Water Level Line.
Add 4-6 drops of essential oil (not included) directly into the Water
Tank.

4.

Replace the Cover onto the Base.

5.

Button Functions:
Right Side – Mist:

1st Push = Continuous mist at highest intensity, light on
2nd Push = Continuous mist at medium intensity
3rd Push = Continuous mist at lowest intensity
4th Push = Turns unit off completely

Left Side – Light:

1st Push = Soft blue light
2nd Push = Medium blue light
3rd Push = Brightest blue light
4th Push = OFF

NOTES:

• When restarting the mist function, light mode will be maintained from previous session.

• The unit will automatically stop misting when water level becomes too low.

• Disconnect Adapter from electrical outlet when not in use.
