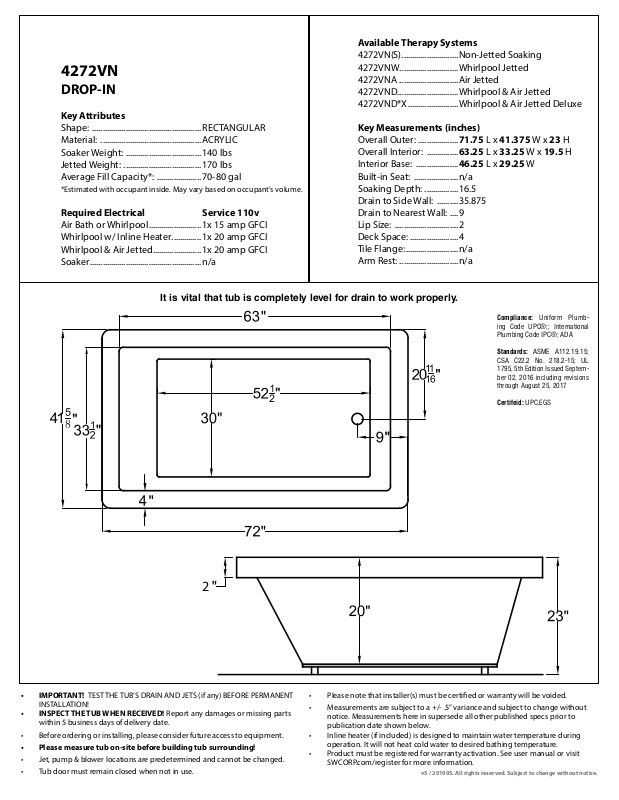

4272VN
DROP-IN
Key Attributes
Shape: .................................................... RECTANGULAR
Material: ................................................ ACRYLIC
Soaker Weight: .................................... 140 lbs
Jetted Weight: ..................................... 170 lbs
Average Fill Capacity*: ..................... 70-80 gal
*Estimated with occupant inside. May vary based on occupant’s volume.
Required Electrical Service 110v
Air Bath or Whirlpool ......................... 1x 15 amp GFCI
Whirlpool w/ Inline Heater .............. 1x 20 amp GFCI
Whirlpool & Air Jetted ....................... 1x 20 amp GFCI
Soaker ..................................................... n/a
It is vital that tub is completely level for drain to work properly.
Available Therapy Systems
4272VN(S) ...........................Non-Jetted Soaking
4272VNW ............................Whirlpool Jetted
4272VNA ............................Air Jetted
4272VND.............................Whirlpool & Air Jetted
4272VND*X ........................Whirlpool & Air Jetted Deluxe

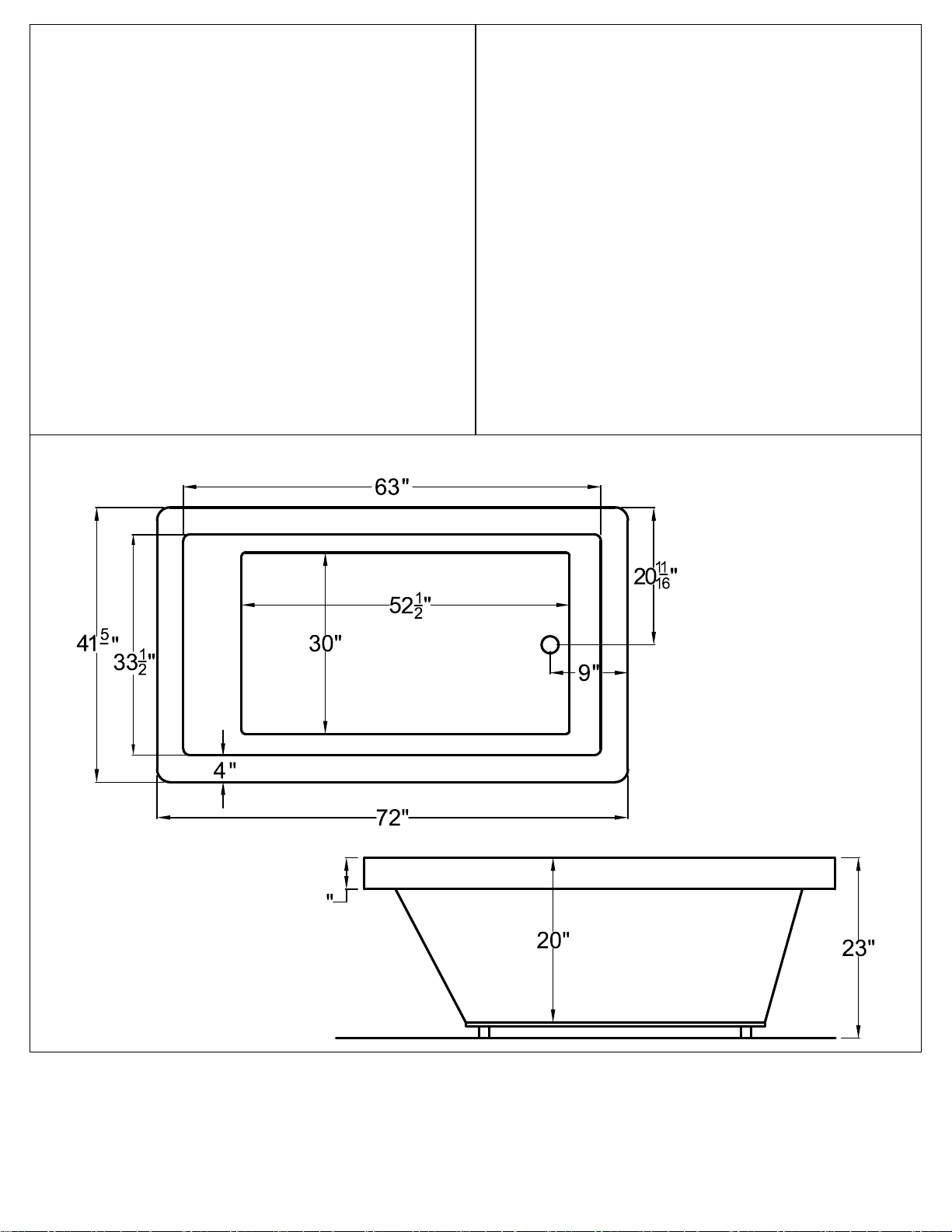

Key Measurements (inches)
Overall Outer: ................... 71.75 L x 41.375 W x 23 H
Overall Interior: ...............63.25 L x 33.25 W x 19.5 H
Interior Base: ....................46.25 L x 29.25 W
Built-in Seat: .....................n/a
Soaking Depth: ................16.5
Drain to Side Wall: ..........35.875
Drain to Nearest Wall: ....9
Lip Size: ..............................2
Deck Space: .......................4
Tile Flange: .........................n/a
Arm Rest: ............................n/a
Compliance: Uniform Plumbing Code UPC®;; International
Plumbing Code IPC®; ADA
Standards: ASME A112.19.15;
CSA C22.2 No. 218.2-15; UL
1795, 5th Edition Issued September 02, 2016 including revisions
through August 25, 2017
Certifeid: UPC,EGS
8
2
• IMPORTANT! TEST THE TUB’S DRAIN AND JETS (if any) BEFORE PERMANENT
INSTALLATION!
• INSPECT THE TUB WHEN RECEIVED! Report any damages or missing parts
within 5 business days of delivery date.
• Before ordering or installing, please consider future access to equipment.
• Please measure tub on-site before building tub surrounding!
• Jet, pump & blower locations are predetermined and cannot be changed.
• Tub door must remain closed when not in use.
• Please note that installer(s) must be certied or warranty will be voided.
• Measurements are subject to a +/- .5” variance and subject to change without
notice. Measurements here in supersede all other published specs prior to
publication date shown below.
• Inline heater (if included) is designed to maintain water temperature during
operation. It will not heat cold water to desired bathing temperature.
• Product must be registered for warranty activation. See user manual or visit
SWCORP.com/register for more information.
v5 / 201905. All rights reserved. Subject to change without notice.
