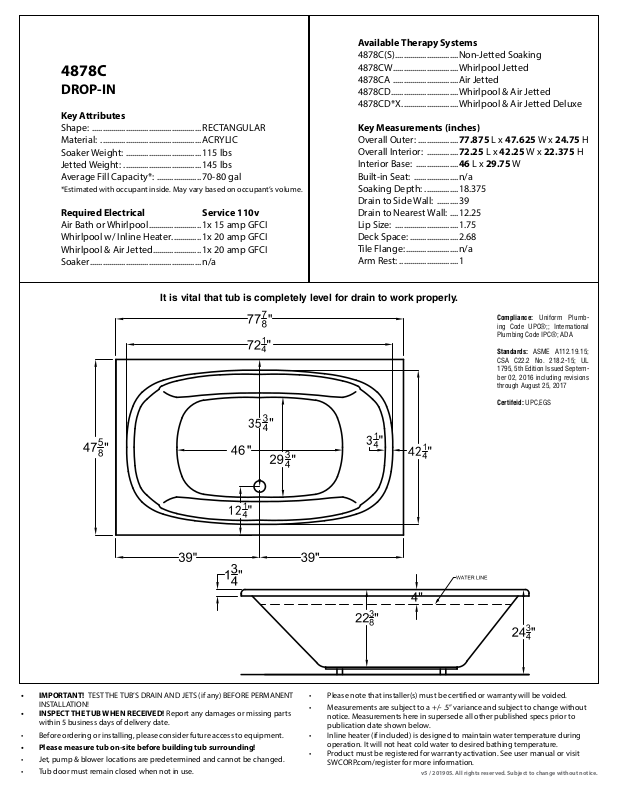

4878C
DROP-IN
Key Attributes
Shape: .................................................... RECTANGULAR
Material: ................................................ ACRYLIC
Soaker Weight: .................................... 115 lbs
Jetted Weight: ..................................... 145 lbs
Average Fill Capacity*: ..................... 70-80 gal
*Estimated with occupant inside. May vary based on occupant’s volume.
Required Electrical Service 110v
Air Bath or Whirlpool ......................... 1x 15 amp GFCI
Whirlpool w/ Inline Heater .............. 1x 20 amp GFCI
Whirlpool & Air Jetted ....................... 1x 20 amp GFCI
Soaker ..................................................... n/a
It is vital that tub is completely level for drain to work properly.
Available Therapy Systems
4878C(S) ..............................Non-Jetted Soaking
4878CW ............................... Whirlpool Jetted
4878CA ............................... Air Jetted
4878CD ................................Whirlpool & Air Jetted
4878CD*X ...........................Whirlpool & Air Jetted Deluxe
Key Measurements (inches)
Overall Outer: ................... 77.875 L x 47.625 W x 24.75 H
Overall Interior: ...............72.25 L x 42.25 W x 22.375 H
Interior Base: ....................46 L x 29.75 W
Built-in Seat: .....................n/a
Soaking Depth: ................18.375
Drain to Side Wall: ..........39
Drain to Nearest Wall: ....12.25
Lip Size: ..............................1.75
Deck Space: .......................2.68
Tile Flange: .........................n/a
Arm Rest: ............................1
Compliance: Uniform Plumbing Code UPC®;; International
Plumbing Code IPC®; ADA
Standards: ASME A112.19.15;
CSA C22.2 No. 218.2-15; UL
1795, 5th Edition Issued September 02, 2016 including revisions
through August 25, 2017
Certifeid: UPC,EGS
35
5
12
• IMPORTANT! TEST THE TUB’S DRAIN AND JETS (if any) BEFORE PERMANENT
INSTALLATION!
• INSPECT THE TUB WHEN RECEIVED! Report any damages or missing parts
within 5 business days of delivery date.
• Before ordering or installing, please consider future access to equipment.
• Please measure tub on-site before building tub surrounding!
• Jet, pump & blower locations are predetermined and cannot be changed.
• Tub door must remain closed when not in use.
3
42
• Please note that installer(s) must be certied or warranty will be voided.
• Measurements are subject to a +/- .5” variance and subject to change without
notice. Measurements here in supersede all other published specs prior to
publication date shown below.
• Inline heater (if included) is designed to maintain water temperature during
operation. It will not heat cold water to desired bathing temperature.
• Product must be registered for warranty activation. See user manual or visit
SWCORP.com/register for more information.
v5 / 201905. All rights reserved. Subject to change without notice.
