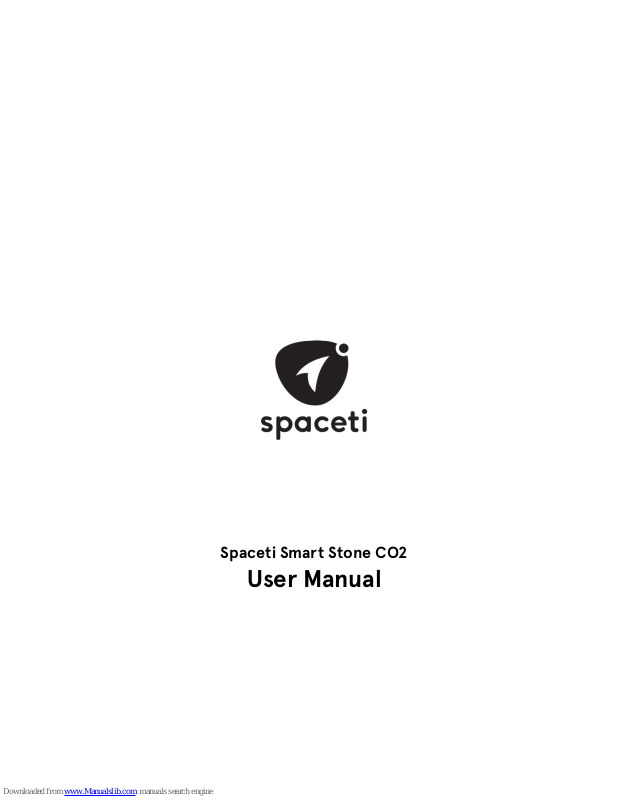

Spaceti Smart Stone CO2
User Manual
Page 2
32
spaceti spaceti
EN EN
Information about the product
Manufacturer
Introduction
Package Contents
spaceti s.r.o.
Quadrio Offices, Purkyňova 2121/3,
110 00 Prague, Czech Republic
ID: 05137659, VAT: CZ05137659
[email protected]
www.spaceti.com
Thank you for choosing Spaceti to help you build the office of the future. Our
mission is to digitalize spaces and positively influence human interaction within
buildings. Spaceti is one of the first companies to offer full internal IoT navigation that combines hardware and software. We aim to increase comfort,
productivity, and security while also providing an effective facility management
tool.
The Spaceti Smart Stone CO2 is one of three components that make up Spaceti’s tested solution that helps create an internal navigation network while
measuring temperatures and humidity in real time.
• Spaceti Smart Stone CO2 (batteries included)
• Click Tool MEC1
Note: If any of the items are damaged or missing, please contact the retailer
where you purchased the product or an authorized service agent.
The technical specification and all other information in this product manual
(referred to just as “Manual” from here on) can change without prior
announcements. Spaceti Smart Stone CO2 is trademarked by Spaceti s.r.o.
No portion of this Manual can be reproduced in any way nor can it be used in a
paraphrased or translated form without the expressed consent of Spaceti s.r.o.
All rights reserved.
Copyright and trademarks
Fig. 1
Basic product information
The Spaceti Smart Stone CO2 (“Device“) is a component of Spaceti’s technology. It forms the foundation for navigation within a building and offers supplementary temperature and humidity measurements. Spaceti’s system is made
up of the hardware device, a mobile application, and a web-based interface.
The system requires all the parts to work correctly.
WARNING!
Carefully read this Manual and save it for future use!
The manufacturer is not responsible for defects, accidents, damage or other
risks caused by not adhering to the procedures in this Manual!
The Manufacturer does not guarantee the Device will work properly if it is
used or handled in any way that is contrary to the recommended procedures
listed in this Manual!
Technical parameters
Page 3
54
spaceti spaceti
EN EN
Product Number SC20L1V100
Power
2x ER14505 lithium batteries
3.6 V, 2700 mAh
(batteries are included)
Output Max. 370 mW
Communication frequencies
915 MHz
2402 MHz, 2426 MHz, 2480 MHz (2.4 GHz Channel)
Radiation output
915.0 MHz max. +10 dBm
2.4 GHz band max. +4 dBm
Environment according to CSN EN
60721-3-3
The product is primarily meant for internal
environments (see ČSN EN 60721-3-3 class 3K3).
Operational temperature range (+5°C; +40) °C
Relative humidity range (5; 85) %
Weight 110 g (Include batteries)

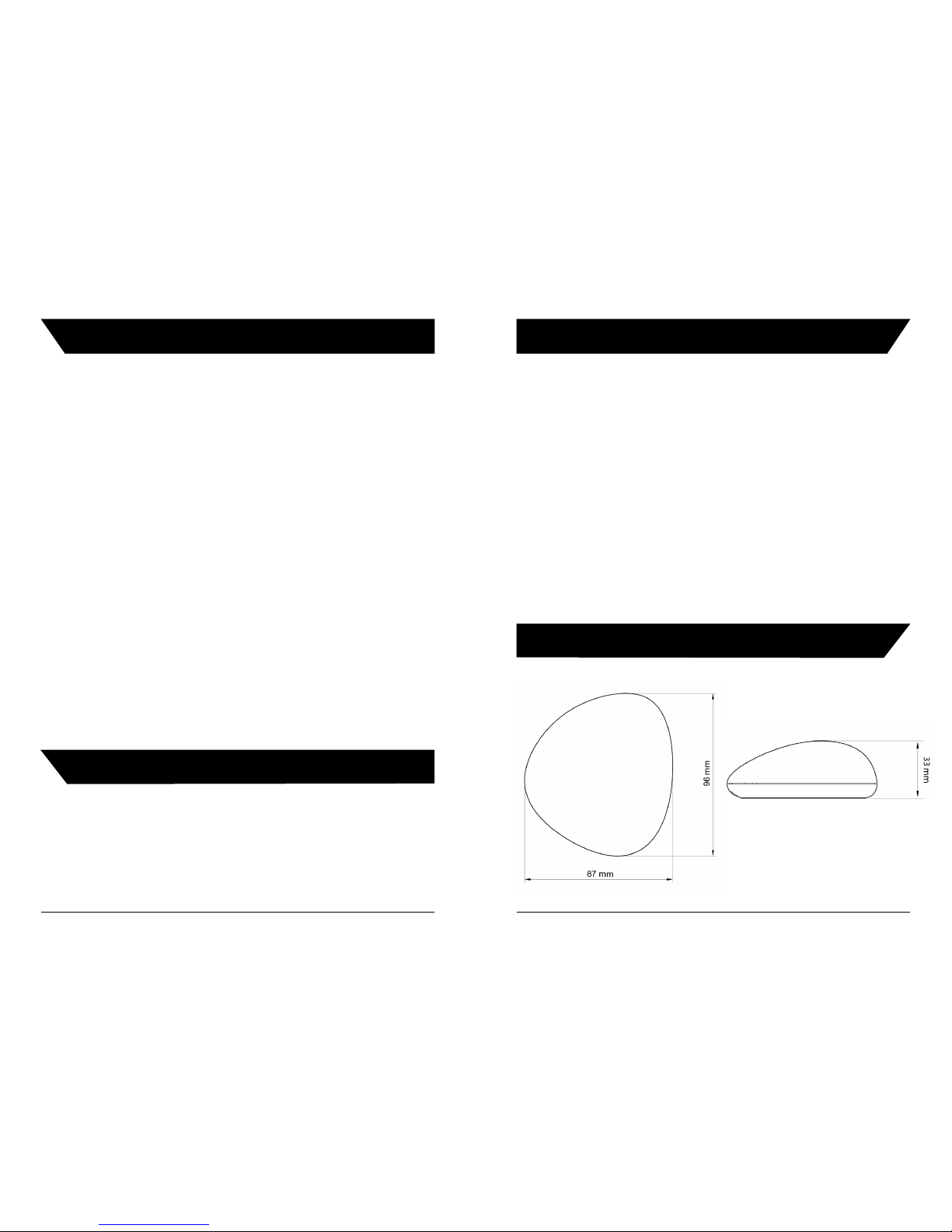

Dimensions (87 x 96 x 33) mm
Other PC-ABS fire retardant box (UL94V0)
General safety instructions
• Installation can only be performed by a trained technician authorized by the
Manufacturer (“Te chni ci an”).
• The Device cannot be installed in direct sunlight, close to a heat source, or a
warm air duct.
• The Device requires at least 5 cm of space on all sides in order to operate
correctly.
•
• The Device must not be used in spaces with extreme temperatures.
The appropriate range is listed in the technical specifications.
• The space where the Device is located must be well ventilated, especially if the
Device is installed in an enclosed or small space.
• Do not install the Device in rooms with extreme humidity or close to water,
such as a damp cellar, in an aquarium, or a pool area.
A. Installation
B. Environment
• Do not use batteries other than those specified by the Manufacturer in the
technical specifications.
• Follow the instructions in Chapter 4 – Changing the Device’s Battery to change
the batteries.
C. Electric safety
• Do not break the Device.
• Do not hit the Device or allow it to be struck.
• Do not clean with water or any other liquid.
• Do not place the Device into a microwave or any other tool that will warm it up.
• Do not place the Device into open flames, smoke, or other fumes.
• Do not allow the Device or the batteries to be subject to outside pressure.
• Prevent contact between the Device and the batteries and mouths, ears, and
eyes. Specifically, do not bite or lick the Device.
• Do not squeeze or stab the Device and prevent it from being deformed.
• Do not expose animals to the Device.
D. Personal safety
POZOR!
WARNING! Carefully read these instructions, memorize them, and save the
instructions for future use!
Page 4
76
spaceti spaceti
EN EN
• Only use the batteries specified by the Manufacturer
• Never use a damaged or drained battery
• Only a Technician can replace batteries
• Only the Technician installs, maintains, or removes the Device.
• Use dry tissues, a rag, or a duster to clean the exterior of the Device.
WARNING!
Do not use any detergents, water, solvents, or other liquids or moist cleaning supplies. Be sure to prevent any liquid from leaking into the Device when
cleaning the mounting!
The Device must be kept out of the reach of children under the age of 12 or
those with limited cognitive functions!
F. Using the Device’s batteries
E. Maintenance
WARNING!
The Manufacturer is not responsible for any damage to the Device caused by
the installation, opening, removal, or any other manipulation of the Device or
its accessories by an unqualified individual!
Do not shorten or manipulate the battery clips in any way and do not expose
them to liquids of any kind!
If the Device is to be transported, it must be protected in a similar way, especially protection from coming into contact with liquids. It should be mounted on the supplied covers and the battery should be secured in the space
reserved for it.
Do not allow the battery to come into contact with metallic items because the
+ and – poles could become connected and the battery could be temporarily
or permanently damaged.
Read the Manual before using
EU declaration of conformity
Do not throw away
Recyclable
The symbols used:
Notice about using this wireless device
WARNING!
The Manufacturer is not responsible for interfering with any other radio or
television signals nor for any other unwanted effects caused by inappropriate
settings or changes made by the user. The Device generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with
the instructions can cause damaging interference to radio communication!
BLUETOOTH™
BLUETOOTH™ technology intended for wireless communication with other
Bluetooth-enabled devices works in the 2.4 GHz (2400 MHz - 2483.5 MHz)
band.
Bluetooth can cause interference with important equipment (hospital equipment, navigational technology, etc.).
Installation and use of the Device in a plane is strictly forbidden.
The Manufacturer is not responsible for installing the Device in areas where this
equipment is located and doing so is forbidden!
1.
Federal Communications
Commission
Page 5
98
spaceti spaceti
EN EN
Sub-GHz communication channel
The Device uses the open license 915 MHz (902-928 MHz) band.
Installing the Device
Only an authorized Technician installs and removes the Device.
WARNING! T
he user is obligated to ensure the installation of the Device is permitted
(especially the wireless technologies and Sub-GHz communication channels) before installation and operation or to procure permission from the
authorized individual (most often the property owner or manager) to ensure that no limitations on using such technologies in the planned Device
installation area are violated. The Manufacturer is not responsible for any
damages caused by installing or using the Device in areas without permission or if the Device was not installed by an authorized Technician!
2.
Operating the Device for the first time

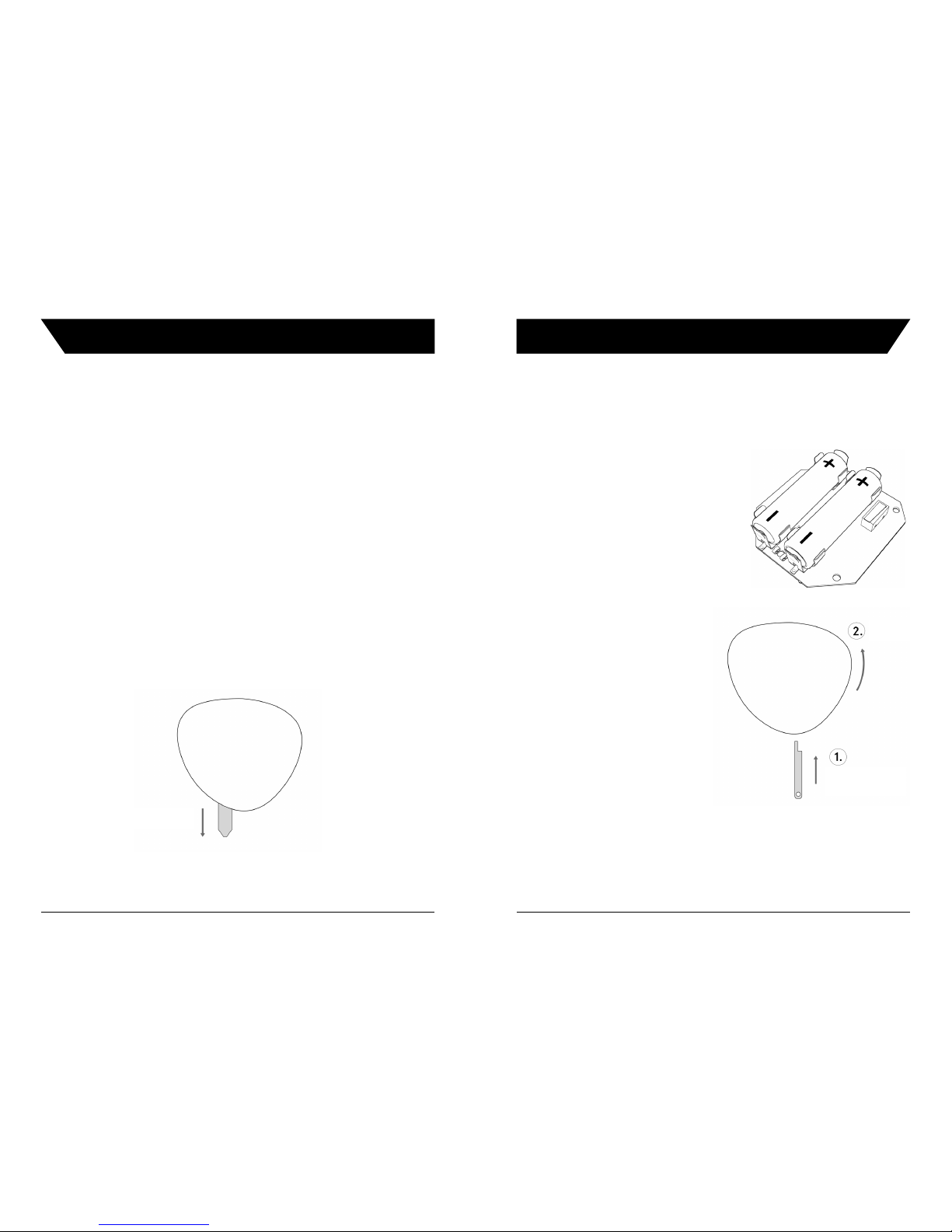

Upon installation, the technician will remove the protective cover as seen
on image X, which will connect the battery to the circuit and the Device
will begin to operate.
3.
Fig.2
Pull
protective cover
WARNING!
Under no circumstances can a battery
with specifications different from those
listed in the technical specifications be
used. See Chapter 2 – Information about
the Device
It is forbidden to re-charge the battery!
It is forbidden to dispose of used batteries in the trash. Used batteries should be
delivered to collection points!
Fig. 3
Using the Device in a new location
The technician will remove the
Device, prepare it for transport, and
then re-install the Device using the
MEC 1 Clicking tool.
WARNING!
If the user installs the Device without the Technician, or replaces the battery
without the Technician, or uses the Device at a new location, the Manufacturer is not responsible for any damages that could be caused, neither to the
Device, nor in the unauthorized installation location, nor any possible health
damages to individuals!
5.
Fig. 4
Operating the Device and replacing the battery
The Technician replaces the battery during regular maintenance visits.
The Technician decides whether it is necessary to replace the battery. If they
are both to be replaced, both batteries will be replaced at once and the same
type of battery from the same producer will be installed!
4.
Rotate
Push
MEC 1
Page 6
1110
spaceti spaceti
EN EN
Malfunctions
If the Device ceases to work or displays any malfunctions, immediately contact
the Technician or the Manufac turer.
6.
Manipulating unnecessary material and electrical or electronic equipment
WARNING!
NEVER dispose of the Device or the battery in the trash!
The Manufacturer states that mixing with normal trash can cause negative
effects on the environment and human health.
Never burn the Device or the battery.
Never place the Device or the battery into heating equipment.
Adhere to all general regulations in the given location when removing the used
device or battery and place the battery in a designated receptacle. The Device
will be removed by the Technician and then its parts and materials will be
recycled.
Dispose of the packaging in designated receptacles
FCC compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
The device is only in compliance if no changes or modifications is made to the
device. The device is in compliance with the requirement for RF exposure in
the US with 20 cm separation distance between the user and the device.
The antenna is fixed to the device and no change in antenna or fixation
of the antenna is acceptable and such modification is considered
to violate the Compliance Statement.
ISED compliance Statement
(English)
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
(French)
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1) l’appareil ne doit pas produire de brouillage;
2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
7.
WARNING! Recycle!
If the device will be disposed of outside the European Union, the user is
obligated to ensure the Device and battery are disposed of according to the
laws and regulations of the given country and to acquire information about the
correct method of disposal from the authorities.
Contacts and maintenance
Contacting the Manufacturer:
EU: (+420) 777 451 105
US: (+1) 650 451 1105
UK: (+44) 7518 359909
Norway: (+47) 91357135
Sweden: +44 (0) 7730 091 575
Please send any general questions to: [email protected]
General information and details can be found at: www.spaceti.com
CE Declaration of Conformity available at:
www.spaceti.com/declaration_conformity
8.
FCC / ISED
Page 7
12
spaceti
EN
spaceti.com
9.
Manufacturer
spaceti s.r.o.
Quadrio Offices, Purkyňova 2121/3,
110 00 Prague, Czech Republic
ID: 05137659, VAT: CZ05137659
[email protected]
www.spaceti.com
Declares taht the declaration of conformity is issued under our sole responsibility and belongs to the following product (s):
Trade name: Spaceti Stone STANDARD
Part number: SST0L1V100
Intended use: A smart stone in the Spaceti system
Is in a compliance with the relevant EU legislation:
• Directive 2014/30/EU
• Directive 2014/35/EU
• Directive 2014/53/EU
• Directive 2011/65/EU
•
The following harmonized standards and technical specifications have been
applied:
• EN 61000-6-1:2007
• EN 61000-6-3:2007
• EN 301 489-1 V1.9.2
• EN 301 489-3 V1.6.1
• EN 301 489-17 V2.2.1
• EN 300 328 V2.1.1
The product is safe when is used for its intended purpose and according to the
manual.
In Prague on: ..................................................
Signature and stamp: .......................................
Ondrej Plevka
COO, Managing director, spaceti s.r.o.
• EN 300 220-2 V2.4.1
• EN 62368-1:2014
• EN 60950-1:2006
• EN 62311:2008
• EN 55024:2010
• EN 50581:2012
Loading...
