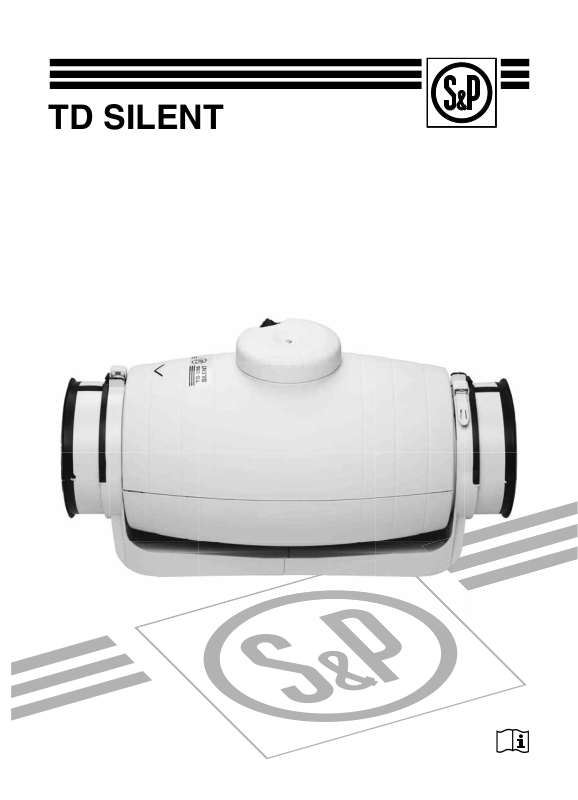

TD SILENT
Page 2
(~ V / Hz)
Page 3
TD - 250/100,TD-350/125
TD - 1000/200
LB
C
LA
N
TD - 250/100,TD-350/125
TD - 1000/200
LB
REB
LA
L
N
L
N
N
Page 4
Instructions Manual
ENGLISH
Thank you for placing your confidence in
S&P by buying this product. It has been
manufactured following current technical
safety regulations and in compliance with EC
standard.
Please read this instructions booklet
carefully before installing or starting up the
product. It contains important information on
personal and user safety measures to be
followed while installing, using and carrying
out maintenance work on the equipment.
Once the product has been installed, please
hand in this booklet to the end user.
Check that the apparatus is in perfect
condition while unpacking. Any fault or
damage caused in origin is covered by the
S&P guarantee. Please make sure that the
apparatus coincides with the product you
have ordered and that the details on the
instructions plate fulfil your necessities.
Transport and manipulation.
- The packaging used for this apparatus has
been designed to support normal
transporting conditions. The apparatus
must always be transported in its original
packaging as not doing so could deform or
damage the product.
- The product should be stored in a dry
place in its original packaging, protected
from dust and dirt until it is installed in its
final location. Do not accept delivery if the
apparatus is not in its original packaging or
shows clear signs of having been
manipulated in any way.
- Do not place heavy weights on the packed
product and avoid knocking or dropping it.
Important information for the safety of
installers and users.
- Installation must only be carried out by
qualified persons.
- Make sure that the installation complies
with each country’s current mechanical and
electrical norms.
- Once ready to use, the apparatus must
fulfil the following standards:
- Standard for Low Pressure Instalments
2006/95/CE
- Standard for Electromagnetic
Compatibility 2004/108/CE.
- Ventilators, or apparatus that include them,
have been designed to move the air in the
area stipulated on their characteristics
plate.
- This apparatus must not be used in
explosive or corrosive atmospheres.
- If a ventilator is going to be installed to
extract air from premises where a boiler or
other combustion apparatus are installed,
make sure that the building has sufficient
air intakes to assure adequate combustion.
- The extractor outlet must not be connected
to a duct used to exhaust smoke or fumes
from any appliance that uses gas or any
other type of fuel.
- This appliance is not intended for use by
young children or infirm persons unless
they have been adequately supervised by
a responsible person to ensure that they
can use the appliance safely. Young
children should be supervised to ensure
that they do not play with the appliance
Safety during installation.
- Make sure there are no loose elements
near the ventilator, as they could run the
risk of being sucked up by it. If it is going to
be installed in a duct, check that it is clean
of any element that could be sucked up by
the ventilator.
- When installing an apparatus, make sure
that all the fittings are in place and that the
structure which supports it is resistant
enough to bear its weight at full functioning
power.
- Before manipulating the apparatus, make
sure the mains supply is disconnected,
even if the machine is switched off.
- Check that the mains supply voltage and
frequency values coincide with the
stipulations on the characteristics plate.
- The electrical installation must include a
double pole switch with a contact
clearance of at least 3 mm, correctly sized
and in accordance with the electrical
standards of the country of installation
- Please follow the connections diagram for
the electrical connections.
- If an earth connection is necessary, check
that it correctly connected and that
Page 5
adequate thermal and overloading
protection has been connected and
adjusted to the corresponding limits.
- If a ventilator is installed in a duct, the duct
must be exclusively for the ventilation
system.
Starting up.
Before starting up the machine, make sure
that:
- The apparatus is well secured and the
electrical connections have been carried
out correctly.
- The safety devices have been adequately
connected.
- No loose material or fitting remains can be
sucked up by the ventilator. If the ventilator
has been mounted in a duct, make sure it
is clear of loose material.
- The earth fittings are adequately
connected.
- The electrical safety devices are correctly
connected, adequately adjusted and ready
for use.
- The wire and electrical connections inputs
are correctly sealed and water-tight.
When starting up the machine, make sure
that:
- The propeller turns in the correct direction.
- There are no abnormal vibrations.
- If any of the electrical safety devices blow,
the apparatus must be quickly
disconnected from the mains supply. The
whole installation should be carefully
checked before trying to start up the
machine again.
Maintenance.
- Before manipulating the ventilator, make
sure it is disconnected from the mains
supply even if it has previously been
switched off. Prevent the possibility of
anyone else connecting it while it is being
manipulated.
- The apparatus must be regularly
inspected. These inspections should be
carried out bearing in mind the machine’s
working conditions, in order to avoid dirt or
dust accumulating on the propeller, turbine,
motor or grids. This could be dangerous
and perceptibly shorten the working life of
the ventilator unit.
- While cleaning, great care should be taken
not to unstable the propeller or turbine.
- All maintenance and repair work should be
carried out in strict compliance with each
country’s current safety regulations.
Recycling.
- EEC Standards, together with the
responsibility we should assume with
future generations in mind, oblige us to
recycle all the materials we can. Therefore,
please deposit all left-over material and
packaging in their corresponding recycling
containers and hand in the replaced
machines to the nearest handler of this
type of waste product.
If you have any queries about S&P products,
please contact our after-sales service in
Spain, or your local S&P dealer in any other
country. If in doubt, please visit our WebPage at www.solerpalau.com
